Features

2″ Bolt-on slim waveguide WGP14-50X SLIM from PRV Audio is an exponential horn to consider for your 2″ Exit Compression Driver! At 2.67″ of mounting depth, this horn makes installation easy in tight spaces.

A standard 4 bolts mount is compatible with most 2″ compression drivers. The WGP14-50X SLIM is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1400 Hz.

Squared outside edges allow easy side or up stack of multiple drivers in a compact format. This increases options for custom systems, allowing you to fit more with less space, which is ideal for both custom door panels and trunk systems.

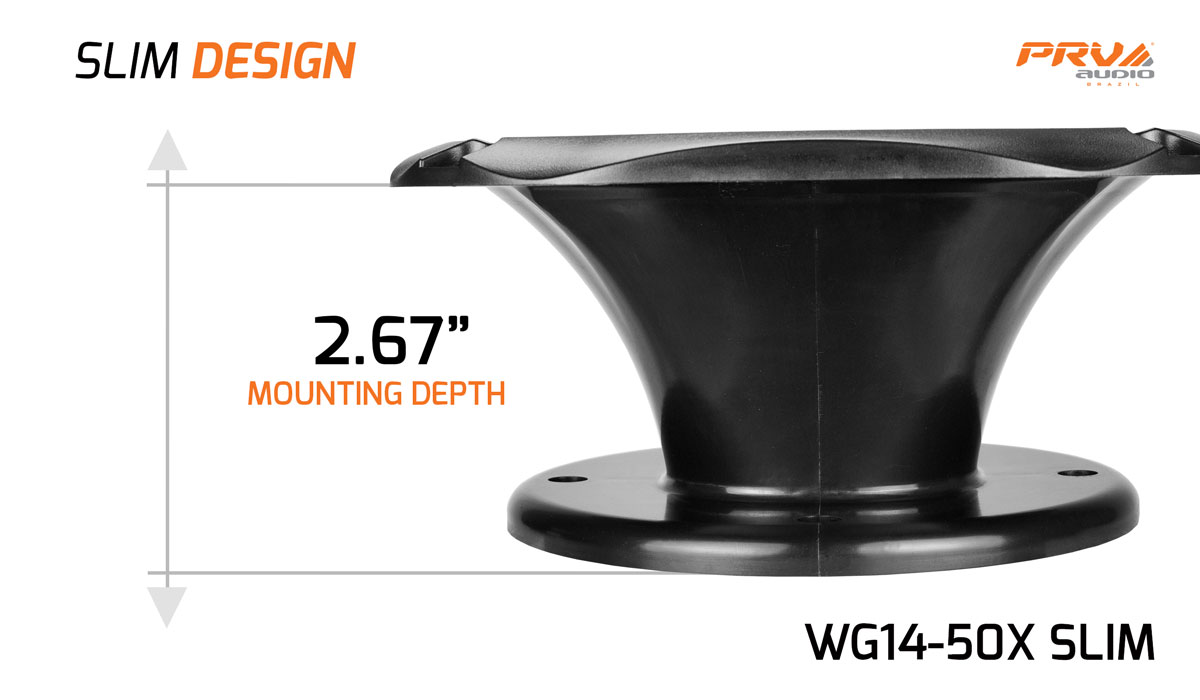

• Its slim mounting depth of 2.67″, with a standard 6.14″ x 6.14″ faceplate, takes up very little mounting depth, allowing you to mount a compression driver with very little mounting depth.
• Designed to deliver big performance in very limited space, when you add any PRV 2″ Exit Driver to it.
• Its 60° x 60° dispersion pattern is ideal for short throw applications
• Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
• Recommended minimum crossover frequency of 1,400 Hz
• Includes 4x screws

GENERAL SPECIFICATIONS

Throat Diameter	2” (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31″ 8 mm
Bolt Circle	4″ 102 mm
Nominal Coverage
Horizontal	60°
Vertical	60°
Flare type	Hybrid
Material	Plastic (ABS)
Finish / Coating	Black

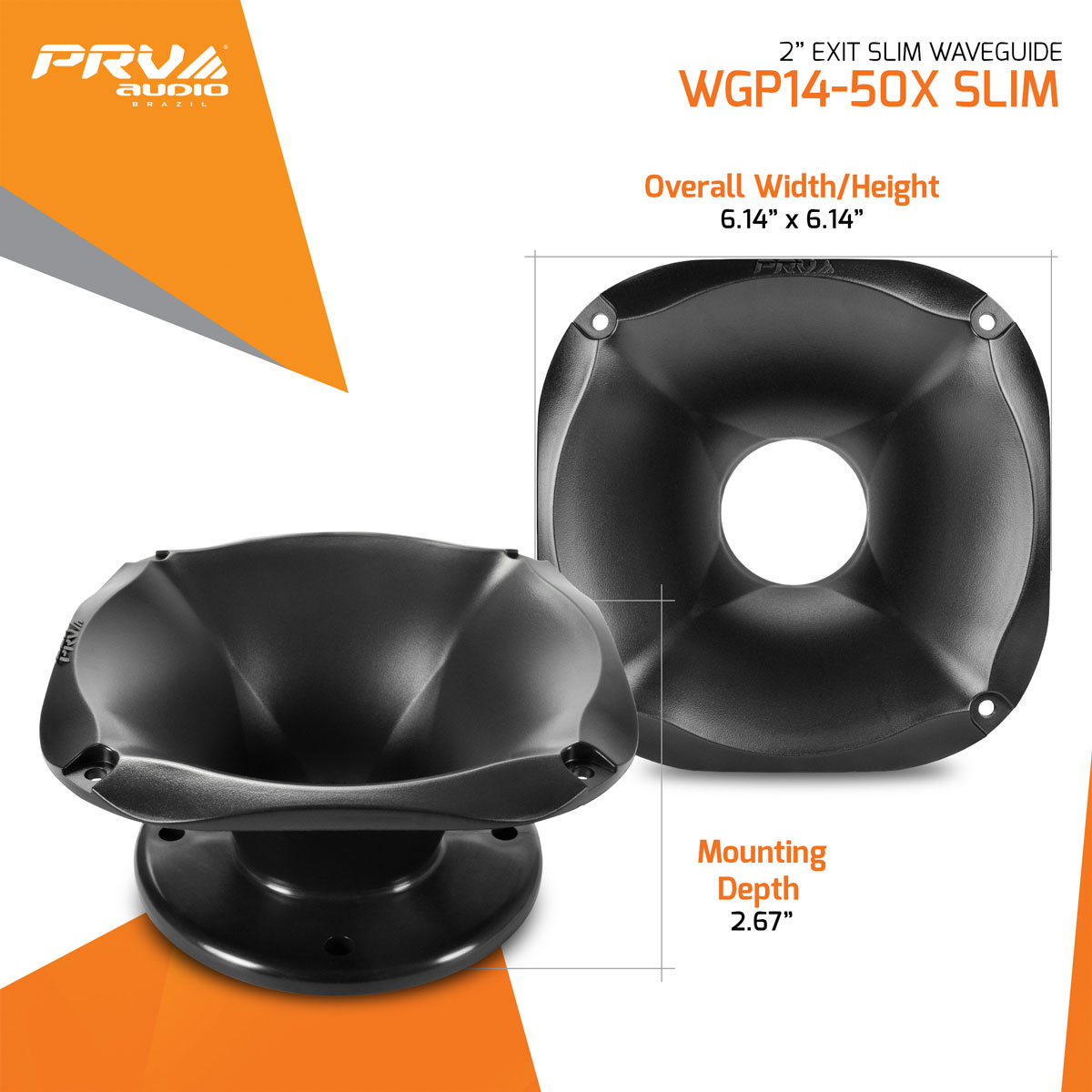

Dimensions
Height	6.14″ (156.0 mm)
Width	6.14″ (156.0 mm)
Depth	2.97″ (75.5 mm)
Mounting Depth	2.67″ (67.9 mm)
Baffle Cutout
Diameter Circle	5.59″ (142 mm)
Net weight	0.42 lb (0.19 kg)
