Q Series digital amplifiers are all about ultra compact design, where performance is not sacrificed!
Highlights
Max Output Power of 1400 Watts RMS at 1 Ohm – 1 Channel full range amplifier stable at 1Ohm gives you the benefit to wire multiple speakers and dividing the power. Most Common setups are 8 speakers, 8 drivers or even 8x tweeters of 8 ohms wired in parallel, providing up to 175 watts per component.

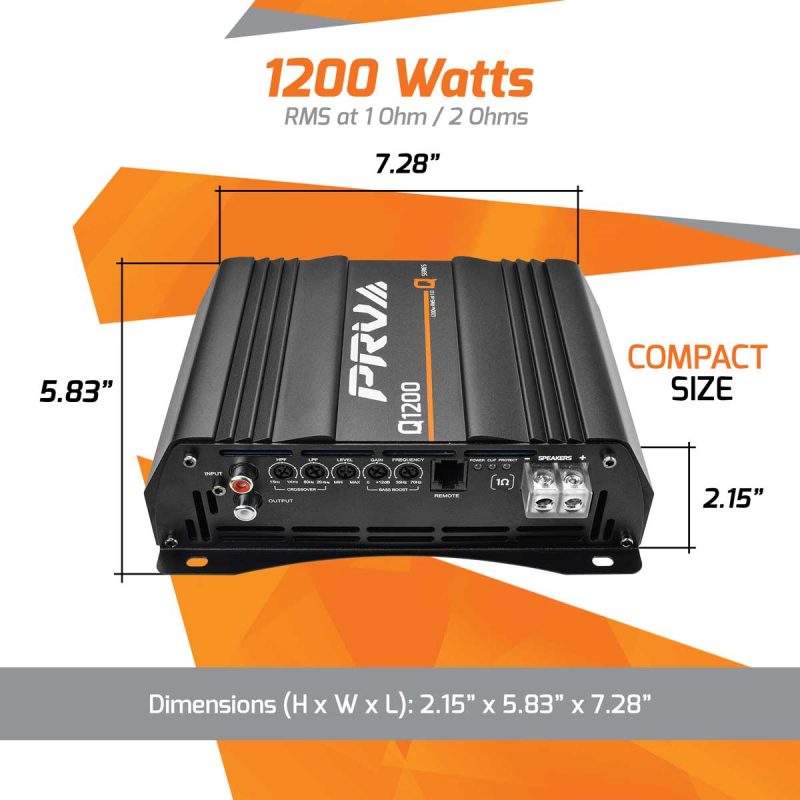

Ultra Compact Design, where performance is not sacrificed! Dimensions: 5.83″ Wide x 7.28″ Length x 2.15″ Height
4 Gauge power/ground connectors and 12 Gauge speaker terminals
Built-in variable HPF / LPF crossover filters and bass boost control. This allows tuning for speakers or horn drivers, an easy setup without needing an external crossover.
Our engineering team focused on achieving fidelity first, and then on making our Q Series amplifiers amazingly efficient and small.
The Q1200 1 ohm is rated at 1200 Watts RMS at 12.6 volts with 84% efficiency.
The Q Series delivers the most innovative nano technology, able to constantly deliver power at a wide frequency range when on a compact heatsink. Loaded with features, built-In Low/ High Pass Filter, Bass Boost allow the use of this amplifier for a broader variety of applications – from deep bass all the way to high frequencies.
Before Installing:
You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 100A fuse 12 inches away from the battery as a safety precaution
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.
www.prvaudio.com/q1200-1ohm
Technical Details
GENERAL SPECIFICATIONS
Channels
1 Ohm
Max Output Power
1400 Watts
Rated RMS Power at 12.6 V at 1 Ohm
1200 Watts
Rated RMS Power at 12.6 V at 2 Ohms
700 Watts
Average Efficiency
84%
Rated RMS Power at 14.4 V at 1 Ohm
1400 Watts
Operating Voltage
10 to 16 Volts
Minimum Capacity of Battery
55 Ah
Recommended Capacity of Battery
70 Ah
Recommended Fuse
70 A
Minimum Power Wire
4 Gauge
Minimum Speaker Wire
12 Gauge
Frequency Response (+3dB)
15Hz to 20KHz
Low Pass Filter
80 Hz to 20 kHz
High Pass Filter /Subsonic
15Hz to 1000Hz
Bass Boost Level
0 dB to +12dB
Bass Boost Frequency
35 Hz to 70 Hz
Protection System
On Circuit Board
Heat Sink Type
Cast Aluminum
Dimensions ( H x W x L )
2.15″ x 5.83″ x 7.28″
Weight
3.70 Lbs
* Rated RMS Power; Average power output from 60 Hz to 1000 Hz at sinusoidal signal measure at THD <= 1% with resistive
