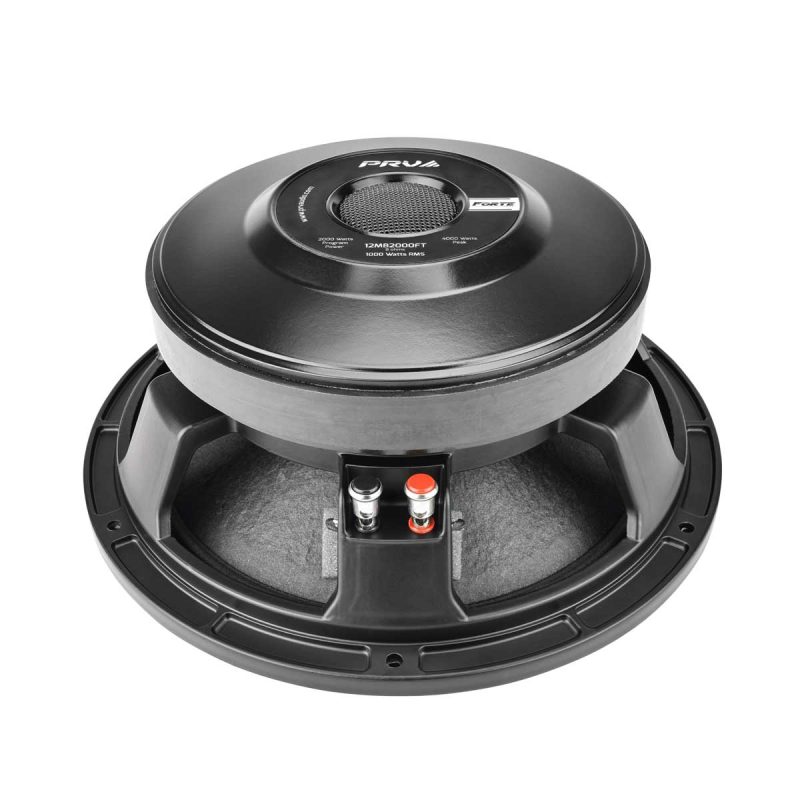

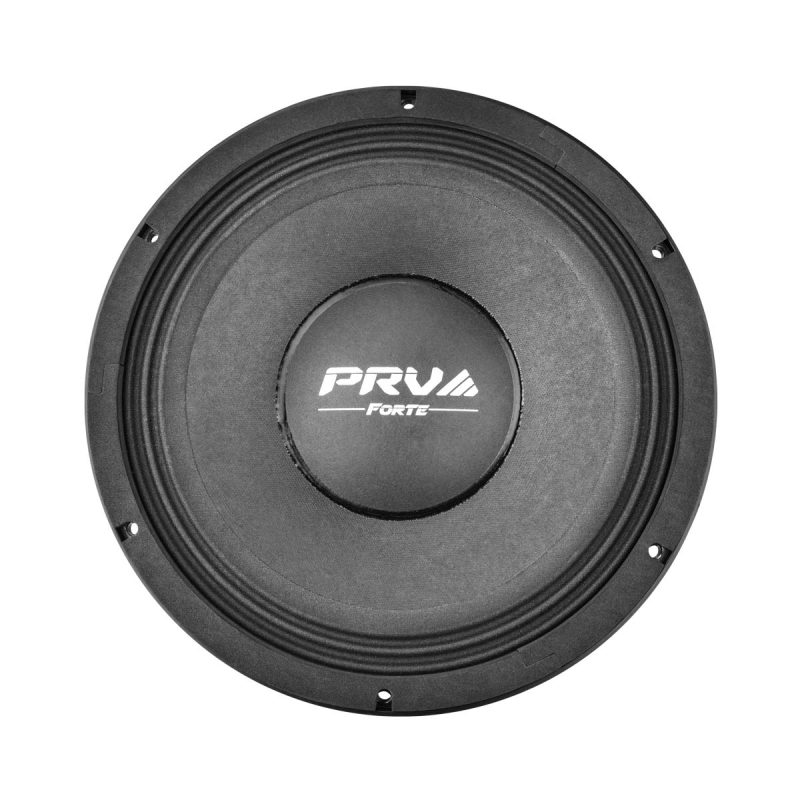

12" MIDBASS LOUDSPEAKER

12MB2000FT

Out of stock

-

  • 12″ Midbass – 8 Ohm
  • Ferrite Magnet
  • 98 dB – 2000 Watts

This product is discontinued
and no longer available.

SKU: 12MB2000FT Category:

Features

Features

The 12MB2000FT midbass from PRV Audio’s Forte Series offers outstanding durability with high output. This driver will deliver a strong vocal response making it great for high-power three-way systems.
Built for loud, clear vocal performance in tight, compact spaces, with a shallow design that gives only 4.92” of mounting depth powered by ferrite magnet featuring a sensitivity of 98 dB (2.83V/1m) with a large 4” CCAW voice coil.

  • 4″ CCAW voice coil wound on glass fiber former for hi-temp performance, 8 ohms
  • Shallow Design, easy to fit on tight spaces.
  • 2,000 watts continuous program power rating makes high acoustical output
  • Excellent performance on 3-way systems
  • High efficiency, you do not need a lot of power to achieve extreme SPL levels

The cast aluminum frame uses 6 wide spokes to firmly support this massive motor assembly, designed to handle the use and abuse of the pro sound environment, the frame includes force cooling system openings which allows airflow to cool the voice coil, allowing this driver to handle up to 1000 watts RMS without issue.

Featuring an extra thick and stiff, yet light weight cone provides an excellent curve response linear through 5.000kHz to achieve the best possible linearity within the middle frequency range.

Supporting the cone is an inverted double roll cloth surround, designed for high excursion applications allowing it to handle short bursts of excessive power without damage.


To drive the large 4” voice coil, a large ferrite magnet is used with a very precise machined top and bottom plate. Its voice coil is designed to have minimum weight as possible for incredibly quick transient response on its mid bass.

Recommended (HPF) High Pass Crossover
Up to 1000 Watts RMS  at 120 Hz LR12
( 12db Per Octave Linkwitz-Riley Crossover )

Recommended (HPF) High Pass Crossover
Over 1000 Watts RMS at 120 Hz LR18
( 12db Per Octave Linkwitz-Riley Crossover )


Designed for compact enclosures, to give tight and fast midbass response above 100Hz.
Great addition to your 3 way system ( Bass, 12MB2000FT and High frequency Driver )
Recommended boxes:
Horn box size: 0.50 ft3  Port size: 12.5” x 0.50” x 11” deep
Ported box size: 0.65 ft3  Port size: 12” x 1.75” x 4” deep

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 12″ (305 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 1000 Watts
Program Power 2000 Watts
Sensitivity 2.83V at 1m 98 dB
Recommended High Pass Crossover**
**For Full Power Handling
120 Hz** LR12
**12db Per Octave Crossover
Frequency Response at -10dB 80 – 5000 Hz
Voice Coil Diameter 4″ (100 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 16.0 mm
Former Material Kapton
Magnetic Gap Depth 8.0 mm
Frame Material Die Cast Aluminum

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 35.3 l
Excursion (mathematical)*** Xmax 6.00 mm
Free Air Resonance Fs 76.6 Hz
Mechanical Factor Qms 10.75
Electrical Factor Qes 0.53
Total Factor Qts 0.50
Cone Area Sd 531 cm²
Mechanical Mass Mms 53.5 g
Bl Factor Bl 16.94 Tm
Dc Resistance Re 6.2 Ohms
Inductance Le 0.72 mH at 1 kHz
Mechanical Mass Without Air Mmd 46.6 g
Mechanical Compliance Cms 0.090 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 12.44” (316 mm)
Front Mount Baffle Cutout 11.08” (281.5 mm)
Mounting Depth 4.92” (125 mm)
Overall Depth 5.37” (136.5 mm)
Net Weight 14.55 Lbs (6.6 kg)
Shipping Weight 15.21 Lbs (6.9 kg)
Carton Dimensions W x L x H 13.78” x 13.78” x 6.65” (350 x 350 x 169 mm)
