2" Exit High Frequency Compression Driver

D3220Ti-Nd

In stock

2″ Highs Driver
Titanium Diaphragm
110 dB – 300 Watts

$159.91

In stock

PRICE FOR SINGLE UNIT

SKU: D3220Ti-Nd Category: HF Drivers & Horns Tags: COMPRESSION DRIVER, NEODYMIUM DRIVERS, TITANIUM

Features

Innovative technology for 3 inch compression drivers, featuring Powerful neodymium motor for minimal size and weight, allows you to keep a large voice coil without sacrificing performance.

The D3220Ti-Nd has quickly become the most popular choice for car audio competition due to its impressive power-to-size ratio and ability to deliver crystal-clear high frequencies. With this innovative technology, car audio enthusiasts can now achieve unparalleled sound quality and performance in their vehicles.

Built around a pure Titanium diaphragm, this driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1200 to 19,000 Hz) with an emphasis on the critical upper frequency range.

Pure Titanium diaphragm with large 3″ Voice Coil, providing the lowest possible moving mass with excellent efficiency – 110 dB Sensitivity.
Extremely powerful neodymium magnet for minimal size and weight without sacrificing output capability

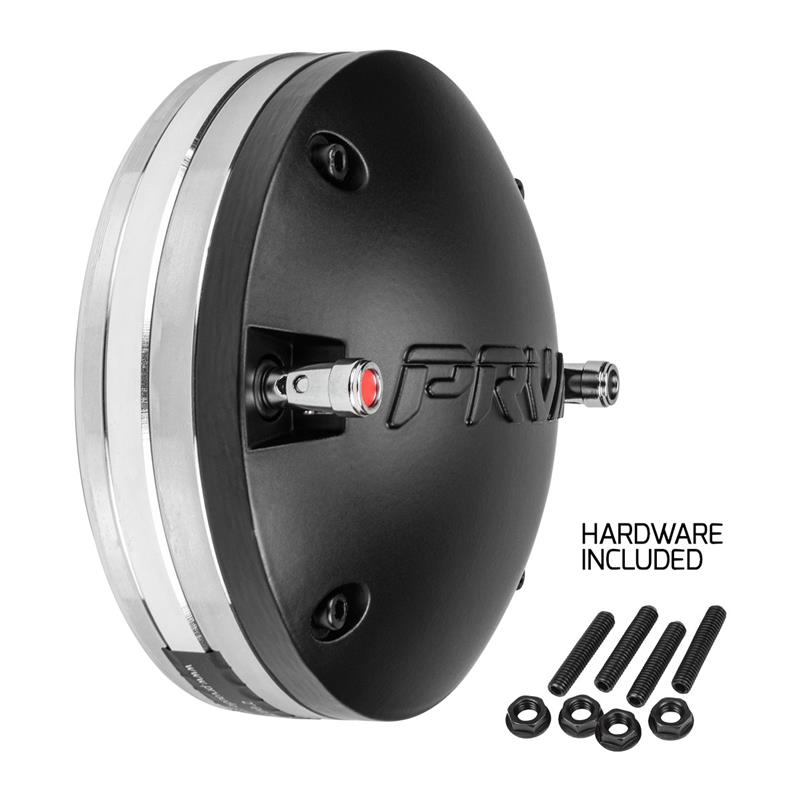

Works great with any Shallow Horn WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
2 Inch Exit horn Driver with crystal clear, high impact highs response from 1200 to 19,000 Hz
PRO Audio high frequency driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

The D3220Ti-Nd neodymium titanium compression horn driver, offers the best performance for size ratio, features a powerful neodymium magnet motor.

This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement. We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems.

The special diameter allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The driver diameter measures only 4.88″ having enough clearance to fit inside the 5.75″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.

Make your system unique with our colored horns. Available on Single Color, Dual Color, and Dual Tone Finish.

The titanium diaphragm is attached to a 3″ diameter copper-clad aluminum wire with Kapton® former for a high 300 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

1400 Hz at 12 dB per octave filter Crossover / BT12
1200 Hz at 18 dB per octave filter Crossover / BT18

The pure titanium diaphragm of this driver provides crisp output focusing on vocals and high-frequency response, making it our most famous high-frequency driver!

PRV D3220Ti-Nd 2″ High Frequency Neodymium Driver 300 Watts 8 Ohm – Titanium Diaphragm 3” Voice Coil, High Performance and Lightweight

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter	2” (50 mm)
Nominal impedance	8 Ohm
Nominal Power Handling*	150 Watts
Continuous Program Power(RMS)**	300 Watts
Max Peak Power***	600 Watts
Sensitivity 2.83V at 1m	110 dB
Recommended Hi Pass Crossover For Full Power Handling	1400 Hz 12db/oct Crossover
Frequency Response at -10dB	1,200 – 19,000 Hz
Voice Coil Diameter	3” (76.2 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Titanium
Flux Density	1.80 T
Magnet Material	Neodymium

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.} ^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.}
^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

EXTRA INFO

Overall Diameter	4.88″ (124 mm)
Overall Depth	2.21″ (56 mm)
Mounting Bolt circle	M6 x 4″ (102 mm)
Net Weight	5.0 lbs (2.27 kg)
Shipping Weight	5.27 lbs (2.39 kg)
Carton Dimensions W x L x H	5.71″ x 5.71“ x 3.35″ (145 x 145 x 85 mm)

PRV AUDIO D3220Ti-Nd DATASHEET Download

Repair Parts

Replacement Diaphragm for D3220Ti-Nd

RPD3220Ti

15 reviews
$43.91 Add to cart Compare

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Los mejore driver D3229ti

Se lo recomiendo son los mejores driver 3220ti nd

Beast drivers

Bought them for my set up I already had 8 ph and bought 8ti to have the complete set up and I love them can’t complain

I have had these in my daily driver, in my custom doors. I crossed over at 1.2k with a 8MB700 and 8 carbon fiber. Such an incredible sound. Alot of highs, I had to put tweeter down but besides that the crossover process was very easy. My listening position is about 8-10 feet away from the drivers and they do like volume. Once you start to turn them up a little the crispy high end really starts to come through. It's like the tweeter is inside my head, which is exactly what I want.
