Combine this bundle with any 6.5″ and 8″ loudspeakers when building a stuntwall or custom door panel! This Bundle will cover all your vocals, midrange, and upper midrange response with high output, so you can hear them from a distance.

This package is also very affordable, so it’s an excellent option for people looking to get high output sound from a custom car system

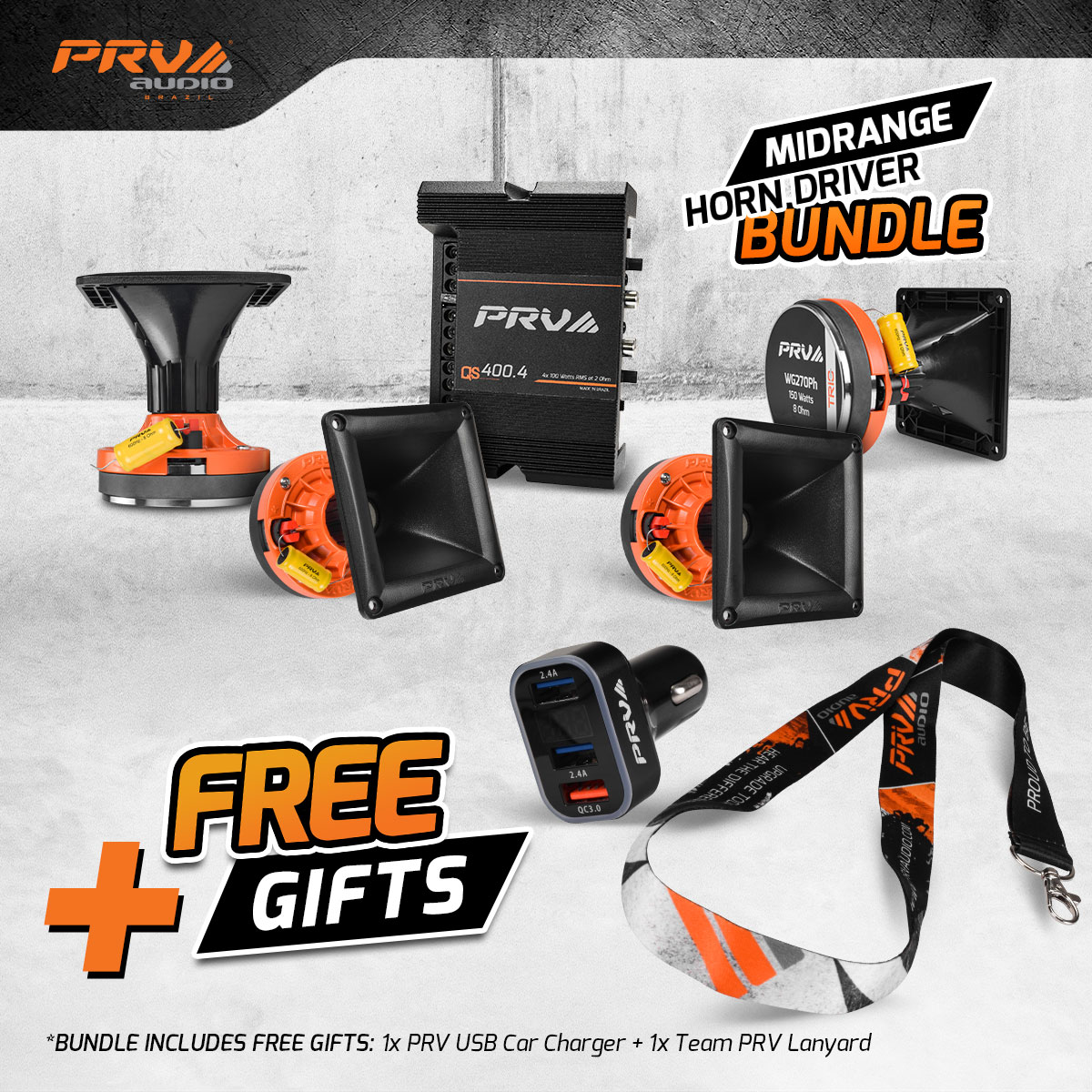

Bundle Components:
4x WG270Ph
1” Exit Midrange Horn Drivers
600 – 8,000 Hz / 106.5 dB

1x QS400.4 2 Ohm
Mini 4 Channel Amplifier
2x Bridged 200 Watts at 4 Ohm each

+ Free Gifts:
1x PRV USB Charger with Built-in Voltmeter
1x Team PRV Audio Lanyard

This 1″ exit midrange horn drivers + mini amplifier bundle, not only will it perform amazingly well for its price, but it will also truly show our advanced technology on PRO Audio speakers! Perfect balance between value and performance.

Do not forget to pick up your favorite Super Tweeter to complete your sound system.

How to Install them:

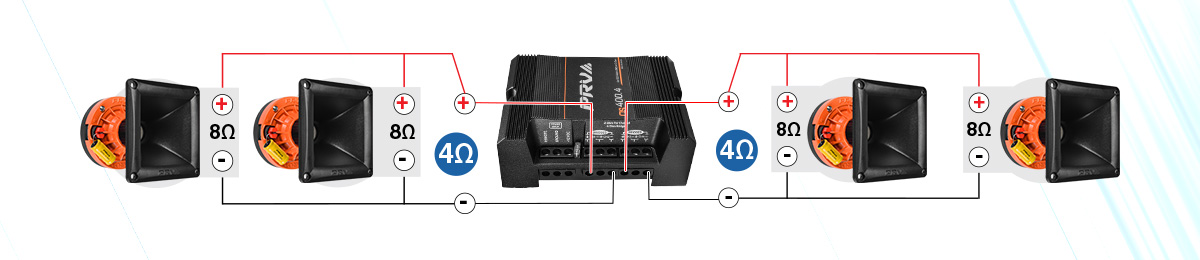

Please follow the diagram below on how to wire each component to the amplifier:

Each horn driver will be wired together in parallel per bridged channel of the amplifier, giving each driver 100 Watts RMS. You must use all RCA inputs, make sure to have your Crossover / DSP signal inputs in the right channel to provide the proper frequency range for the drivers.

Follow below for the recommended crossover points:
WG270Ph – HPF Setting – 500 Hz at 18 dB per octave filter Crossover / BT18

Amplifier recommended fuse or circuit breaker – 60A
Power Wire Inputs – (OFC) 8 Gauge wire
Speakers Wire Output – 14 Gauge wire
Visit Timpano Audio for a Complete Amplifier Wiring Kit
