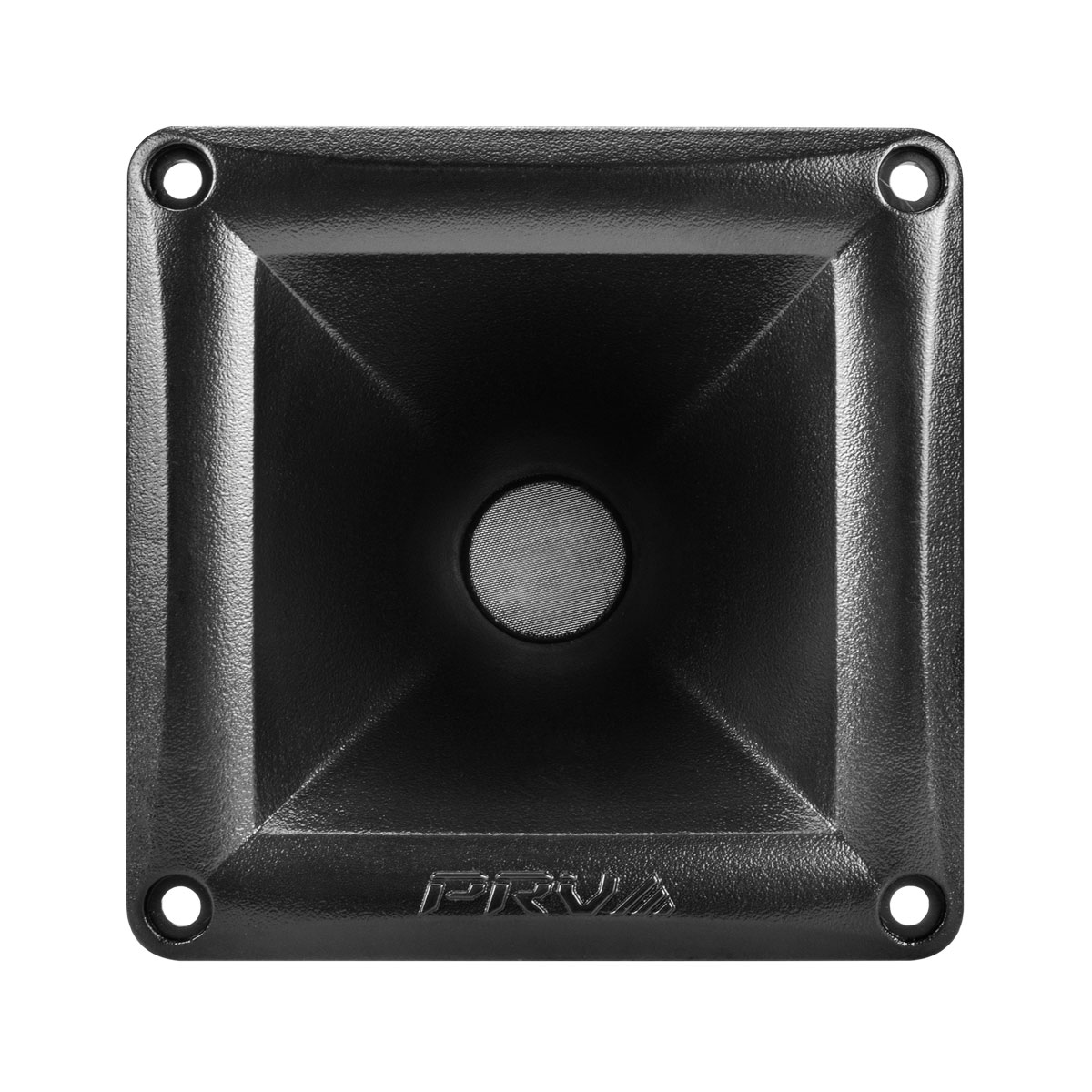

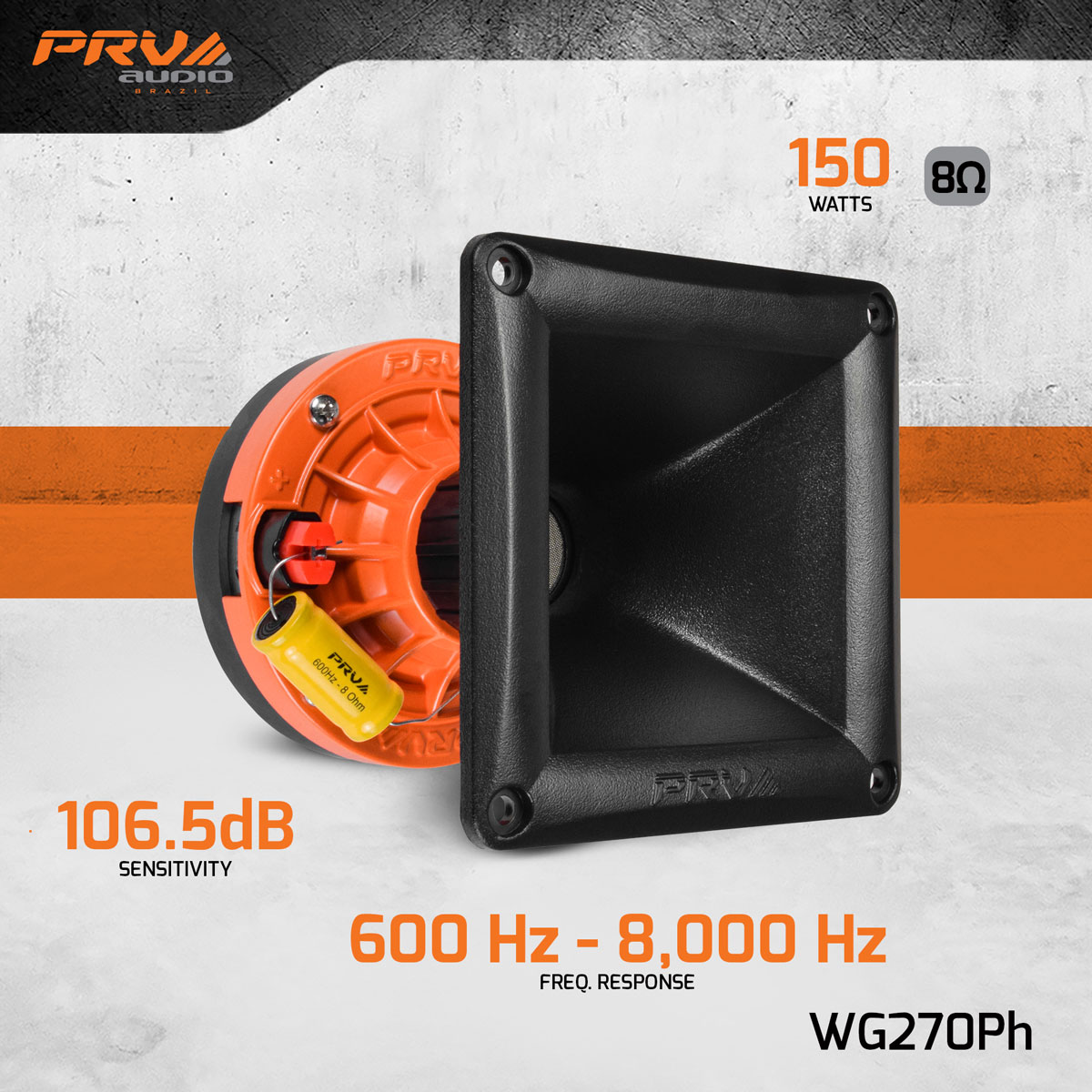

COMPACT 1" PHENOLIC COMPRESSION DRIVER + HORN - COMBO

WG270Ph

In stock

-

  • 1″ Midrange Horn Driver
  • Phenolic Diaphragm
  • 106.5 dB – 150 Watts

$39.91

In stock

PRICE FOR SINGLE UNIT

Features

Features

New addition to the 1” Exit phenolic family, the WG270Ph pairs up the D270Ph-S 1″ exit midrange driver with the WG11-25 compact 60° x 60° exponential horn.This combo is all about high vocal output in a small profile.

This horn driver is ideal for high output PA and PRO audio on wheels systems due to its capability to reproduce vocals down to 600 Hz.

  • Phenolic diaphragm provides extreme clarity in the critical midrange or vocal range. 106.5 dB efficient driver is perfect for high output audio systems.
  • Compact driver design for easy front-mounted installation. No need to remove the driver from the horn to mount it.
  • Car audio SPL enthusiasts use this 1” exit driver for vocal reinforcement on 3-way systems. Ideal horn and driver combo for vocal reinforcement.
  • Large 2″ copper voice coil can handle up to 150 Watts RMS musical power / 8 Ohm.
  • Car audio SPL enthusiasts use this 1” exit driver for vocal reinforcement on 3-way systems. Ideal horn and driver combo for vocal reinforcement.

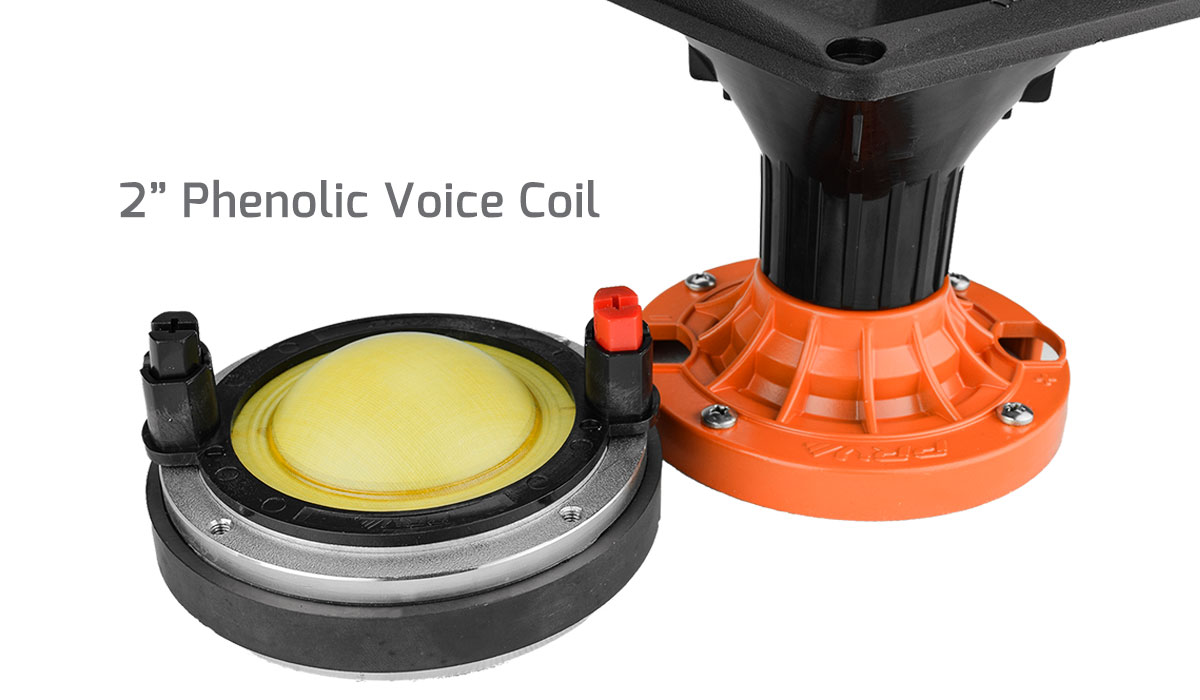

WG270Ph Diaphragm Detail Image

High temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures.

The nearly indestructible Phenolic diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 600 to 8000 Hz, ( RPD270Ph ) is built to resist the elements, perfect for outdoor use.

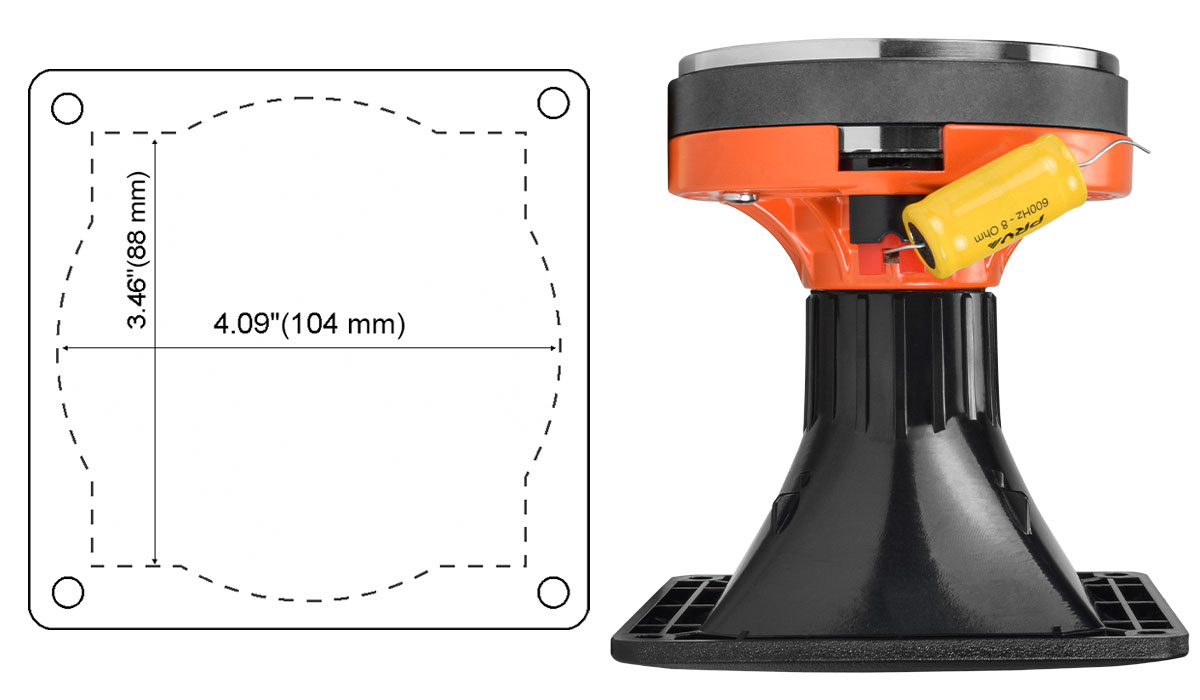

WG270Ph Installation Detail Image

Designed to reproduce the all-important vocal range with authority in the smallest profile.

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn. Download here the Baffle Cut out Instructions


WG270Ph Installation Detail Image

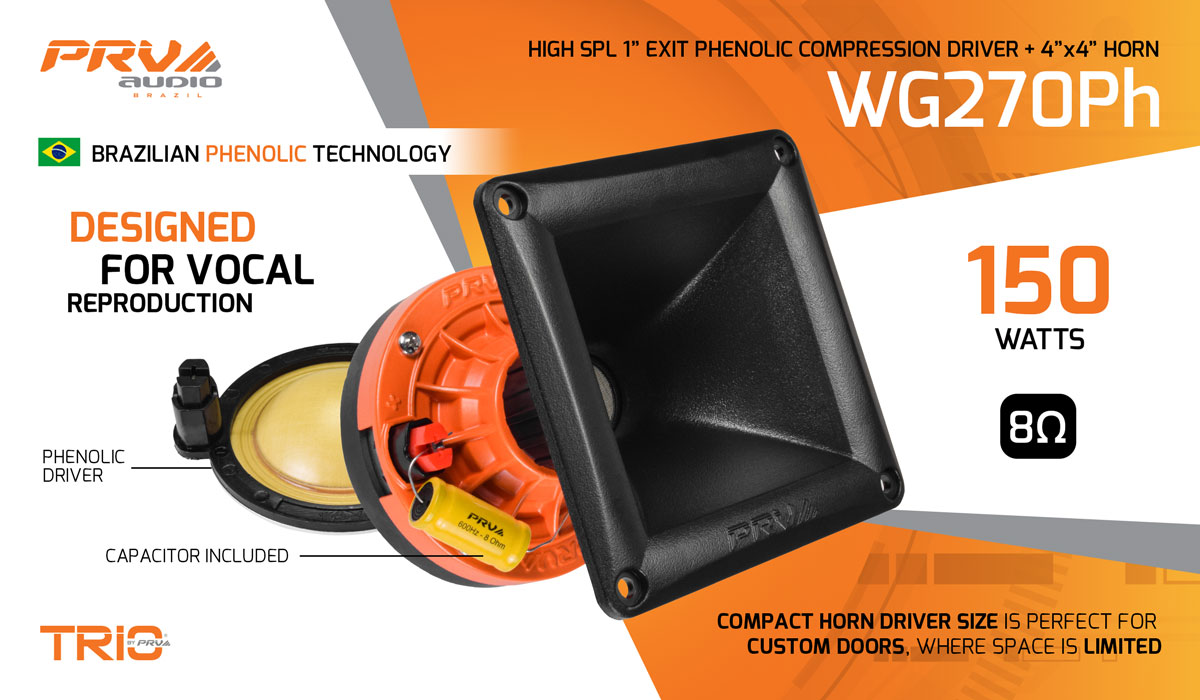

TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

Combining our company’s extensive experience, and its commitment to customer satisfaction, we have created a compact yet very powerful driver that solves the critical component spacing issue.

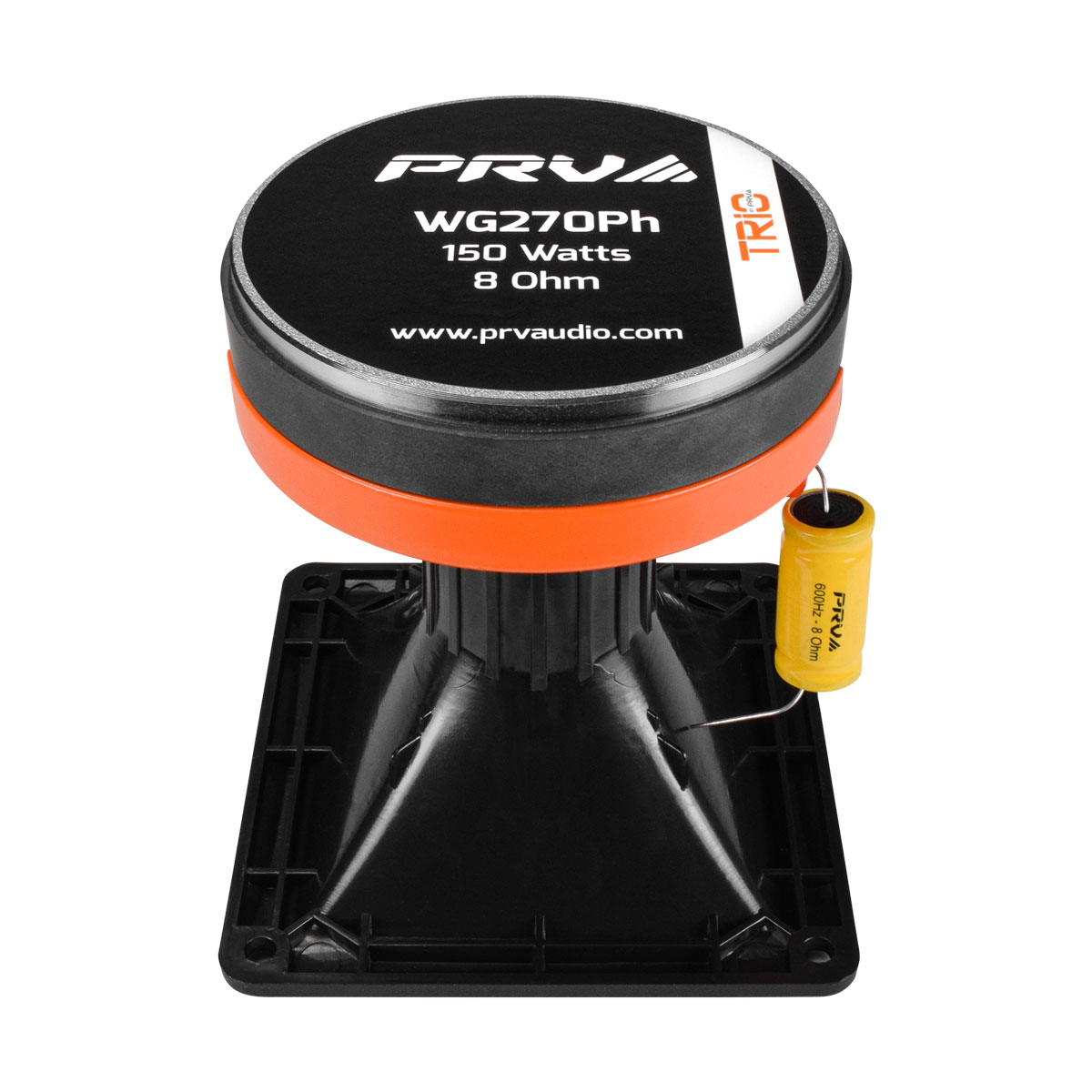

PRV Trio 1″ Midrange Horn Driver WG270Ph 150 Watts 8 Ohm – Phenolic Diaphragm

Recommended Amplifier configurations and crossover points:

2 Drivers – 1x QS400.4 at 2 Ohm, 2 drivers in parallel on a bridged channel
4 Drivers – 1x MDX1200.2 at 2 Ohm, 4 drivers in parallel on 1 channel ( Bundle Available )
8 Drivers – 1x MDX1200.2 at 2 Ohm, 4 drivers in parallel per channel
( Other channels on the amplifier may be used for Tweeters to provide a full spectrum of sound )
Recommended HPF using PRV Digital Signal Processor DSP when using up to 150 Watts RMS musical power ( without clipping )

  • 600 Hz at 12 dB per octave filter Crossover / BT12
  • 500 Hz at 18 dB per octave filter Crossover / BT18

If you have super tweeters on your system the recommended LPF is 8,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)
Nominal impedance 8 Ohm
Nominal Power Handling  75 Watts
Continuous Program Power (RMS) 150 Watts
Peak Power 300 Watts
Sensitivity 2.83V at 1m 106.5 dB
Recommended Hi Pass Crossover** **For Full Power Handling 500 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 600 – 8,000 Hz
Voice Coil Diameter 2″ (50 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic
Flux Density 1.10 T
Magnet Material Ferrite
WG270PhFrequency-Response

WG270Ph Impedance-Curve-Graphic
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

Overall Depth 5.00” (127 mm)
Mounting Depth 4.72” (120 mm)
Overall Width 4.54” (115.5 mm)
Overall Height 4.54” (115.5 mm)
Baffle Cutout Diameter 4.01” (102 mm)
Net Weight 2.69 lbs (1.22 kg)
Shipping Weight 3.02 lbs (1.37 kg)
Carton Dimensions W x L x H 4.72” x 4.72” x 5.31” (120 x 120 x 135 mm)

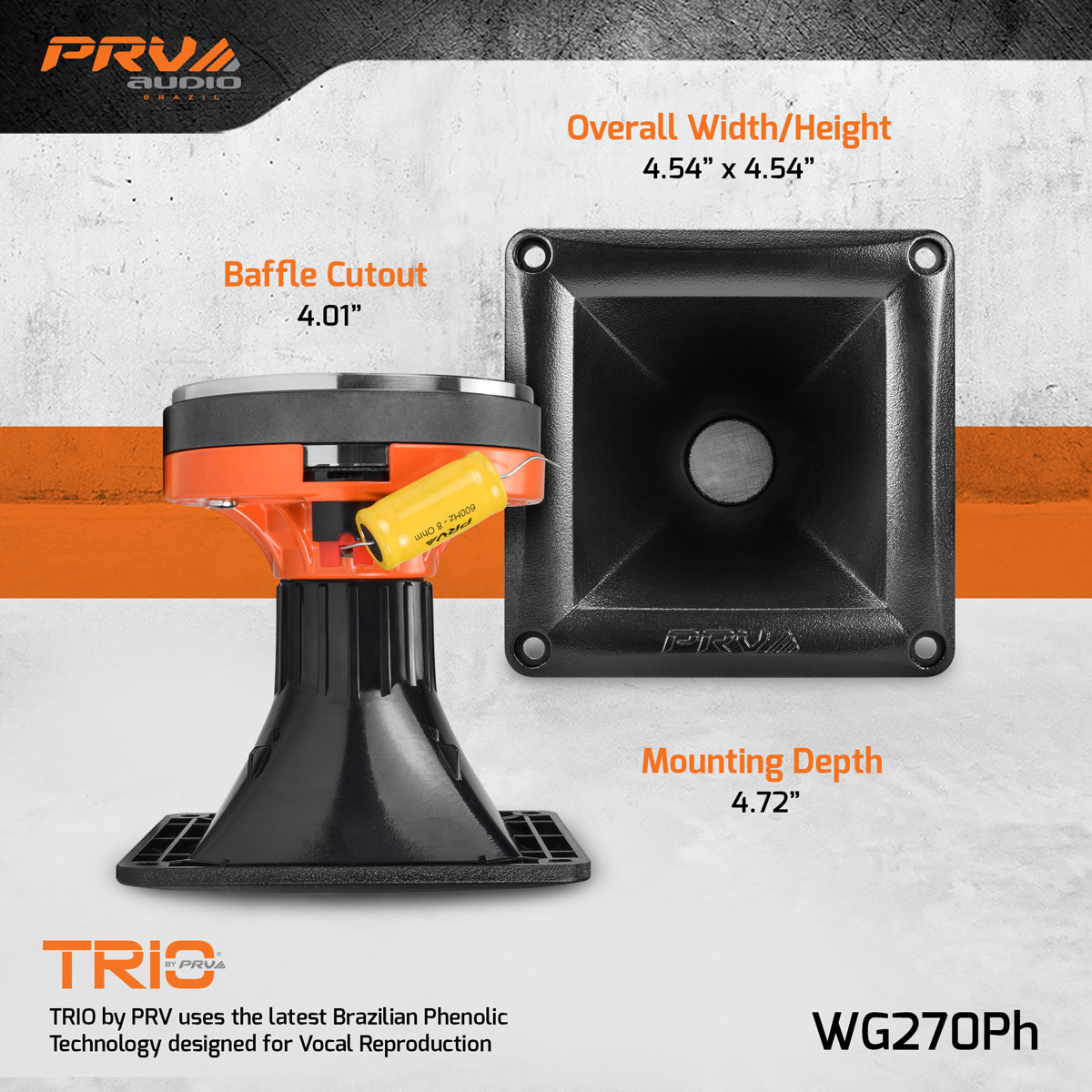

WG270Ph Dimensions-Graphic
WG270Ph Baffle Cutout Instructions
