69CX380-4

Out of stock

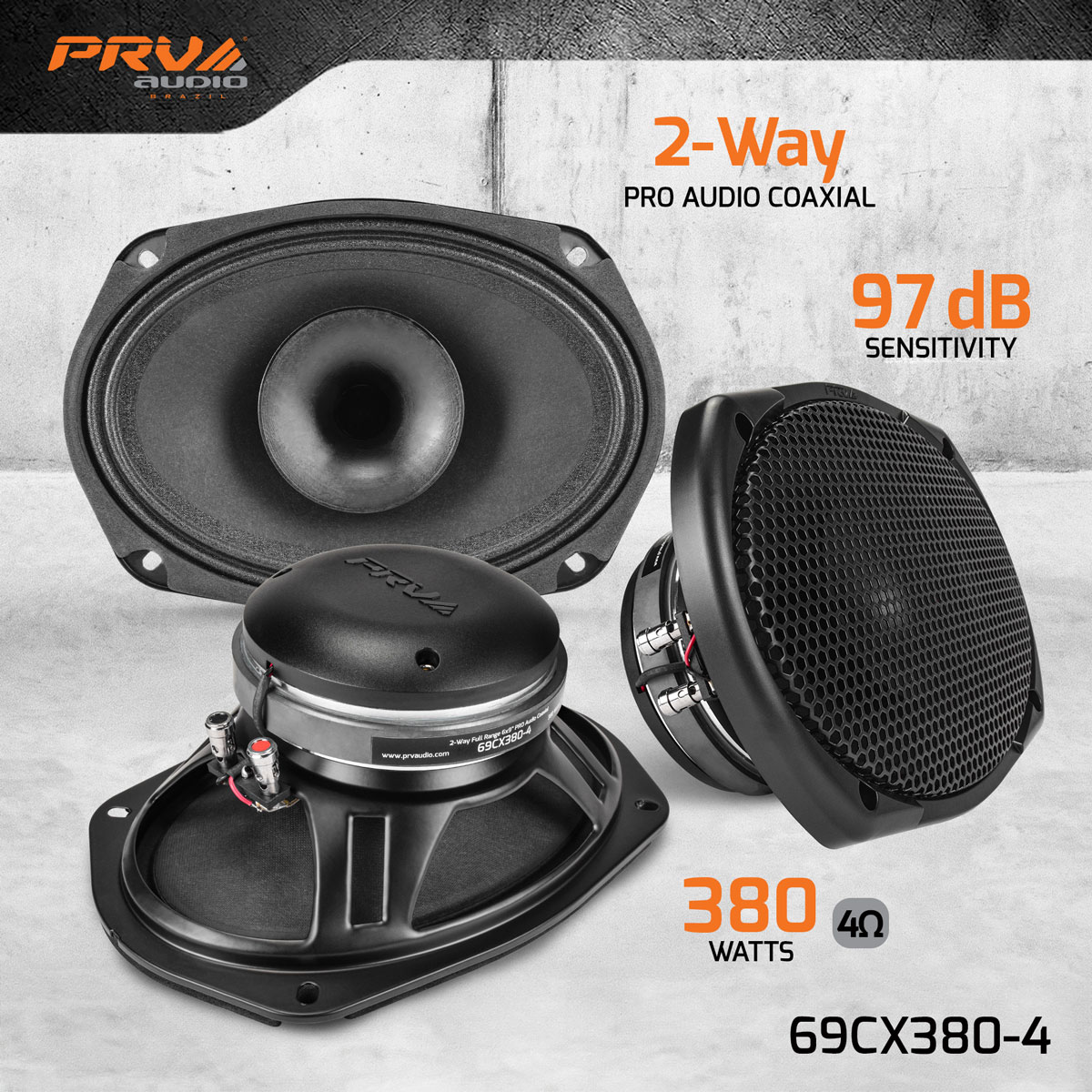

6×9″ Full Range – 4 Ohm
2-Way Coaxial
97 dB – 380 Watts

$74.91

Out of stock

PRICE FOR SINGLE UNIT

Join the waitlist to be emailed when this product becomes available

Enter your email address to join the waitlist for this product

SKU: 69CX380-4 Categories: Low Frequency Speakers, New Products

Features

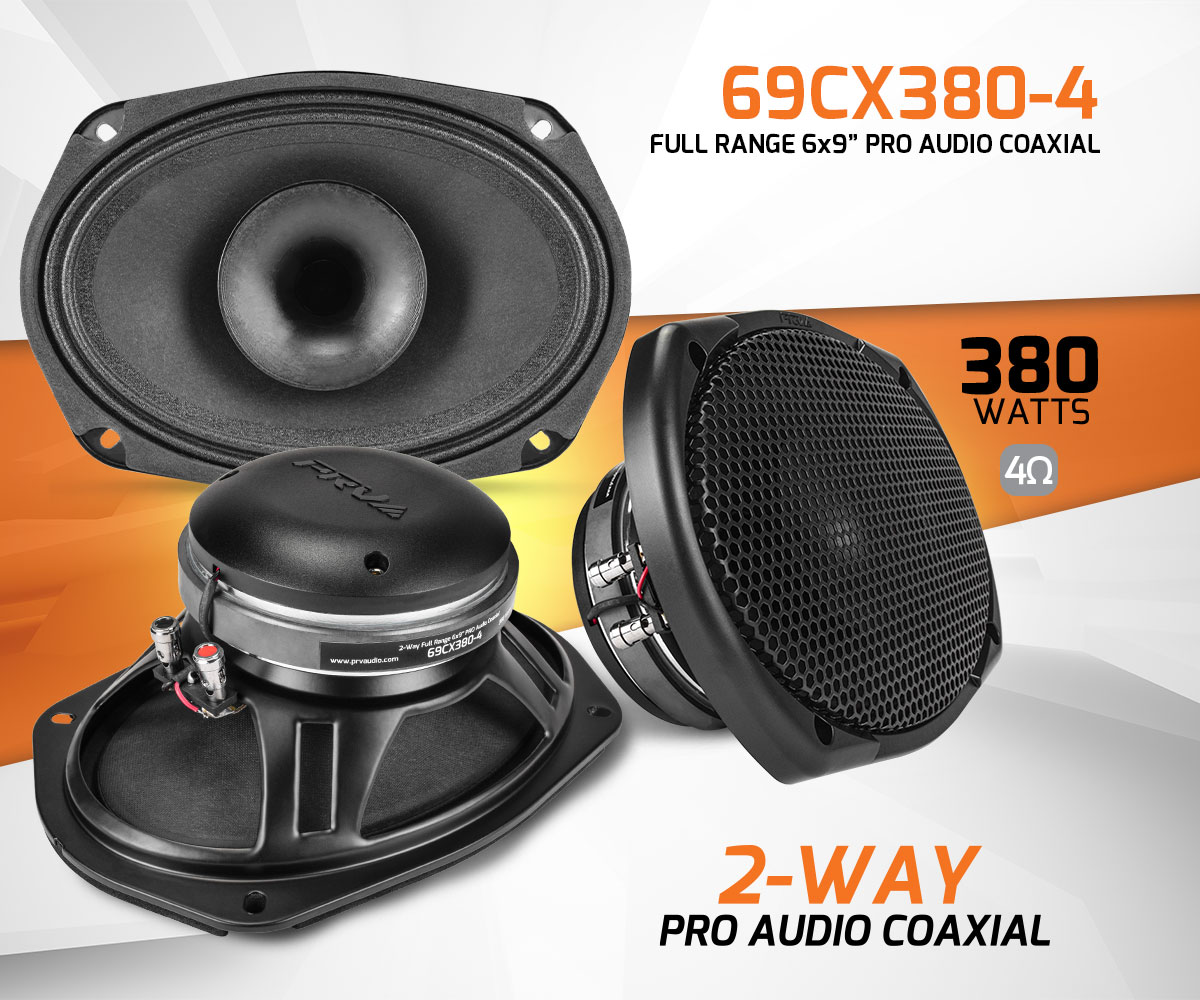

The best of the pro audio and car audio worlds are combined in this 6×9″ speaker! The 69CX380-4 coaxial speaker has a built-in tweeter driver, an innovative design that delivers amazing sound clarity.

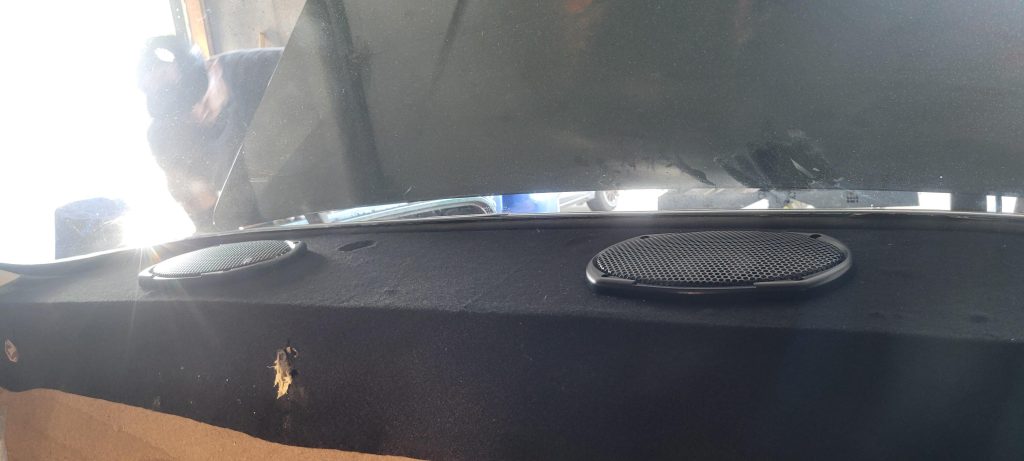

This 2-way coaxial is the perfect solution for sedans that just want to swap their 6×9″ on the back deck for high-output sound without having to drill additional holes for tweeters or drivers.

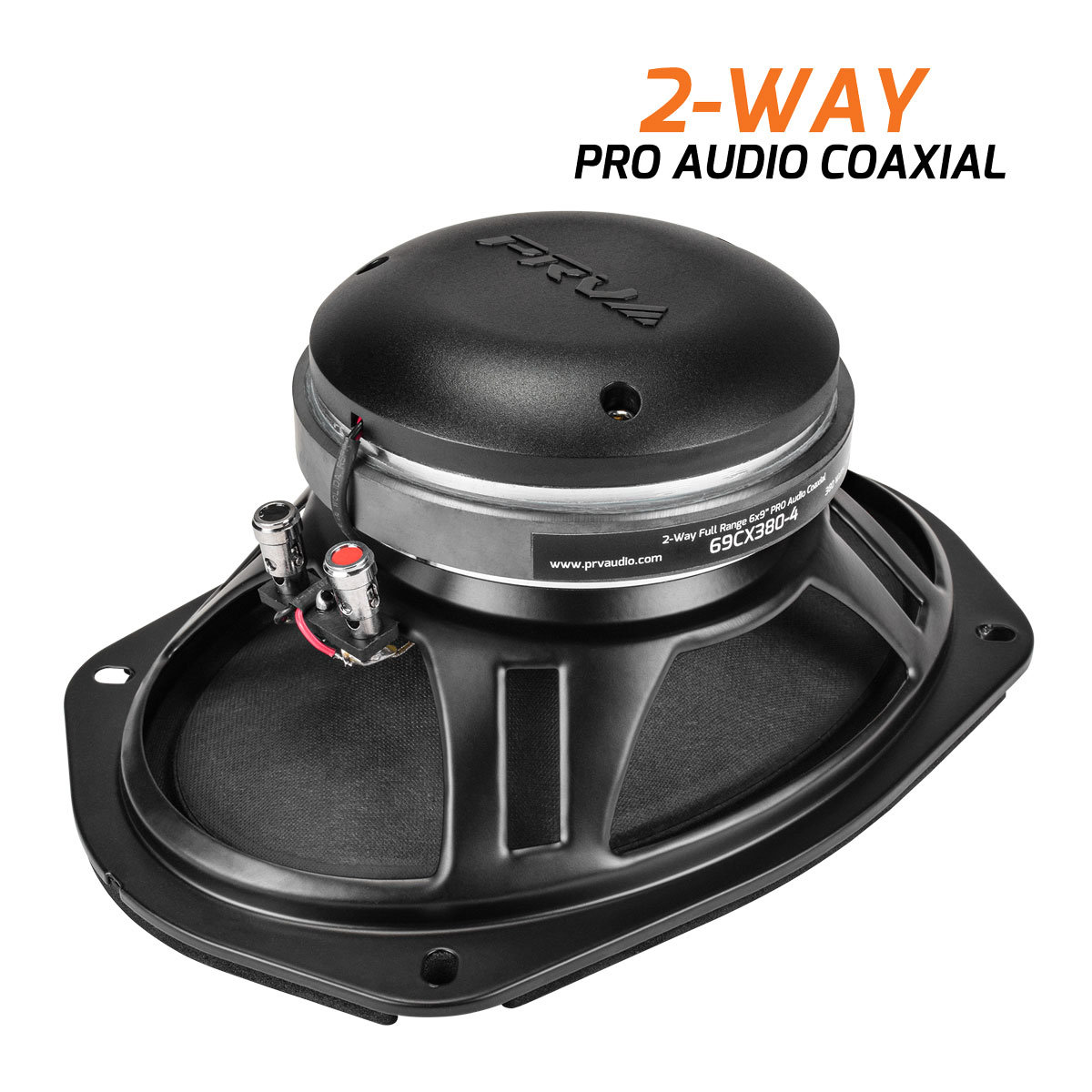

2-Way Coaxial – Transform your sound stereo with one speaker that will play low midbass frequencies and highs at the highest sound output.

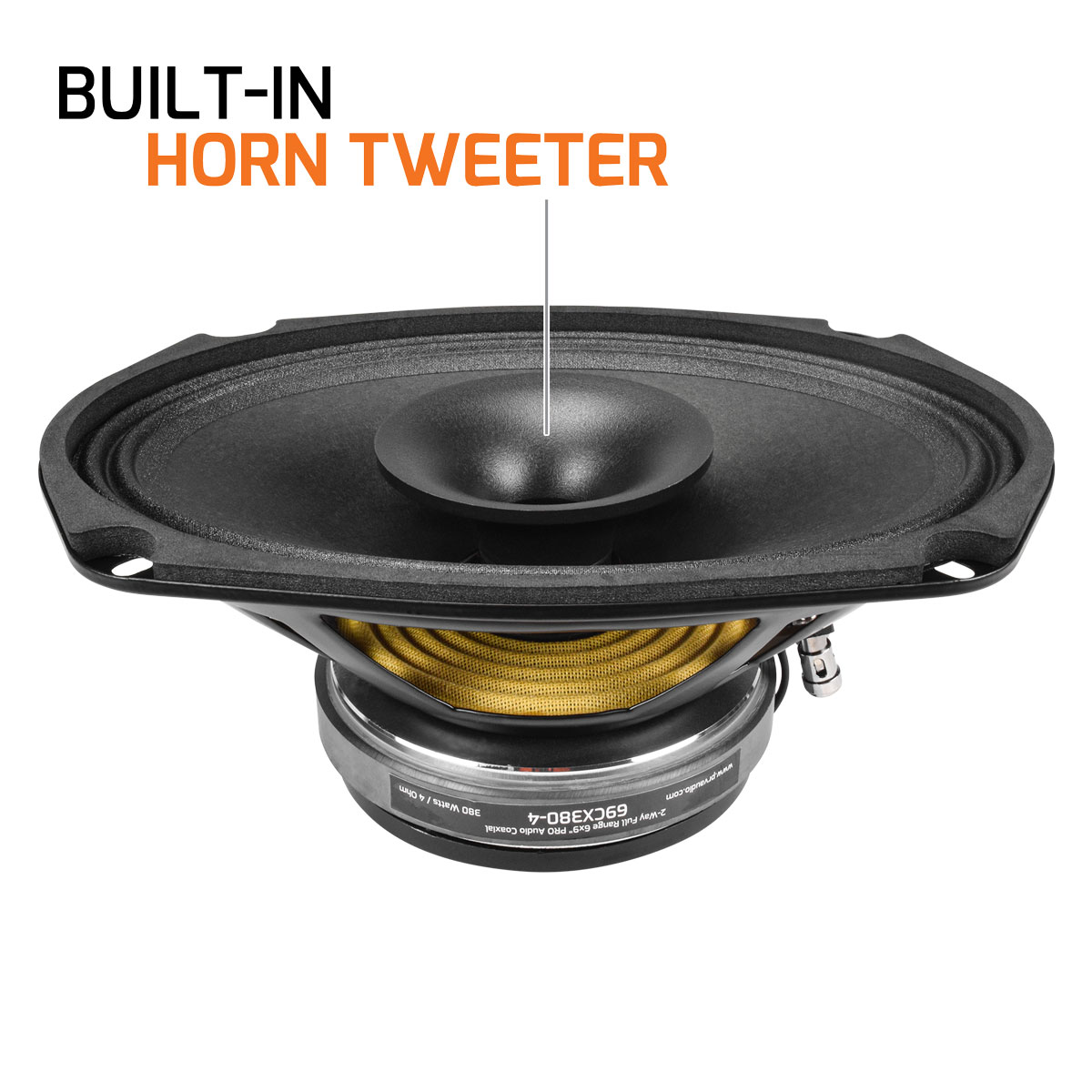

A built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response. Full Range Response
380 Watts RMS Music Power Handling, with 97 dB Sensitivity, capable of generating a lot of sound from one speaker!

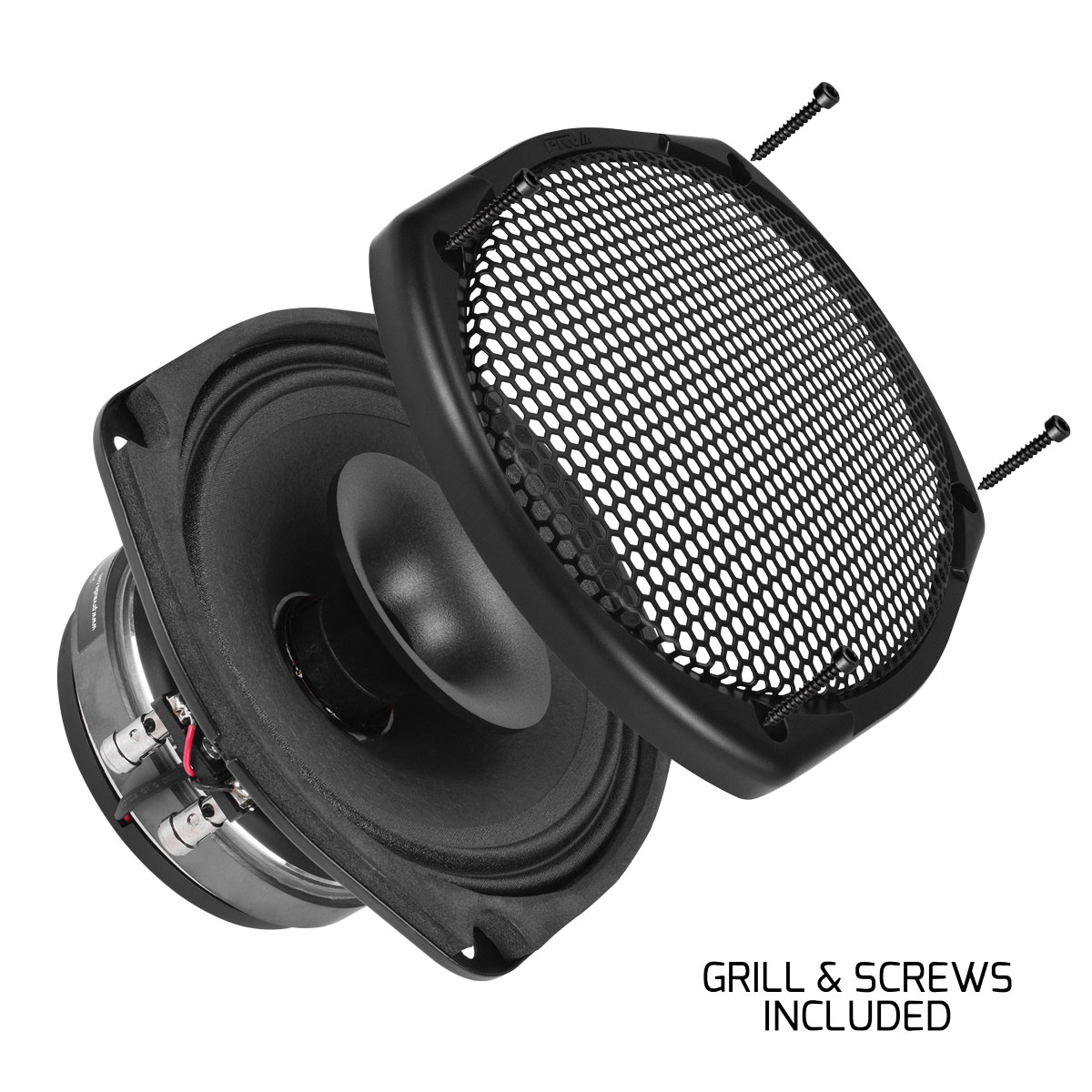

Grill and Mounting Screws Included
Also available in 8″ – 8CX380-4 SLIM and 6.5″- 6CX380-4 SLIM

By combining elements from the PRO Audio and Car Audio segments, we have developed a new type of highly efficient coaxial that is able to give high levels of output in a small compact custom system, or even your stock speaker location.

Loud and clear vocals are all within 3.69′′ of mounting depth which makes it really easy to drop in any stock speaker location without much modification.

Its specially composed spider reduces distortion at midbass frequencies, and its double roll surround keeps cone travel linear, while its premium tinsel lead wire is capable of high temperatures.

This makes this speaker not only unique but also gives it all high-performance characteristics and high-quality components, providing exceptional clarity, detail, and dynamic sound.

PRV Audio 6×9” Full Range 2-Way Coaxial 69CX380-4 Car Speaker 380 Watts 4 Ohm – High Output PRO Audio Sound

Technical Details

GENERAL SPECIFICATIONS

Nominal and Throat Diameter	Low Freq. 6×9″ (152×228 mm)	High Freq. 1″ (25.4mm)
Nominal impedance	4 Ohm
Nominal Power Handling*	190 Watts
Continuous Program Power (RMS)**	380 Watts
Max Peak Power***	760 Watts
Sensitivity 2.00V at 1m	97 dB
Recommended Hi Pass Crossover For Full Power Handling	110 Hz 12db Per Octave Crossover
Frequency Response	90 – 20,000Hz
Voice Coil Diameter	1.5″ (38 mm)	1.0″(25mm)
Voice Coil Wire	Copper	CCAW
Voice Coil Winding Depth	8.0 mm	N/A
Former Material	Kapton	Kapton
Magnetic Gap Depth	5.0 mm	N/A
Frame and Diaphragm Material	S. Steel	Mylar

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a
2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable
frequency range.} ^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering
a regular musical program using our recommended filters, this power can be used to define the optimum amplifier
power to avoid a clean signal without clipping or saturation.} ^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just
for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little
longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	25.32 l
Excursion (mathematical)***	Xmax	2.75 mm
Free Air Resonance	Fs	86.6 Hz
Mechanical Factor	Qms	9.26
Electrical Factor	Qes	0.68
Total Factor	Qts	0.63
Cone Area	Sd	240 cm²
Mechanical Mass	Mms	10.74 g
Bl Factor	Bl	5.17 Tm
Dc Resistance	Re	3.1 Ohms
Inductance	Le	0.22 mH at 1 kHz
Mechanical Mass Without Air	Mmd	8.63 g
Mechanical Compliance	Cms	0.314 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

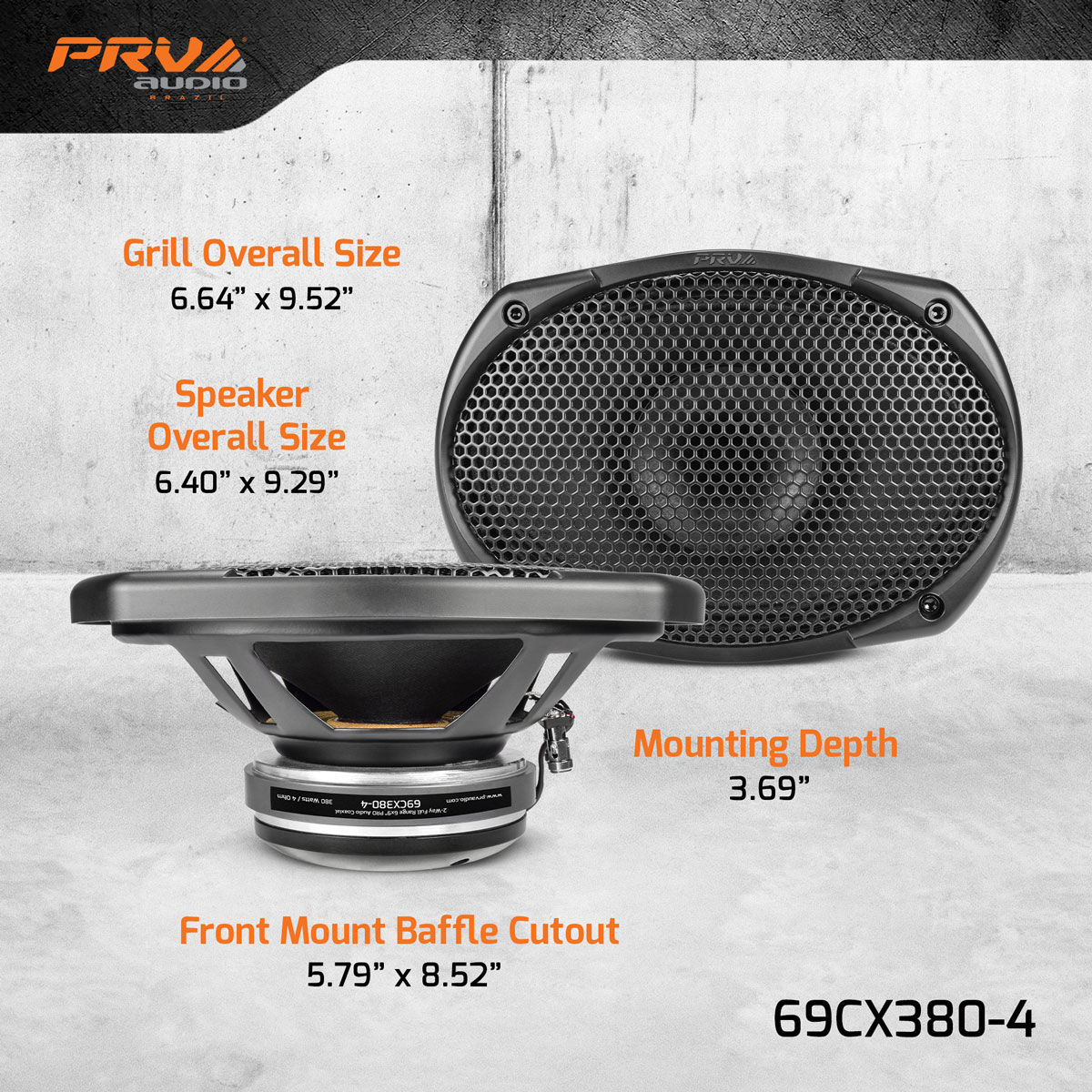

Overall Speaker Size	9.29″x6.40″ (236×162.7 mm)
Front Mount Baffle Cutout	8.52″x5.80″ (216.5×147.3 mm)
Mounting Depth	3.69″ (93.7 mm)
Overall Depth	4.55″ (115.6 mm) (with grill)
Net Weight	4.07 Lbs (1.85 kg)
Shipping Weight	4.62 Lbs (2.10 kg)
Carton Dimensions W x L x H	10.11″x 7.36″ x 5.70″ (257 x 187 x 145mm)
