- 6″ Mid Range – 4 Ohms
- High Performance Bullet
- 95 dB – 400 Watts
PRICE FOR SINGLE UNIT
The MR BULLET was conceived with one goal in mind: High-Performance!
Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door.
- Built to Perform at Wide Frequency Range: 145 – 12,500 Hz
- Highest Quality Speaker with bullet design available
- High efficiency: 95 dB guarantees High Output Levels
- Handles 400 Watts – Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohms Impedance
- Also available in 8″- 8MR500-4 BULLET

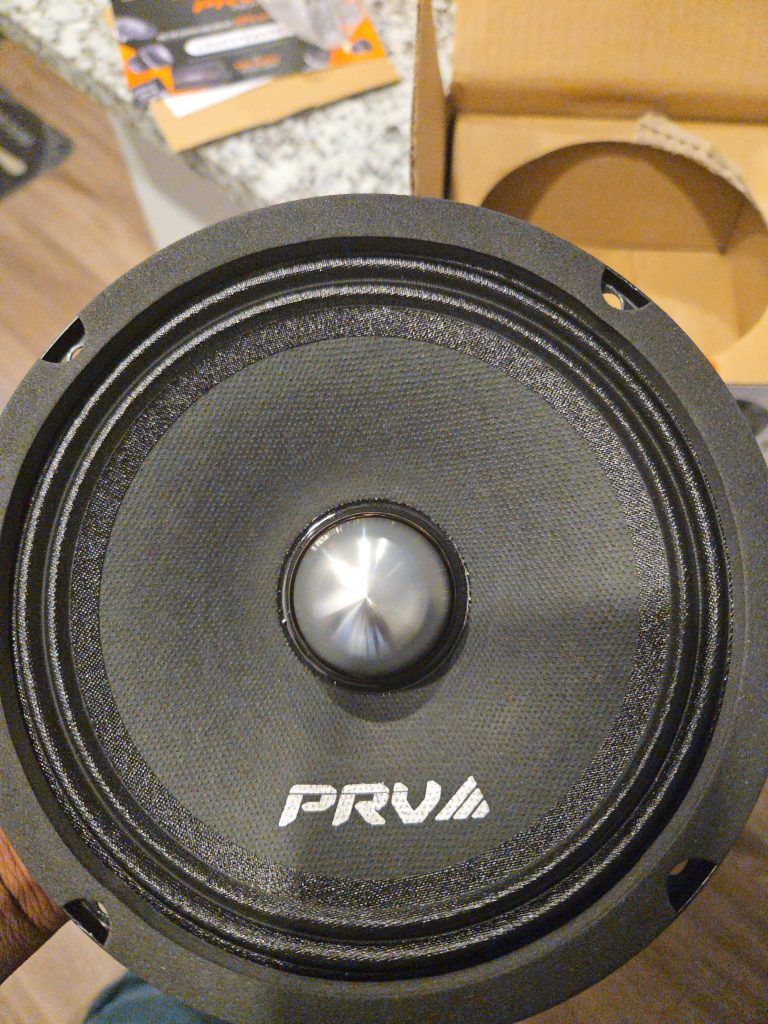

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.
A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!
The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.
Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.
|Nominal Diameter||6″ (152 mm)|
|Nominal impedance||4 Ohms|
|Rated AES Power Handling (RMS)||200 Watts|
|Program Power||400 Watts|
|Sensitivity 2.83V at 1m||95 dB|
|Recommended Hi Pass Crossover** **For Full Power Handling||145 Hz** **12db Per Octave Crossover|
|Frequency Response at -10dB||145 – 12,500 Hz|
|Voice Coil Diameter||1.5″ (38 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Winding Depth||9.5 mm|
|Magnetic Gap Depth||6.0 mm|
|Frame Material||Stamped Steel|
|Equivalent Volume||Vas||4.40 l|
|Excursion (mathematical)***||Xmax||3.25 mm|
|Free Air Resonance||Fs||144.1 Hz|
|Cone Area||Sd||143 cm²|
|Mechanical Mass||Mms||7.94 g|
|Bl Factor||Bl||6.37 Tm|
|Dc Resistance||Re||3.6 Ohms|
|Inductance||Le||0.136 mH at 1 kHz|
|Mechanical Mass Without Air||Mmd||6.97 g|
|Mechanical Compliance||Cms||0.154 mm/N|
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
|Overall Diameter||6.59″ (167.5 mm)|
|Front Mount Baffle Cutout||5.65″ (143.5 mm)|
|Mounting Depth||2.62″ (66.5 mm)|
|Overall Depth||2.99″ (73.5 mm)|
|Net Weight||4.81 Lbs (2.18 kg) unit|
|Shipping Weight||5.18 Lbs (2.35 kg)|
|Carton Dimensions W x L x H||8.50″ x 8.50″ x 3.35″ (175 x 175 x 85 mm)|
Questions & Answers (2)
Q You show this in the mobile category w/ a motorcycle in the picture. Does this mean that these speakers are marine grade? What's the IPxx rating?Asked by May 6, 2020 6:58 amonA
Not all speakers used on motorcycles are marine grade. These speakers are not marine grade.A
Not all speakers used on motorcycles are marine grade. While these speakers are not marine grade we do offer a water resistant, not marine grade, 6". Check out the 6MR500CF-NDY-4.
Q How many come in one box ?Asked by April 15, 2020 2:11 pmonA
This speaker comes with (1) per box.
