6MR600X-NDY-4
-
- 6.5″ Midrange – 4 Ohm
- Neodymium Magnet
- 97.5 dB – 600 Watts
$179.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
X-treme midrange performance is what the PRV Audio 6MR600X-NDY-4 is all about.
The 6MR600X-NDY-4 from PRV Audio showcases the breakthrough advances of our product line like no other. After significant development, and assembling top of the line components, we have created a midrange loudspeaker that offers long lasting play, even during intense use, as well as outstanding durability.
- 2″ Inside/Out voice coil wound on a hi-temp former, 4 Ohm
- 600 Watts RMS Power Handling, with a 97.5 dB Sensitivity, capable of generating very high output!
- Low inductance and extended frequency response with wide directivity
- New Generation of Neodymium Magnet Structure
- Ideal solution for compact full-range applications demanding high acoustic output, also available at 8 Ohm
- Coaxial Performance from a single speaker
This is the ultimate midrange loudspeaker, the 6MR600X-NDY-4’s output on upper midrange frequencies compares to a compression driver! The naturally damped paper cone gives this speaker the ability to reach up to 13,000Hz.
Also, its extreme output eliminates the need for a high frequency compression driver in the system, providing 2-way coaxial performance from a single speaker!
Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio and motorcycle custom builders.
This midrange takes performance to the next level with its wide frequency bandwidth, high output levels between 3,000 to 10,000Hz, and unbelievable 600 Watts RMS music power handling, completely eliminating the need for a compression driver on your system!
This midrange incorporates a 2” double layered copper clad aluminum wire voice coil, and a symmetrical inductance profile. Its 11 mm winding length also ensures high heat dissipation and high sensitivity, even on high power, and with minimum distortion.
Everything about this speaker has been designed for reliable and consistent high output levels, even when driven to its limit, allowing you to achieve high fidelity sound at low distortion for the best possible listening experience.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 300 Watts |
| Continuous Program Power (RMS)** | 600 Watts |
| Max Peak Power*** | 1200 Watts |
| Sensitivity 2.83V at 1m | 97.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 160 Hz 12db Per Octave Crossover |
| Frequency Response | 90 – 13,000 Hz |
| Voice Coil Diameter | 2″ (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.17 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 95.2 Hz |
| Mechanical Factor | Qms | 12.54 |
| Electrical Factor | Qes | 0.20 |
| Total Factor | Qts | 0.19 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 15.45 g |
| Bl Factor | Bl | 12.66 Tm |
| Dc Resistance | Re | 3.4 Ohm |
| Inductance | Le | 0.005 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 14.49 g |
| Mechanical Compliance | Cms | 0.180 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 6.48” (164.5 mm) |
| Front Mount Baffle Cutout | 5.63” (143 mm) |
| Mounting Depth | 3.09” (78.5 mm) |
| Overall Depth | 3.43” (87 mm) |
| Net Weight | 4.63 Lbs (2.1 kg) |
| Shipping Weight | 5.00 Lbs (2.3 kg) |
| Carton Dimensions W x L x H | 7.0”x 7.0” x 4.25” (178 x 178 x 108mm) |
Repair Parts
Recone Kit for 6MR600X-NDY-4 Loudspeaker
Customer Reviews
For starters these speakers are no joke loud with the right power. No paid for biased review. I have 4 of these running off of a 2000.2 running stereo. They not only get insanely loud but can handle that midbass pop with properly tuned crossover points.
Very good power handling and good sound im trying the 8 inch 4 ohms I need to handle a little power the the 6 inch r great im using it with the prv 3 way crossover

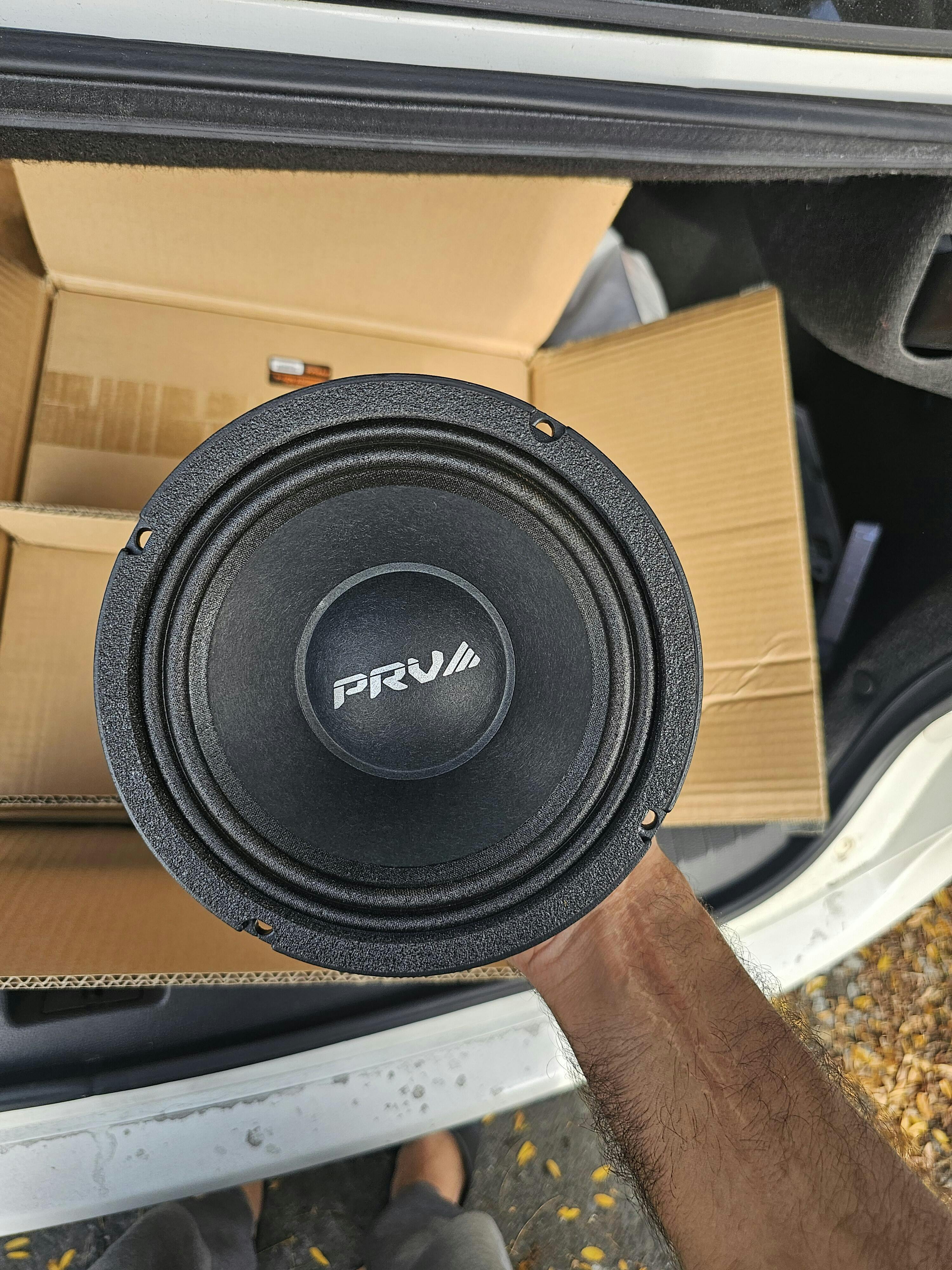

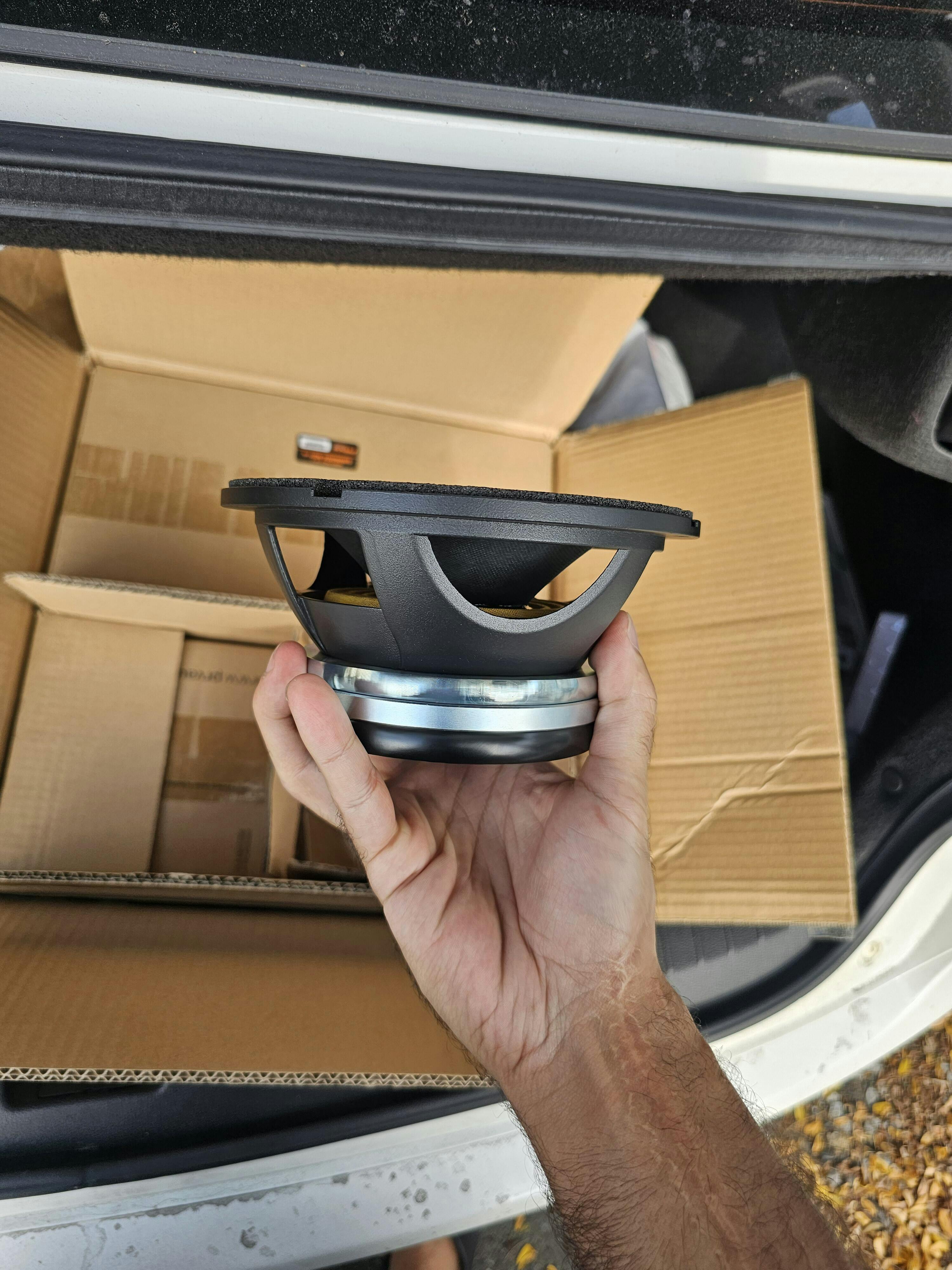

I replaced my blown Beyma 6.5 on my harley-davidson and am completely blown away by the power and clarity these speakers have. They are incredible . I'm looking forward to replacing the 2 up front for a all out..out of this world experience...Thank you PRV!

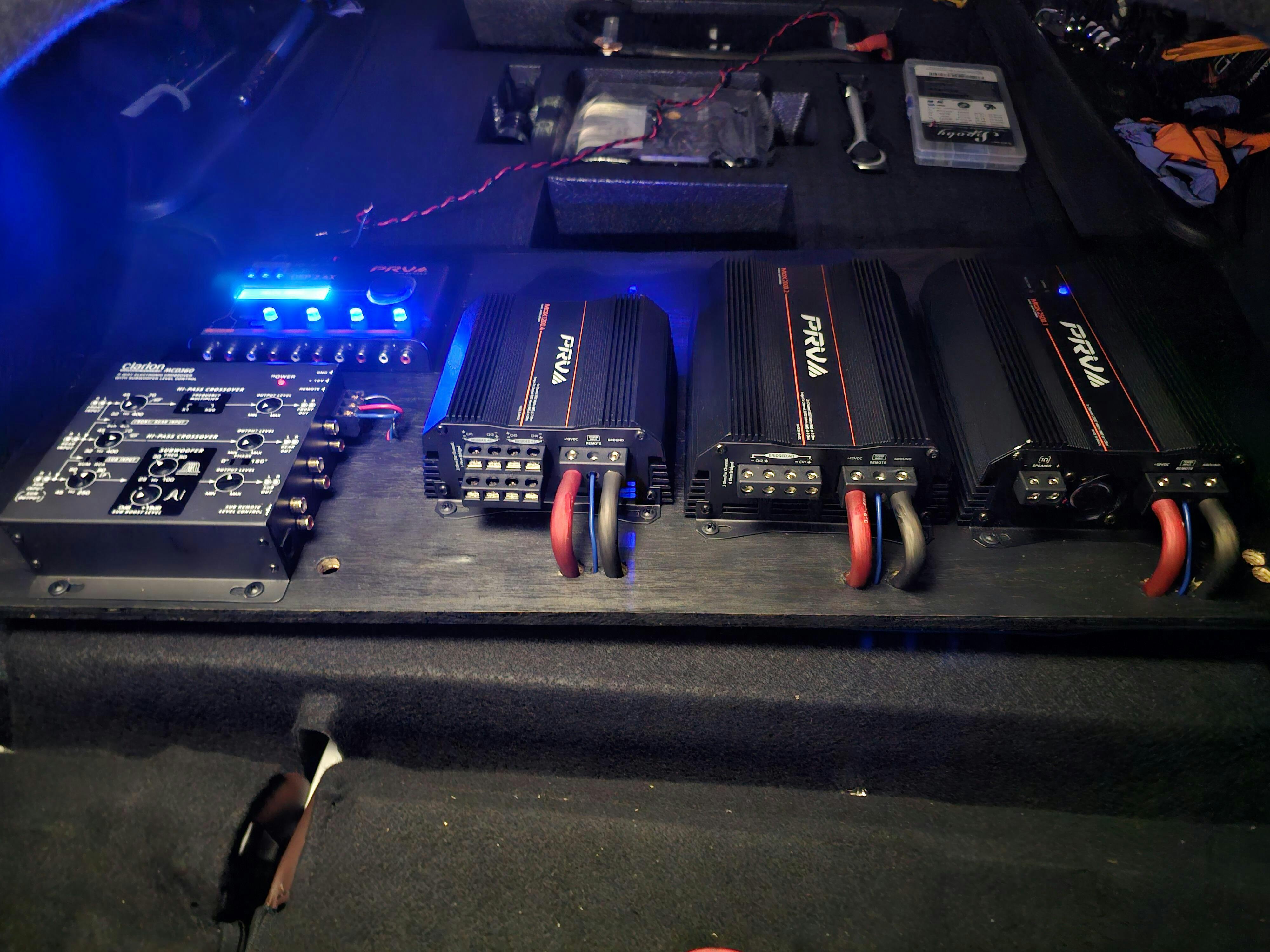

I have 6 of these loudspeakers on a Stetsom EX 3000 EQ 2 Ohm Mono Amp & they sound absolutely amazing! They are very loud & crystal clear. If I play them for a certain period of time, my eardrums began to ring or hurt a little so I label that as a win-win in my book. These speakers have exceeded my expectations & then some.
Sounds great I had to buy two more for my truck

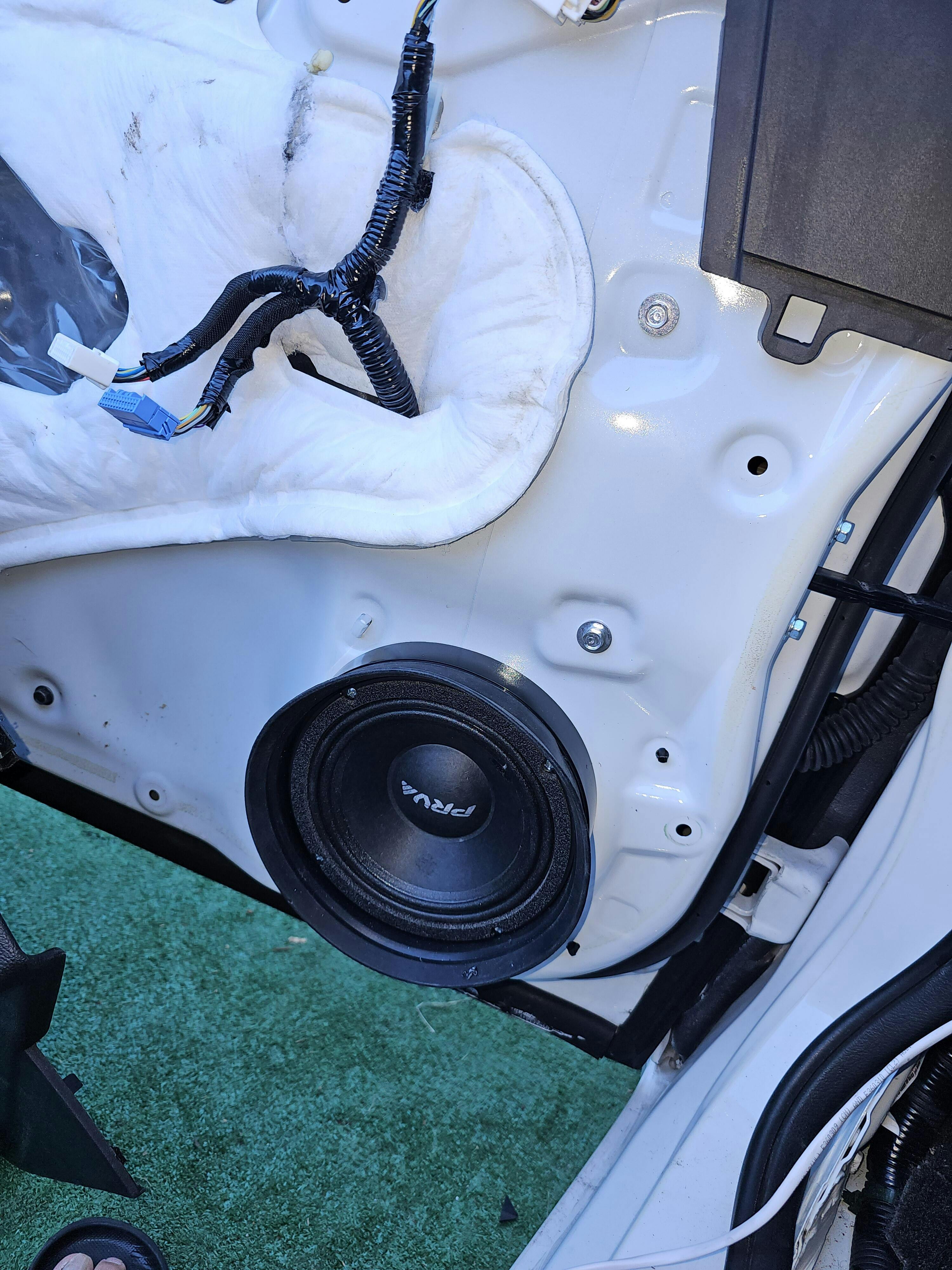

I installed four of these in my car doors and these speakers are retarded loud and clean!! They sound beautiful!! The inside of my car sounds as if I were to have 4 mid-range 10 inch and they only 6.5. I've been an audiophile for almost 20 years now installing and selling music systems. I've heard almost every speaker brand and size with various of head units, amps, batteries you name it and I never wrote a review ever!! But these speakers blew my mind I just don't see how it's even possible that 6.5 speaker can be so loud. Just as loud or louder than most 10" 12" inch mid-range speakers.
Le instale 4 a mi ford raptor 2018 y el sonido es indescriptible.
Esta bocina tienen mucha potencia y sonido claro
Haven't run 600 watts thru them yet, but they definitely separates themselves from others at about 100 watts on my test bench. Looking forward to pushing them to tha limit!!
Compared to the oem speakers that were in my dodge charger these 6 1/2s made such an huge difference when it comes to sound and quality without a amp too it’s just amazing.
If your looking to upgrade I definitely recommend these as a go to !!
These speakers sound clear as day one of the best speakers on the market i would definitely recommend them you get what you pay for.
