8MB700FT
-
- 8″ Midbass – 8 Ohm
- Ferrite Magnet
- 97 dB – 700 Watts
$99.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
PRV Audio’s 8MB700FT Forte Series was specially tailored to give you more power handling and less distortion. The larger voice coil ensures high heat dissipation and the necessary Bl to deliver high sensitivity even at high power with the minimum distortion.
The lower Qts allows more precise midbass. Superior fidelity is achieved through a perfect combination of a non-pressed cone with a smooth frequency response and its well ventilated magnet motor specially designed to allow high displacement without increasing distortion.
- 2.5″ Voice Coil – More power handling and less distortion on mid low midbass frequencies
- Ventilated voice coil gap reduces power compression
- 8″ PRO audio Midbass speaker designed for Low Frequencies at High Power – 8 Ohm
- 700 watts RMS program power gives capability of high acoustical output
- More compact stronger neodymium version available 8MB700FT-NDY
To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
This 8″ is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.
This midbass will stand up to years of serious professional use! Thanks to its special composed spider reduces distortion at a high excursion and double roll surround keep cone travel linear at high excursion.
Due to its wide frequency band and 97 dB sensitivity rating, this speaker is ideal for pairing with compression drivers, on 3-Way system, when used with recommended HPF using PRV Digital Signal Processor DSP
- 95 Hz at 12 dB per octave filter Crossover / BT12
- 85 Hz at 18 dB per octave filter Crossover / BT18
The large 2.5″ voice coil allows for the high 700 watts power handling and warrants the outstanding cooling system implemented into the motor.
Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
PRV 8″ Midbass Speaker 8MB700FT 700 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 8″ (203 mm) |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 350 Watts |
| Continuous Program Power (RMS) | 700 Watts |
| Max Peak Power | 1400 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
| Recommended Hi Pass Crossover *For Full Power Handling | 95 Hz* *12db Per Octave Crossover |
| Frequency Response | 80 – 5,600 Hz |
| Voice Coil Diameter | 2.5″ (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 20.0 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 72.3 Hz |
| Mechanical Factor | Qms | 6.01 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.31 |
| Cone Area | Sd | 249 cm² |
| Mechanical Mass | Mms | 20.94 g |
| Bl Factor | Bl | 12.25 Tm |
| Dc Resistance | Re | 5.2 Ohms |
| Inductance | Le | 0.46 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 18.71 g |
| Mechanical Compliance | Cms | 0.231 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

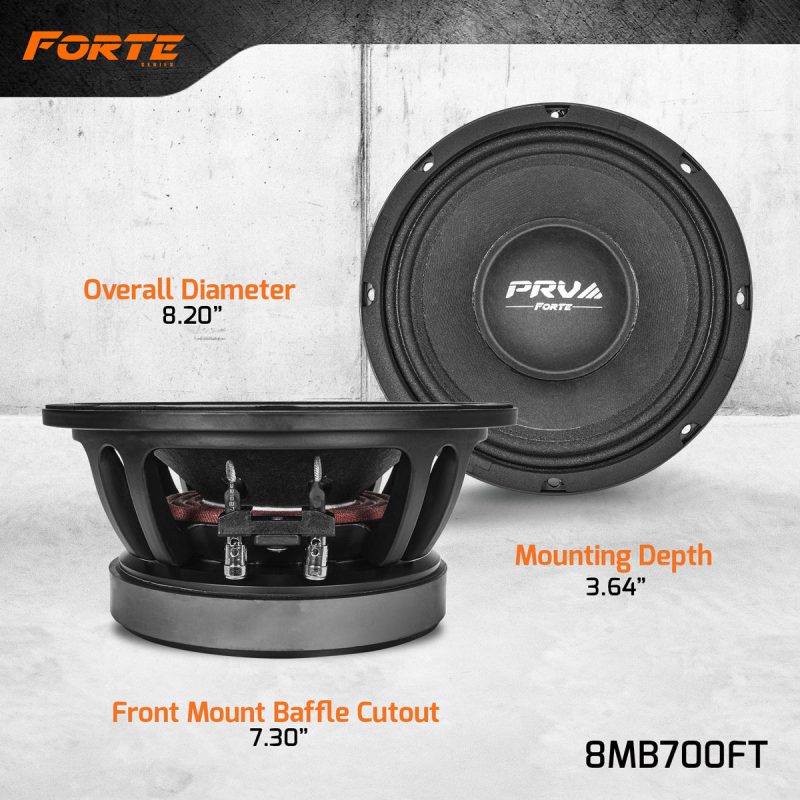

| Overall Diameter | 8.20” (208.5 mm) |
| Front Mount Baffle Cutout | 7.30” (185.5 mm) |
| Mounting Depth | 3.64” (92.5 mm) |
| Overall Depth | 4.00” (101.5 mm) |
| Net Weight | 9.38 Lbs (4.06 kg) |
| Shipping Weight | 9.65 Lbs (4.38 kg) |
| Carton Dimensions W x L x H | 9.05” x 9.05” x 5.0” (230 x 230 x 127 mm) |
Repair Parts
Recone Kit for 8MB700FT Loudspeaker
