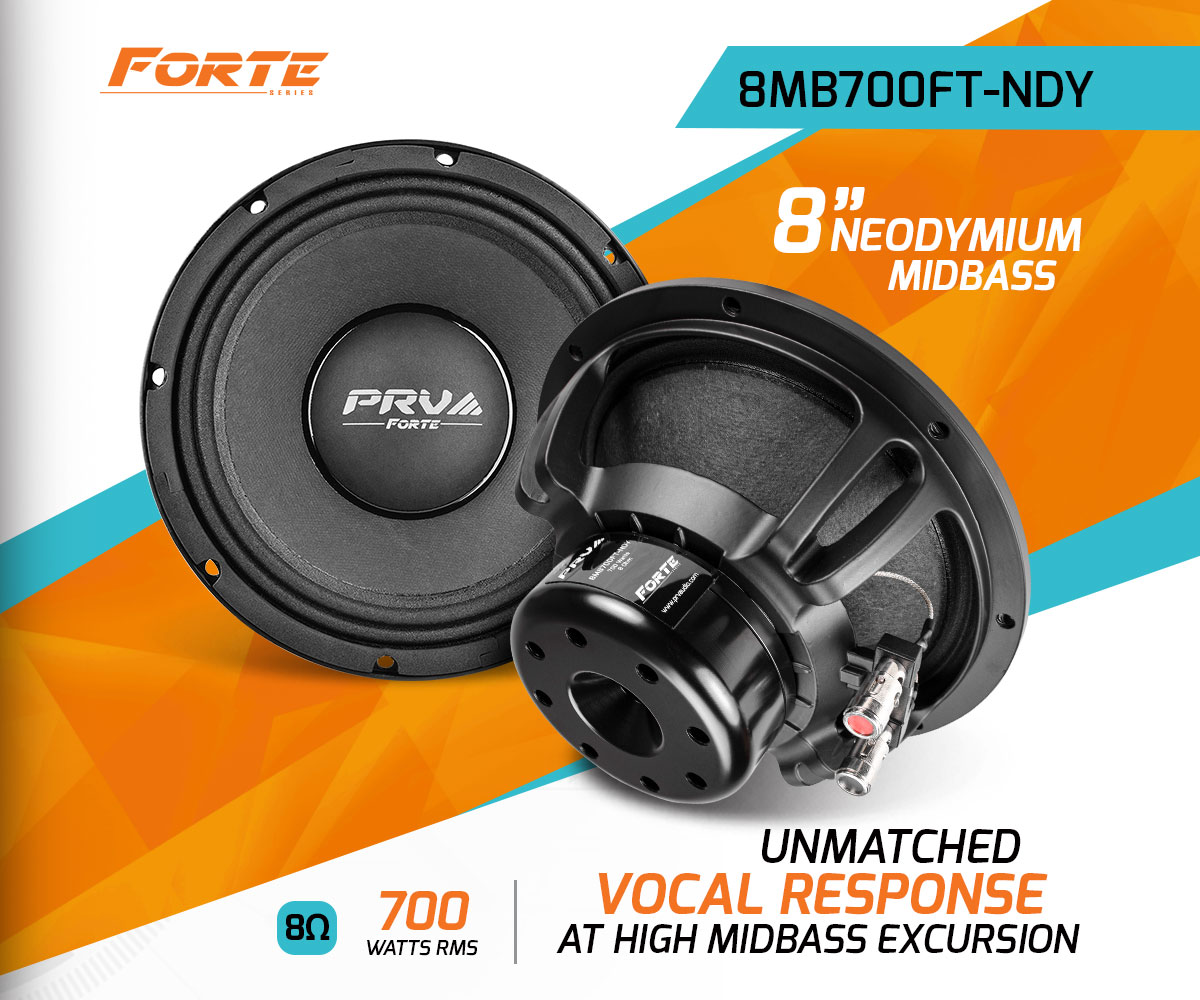

8" MID BASS NEODYMIUM LOUDSPEAKER

8MB700FT-NDY

In stock

8″ Mid Bass – 8 Ohms
Neodymium Magnet
98 dB – 700 Watts

$159.91

In stock

PRICE FOR SINGLE UNIT

SKU: 8MB700FT-NDY Category: Low Frequency Speakers Tags: FORTE SERIES, MID BASS

Features

PRV Audio’s 8MB700FT-NDY Forte Series was specially tailored to give you more power handling and less distortion. The larger voice coil ensures high heat dissipation and the necessary Bl to deliver high sensitivity even on high power with the minimum distortion.

The lower Qts allows more precise mid bass. Superior fidelity is achieved through a perfect combination of a non-pressed cone with a smooth frequency response and a surround ring specially designed to allow high displacement without increasing the distortion.

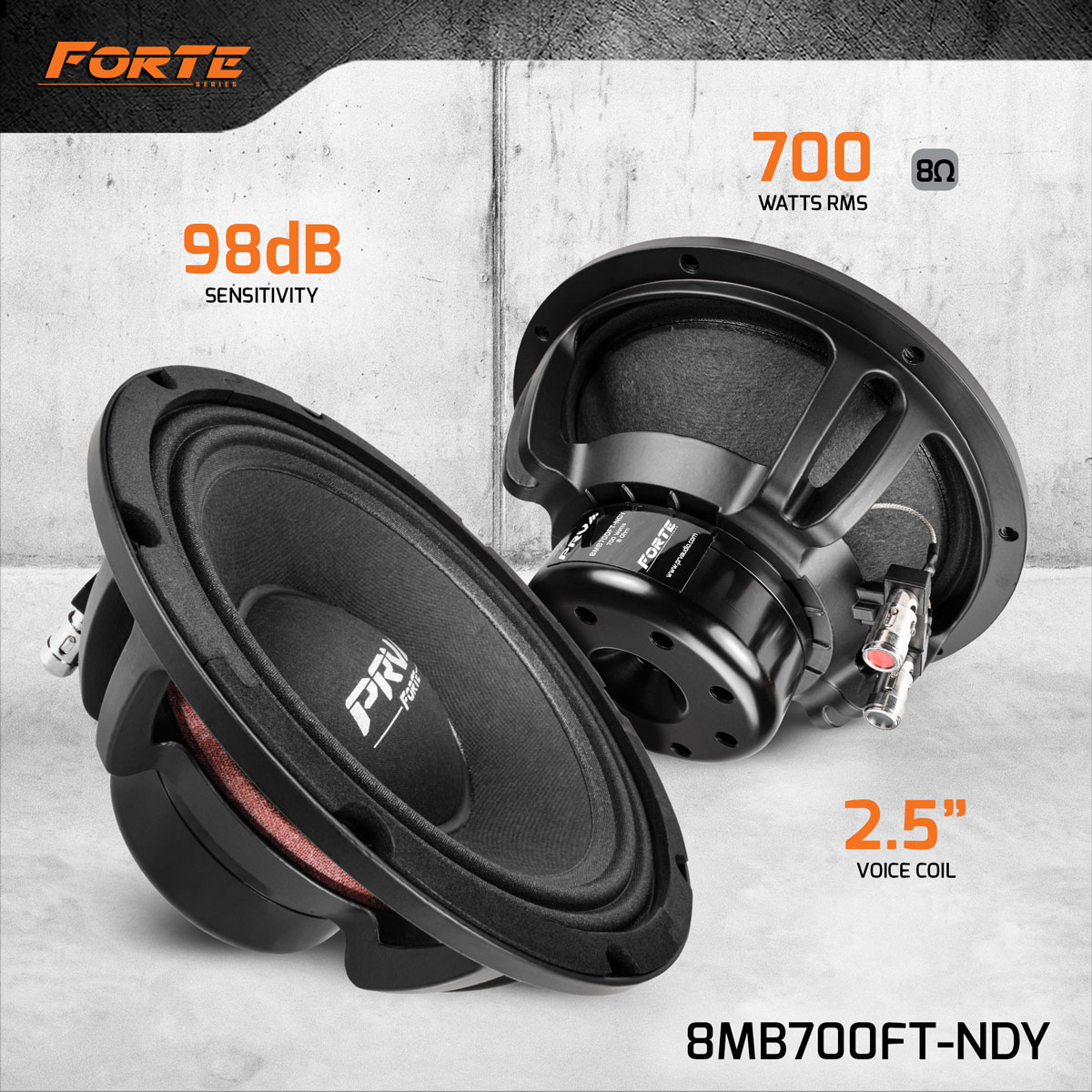

Highlights

Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 350 Watts
Program Power: 700 Watts
Sensitivity (1W/1m): 98 dB
Voice Coil Diameter: 2.5″ (51 mm)
Also Available at 4 Ohm

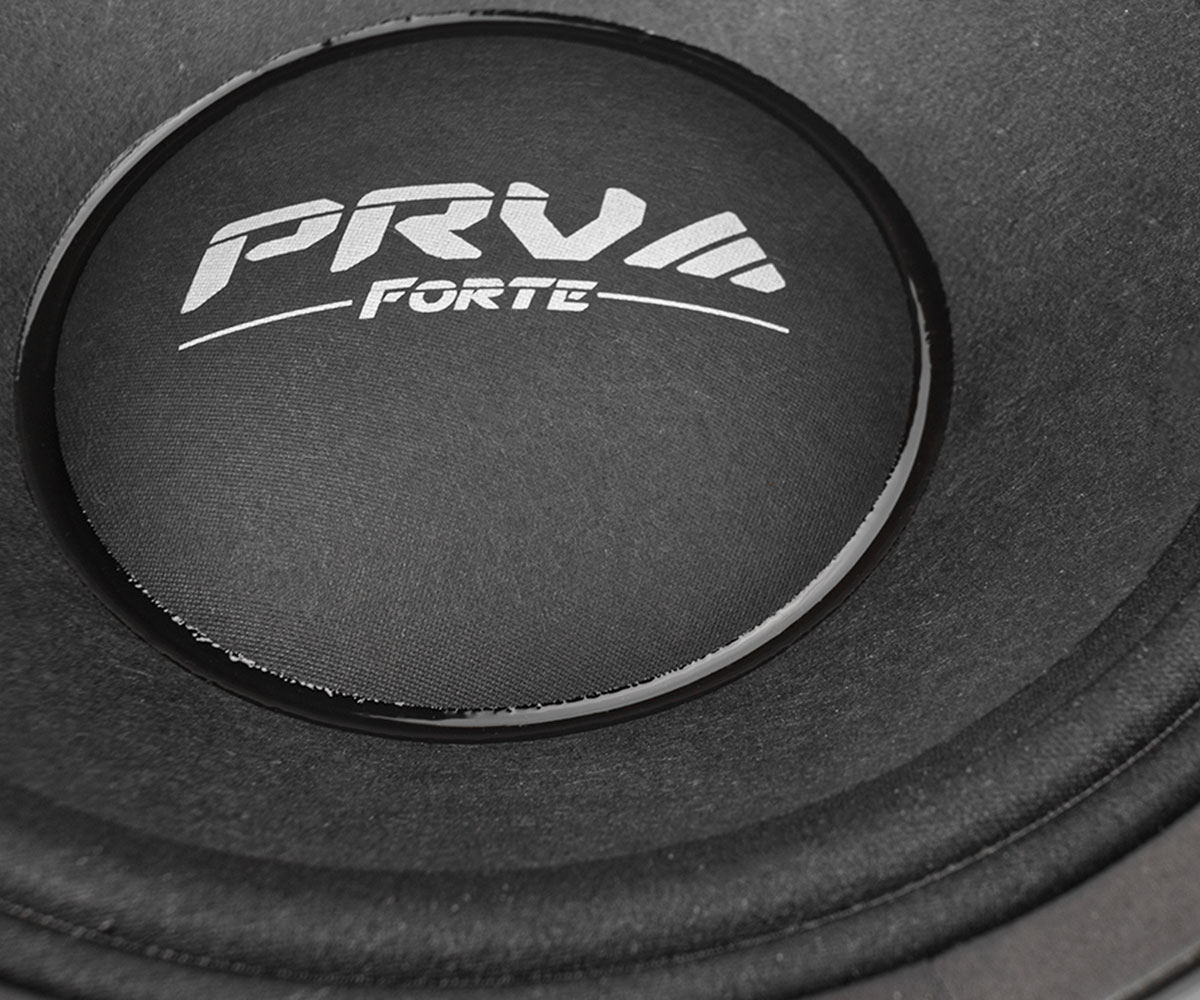

To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.

The 8MB700FT-NDY is an extremely efficient 8″ mid bass from PRV Audio. This driver is perfect for mating to compression drivers due to its wide frequency bandwidth and its high 98 dB sensitivity rating, on 3 way system (with a suggested 95 Hz, 12 dB/octave high pass filter in place)!

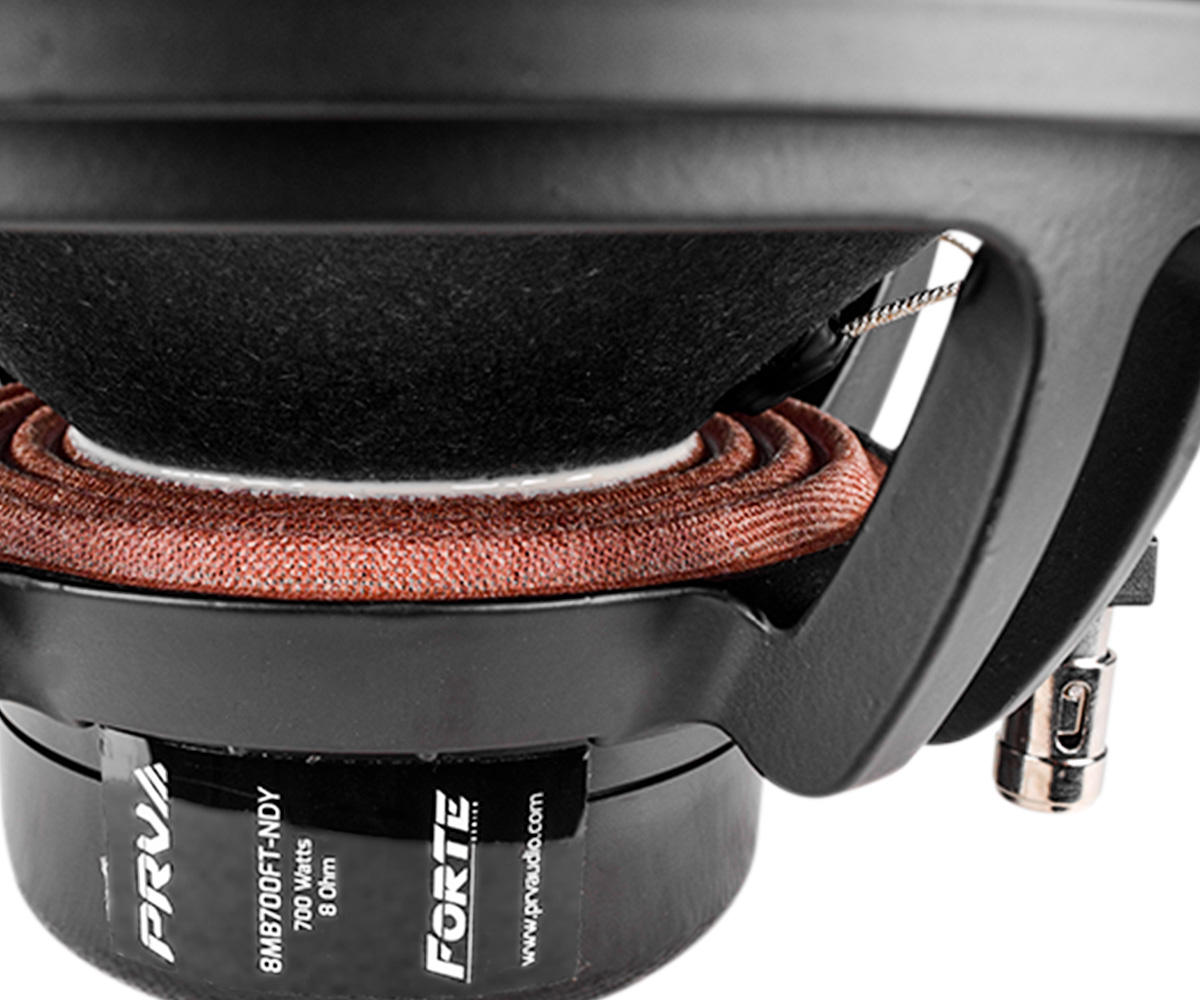

Its powerful optimized neodymium motor is vented to provide excellent cooling.

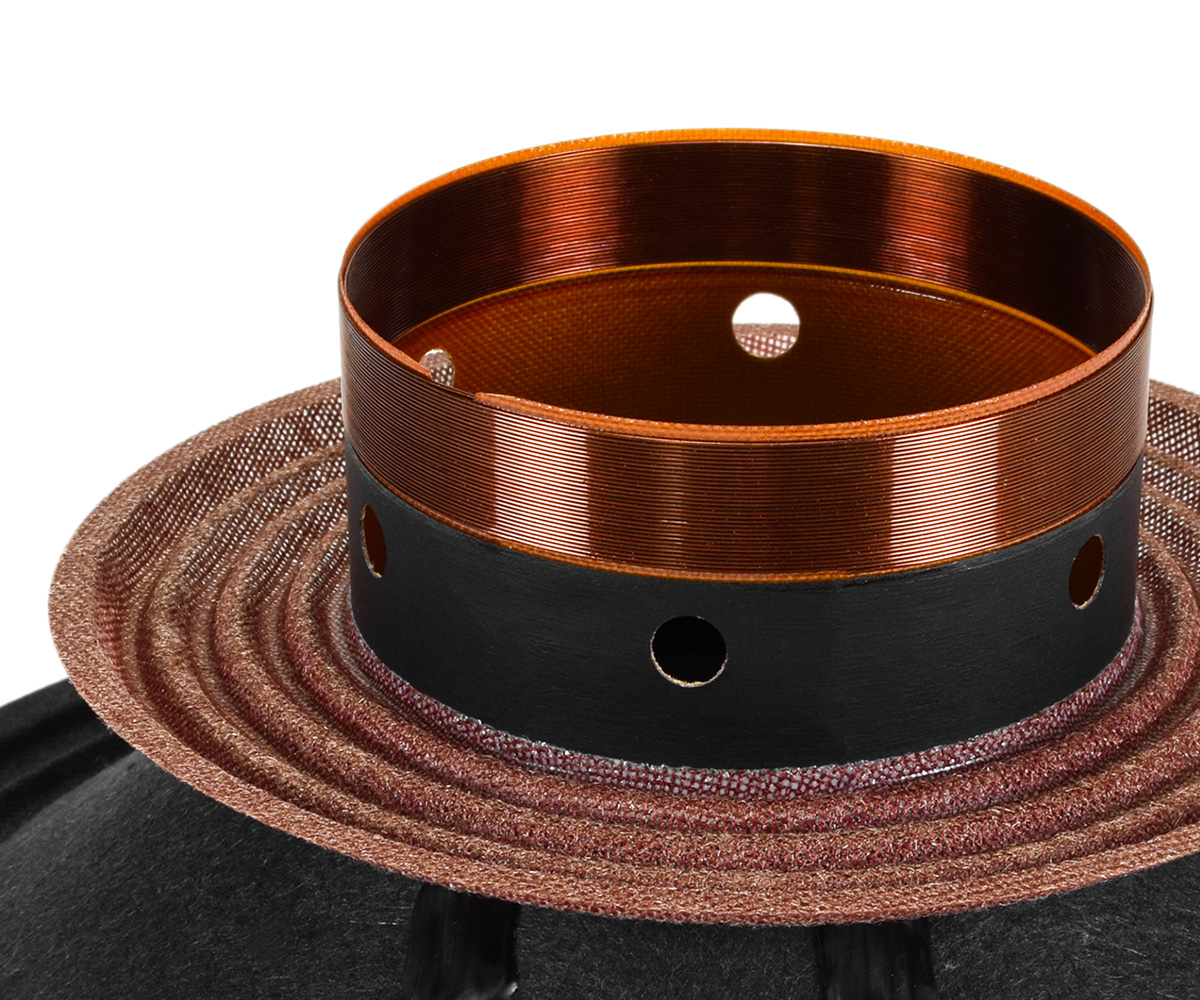

The large 2.5″ voice coil allows for the high 350-watts power handling, and warrants the outstanding cooling system implemented into the motor.

High sensitivity rating of 98 dB 1W/1M which makes it capable of generating a lot of output!

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter	8″ (203 mm)
Nominal impedance	8 Ohm
Nominal Power Handling*	350 Watts
Continuous Program Power (RMS)**	700 Watts
Max Peak Power***	1400 Watts
Sensitivity 2.83V at 1m	98 dB
Recommended Hi Pass Crossover For Full Power Handling	95 Hz 12db Per Octave Crossover

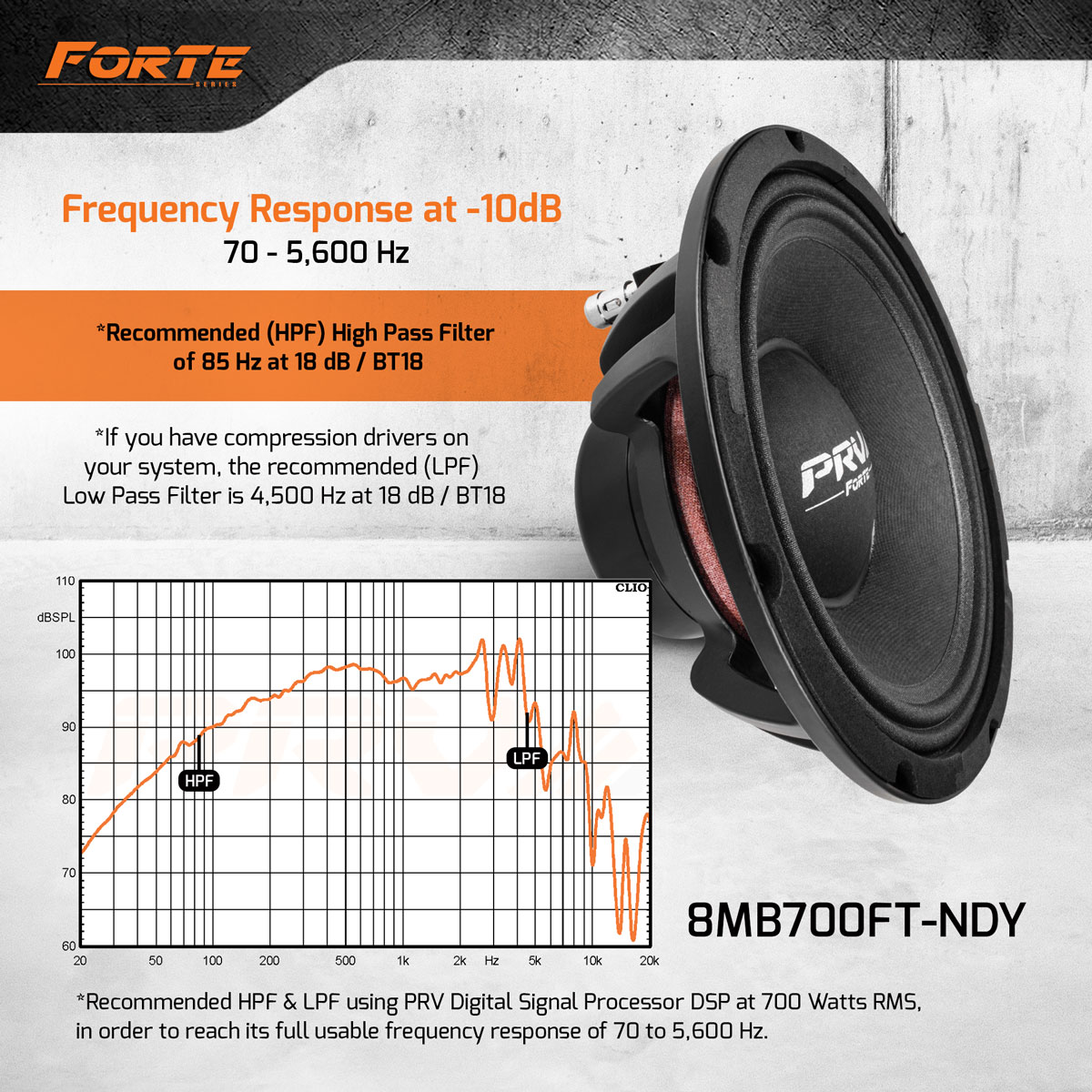

Frequency Response at -10dB	70 – 5,600 Hz
Voice Coil Diameter	2.5″ (63 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	11.3 mm
Former Material	Fiber Glass
Magnetic Gap Depth	8.00 mm
Frame Material	Die Cast Aluminum

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.}
^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.}
^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	18.79 l
Excursion (mathematical)***	Xmax	3.65 mm
Free Air Resonance	Fs	69.97 Hz
Mechanical Factor	Qms	2.78
Electrical Factor	Qes	0.33
Total Factor	Qts	0.30
Cone Area	Sd	249 cm²
Mechanical Mass	Mms	23.79 g
Bl Factor	Bl	12.78 Tm
Dc Resistance	Re	5.2 Ohms
Inductance	Le	0.34 mH at 1 kHz
Mechanical Mass Without Air	Mmd	21.57 g
Mechanical Compliance	Cms	0.217 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

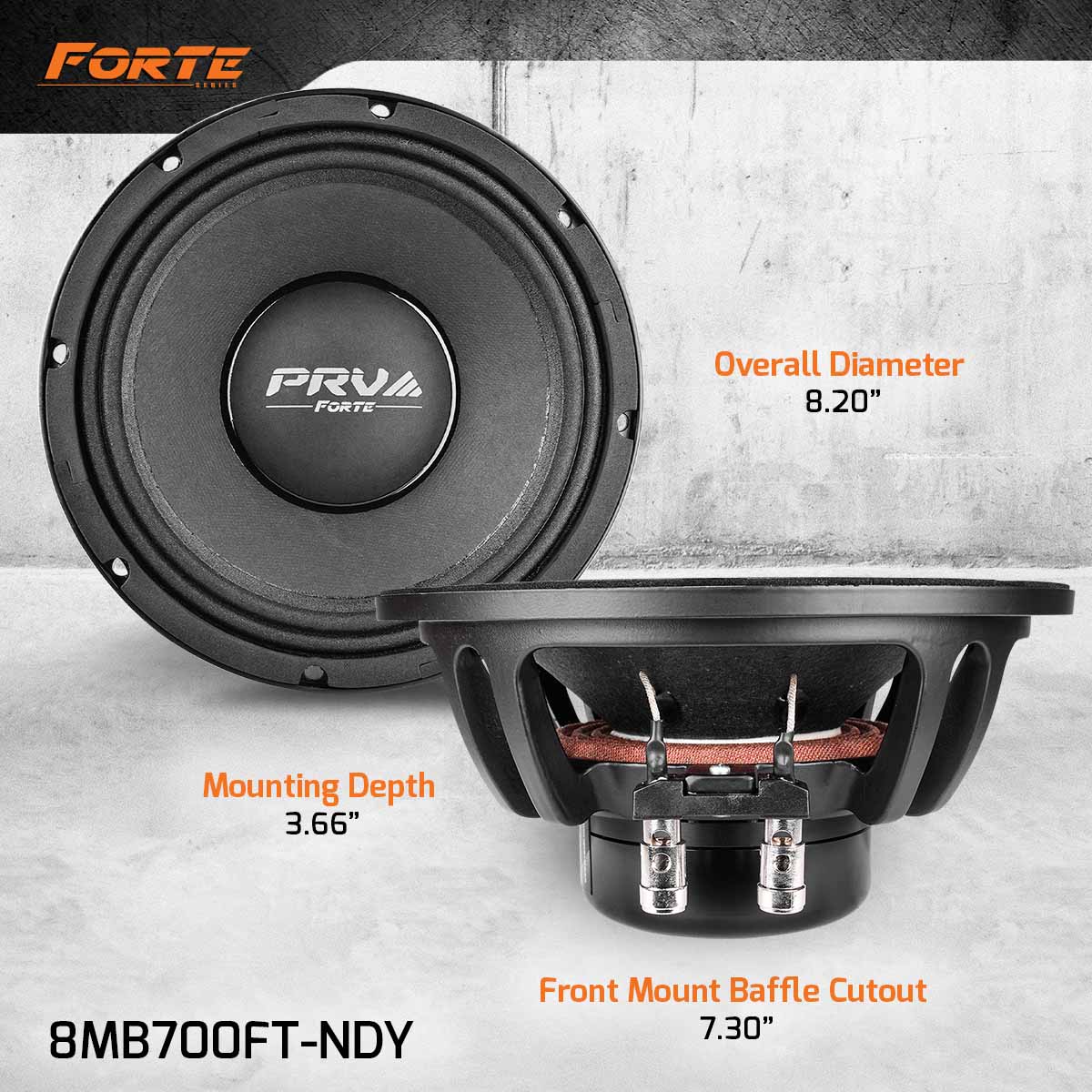

Overall Diameter	8.20” (208.5 mm)
Front Mount Baffle Cutout	7.30” (185.5 mm)
Mounting Depth	3.66” (93 mm)
Overall Depth	4.00” (101.5 mm)
Net Weight	4.32 Lbs (1.96 kg)
Shipping Weight	5.51 Lbs (2.50 kg)
Carton Dimensions W x L x H	9.05” x 9.05” x 5.11” (230 x 230 x 130 mm)
