1” Exit Mids & Highs Neodymium Mini Horn Driver Bundle – D175Py-S-Nd + WG08-25
This bundle offers a top-of-the-line compression driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm on a mini waveguide.

The overall size of this bundle makes installation easier in tight spaces! If you want to build a system with 6.5” and 8” speakers and mount horn drivers between them, this is the solution!

Mini neodymium horn driver bundle, ideal for tight spaces, Great choice for custom car audio door panels where space is limited. 8 Ohm voice coil makes it easy to have multiple drivers wired to one amplifier.

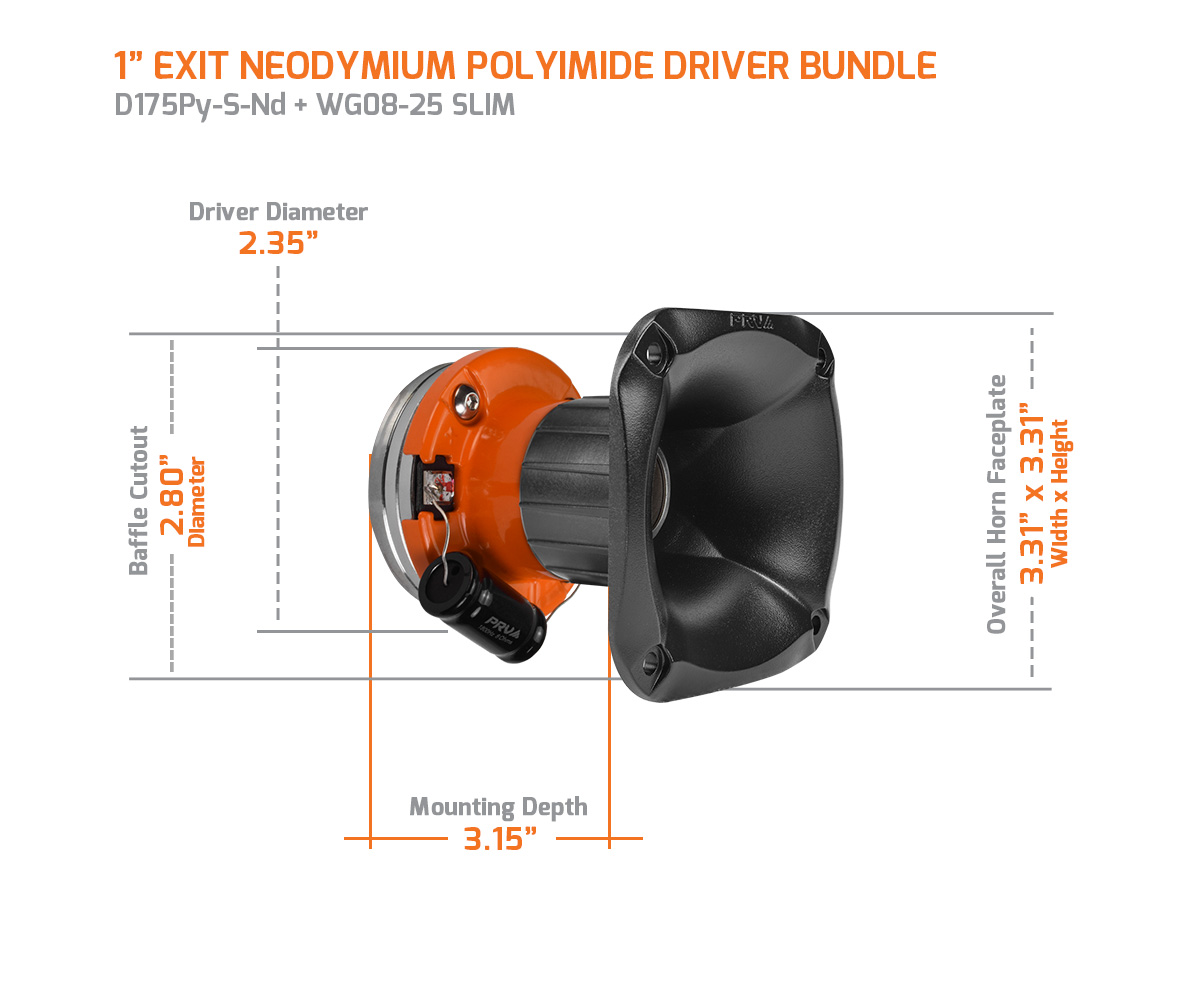

The D175Py-S-Nd combined with the WG08-25, only requires a mounting depth of 3.15″ deep. Horn faceplate is 3.31” Wide by 3.31” Height.

Bundle Components:
1x D175Py-S-Nd Polyimide Neodymium Driver
1200 – 20,000 Hz / 109 dB
150 Watts RMS / 8 Ohm

1x WG08-25 Mini Waveguide
Screw-on horn with the smallest overall size
Includes 4x screws

How to Install them:
This high frequency horn driver bundle will need 150 Watts RMS per driver with recommended HPF using PRV Digital Signal Processor DSP

• 1800 Hz at 12 dB per octave filter Crossover / BT12
• 1700 Hz at 18 dB per octave filter Crossover / BT18

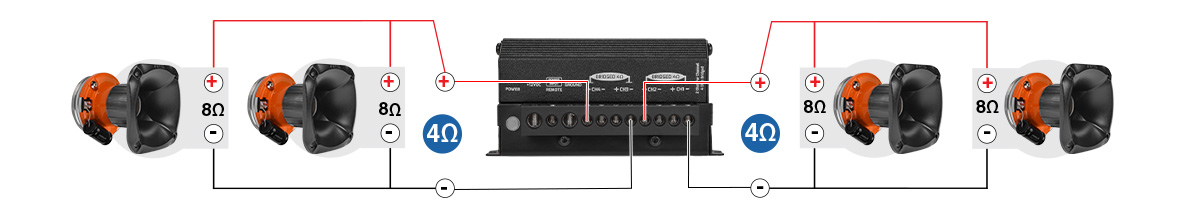

4 Drivers Setup amplifier recommendation:
1x MDX800.4 2 Ohm – Wire 2 Drivers in parallel per bridged channel at 4 Ohm.

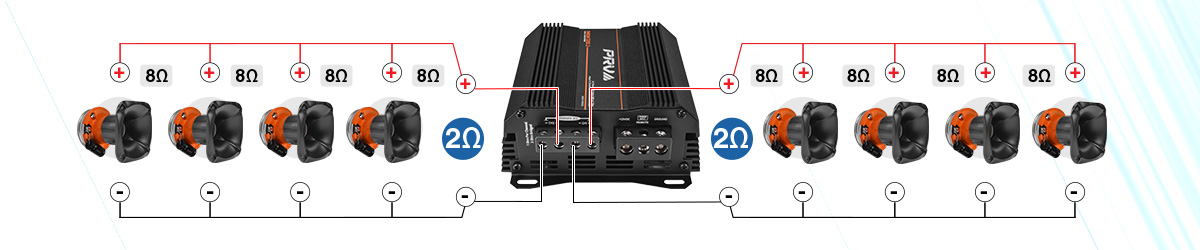

8 Drivers Setup amplifier recommendation:
1x MDX1200.2 2 Ohm – Wire 4 Drivers in parallel per channel at 2 Ohm.

No Recommended LPF for drivers since they respond all the way up to 20,000Hz. You may set an LPF to attenuate high frequency tones if you prefer.
