MDX800.4 2 Ohm
- Full Range Amp
- MINI 4 Channel
- 4x 200 Watts 2Ω
Original price was: $162.39.$129.91Current price is: $129.91.
In stock
PRICE FOR SINGLE UNIT
Features
Features

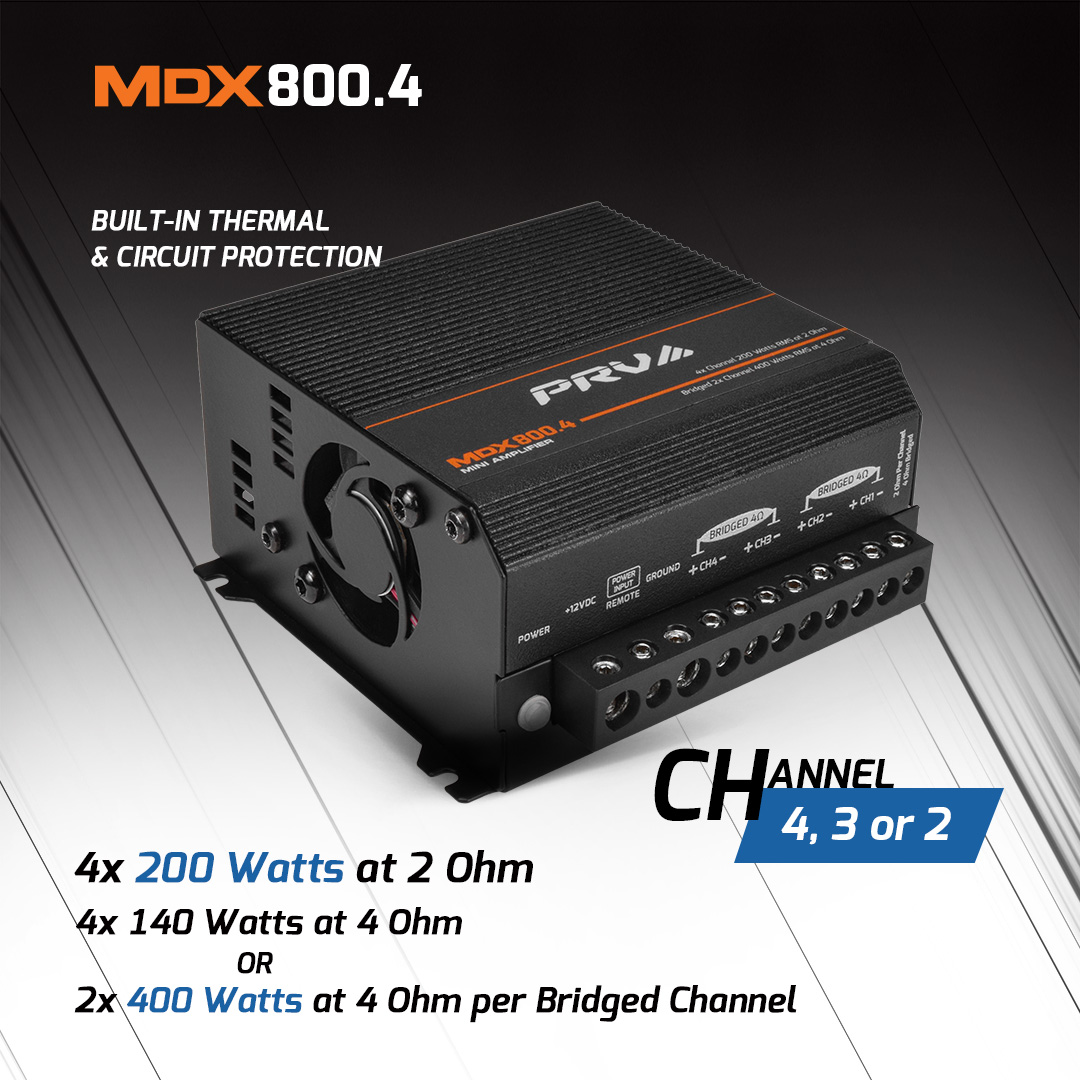

The mini MDX800.4 2 Ohm delivers 800 Watts RMS power over 4 channels in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

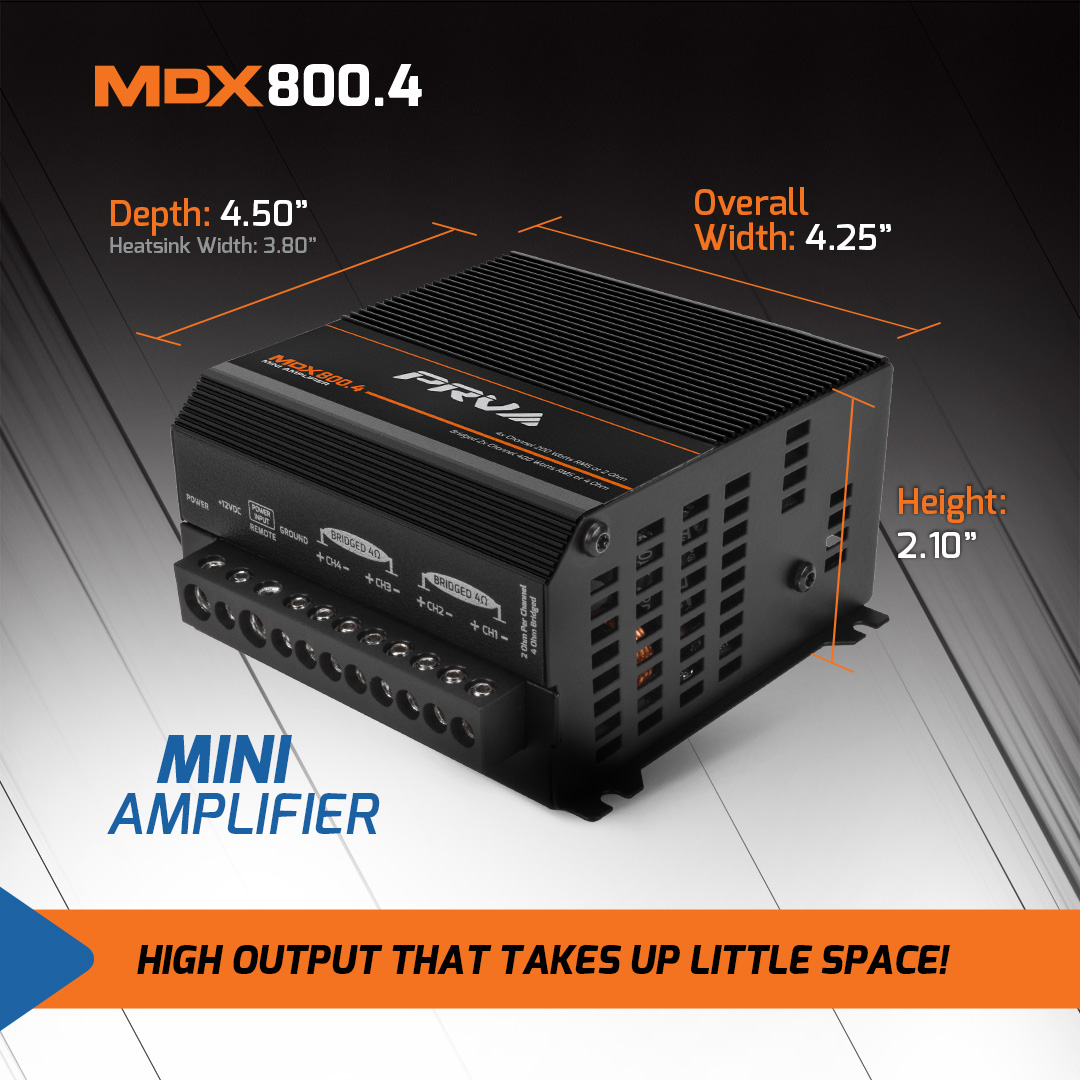

- COMPACT MINI DESIGN – A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 4.25″ Width by 4.50″ Length and only 2.10″ Height.
- MULTICHANNELS – 4 x 200 watts at 2 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
- BRIDGEABLE – 2 Channel Bridged – Double the power output to your speakers by bridging two channels. 2x 400 Watts RMS at a minimum impedance of 4 Ohms per bridged channel.

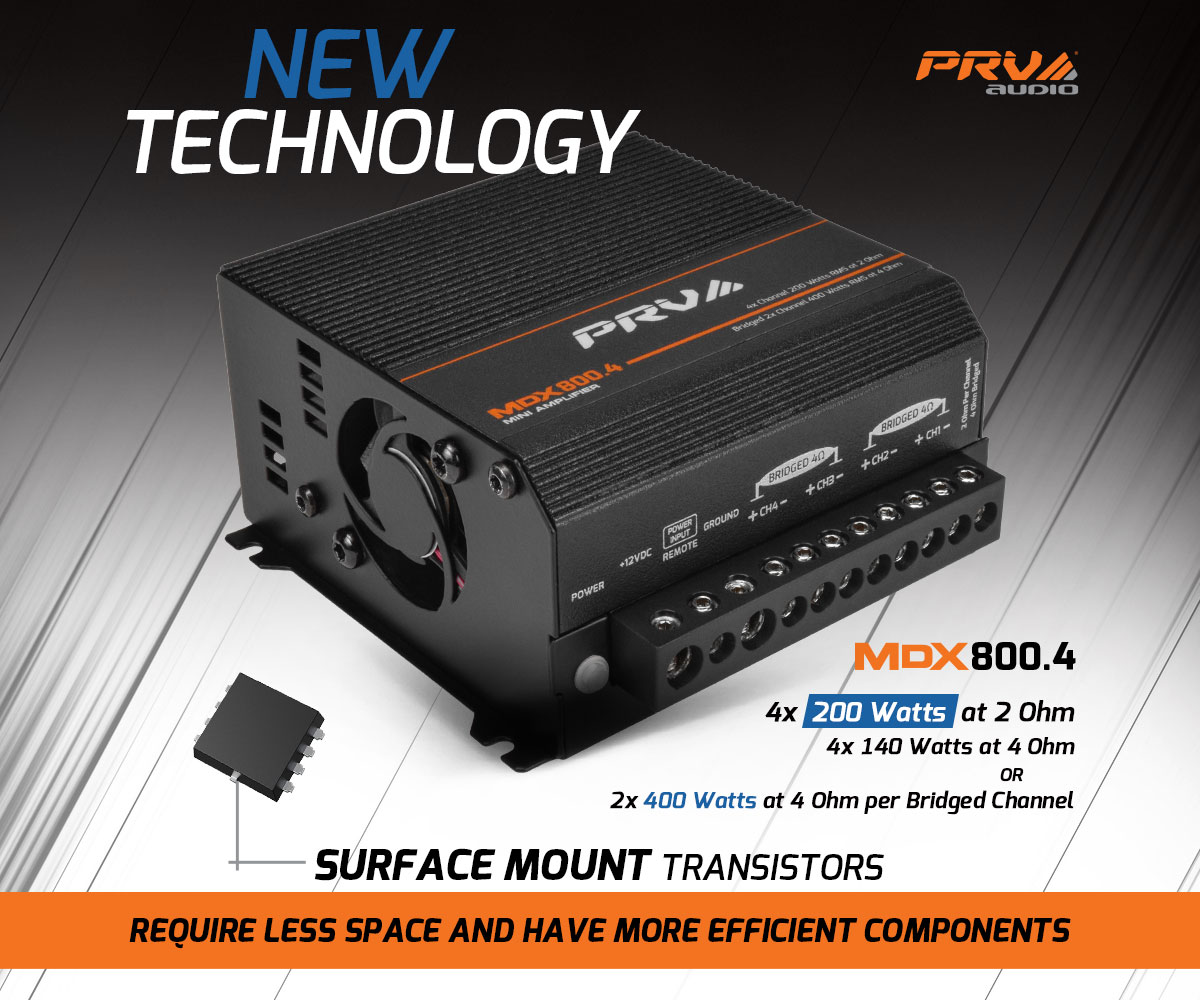

- INNOVATION – The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams
Its multichannel technology eliminates the need for multiple amplifiers, when you can use this amplifier in 4, 3 or 2 channel configurations.
The MDX Series is ideal for motorsport applications such as custom motorcycles, powerwheels, ATVs, Slingshots, pickup trucks or any vehicle where space is limited.
| Channels | 4 Channel |
| Rated Power at 2 Ohm | 4x 200 Watts RMS |
| Rated Power at 4 Ohm | 4x 140 Watts RMS |
| Bridged Rated Power at 4 Ohm | 2x 400 Watts RMS |
High Output that takes up little space!

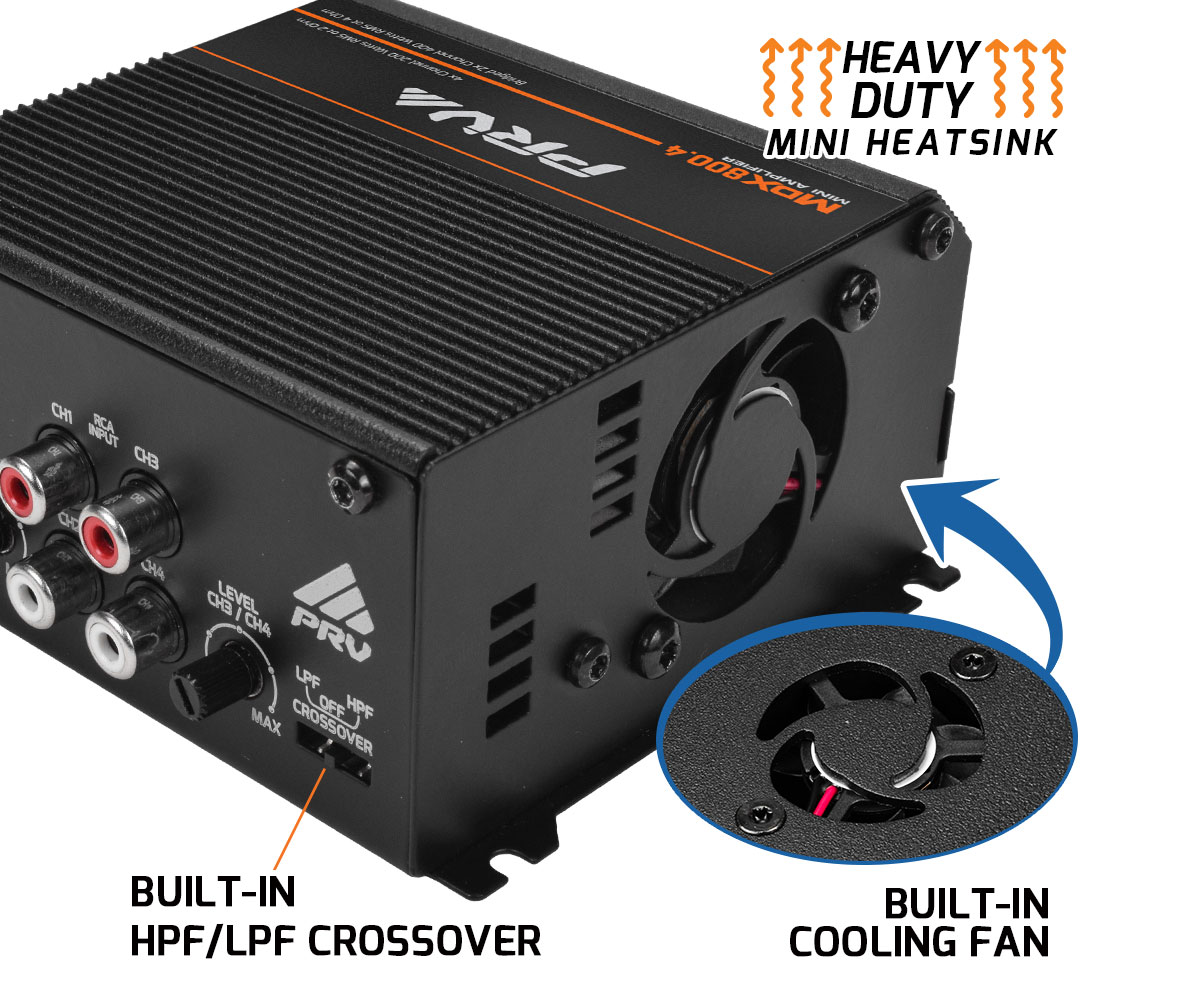

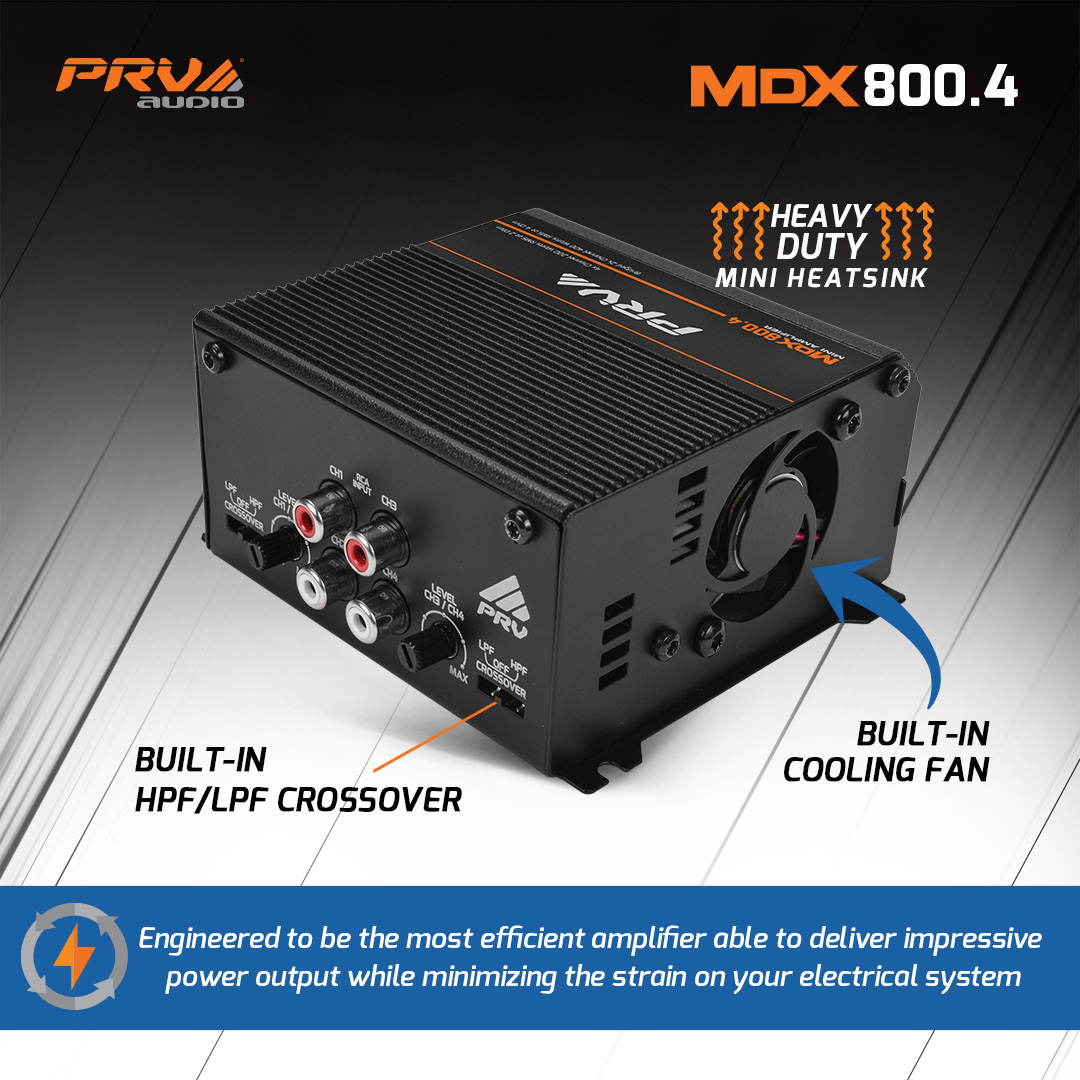

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.
At only 1.25 lbs allows any custom system to achieve the highest performance and weight ratio possible.
PRV Audio MDX800.4 2 Ohm MINI 4 Channel Car Audio Amplifier 4 x 200 Watts RMS at 2 Ohm
Popular Installation configurations with this amplifier:
4 Channel Configuration for 4 Ohm Components
Its 4 channels allow you to install 1x 4 Ohm speaker one per channel, giving up to 140 watts per component.
Perfect for Car Stereo, using the easy to mount 6MR250B-4 SLIM as bullet midrange or 6MB200-4 Midbass or even the popular 6MR200A-4 Mid.

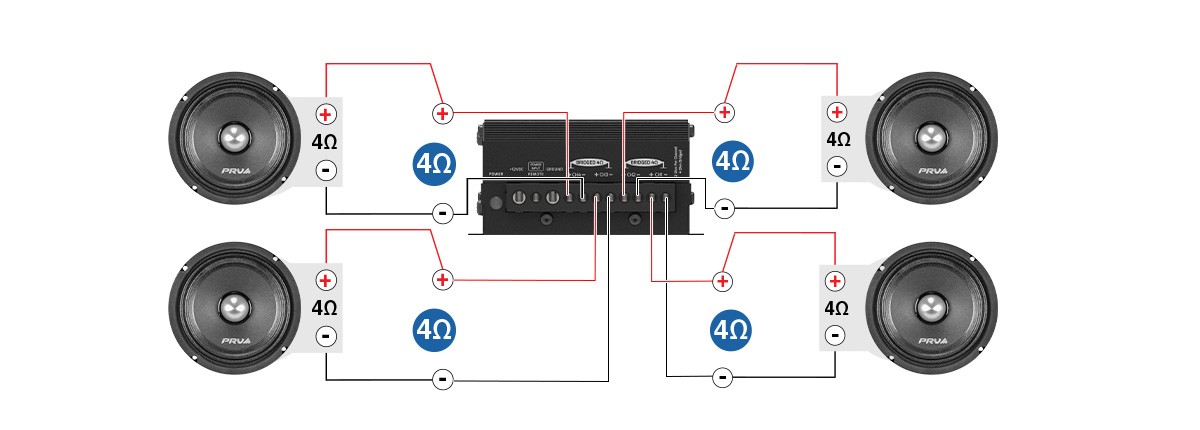

4 Channel Configuration for 4 Ohm Components
Its 4 channels allow you to install 2x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 100 watts per component.

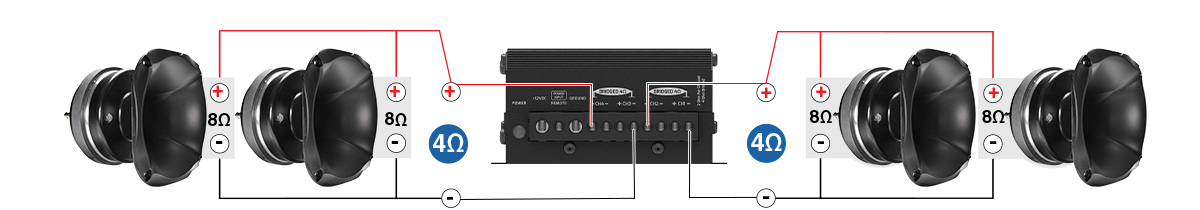

2 Channel Configuration (Bridged) for 8 Ohm components
Its high power output channels allow you to install 2x 8 Ohm speakers or drivers in parallel per channel, giving up to 200 watts per component, popular choice for WG2000Py SLIM mids & highs driver or WG2200Ph SLIM midrange driver.
Before Installing:
You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
A distance of 1.25 inches between amplifiers is recommended, to prevent overheating. Minimum Installation Distance.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.
Always use OFC 8 AWG Copper wire for power and ground and minimum of 14 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.
To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.
Technical Details
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm per Channel |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 200 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 140 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 400 Watts RMS |
| Average Efficiency | 84% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 45 A |

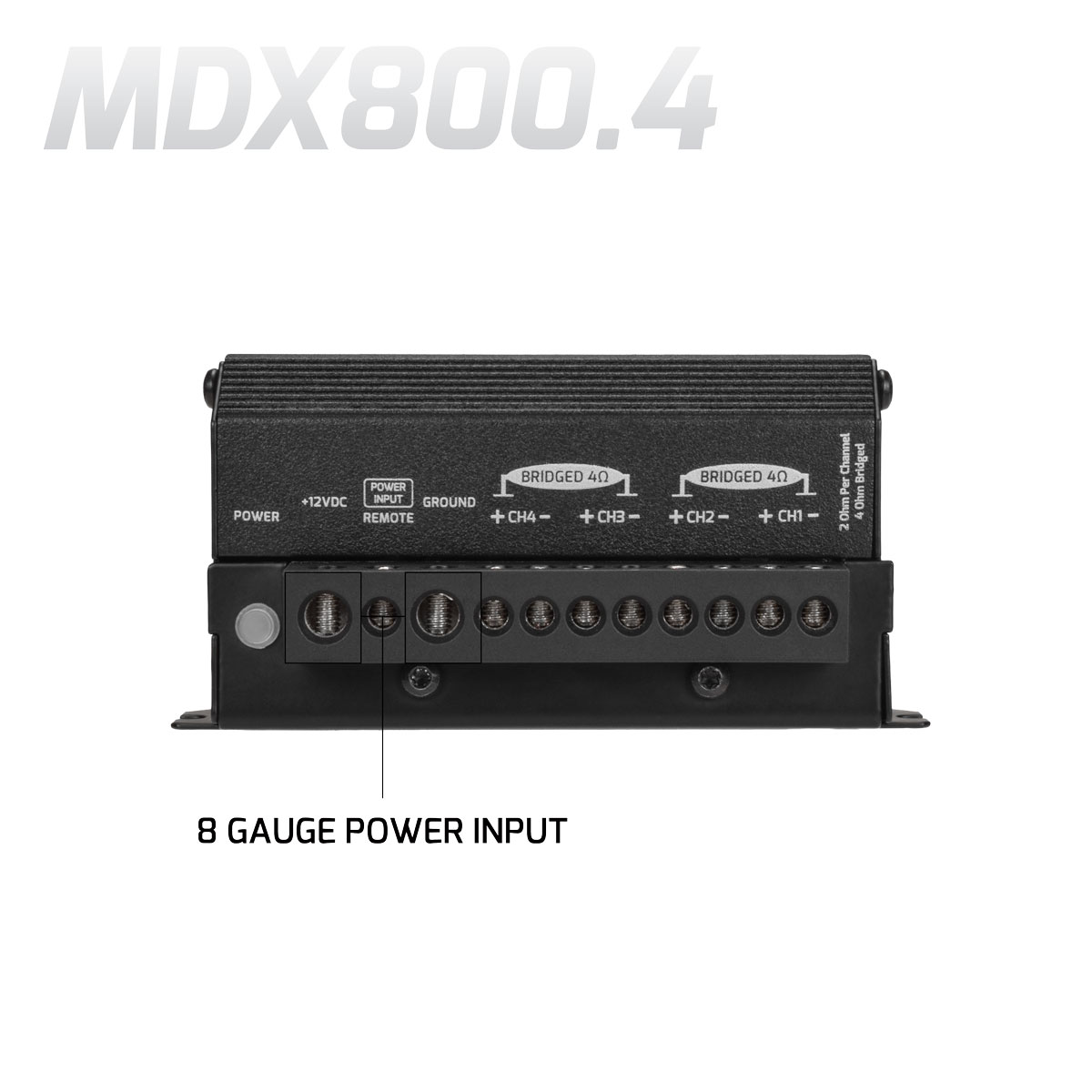

| Minimal Power Wire Input | (OFC) 8 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 80 Hz |
| Minimal Speaker Wire Output | 16 Gauge |
| Frequency Response(-3dB) | 10 - 20,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 2v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 4.25″ x 4.50″ x 2.10″ |
| Weight | 1.25 Lbs |
