6.5" MIDRANGE LOUDSPEAKER

6MR200A-4

In stock

-

  • 6.5″ Midrange – 4 Ohm
  • Shallow Mount
  • 94 dB – 200 Watts

$24.91

In stock

PRICE FOR SINGLE UNIT

SKU: 6MR200A-4 Categories: , Tag:

Features

Features

6MR200A-4---FB-Ad---Now-available-in-4-Ohms

The 6MR200A-4 midrange speaker is our solution for PROAudioOnWheels® for Car audio systems. This unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth. To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.

  • Impressive choice for high output home, car, and professional audio systems
  • Smooth response through the mid-bass and vocal range
  • Rigid yet lightweight stamped steel frame

Use this midrange in professional 3-way sound system, as a high output car audio door speaker, or as a midrange in a bass guitar speaker. With a naturally damped paper cone and cloth accordion surround resonances are kept under control making for an easy transition to a high frequency driver.


Highlights

  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 94 dB
  • Voice Coil Diameter: 1.5″

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.00V at 1m 94 dB
Recommended Hi Pass Crossover*
*For Full Power Handling
150 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 155 – 11,000 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 8.0 mm
Former Material Kapton
Magnetic Gap Depth 5.5 mm
Frame Material Stamped Steel




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 3.16 l
Excursion (mathematical)*** Xmax 2.62 mm
Free Air Resonance Fs 114.1 Hz
Mechanical Factor Qms 13.16
Electrical Factor Qes 1.28
Total Factor Qts 1.17
Cone Area Sd 137 cm²
Mechanical Mass Mms 10.1 g
Bl Factor Bl 6.27 Tm
Dc Resistance Re 3.4 Ohms
Inductance Le 0.26 mH at 1 kHz
Mechanical Mass Without Air Mmd 9.02 g
Mechanical Compliance Cms 0.120 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.59″ (167.5 mm)
Front Mount Baffle Cutout 5.69″ (144.5 mm)
Mounting Depth 2.24″ (57 mm)
Overall Depth 2.5″ 63.5 mm)
Net Weight 3.52 Lbs (1.60 kg)
Shipping Weight 3.79 Lbs (1.75 kg)
Carton Dimensions W x L x H 7.40″ x 7.48″ x 4.45″
(188 x 190 x 113 mm)



WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 21 reviews
90%
(19)
10%
(2)
0%
(0)
0%
(0)
0%
(0)
r
raymond navejar
READ THE REVIEW

Crisp sound definitely a head turner at slamology check out my Instagram page
The_black_yukie I have some videos along with distance test I have 4 mr200a-4 6.5 on a ds1200x4 taramps

T

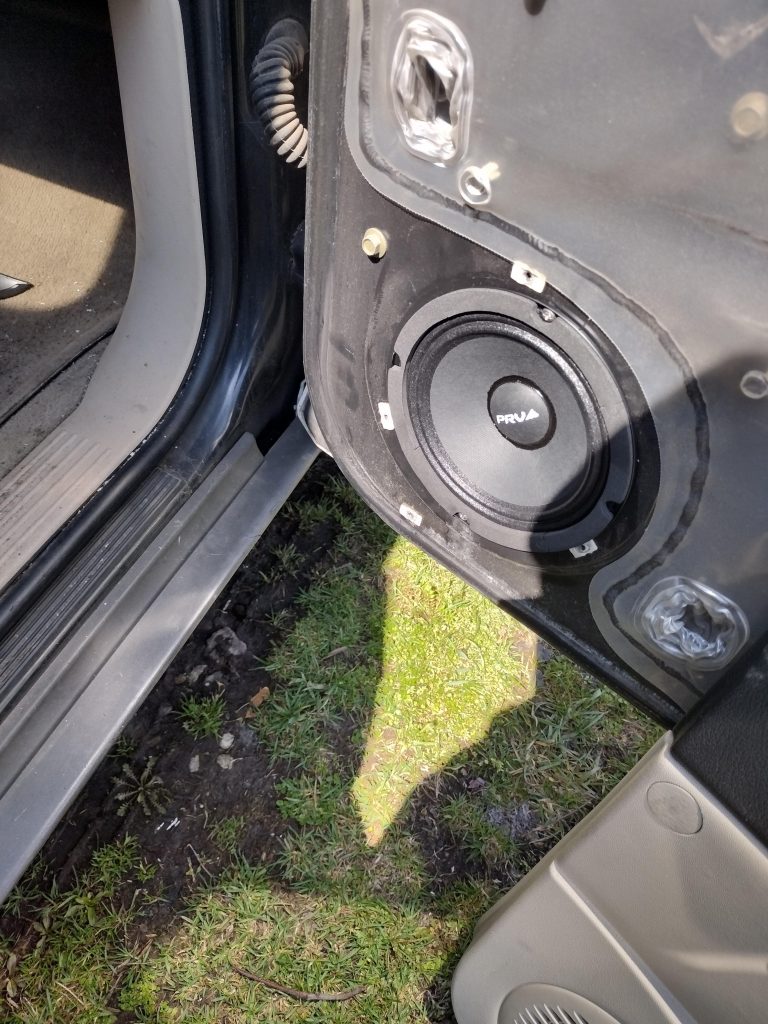

Timothy Henning
6mr200a 6.1/2

I had ran theses in a 2013 Chevy Malibu to start with and this past winter got t bone in it so on my new build I am running the same 6.1/2 in my doors with no amp and they are very impressive the shipping was fast as well and not damaged in any way will continue to use prv products in my builds

C
Carlos Aguilu

Excellent service, súper fast shipping, excellent speaker, very happy, thanks

R
Ryan Samaroo
Bad A** speakers

Have 4 of these in my 2019 accord and they’re so loud crisp and clear even with just being played off the oem radio giving out only 50 watts. Definitely recommend these.

E
Edward Baez

Fast shipping great iteam
