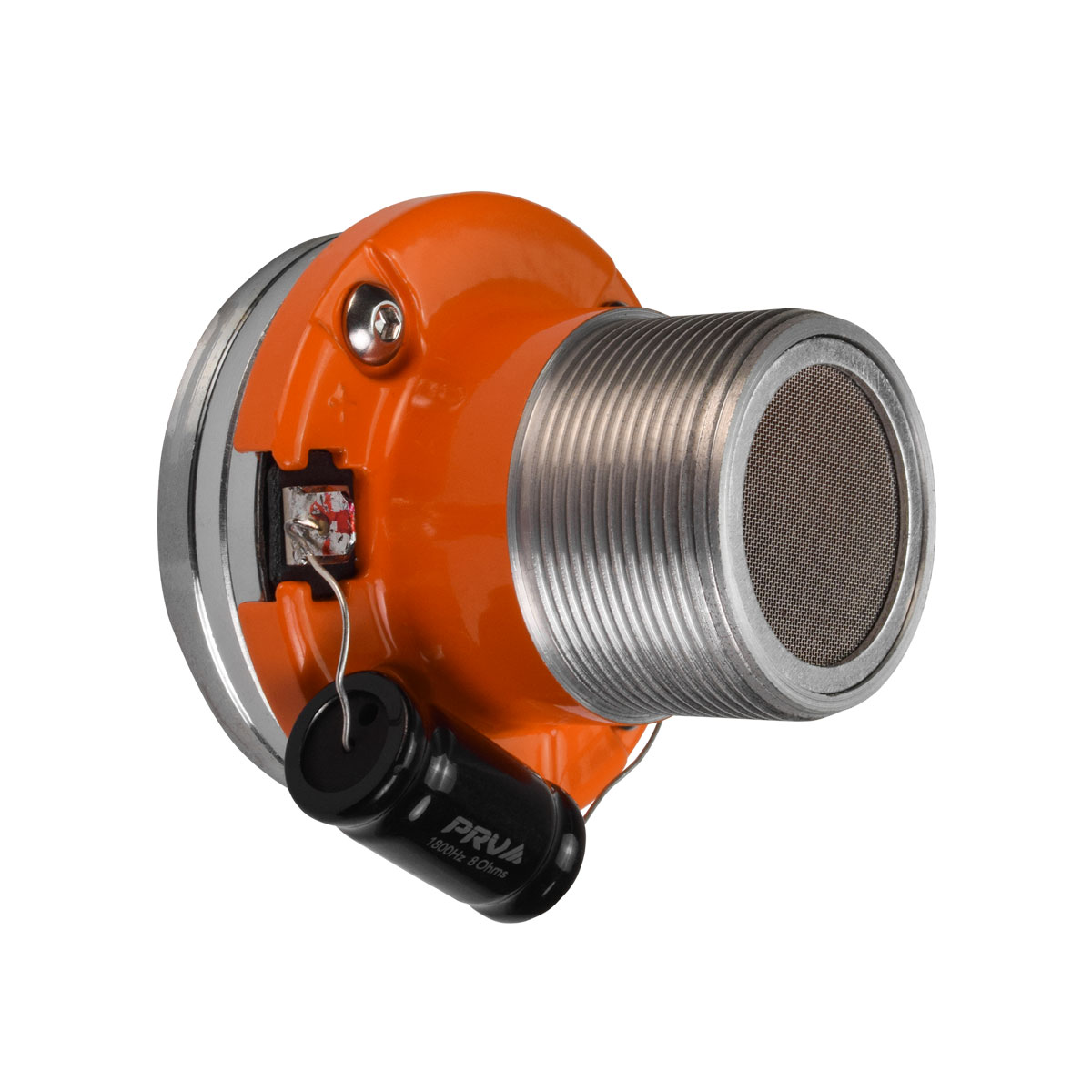

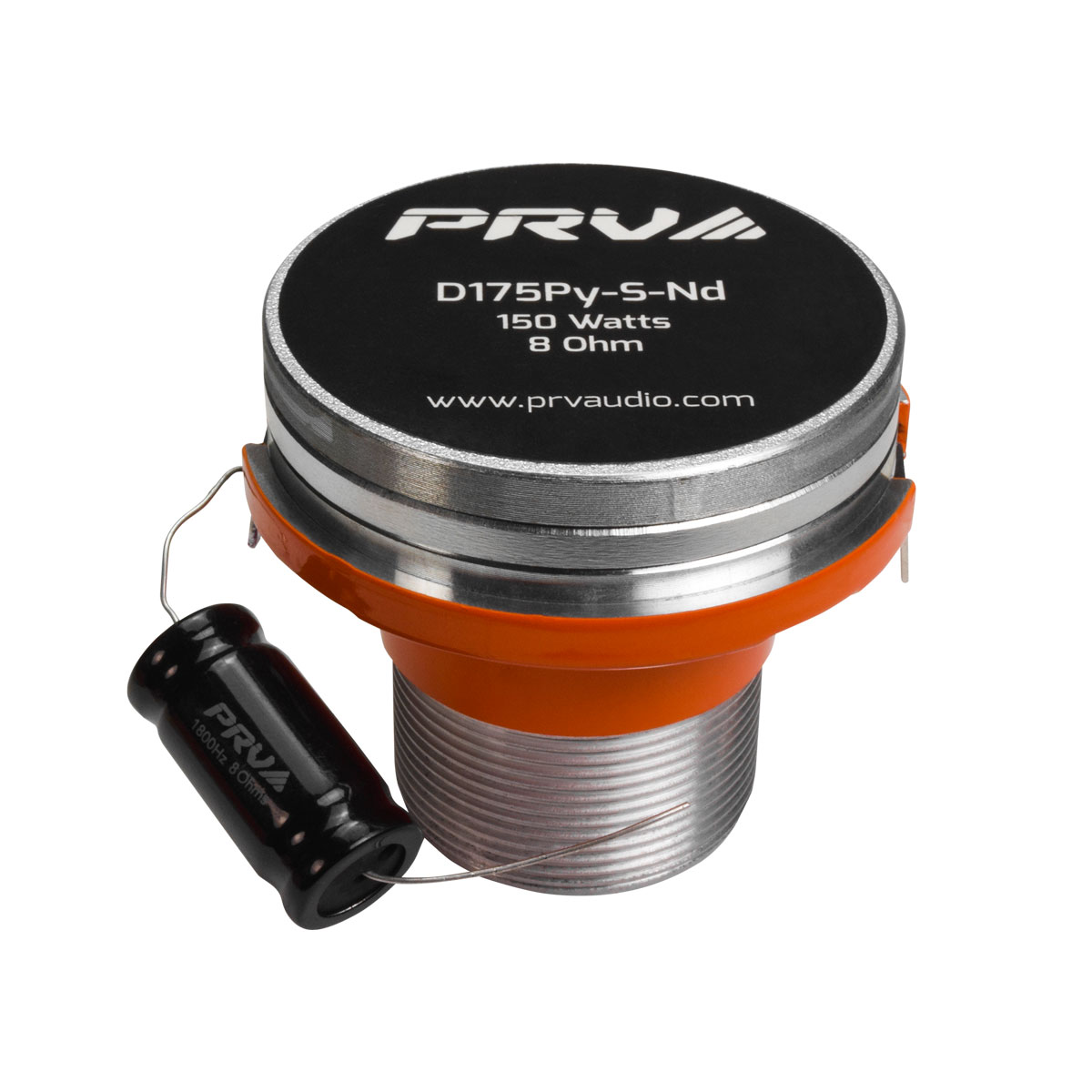

D175Py-S-Nd
- 1” Mids & Highs Driver
- Polyimide Diaphragm
- 109 dB – 150 Watts
Original price was: $87.39.$69.91Current price is: $69.91.
Out of stock
PRICE FOR SINGLE UNIT
Features
Features

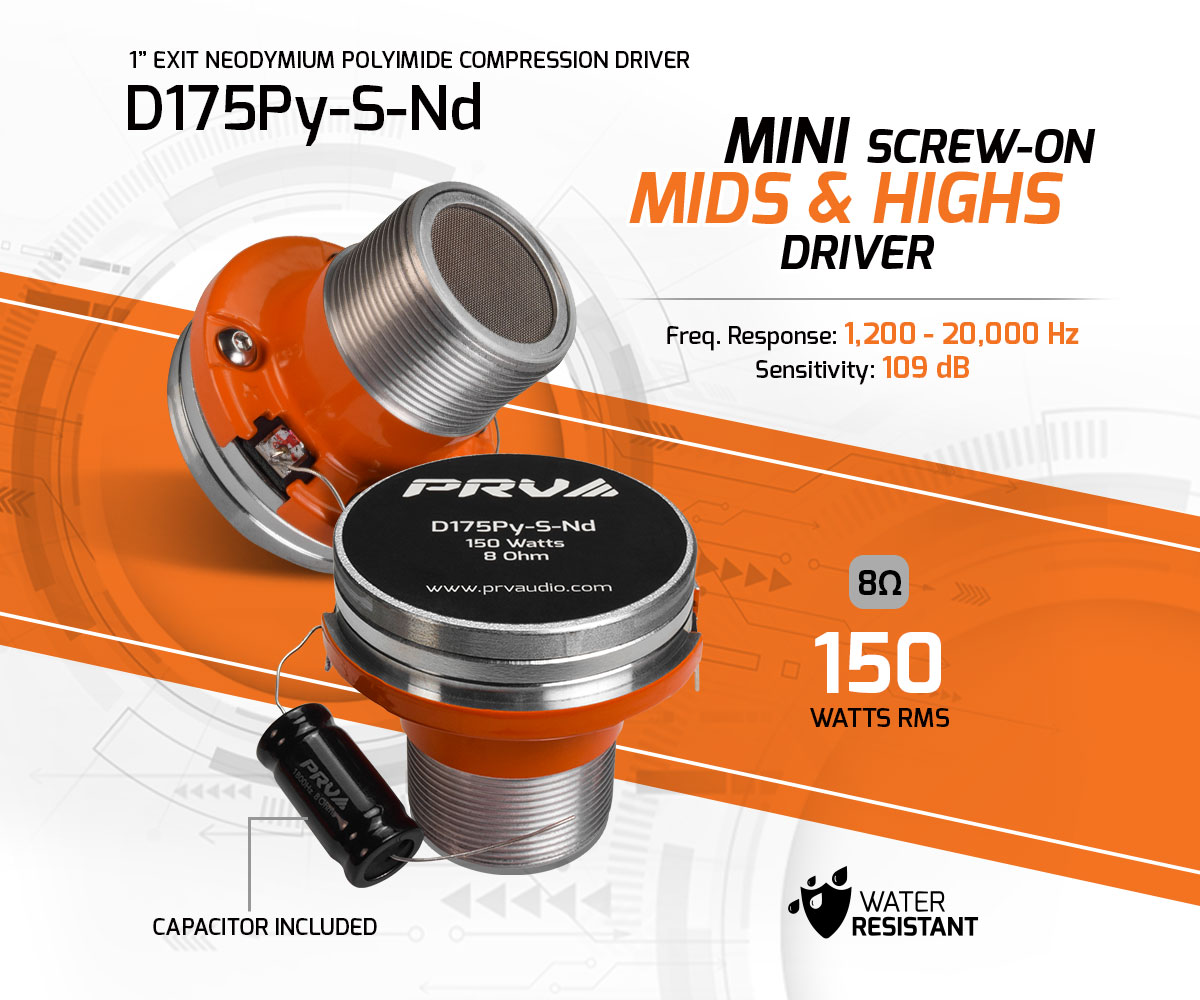

The D175Py-Nd-S is a Mini Mids & Highs Driver featuring a unique Polyimide diaphragm with an 8 Ohm voice coil.
This is a top-of-the-line compression driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

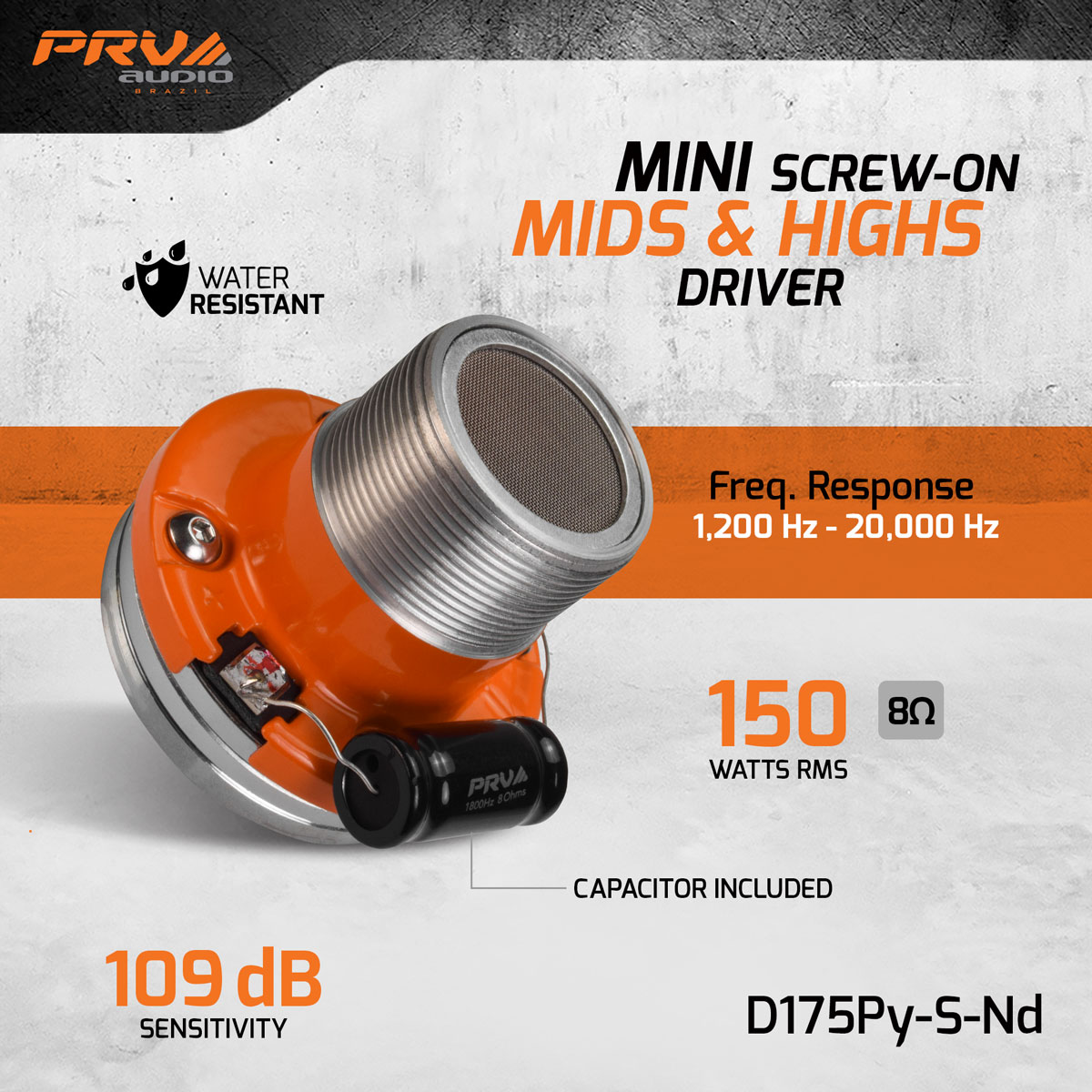

- Crystal clear natural sound with wider response from 1,200 to 20,000 Hz – Polyimide diaphragm is a new technology that supersedes titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
- Polyimide diaphragm with 1″ Voice Coil, providing high output along with excellent efficiency – 109 dB Sensitivity
- Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
- Mini neodymium driver, ideal for tight spaces, Great choice for custom car audio door panels where the space is limited. 8 Ohm voice coil making it easier to have multiple drivers wired to one amplifier.
- The D175Py-Nd-S is manufactured with a standard 1 3/8” screw for easy replacement with current 1” screw-on horns
The small diameter of the driver allows for front mounting, making it a very popular choice in car audio builds for its easy installation, without having to detach the driver from the horn.

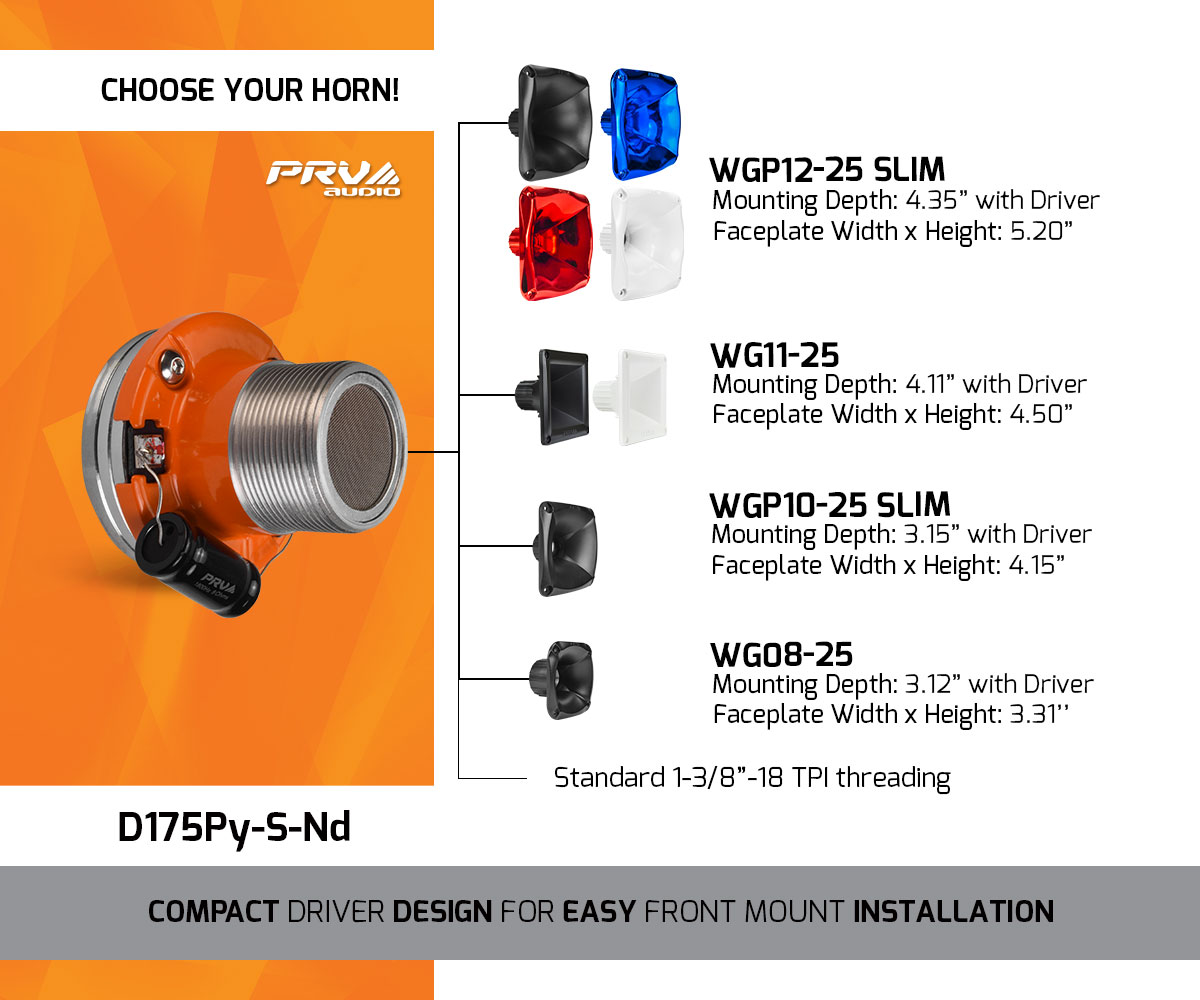

The WGP12-25 SLIM is the ideal horn, when mounting depth is an issue, and you need a shallow horn with high output performance.

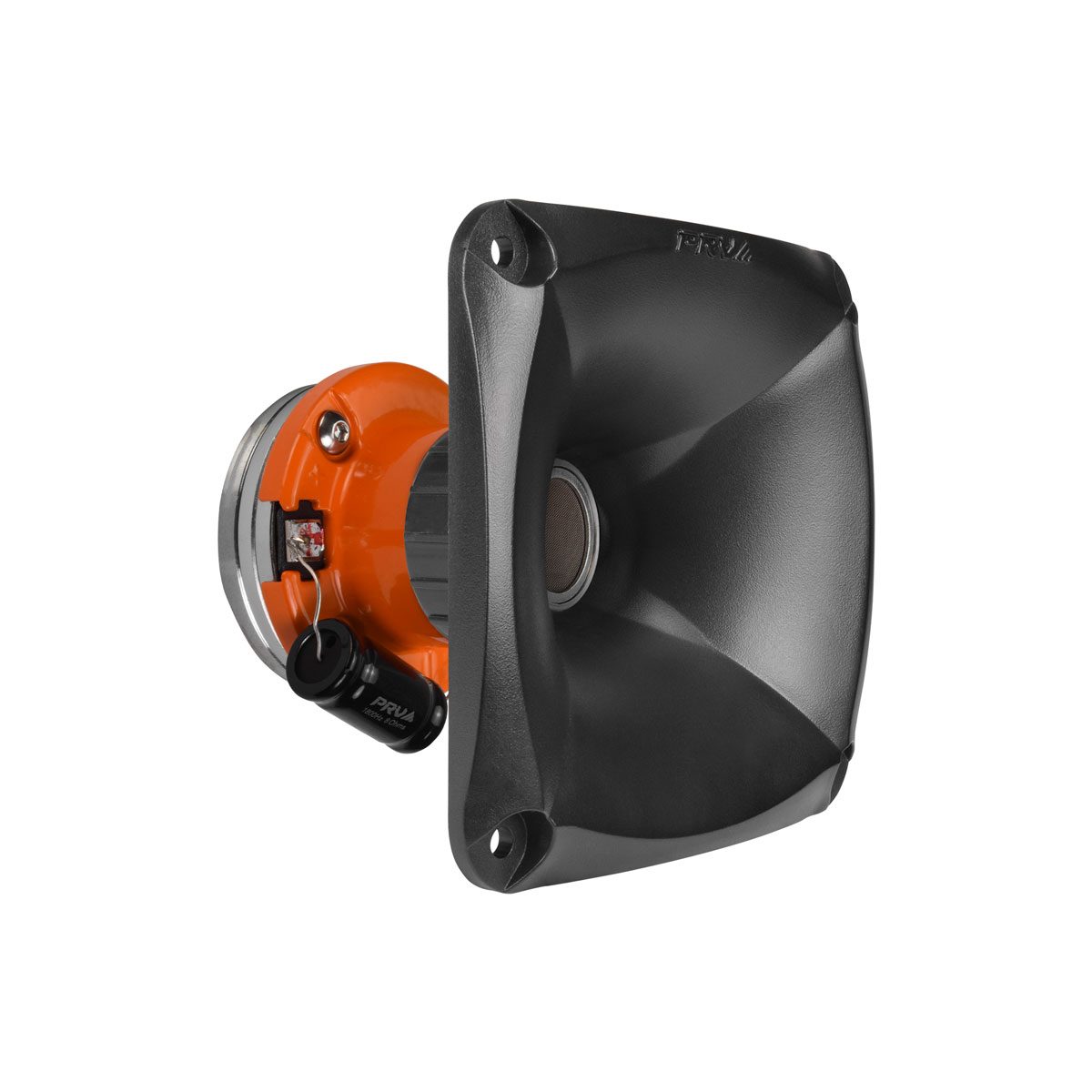

The WGP10-25 SLIM is a mid size horn that combines a small faceplate and slim profile.

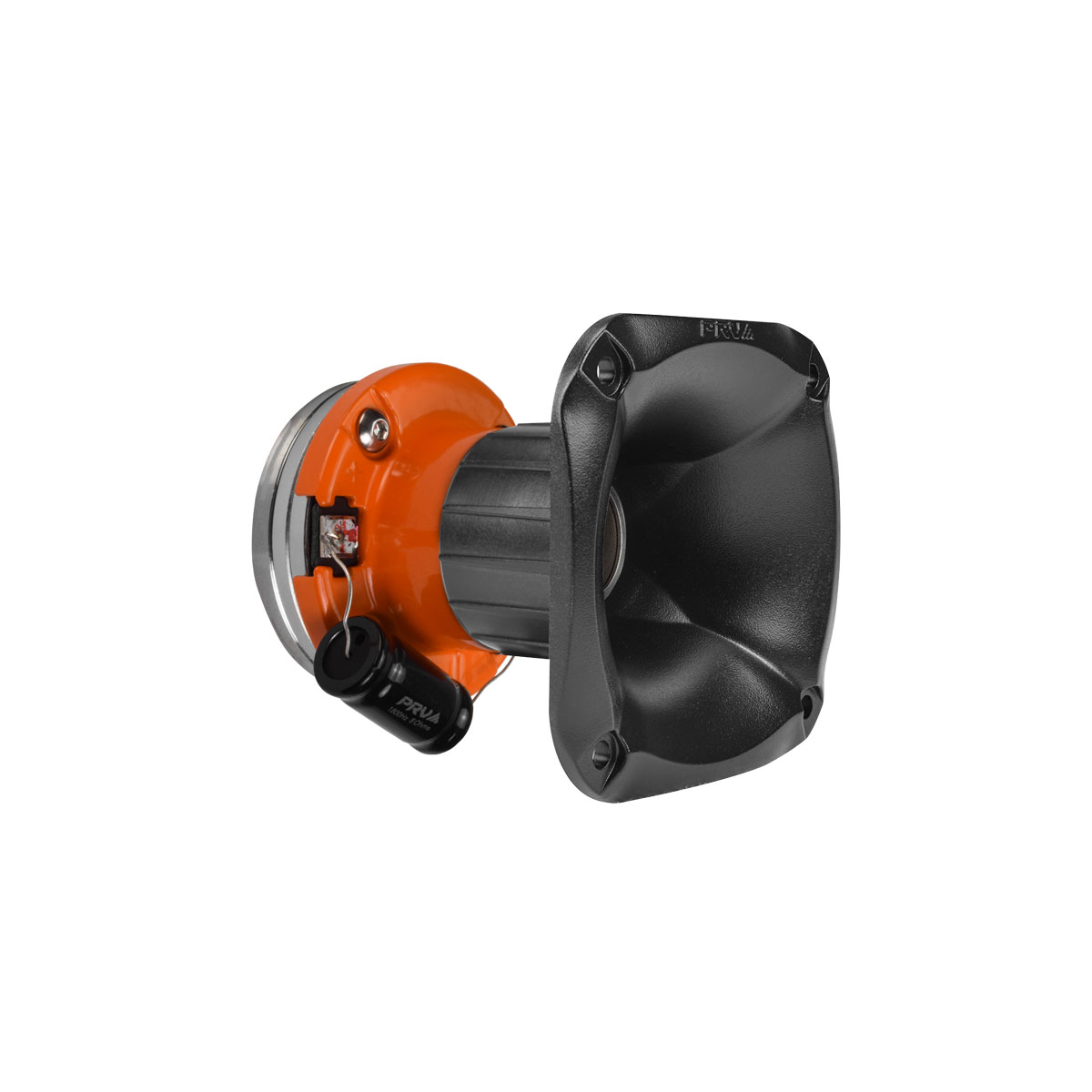

The WG08-25 is mini ultra compact horn design that fits perfect on this driver, best option to mount drivers between speakers.

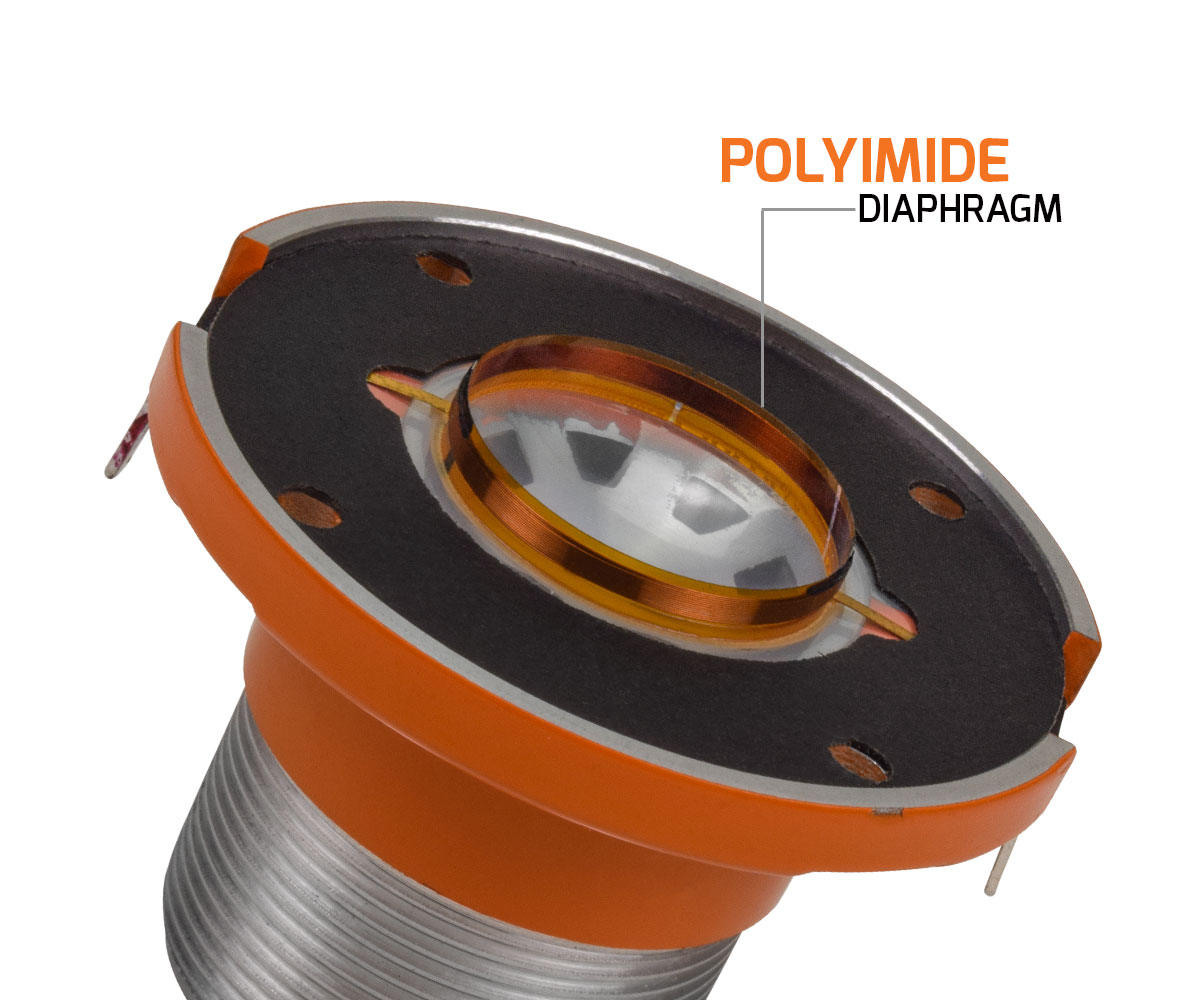

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
PRV Mids & Highs Driver D175Py-Nd-S 1″ Exit Screw-On 150 Watts 8 Ohm Polyimide
4 Drivers – 1x MDX1200.2 2 Ohm, 4 speakers in parallel
8 Drivers – 1x QS3000 1 Ohm, 8 speakers in parallel
Recommended Crossover Settings:
The polyimide diaphragm is attached to a 1″ diameter copper-clad aluminum wire with Kapton® former for a 150 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
• 1800 Hz at 12 dB per octave filter Crossover / BT12
• 1700 Hz at 18 dB per octave filter Crossover / BT18
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1” (25.4 mm) |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 75 Watts |
| Continuous Program Power (RMS) | 150 Watts |
| Peak Power | 300 Watts |
| Sensitivity 2.83V at 1m* | 109 dB |
| Recommended High Pass Crossover** **For Full Power Handling | 1200 Hz*** ***12 db/oct Crossover |
| Frequency Response at -10dB | 1,200 - 20,000 Hz |
| Voice Coil Diameter | 1” (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton® |
| Diaphragm Material | Polyimide |
| Flux Density | 1.75 T |
| Magnet Material | Neodymium |
EXTRA INFO

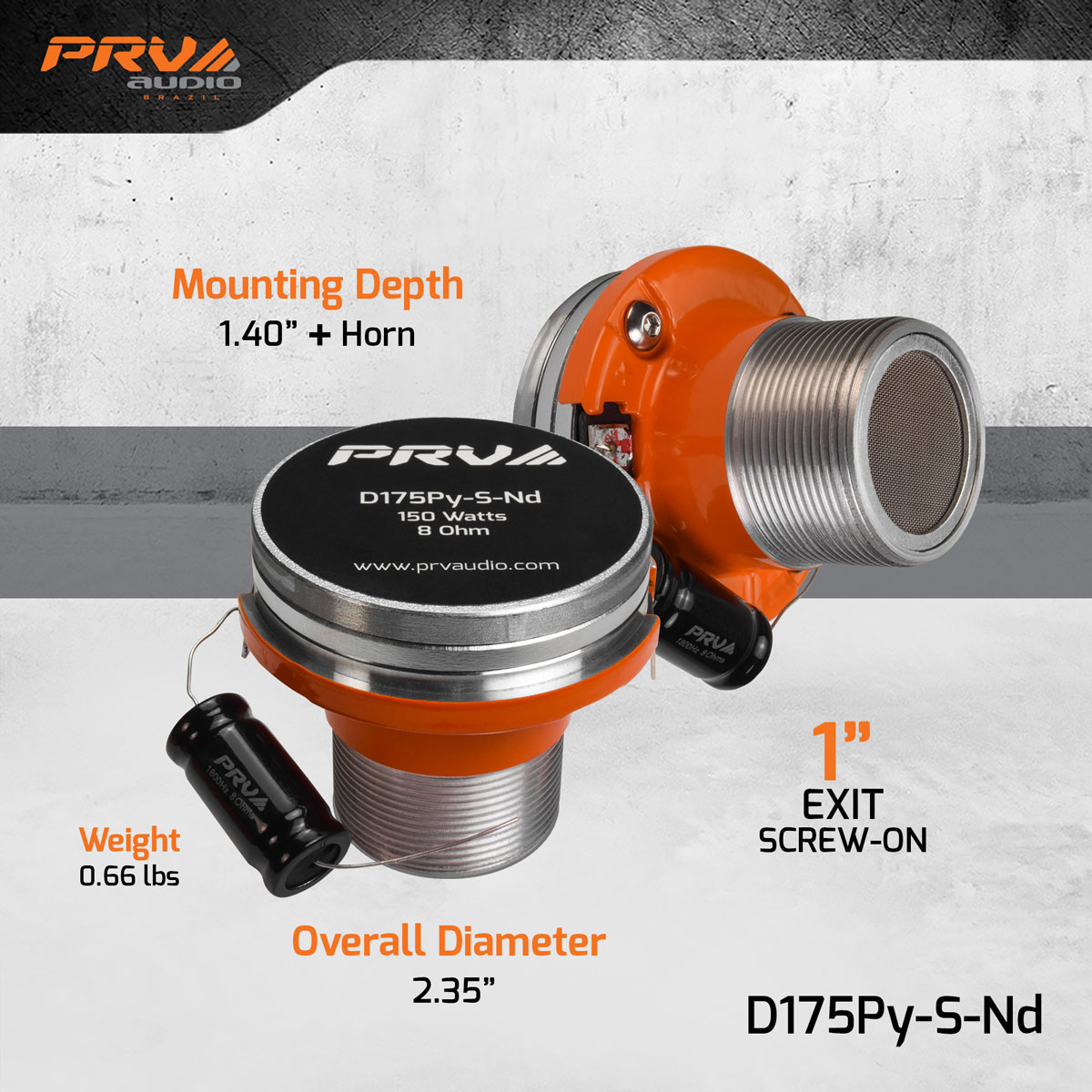

| Overall Diameter | 2.36" (60 mm) |
| Overall Depth | 2.07" (52.5 mm) |
| Mounting Thread | 1 3/8” 18TPI |
| Net Weight | 0.66 lbs (0.3 kg) |
| Shipping Weight | 0.77 lbs (0.35 kg) |
| Carton Dimensions W x L x H | 2.56" x 2.56" x 2.36" (65 x 65 x 60 mm) |

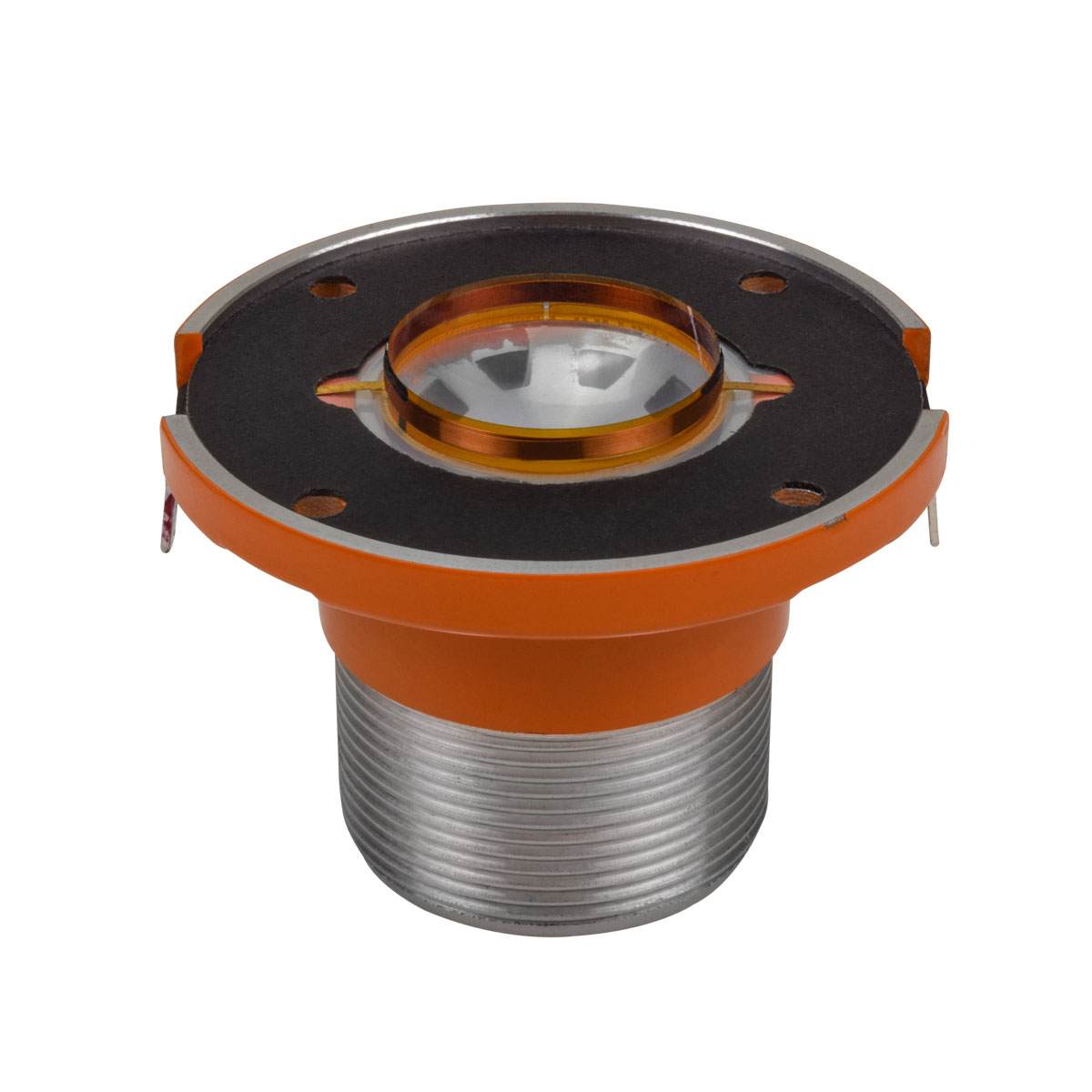

Repair Parts
