Compact bundle solution for mid-high vocal reproduction that offers a great response on vocals from 800 to 9,000Hz. Perfect component for a 3 or 4-Way sound system.

Its high output and smooth midrange frequency response allows you to use this 2″ exit horn driver bundle in almost any high output audio application for vocal reinforcement. Such as: stuntwalls, custom door panels, chuchero ® and designed to make the PROAudioOnWheels® audio systems as unforgettable experience.

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. Mounting hardware is included.

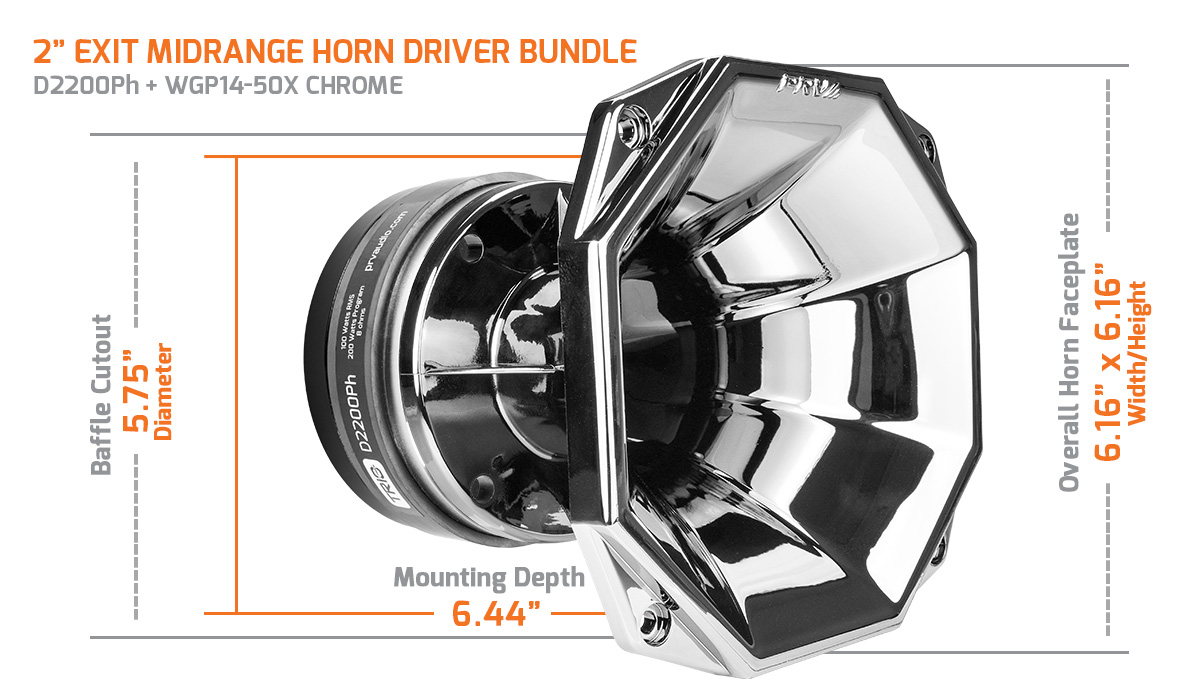

The D2200Ph combined with the WGP14-50X CHROME Horn, only requires a baffle cutout of 5.75” and a mounting depth of 6.44″ deep. Overall horn faceplate is only 6.16” by 6.16”.

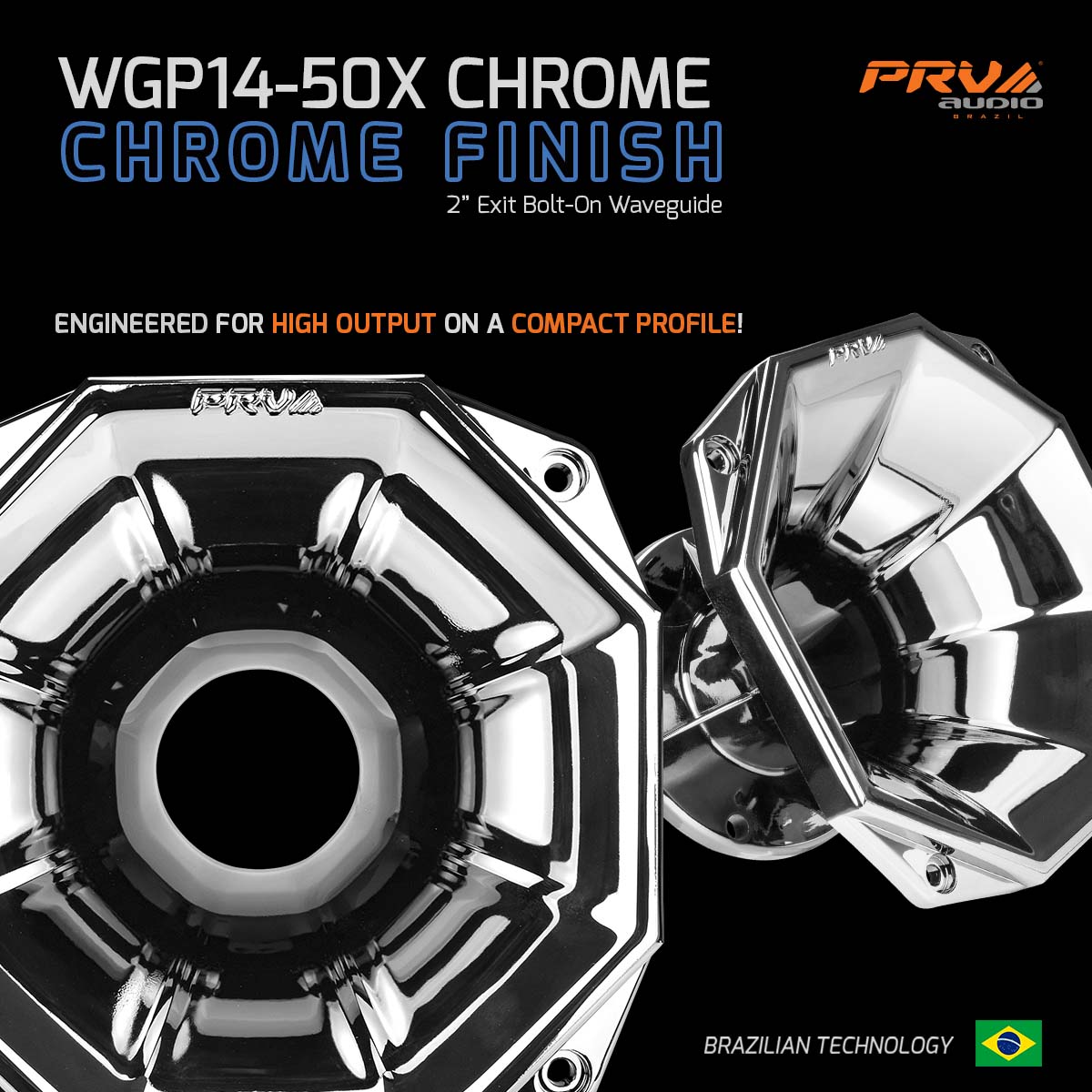

1x WGP14-50X CHROME Horn
2” throat Compact Waveguide
Squared outside edges allow easy side or up stack of multiple drivers in a compact format
Unique Shape and Chrome Finish

How to Install them:
This midrange horn driver bundle will need 200 Watts RMS per driver with recommended HPF using PRV Digital Signal Processor DSP

• 800 Hz at 12 dB per octave filter Crossover / BT12
• 650 Hz at 18 dB per octave filter Crossover / BT18

2 Drivers Setup amplifier recommendation:
MDX1200.2 at 2 Ohm – Wire 2 Drivers in parallel to one channel, leaving the other channel for Super Tweeters.

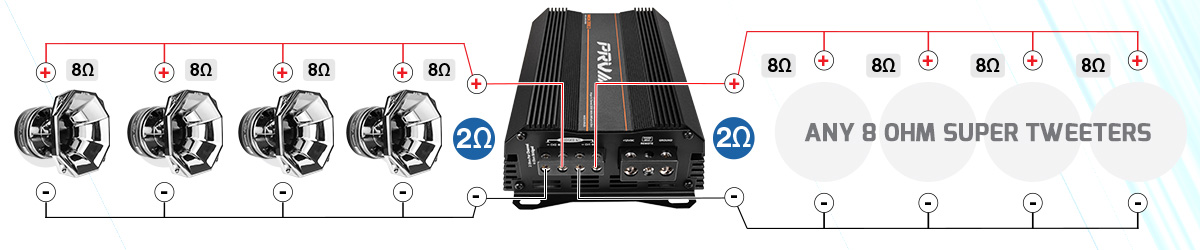

4 Drivers Setup amplifier recommendation:
MDX1200.2 at 1 Ohm – Wire 4 Drivers in parallel to the bridged channel at 2 Ohm.
or
MDX2000.2 at 2 Ohm – Wire 4 Drivers in parallel to one channel, leaving the other channel for Super Tweeters.

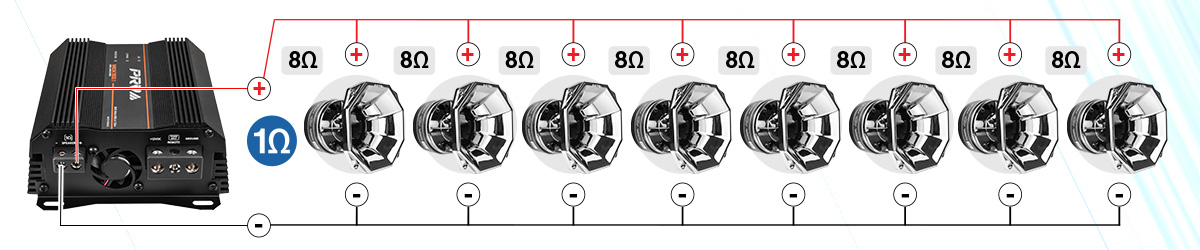

8 Drivers Setup amplifier recommendation:
MDX1800.1 at 1 Ohm – Wire 8 Drivers in parallel to the 1 channel amp.
