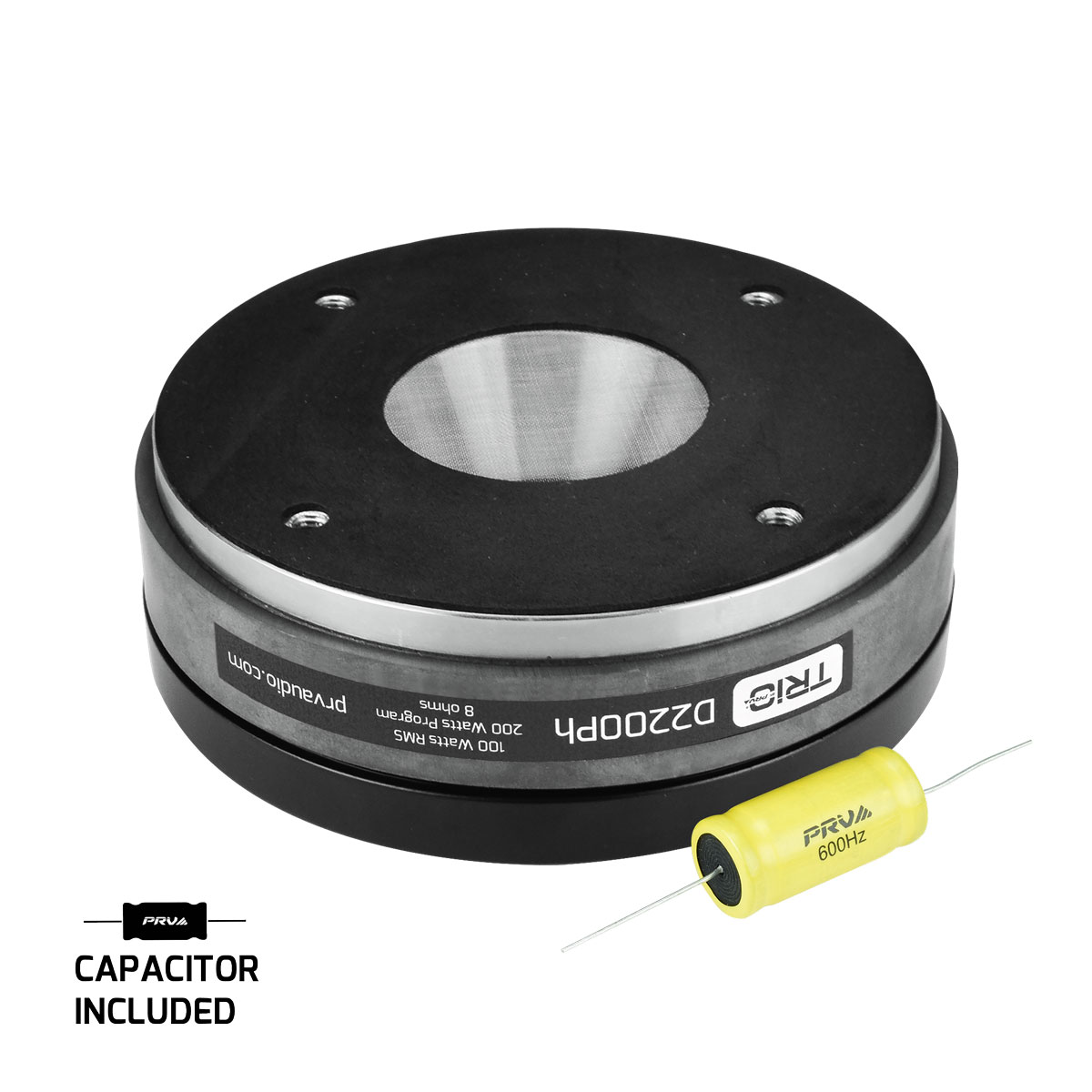

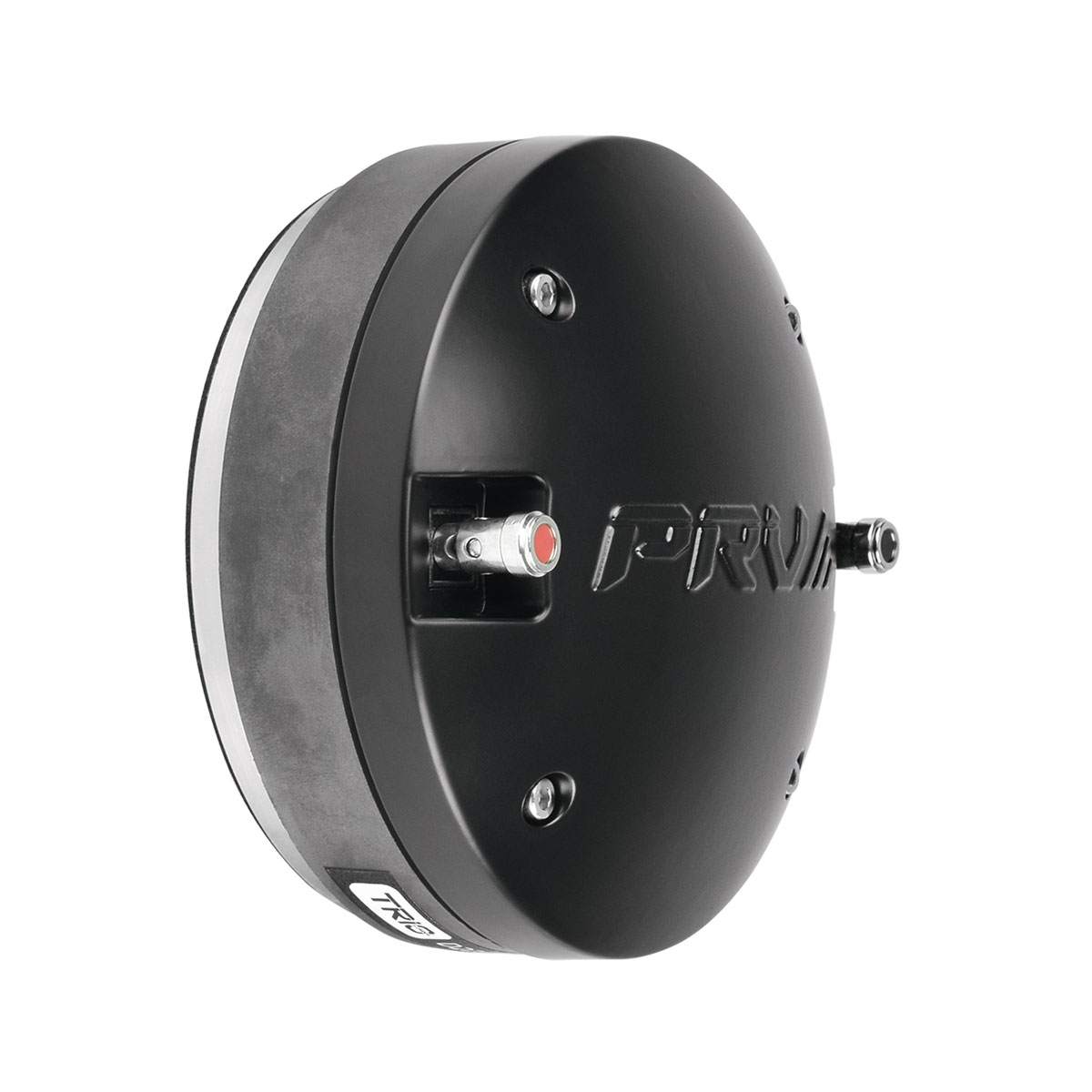

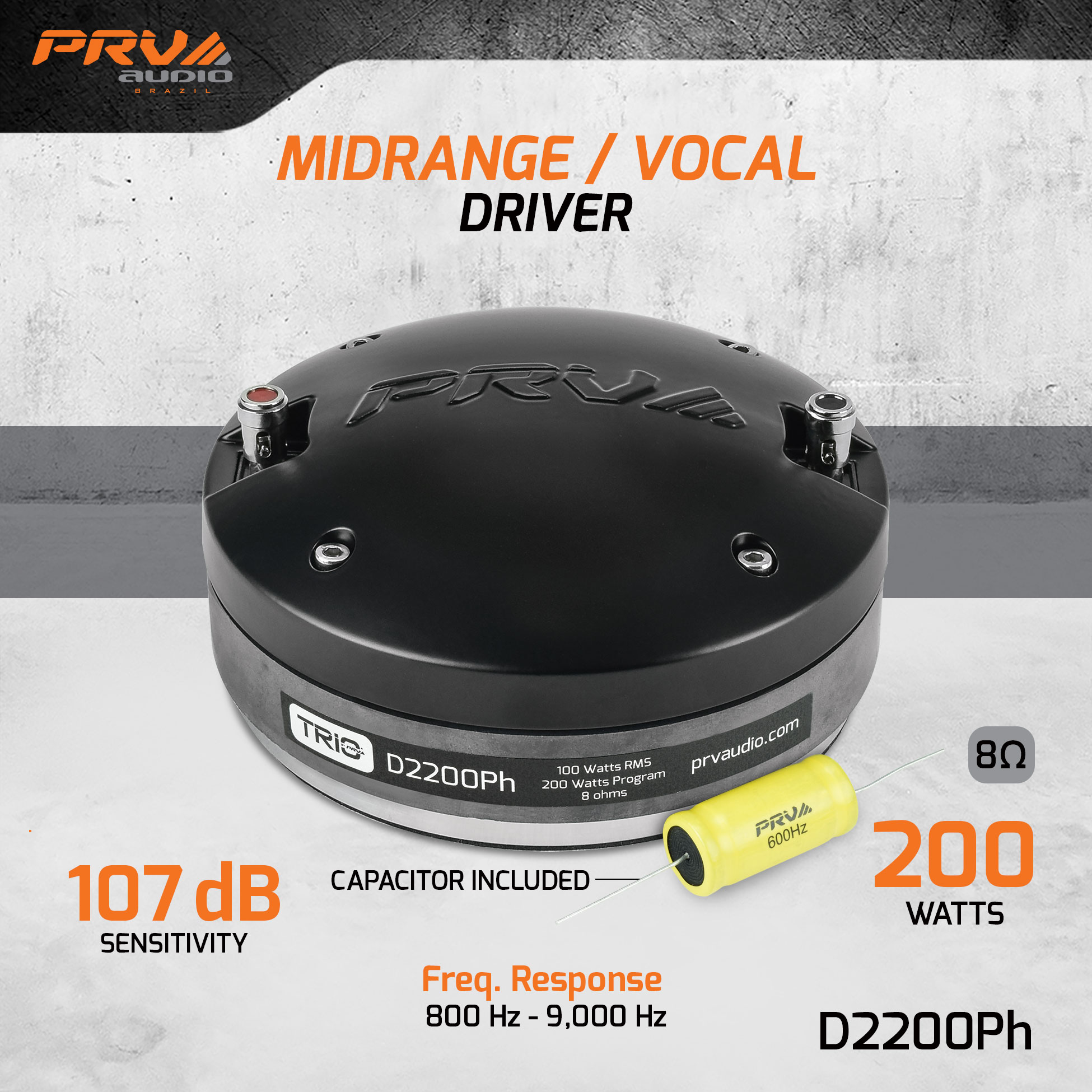

2" EXIT MIDRANGE COMPRESSION DRIVER

D2200Ph

In stock

-

  • 2″ Midrange Driver
  • Phenolic Diaphragm
  • 107 dB – 200 Watts

$59.91

In stock

PRICE FOR SINGLE UNIT

Features

Features

The D2200Ph is a compact solution for mid-high vocal reproduction that offers high sensitivity and a pleasant sound from the phenolic diaphragm. Its high output and smooth mid range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement: PRO, Home, Car or PROAudioOnWheels® Audio Systems.

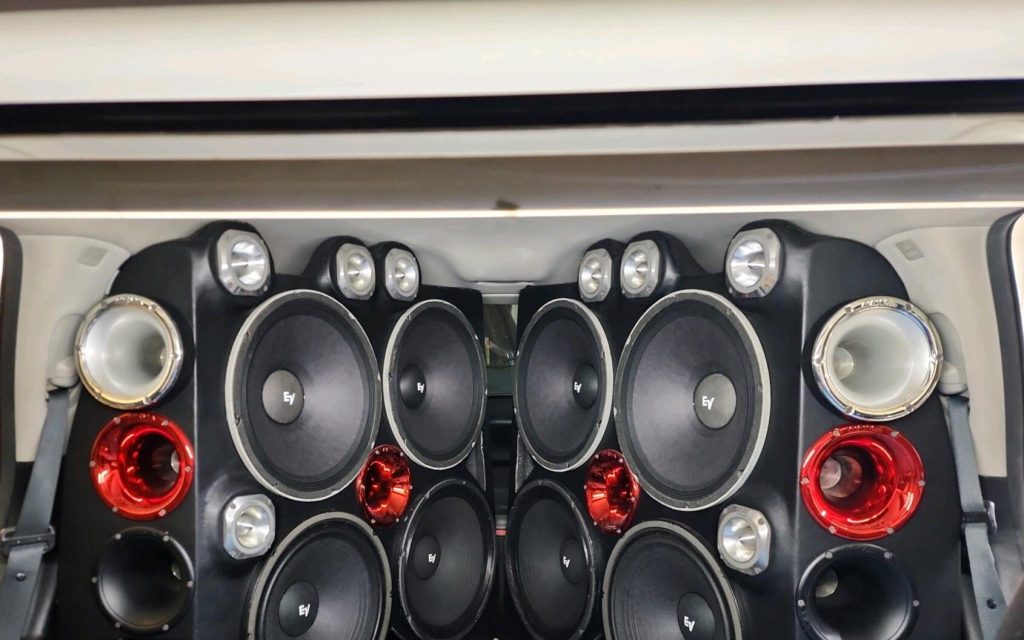

High output mobile audio enthusiasts choose the PRV Audio D2200Ph for extreme SPL car audio competitions in South America, while DJs use it in high SPL speaker cabinets for entertaining crowds that number in the thousands.

D2200Ph
  • Low mass CCAW voice coil and phenolic diaphragm for natural response
  • Designed for midrange and vocals from 800 to 9,000 Hz
  • High Output – 107 dB sensitivity
  • Compact driver design for easy front mount installation

D2200Ph Compact Driver Design measurements

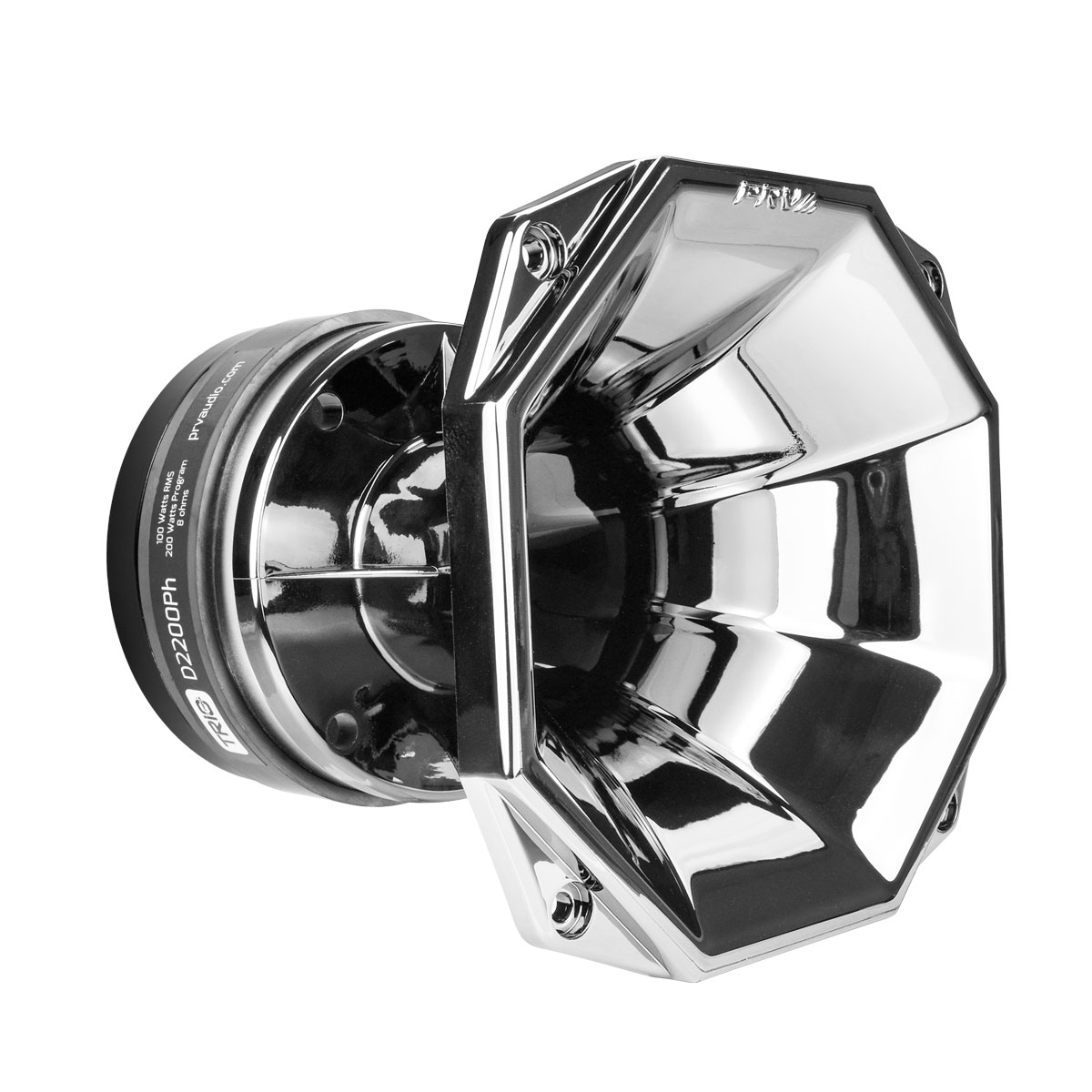

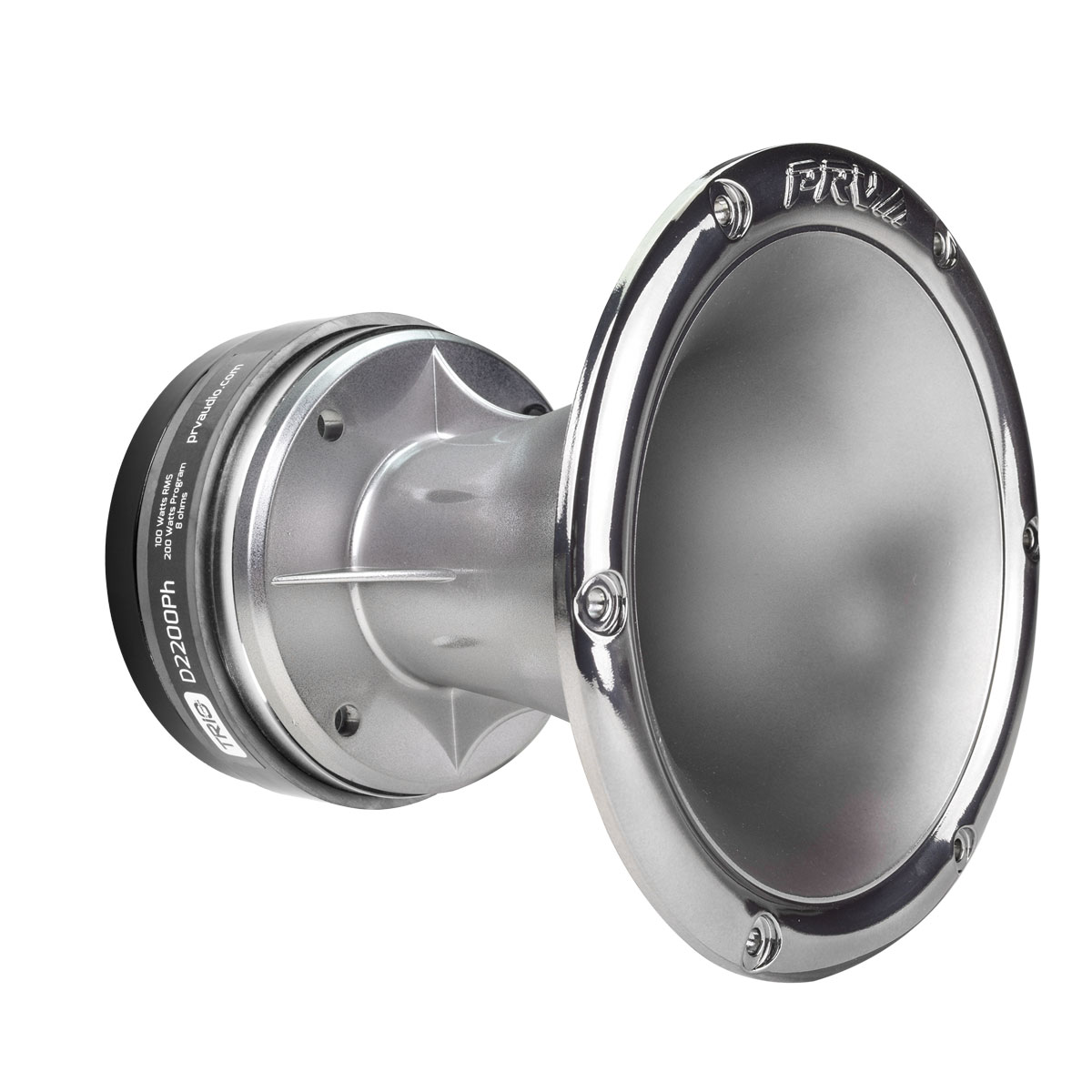

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The Driver diameter measures only 5.24″ having a lot of clearance to fit inside of the 5.65″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.

Combining our company’s extensive experience, and its commitment to customer satisfaction we have created a compact yet very powerful driver that solves the critical component spacing and weight issue.


D2200Ph Trio By PRV

TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

The phenolic diaphragm is attached to a 2″ diameter copper-clad aluminum wire with Kapton® former for a high 500 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 800 Hz at 12 dB per octave filter Crossover / BT12
  • 650 Hz at 18 dB per octave filter Crossover / BT18

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)
Nominal impedance 8 Ohm
Rated Power Handling* 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 107 dB
Recommended Hi Pass Crossover For Full Power Handling 800 Hz 12db/oct Crossover
Frequency Response at -10dB 800 – 9,000 Hz
Voice Coil Diameter 2” (51 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Phenolic
Flux Density 1.66 T
Magnet Material Ferrite
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

Overall Diameter 5.24″ (133 mm)
Overall Depth 2.58″ (65.5 mm)
Mounting Bolt circle M6 x4 – 4″ (101.6 mm)
Net Weight 6.39 lbs (2.9 kg)
Shipping Weight 6.61 lbs (3.0 kg)
Carton Dimensions W x L x H 5.71″ x 5.71″ x 3.93″ (145 x 145 x 100 mm)

Repair Parts

Replacement Diaphragm for D2200Ph


WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 34 reviews
94%
(32)
3%
(1)
3%
(1)
0%
(0)
0%
(0)
N
N.S.
Awesome Midrange Driver

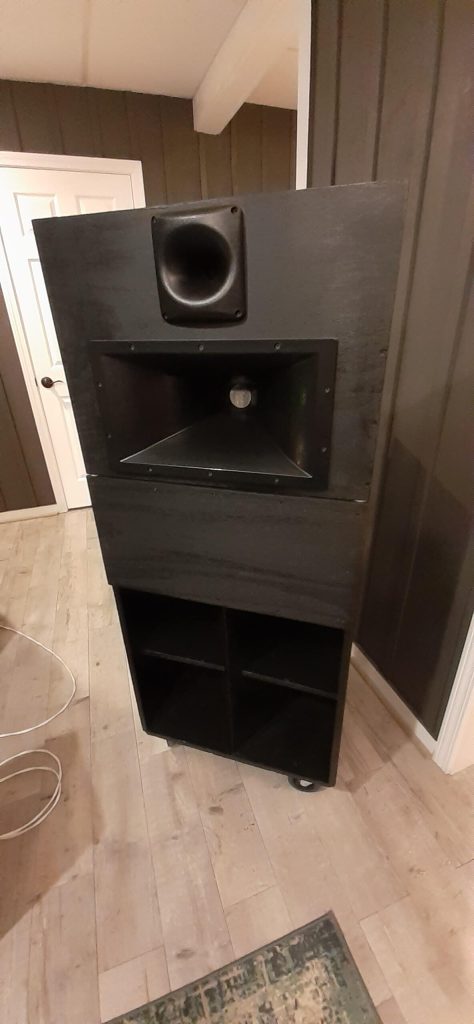

I am using the D2200Ph on the PRV WG45-50 horn crossed over from 450Hz~6kHz in a three-way horn home speaker. The midrange reproduction is amazing. This combo blows away the Klipsch K55 & K400 horn.

If you are looking for a 2" format driver to replace the K55V or similar in a home application, look no further, the D2200Ph is it. Don't let the inexpensive price fool you.

R

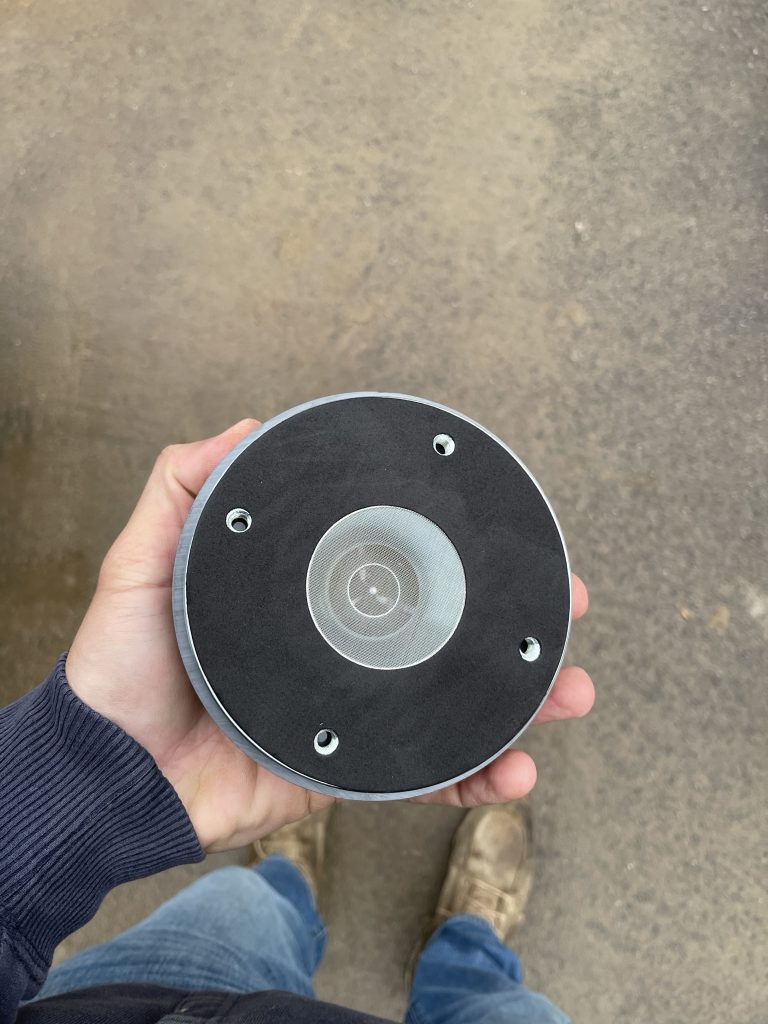

Robert Kurtz
2200 review

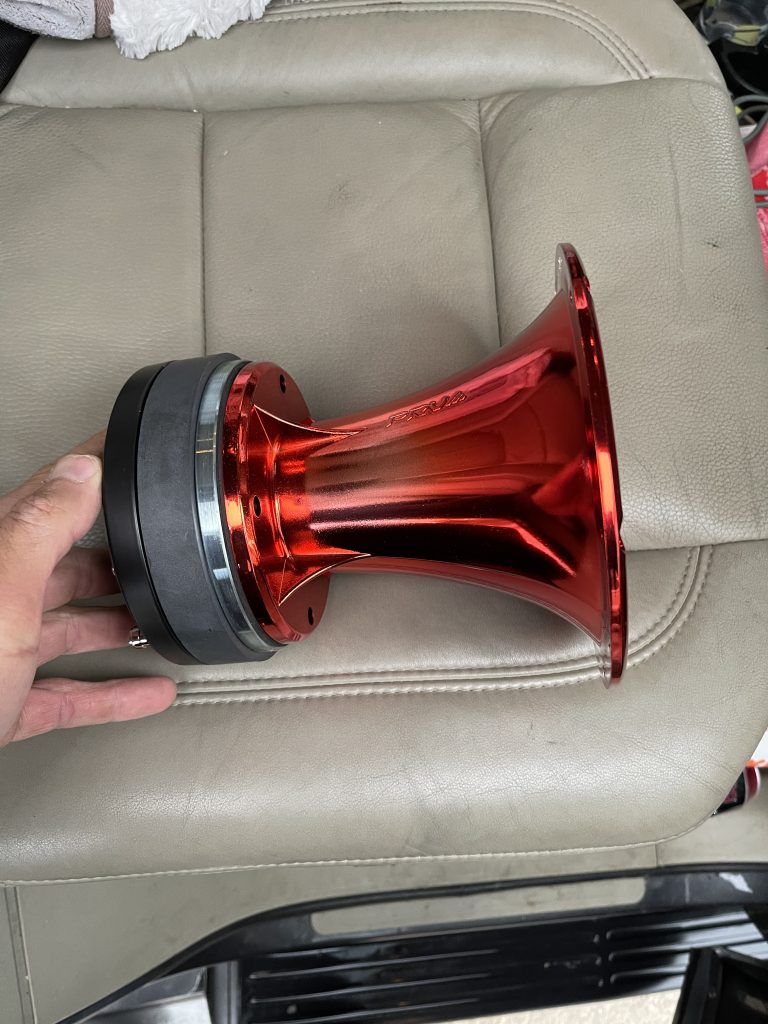

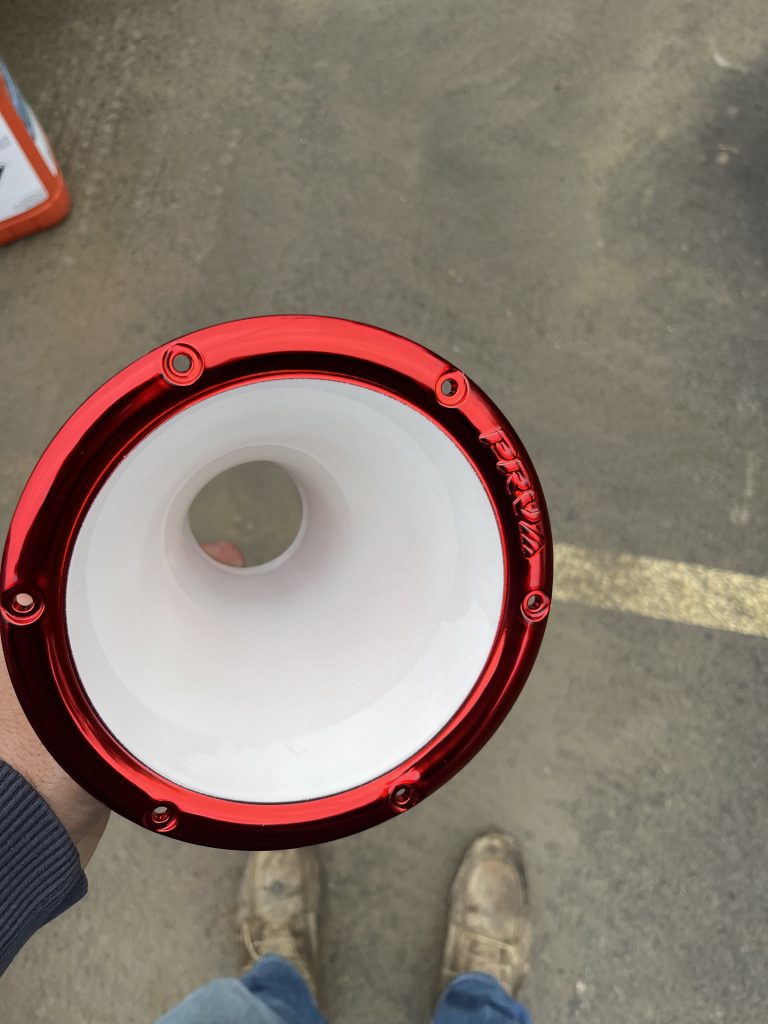

Horns sound amazing, I actually ordered 4 more and replacing all
My mids with prv

IMO best sounding mid for the price , also fast shipping and great prices , even their sister company timpano makes amazing stuff

E
Eric Ortiz
Exelente driver

Muy bueno y exelente

E
E

Nice sound

J
Jorge A Gigante Carbo

Muy bueno exelente
