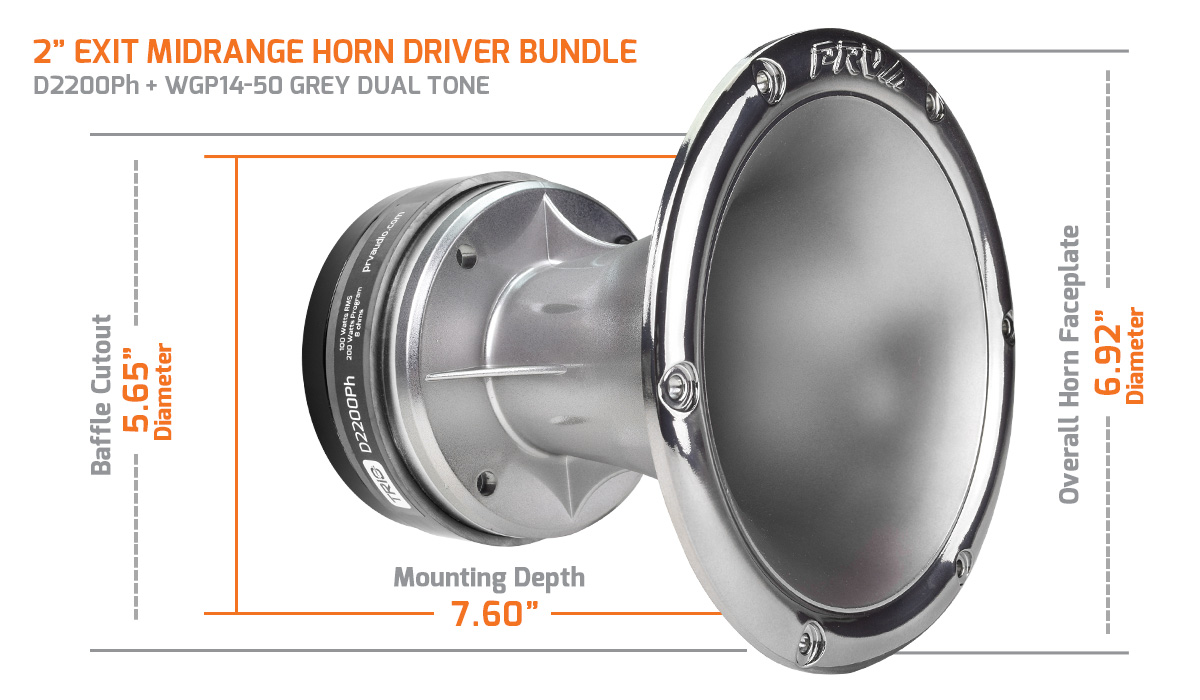

2” Exit Midrange Horn Driver Bundle – D2200Ph + WG14-50 Grey Dual Tone

Compact bundle solution for mid-high vocal reproduction that offers a great response on vocals from 800 to 9,000Hz. Perfect component for a 3 or 4-Way sound system.

Its high output and smooth midrange frequency response allows you to use this 2″ exit horn driver bundle in almost any high output audio application for vocal reinforcement. Such as: stuntwalls, custom door panels, chuchero ® and designed to make the PROAudioOnWheels® audio systems as unforgettable experience.

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. Mounting hardware is included.

---

Bundle Components:
1x D2200Ph Midrange Driver
2” Exit Phenolic Compression Driver
800 – 9,000 Hz / 107 dB
200 Watts RMS / 8 Ohm

1x WGP14-50 GREY DUAL TONE Horn
2” throat Waveguide
Grey Color with Chrome lid with matte UV resistant finish
Unique Dual Tone Finish

How to Install them:
This midrange horn driver bundle will need 200 Watts RMS per driver with recommended HPF using PRV Digital Signal Processor DSP

• 800 Hz at 12 dB per octave filter Crossover / BT12
• 650 Hz at 18 dB per octave filter Crossover / BT18

2 Drivers Setup amplifier recommendation:
MDX1200.2 at 2 Ohm – Wire 2 Drivers in parallel to one channel, leaving the other channel for Super Tweeters.

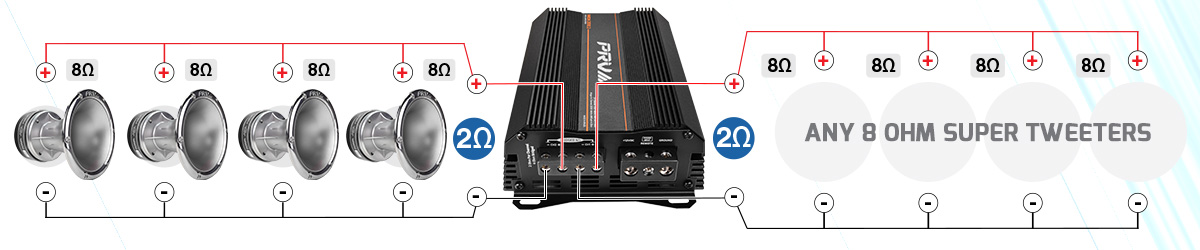

4 Drivers Setup amplifier recommendation:
MDX1200.2 at 1 Ohm – Wire 4 Drivers in parallel to the bridged channel at 2 Ohm.
or
MDX2000.2 at 2 Ohm – Wire 4 Drivers in parallel to one channel, leaving the other channel for Super Tweeters.

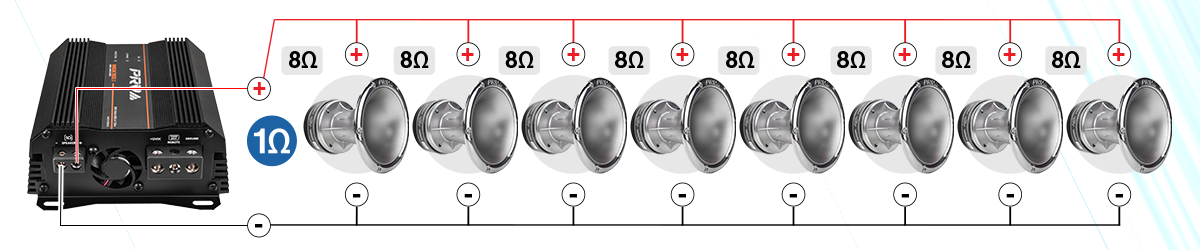

8 Drivers Setup amplifier recommendation:
MDX1800.1 at 1 Ohm – Wire 8 Drivers in parallel to the 1 channel amp.
