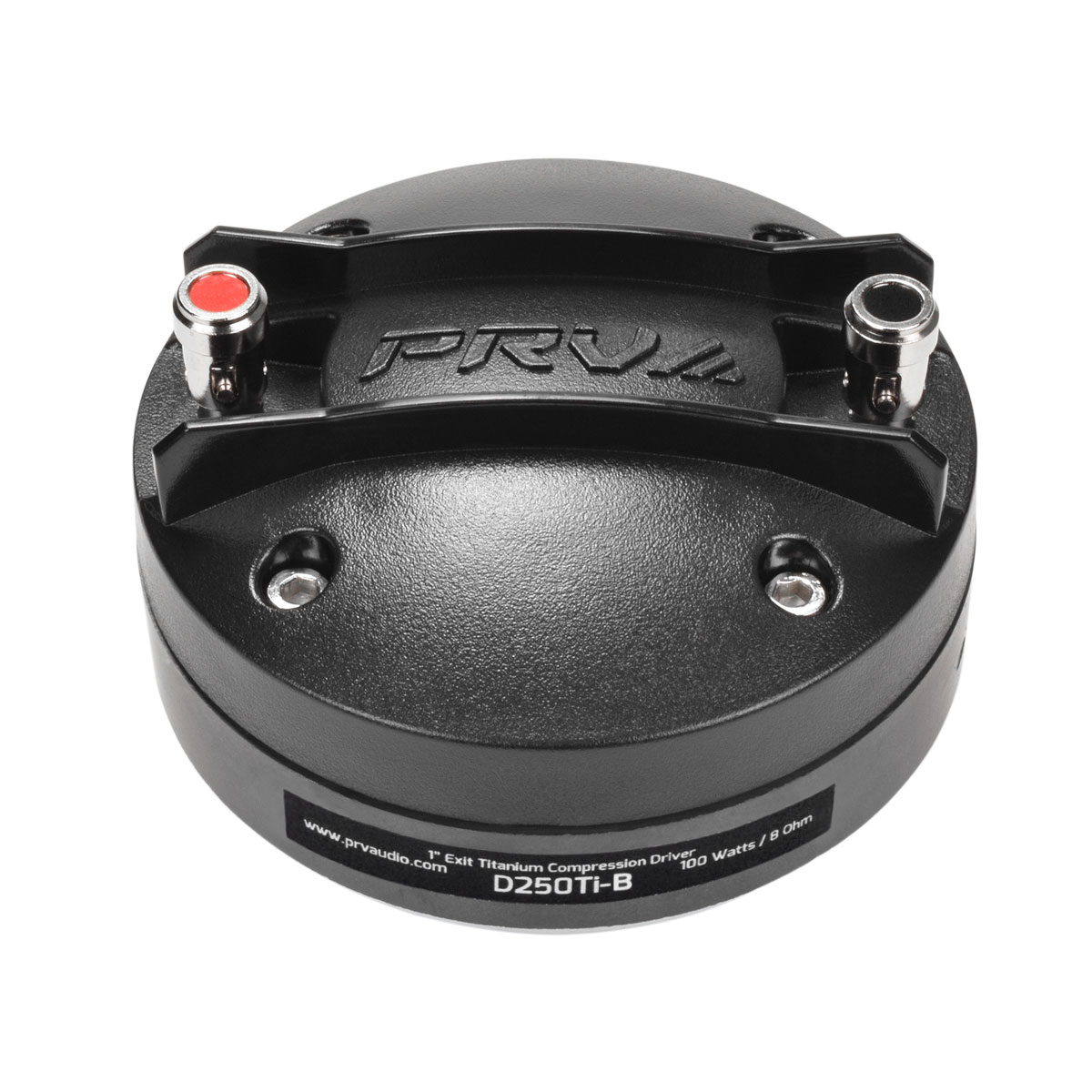

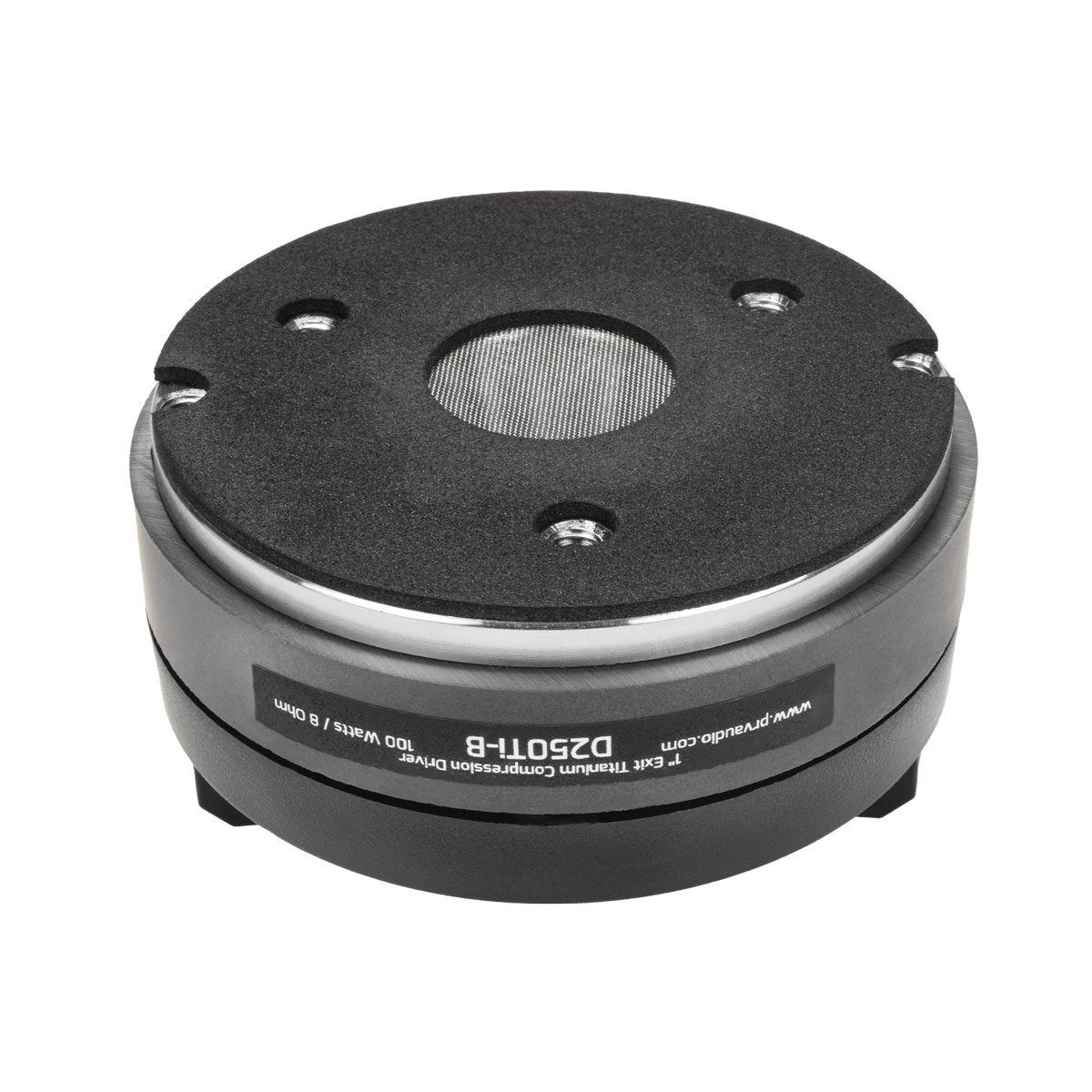

D250Ti-B
-
- 1” Highs Driver
- Titanium Diaphragm
- 106 dB – 100 Watts
$29.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
The D250Ti-B high frequency compression driver is an excellent choice for performance and reliability as a replacement or upgrade for many DJ speaker cabinets that use a standard bolt-on horn.
Standard 2 and 3 bolt patterns make them an easy replacement and upgrade option for many Pro audio cabinets, where manufacturers typically use the cheapest component possible. This driver’s high sensitivity translates into a clearer, more effortless sound than ever before from your speaker cabinet.
The lightweight design makes it easier to transport, which is crucial for mobile sound systems ( DJ Cabinets ) and professional touring systems. It also reduces speaker cabinets’ overall weight, making them more manageable without sacrificing performance. This balance of portability and power makes it the most popular high frequency driver in this segment.
- Pure Titanium diaphragm with efficient 1.4″ Voice Coil, providing the lowest possible moving mass with excellent output – 106 dB Sensitivity.
- This driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1800 to 20,000 Hz) with a linear frequency response.

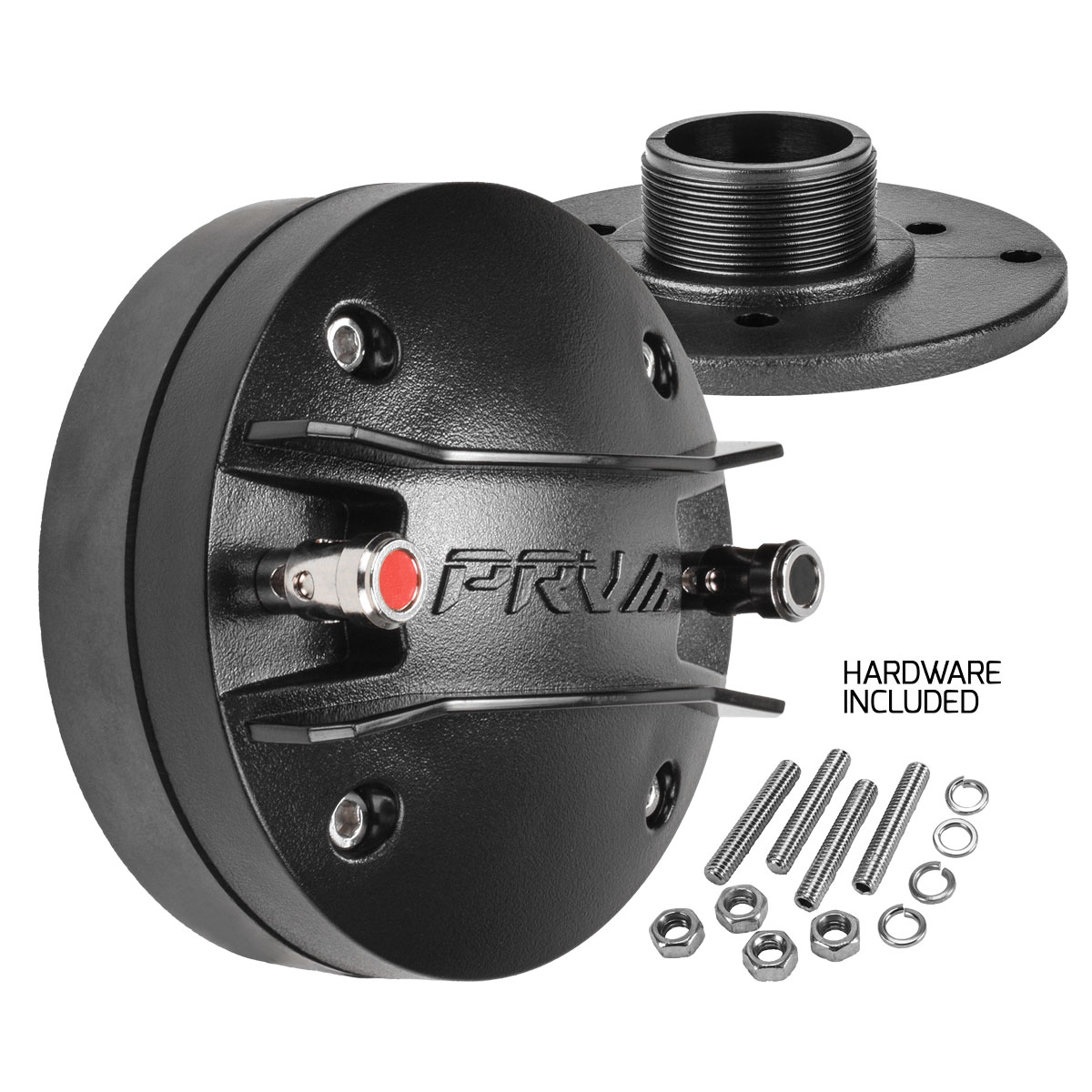

- Easy replacement and upgrade option for any sound systems that uses a 1” exit bolt-on horn. Perfect high frequency driver for 2-Way system. Includes bolt-on to screw-on adapter with mounting hardware
- Designed to reproduce the all-important vocal range with detailed high frequencies in the smallest profile. Only 3.54” Diameter.
- PRO Audio high frequency driver, able to handle 100 Watts Continuous Program Power (RMS) with music. Also Available in a Screw-On Version
If you are building your own speaker cabinets from scratch or just upgrading its components, the D250Bi-S works well with 10W650A 10″ woofer, 12W750A 12″ woofer, and 15W700 15″ woofer for two-way speaker designs when used with the PRV Audio 2DF2k 2,000 Hz two-way crossover.

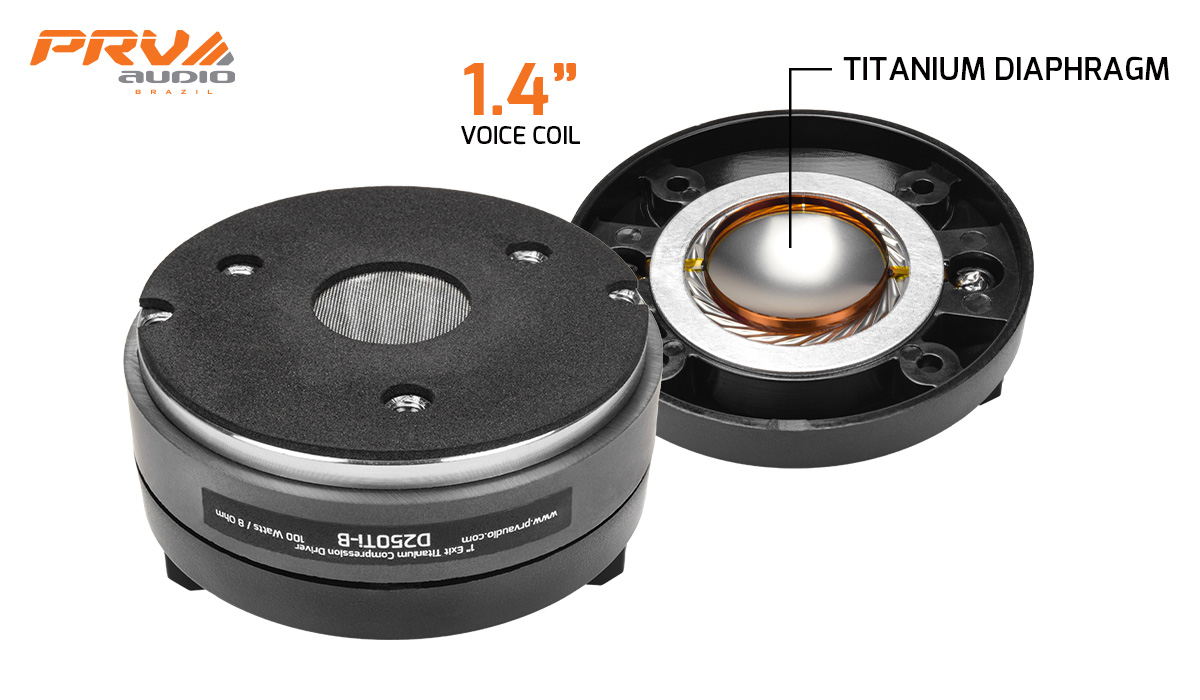

The one-piece titanium diaphragm reduces the amount of moving mass, which enhances the driver’s ability to produce clear and crisp high frequencies.
This configuration allows for an extended high frequency response, making it ideal for applications that demand detailed and accurate sound reproduction. As a result, you can expect clarity and precision in audio output, especially at higher frequencies.
The titanium diaphragm is attached to a 1.4″ diameter copper-clad aluminum wire with Kapton® former for a 100 Watts RMS musical power handling, when used with recommended HPF
- 2000 Hz at 12 dB per octave filter Crossover / BT12
- 1800 Hz at 18 dB per octave filter Crossover / BT18
PRV 1″ Exit Bolt-on High Frequency Driver 100 Watts 8 Ohm D250Ti-S – Titanium Diaphragm 1.4” Voice Coil, DJ Cabinet Replacement, Lightweight
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1” (25.4mm) |

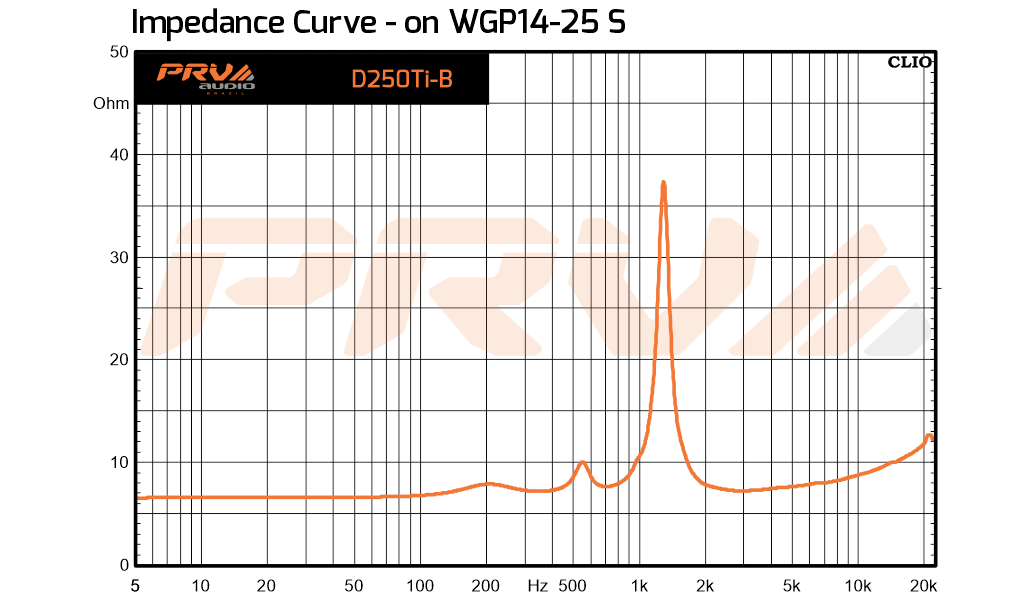

| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 50 Watts |
| Continuous Program Power(RMS)** | 100 Watts |
| Max Peak Power*** | 200 Watts |
| Sensitivity 2.00V at 1m | 106 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 2000 Hz 12db/oct Crossover |

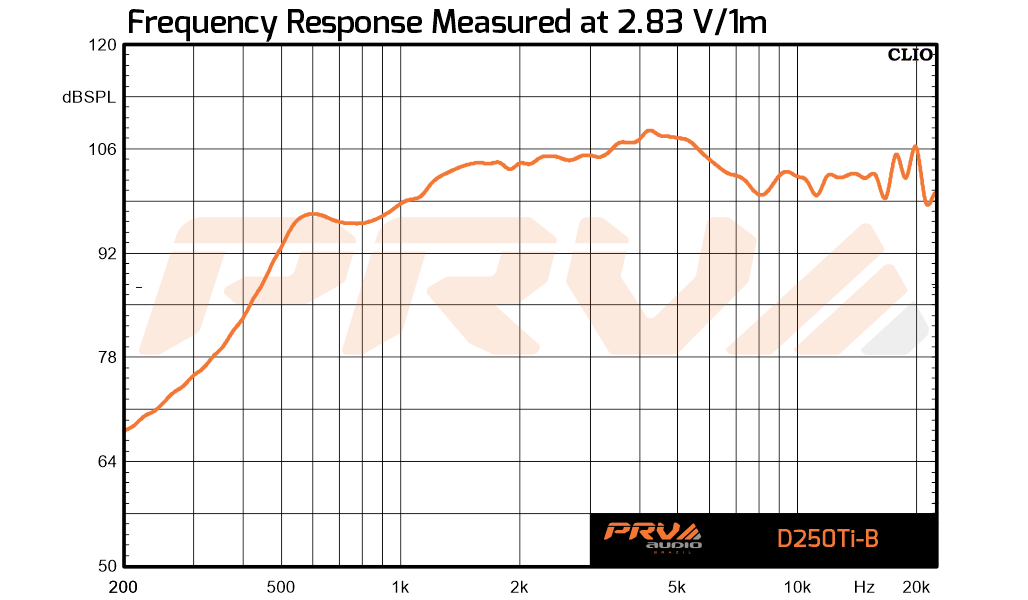

| Frequency Response at -10dB | 1,800 – 20,000 Hz |
| Voice Coil Diameter | 1.4” (35.5mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |

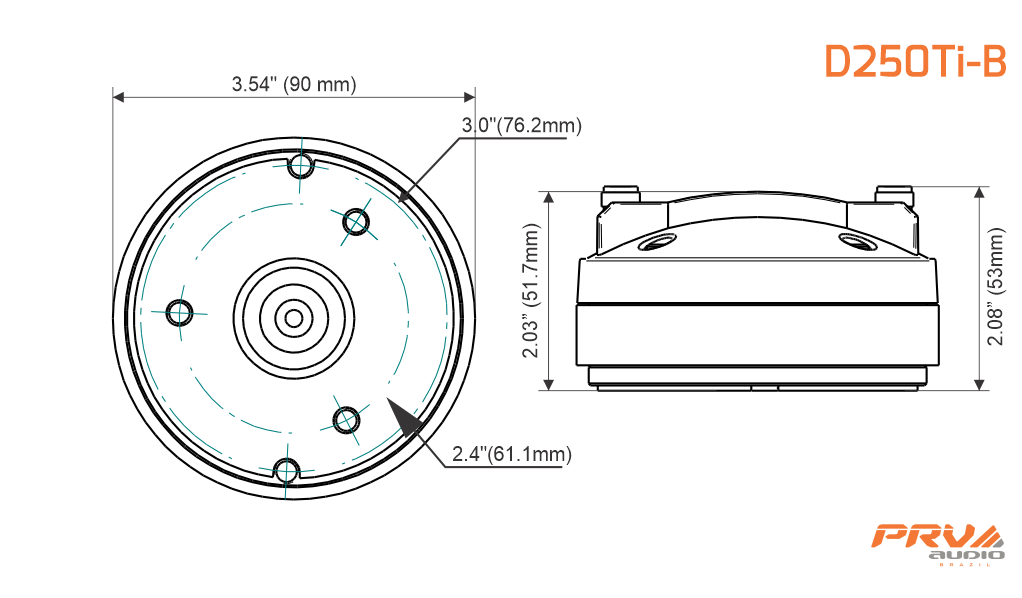

EXTRA INFO
| Overall Depth | 3.54″ (90 mm) |
| Mounting Depth | 2.08” (53 mm) |
| Mounting Bolt Circle | M6 x 2 3″ (76.2 mm) M6 x 3 2.4″ (61.1 mm) |
| Net Weight | 1.90 lbs (0.86 kg) |
| Shipping Weight | 2.20 lbs (1.00 kg) |
| Carton Dimensions W x L x H | 3.74” x 3.74” x 3.66” (95 x 95 x 93 mm) |
Repair Parts
Replacement Diaphragm for D250Ti-B
