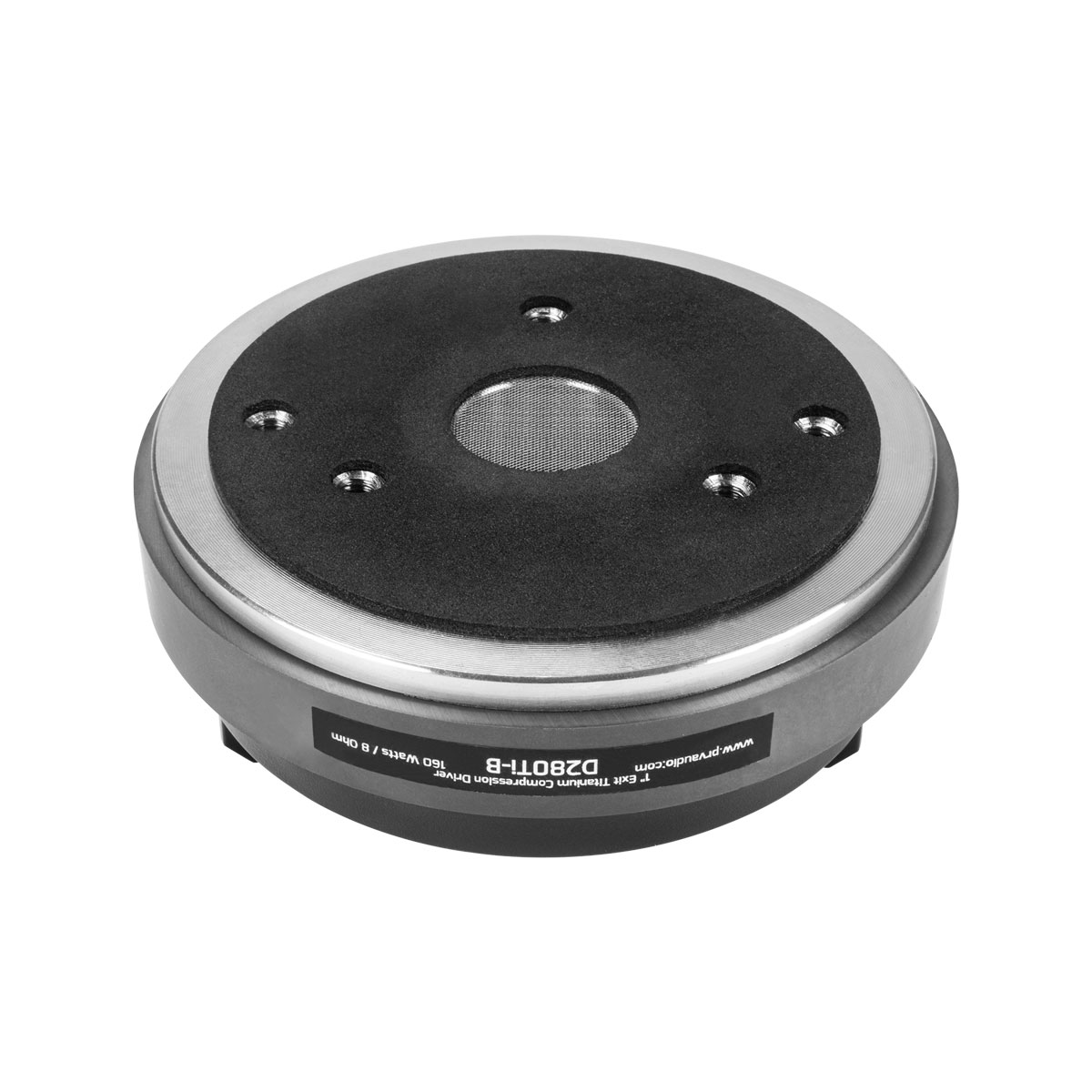

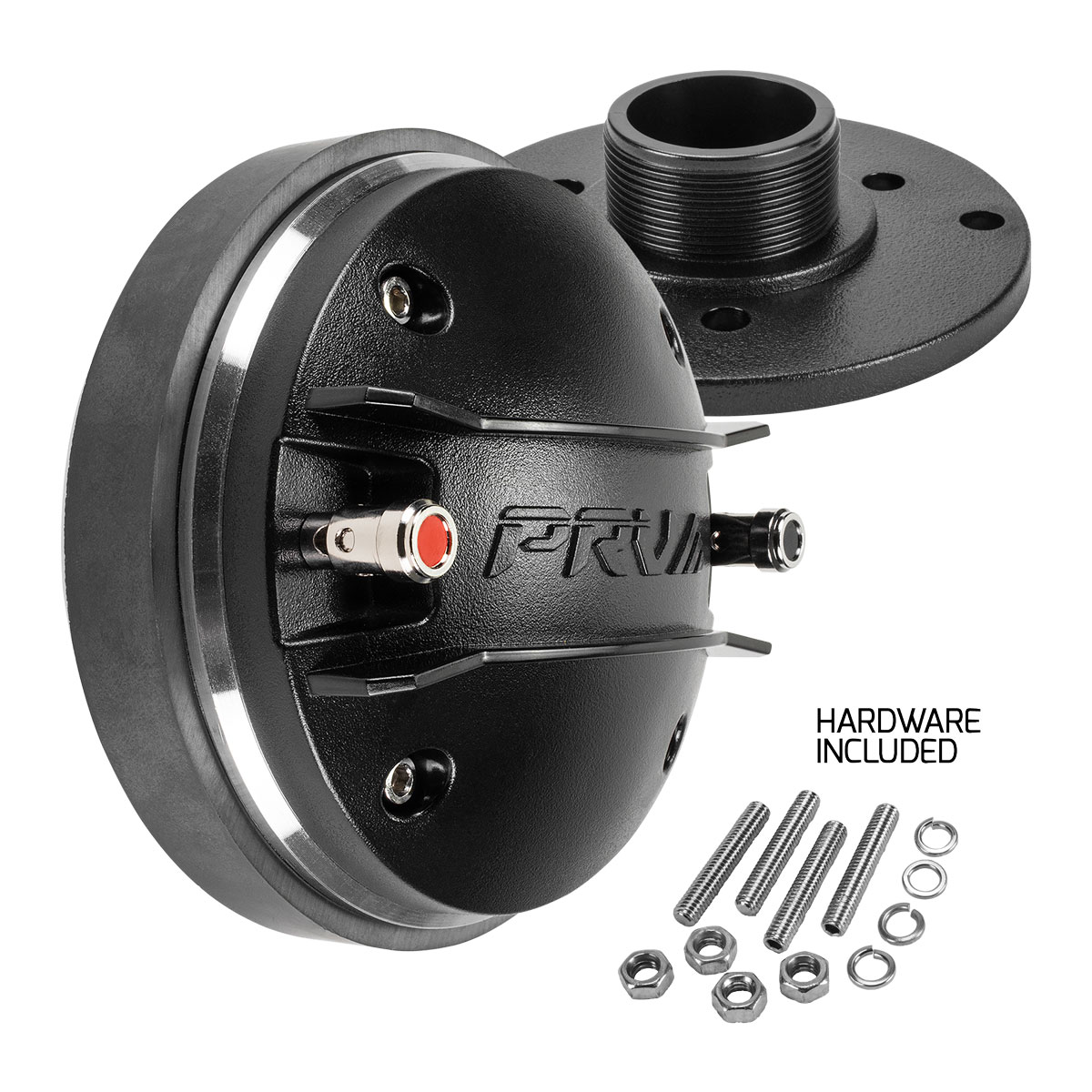

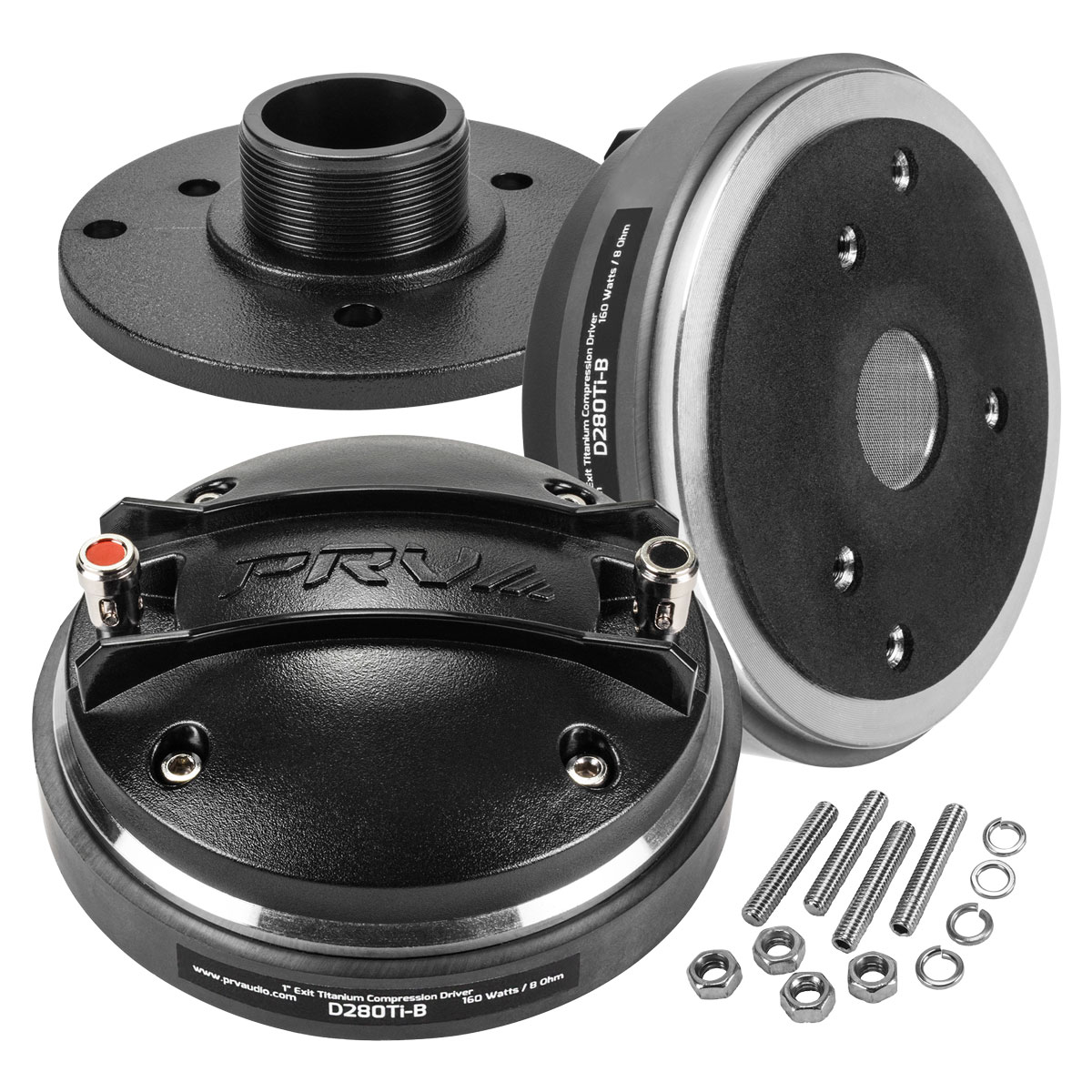

1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER

D280Ti-B

Out of stock

-

  • 1″ Bolt-On Highs Driver
  • Titanium Diaphragm
  • 109 dB – 160 Watts

$39.91

Out of stock

PRICE FOR SINGLE UNIT

Join the waitlist to be emailed when this product becomes available

SKU: D280Ti-B Category: Tags: ,

Features

Features

The PRV Audio D280Ti-B Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.

A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.


  • Throat Diameter: 1″
  • Type: Bolt-On
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 80 Watts
  • Program Power: 160 Watts

D280Ti-B and D280Ti-S are designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)

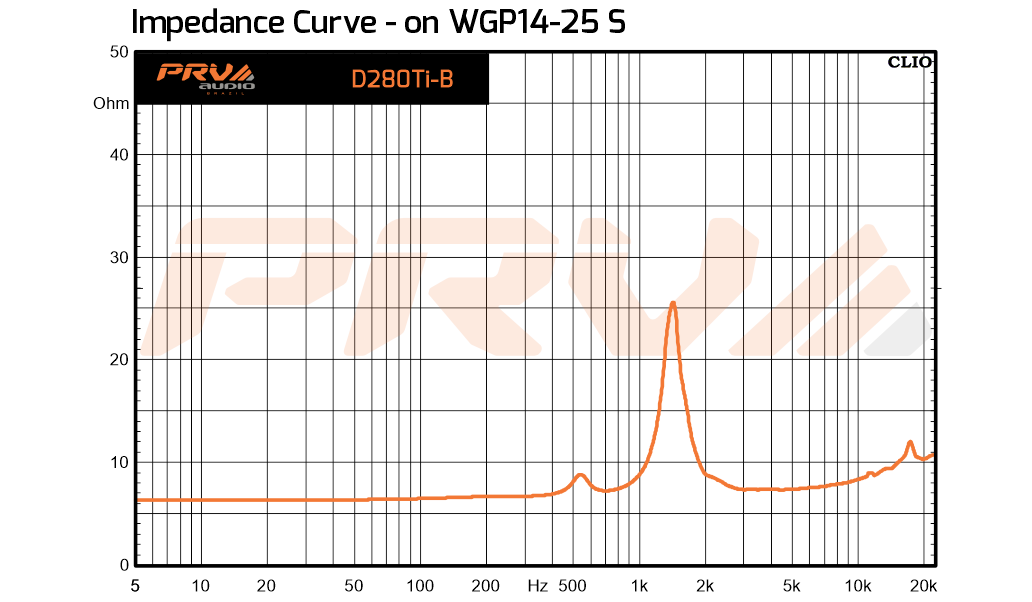

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 80 Watts
Program Power 160 Watts
Sensitivity 2.83V at 1m 109 dB
Recommended Hi Pass Crossover** **For Full Power Handling 1800 Hz** **12db Per Octave Crossover

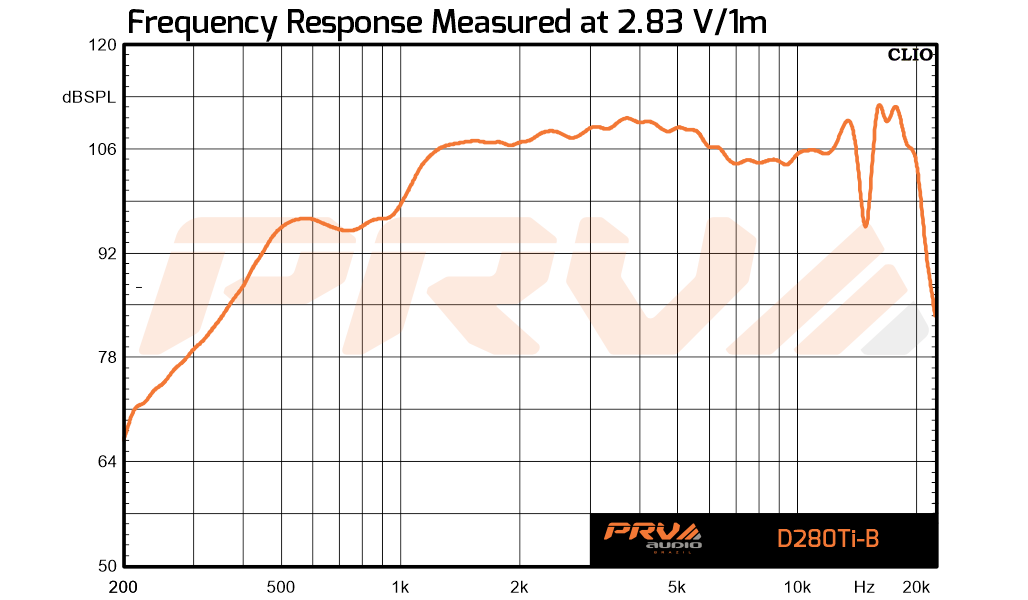

Frequency Response at -10dB 1,300 – 20,000 Hz
Voice Coil Diameter 1.75”(44.4 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton

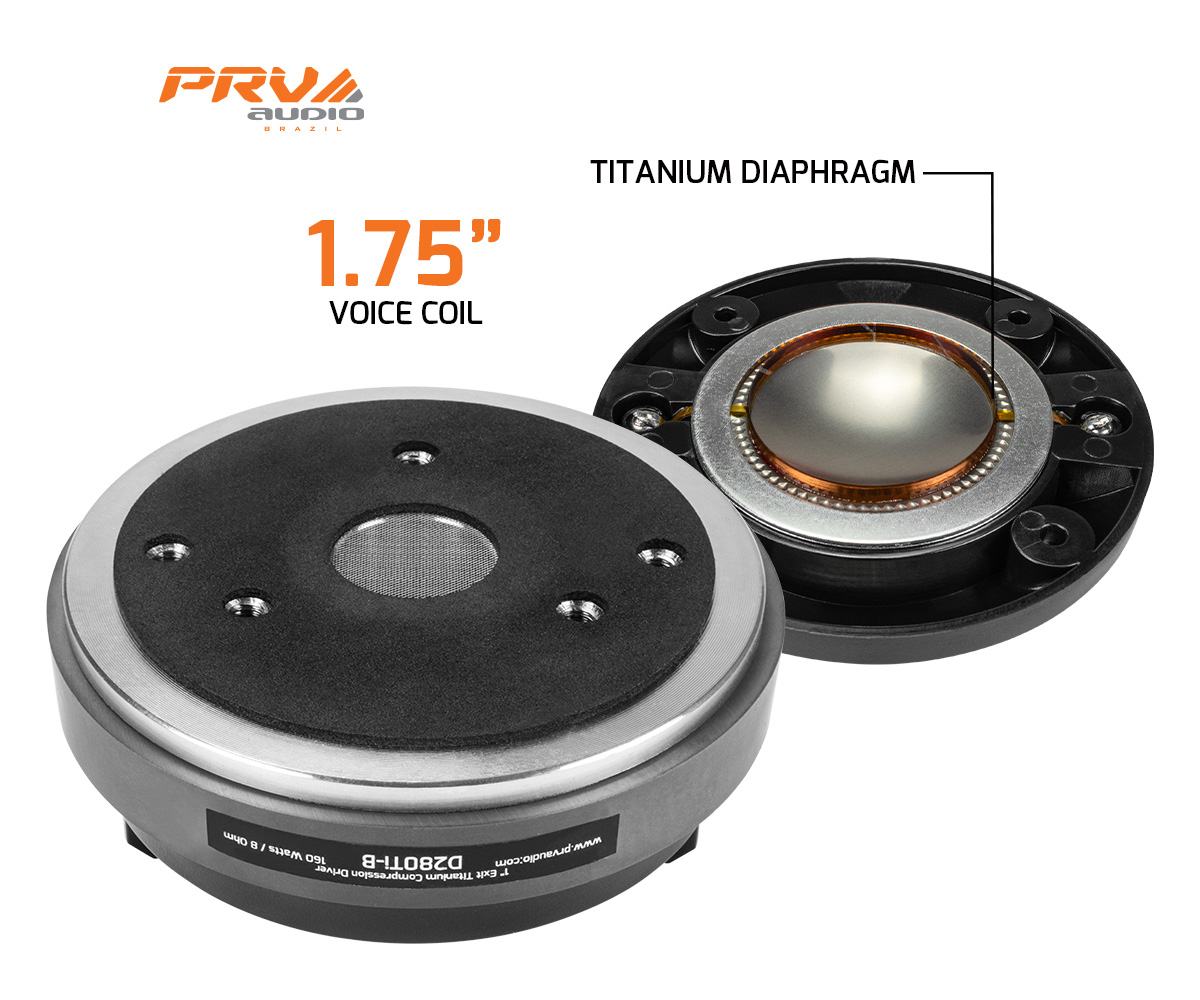

Diaphragm Material Titanium
Flux Density 1.65 T
Magnet Material Ferrite

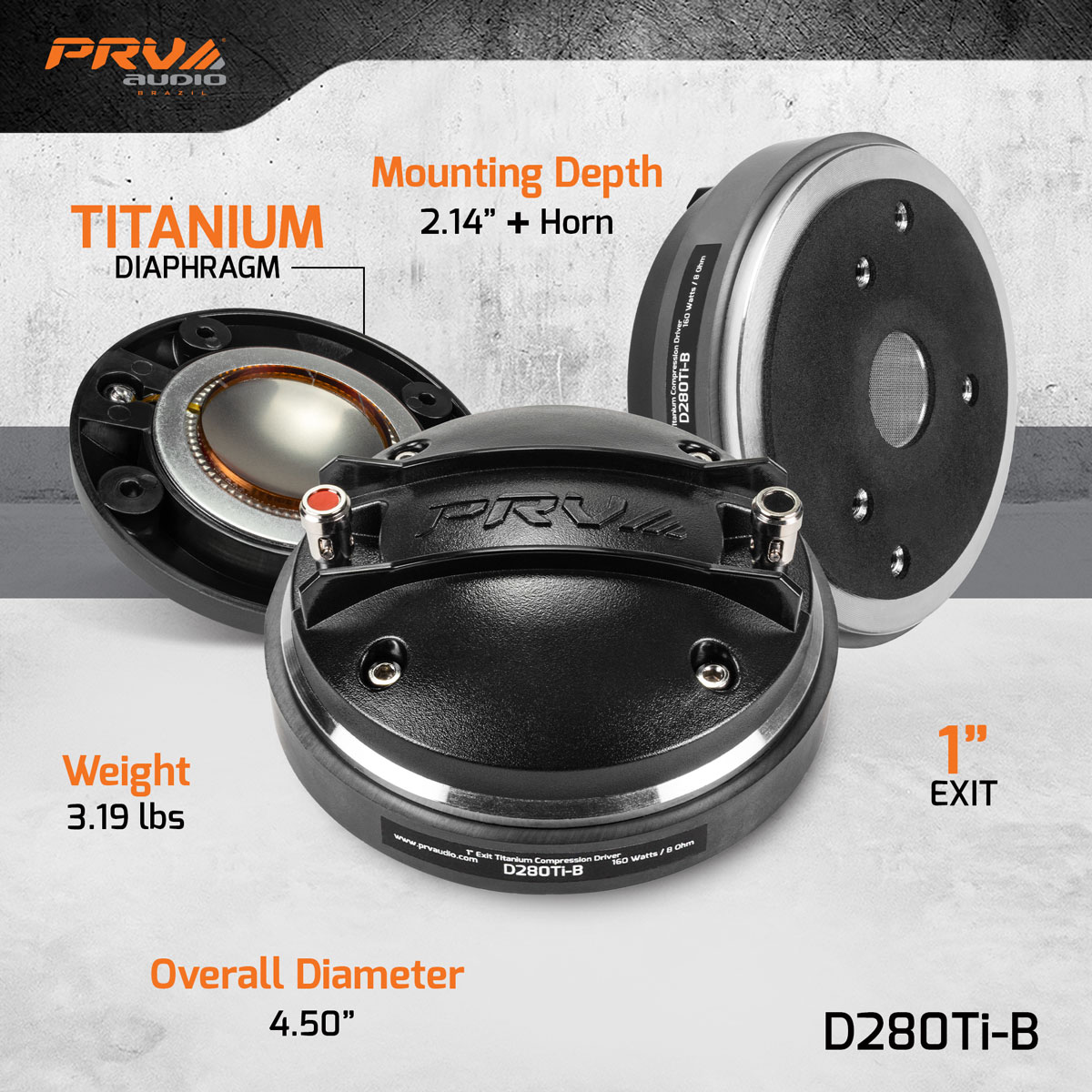

EXTRA INFO

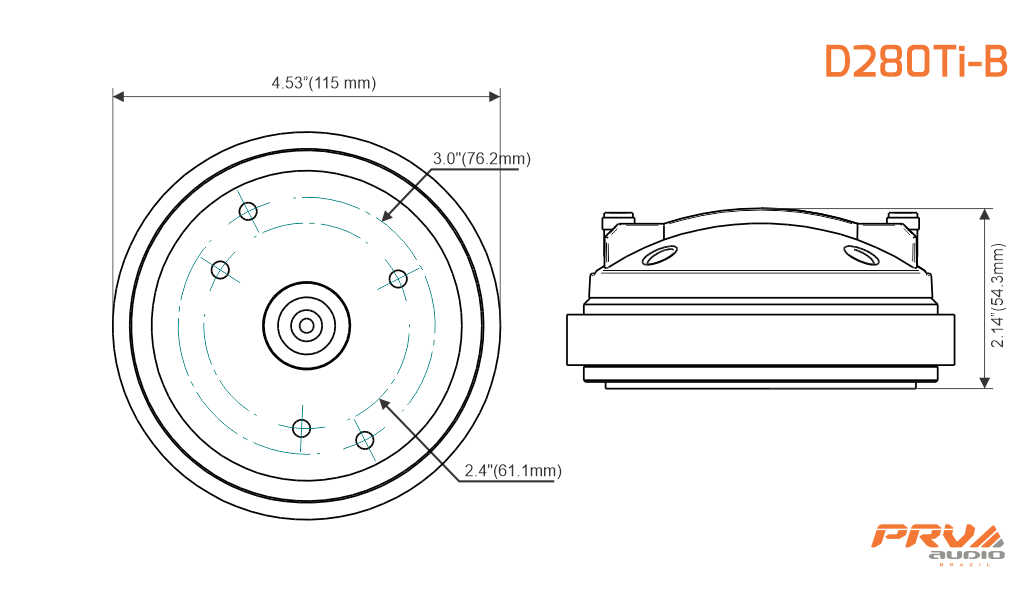

Overall Diameter 4.52” (115 mm)
Overall Depth 2” (50 mm)
Mounting Bolt Circle M6 x 2 3” (76.2 mm) M6 x 3 2.4” (61.1 mm)
Net Weight 3.16 lbs (1.44 kg)
Shipping Weight 3.50 lbs (1.58 kg)
Carton Dimensions W x L x H 5.31” x 5.0” x 3.15” (135 x 127 x 80 mm)


Repair Parts

Replacement Diaphragm for D280Ti-B

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Roel Saenz
the best 1" exit driver around

This is my second D280Ti-B i bought, the 1st one i already did a review was for a Yamaha DSR112 , i love this ones so much that i get a second one so to have a matched pair of DSR 112's, one of my original drivers failed and they are no longer made, if you want a great sounding, power capable 1" exit HF driver , look no more !! , no not hesitate and add this to your cart, this is the Bolt model so works on 3 bolts or 2 bolts HF lenses ( DSR 112 use 2 bolt HFLens ), the screw in model goes for the screw in HF type of lens, but this version bolt on also have a screw in adapter so you get the best of both worlds!! do not think and get this ASAP !!! PRV ROCKS!!! PERIOD!!

R
R.S.
Yamaha DSR 122 Bolt On 1" exit HF Driver replacement !!

Guys,
this is not the screw on version, this is the Bolt On version, so make sure you order the right one, Yamaha DSR112 use 2 bolt HF lens so this fit perfect
So, one of my DSR 112's blown the HF driver, eminence made those for Yamaha but they stop making them and nobody seem to have them anymore, i looked everywhere and was not able to found one, the original is rated at 50W this one is rated at 80W so in theory no more blown drivers despite the DSR 112 have DSP limiting and compression in the built in plate amp .

Sound Quality :
if you ever heard the DSR series, they have a trebly sound to them that i did not like vey much, i always did a -3dB high shelf cut on them , but this driver do not exhibit that trebly "sound flavor" so in order to have a matched pair i am ordering another PRV D280Ti-B.

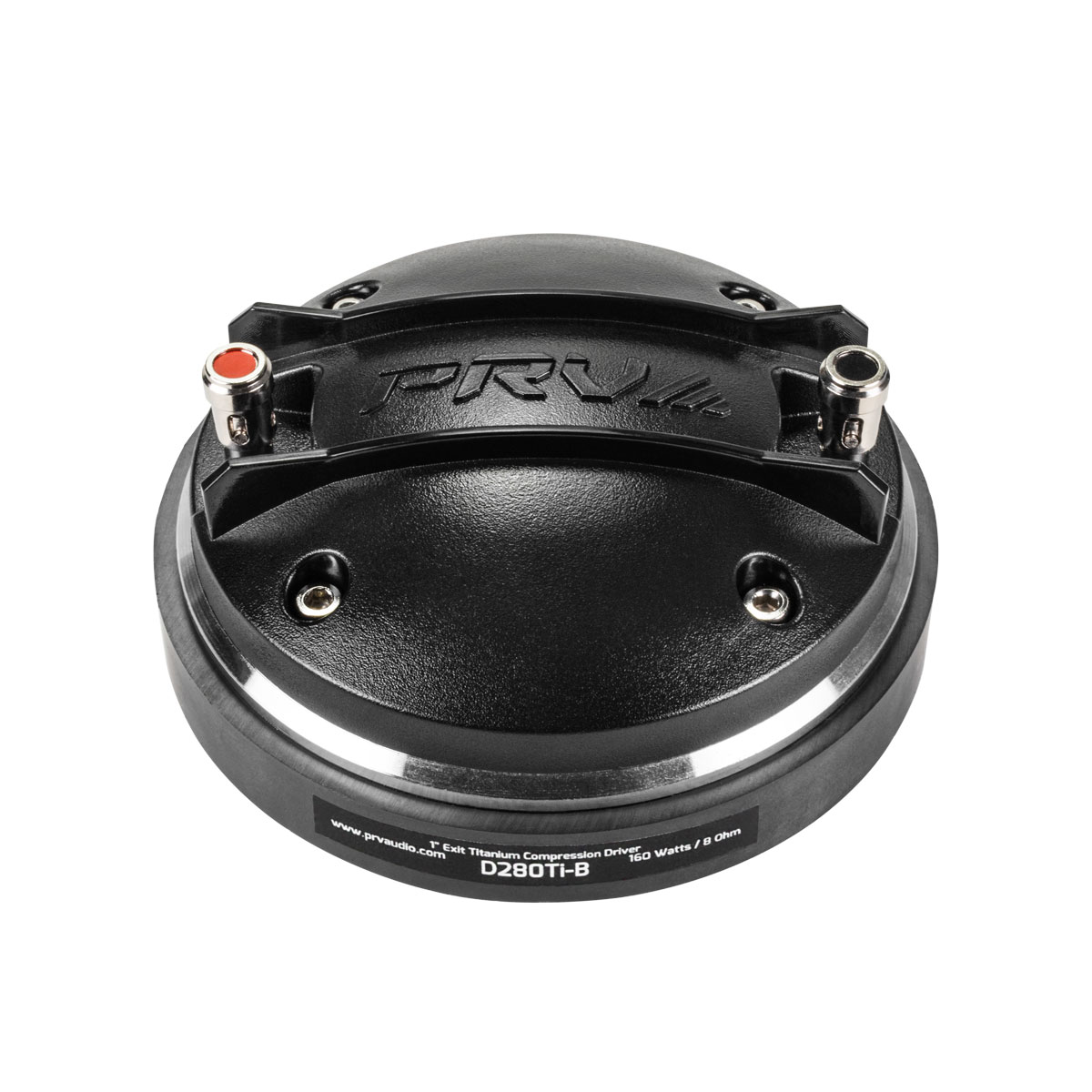

As a side note , this driver have spring push on terminal, the Yamaha used spades so i cut those and strip half an inch on the HF wire.

I highly recommend this driver if you are making a 2 way Point Source speaker system for small gigs ( 20 - 200 people ) or replacing a blown driver on your 1" exit HF lens.

Thanks PRV! you guys ROCK!
great quality speakers at a very reasonable prices!

B
BILL RUGGIERO
d280

Great driver, good freq response

S
Sintia Victorino

Awesome products

E
Elliott Garcia

Fire ?

C
Christian Cote

Very very good soud ! linear , de la haute fidlit dans la puissance! J'en n'ai acout des haut-parleurs depuis longtemps. C'est une belle découverte.

A
Anthony E.

PRV makes the best products!!
