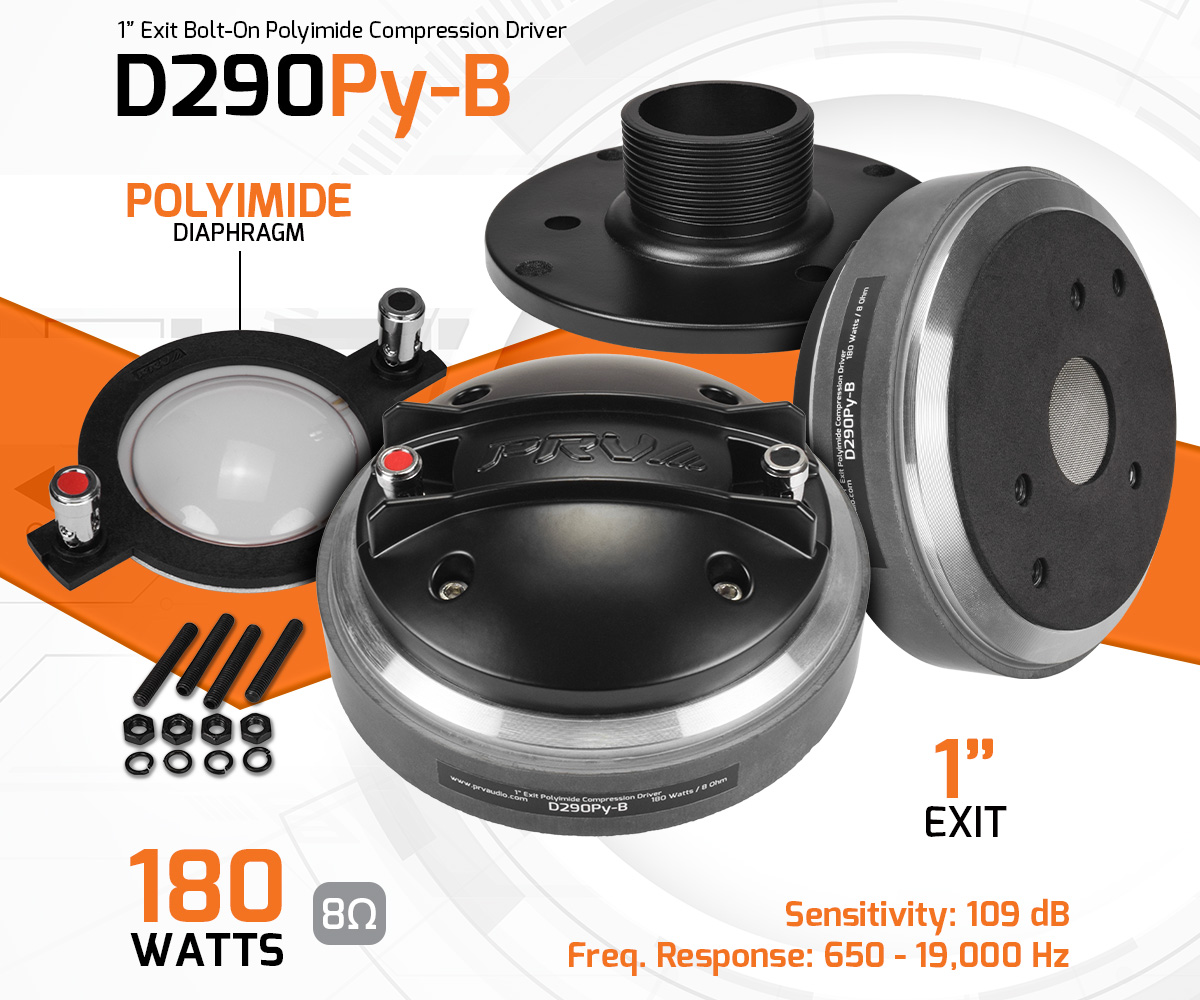

D290Py-B
-
- 1″ Bolt-On Mids & Highs Driver
- Polyimide Diaphragm
- 109 dB – 180 Watts
$69.91
Out of stock
PRICE FOR SINGLE UNIT
Features
Features

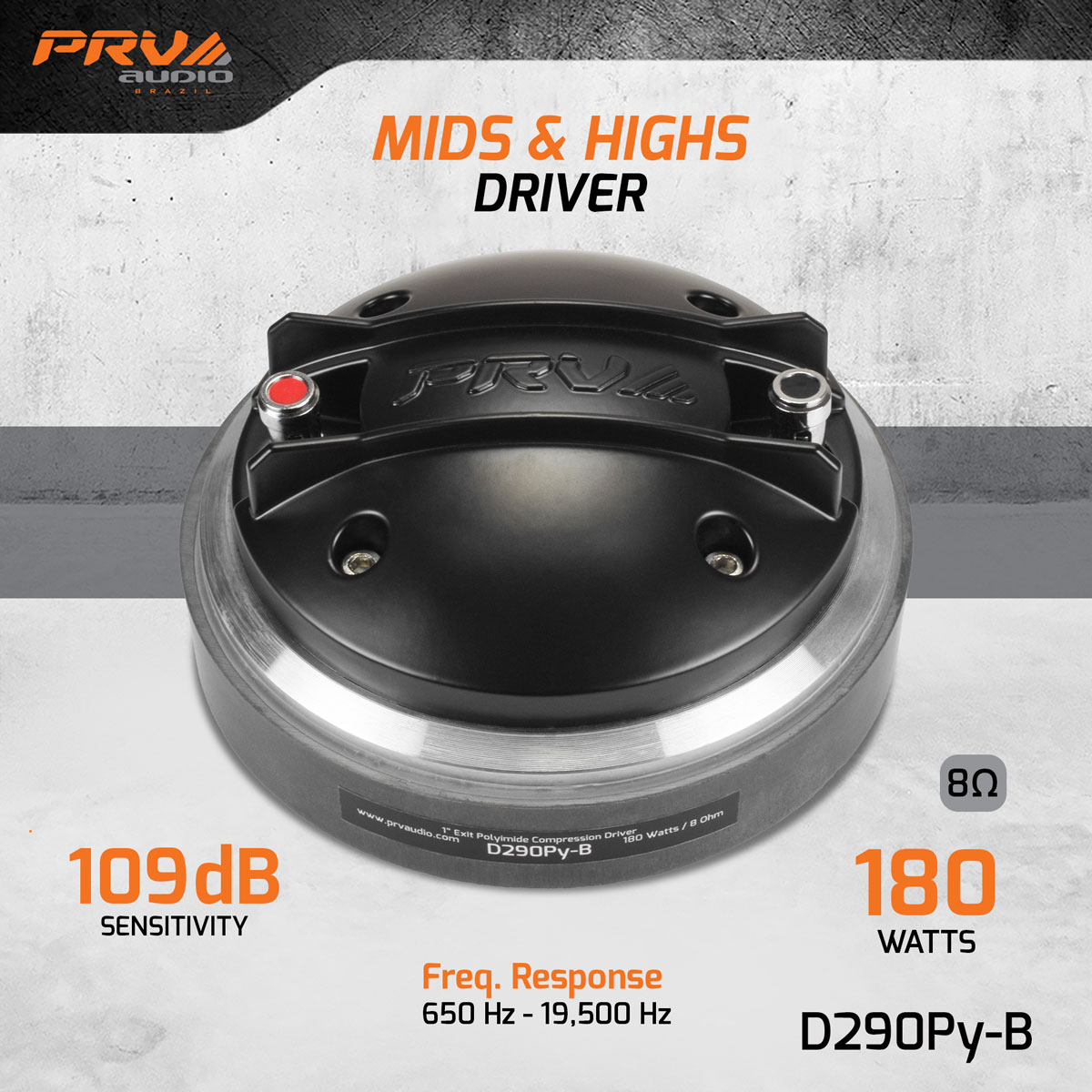

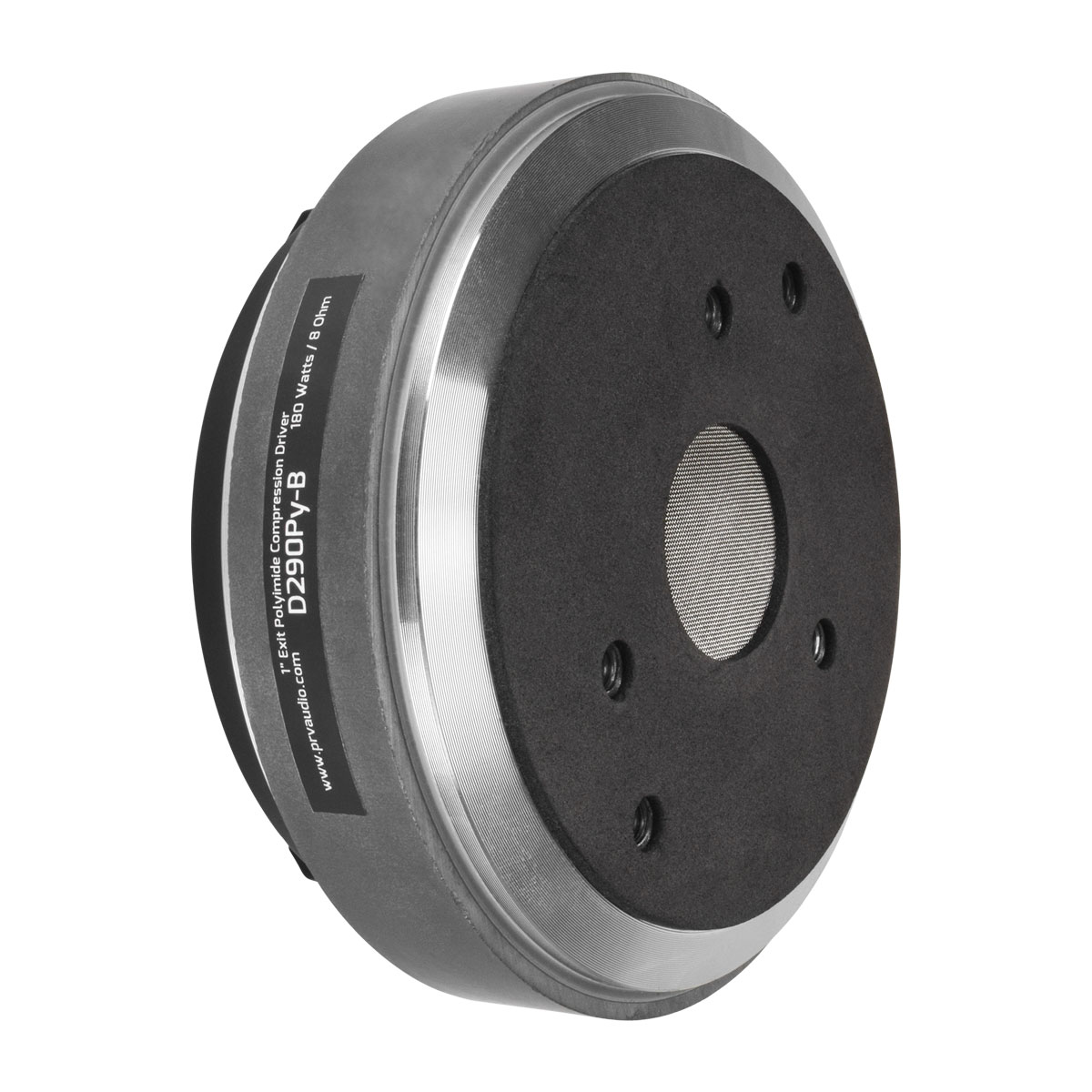

The PRV Audio D290Py-B 1″ Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction.

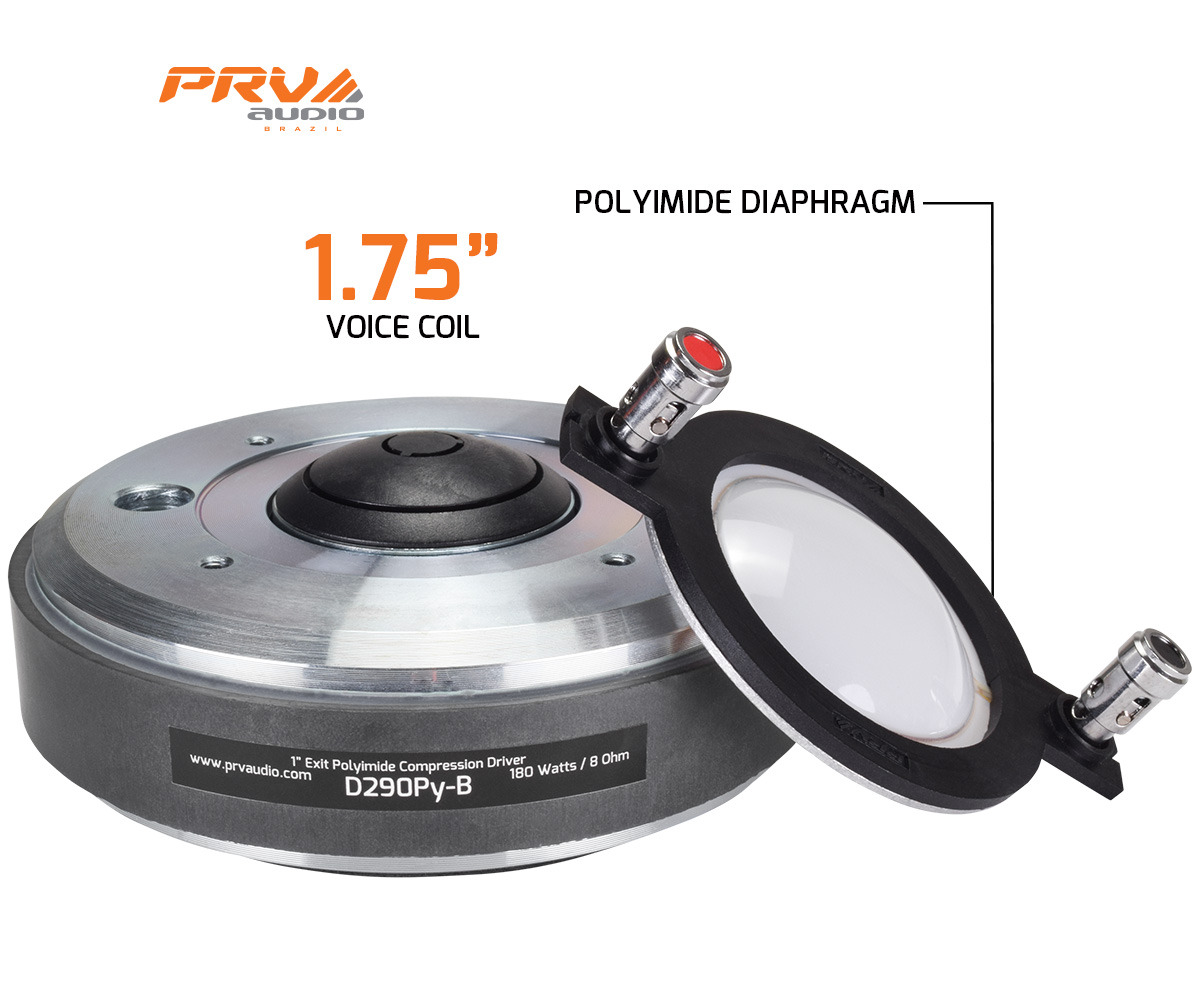

A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction.
- Throat Diameter: 1″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 90 Watts
- Program Power: 180 Watts

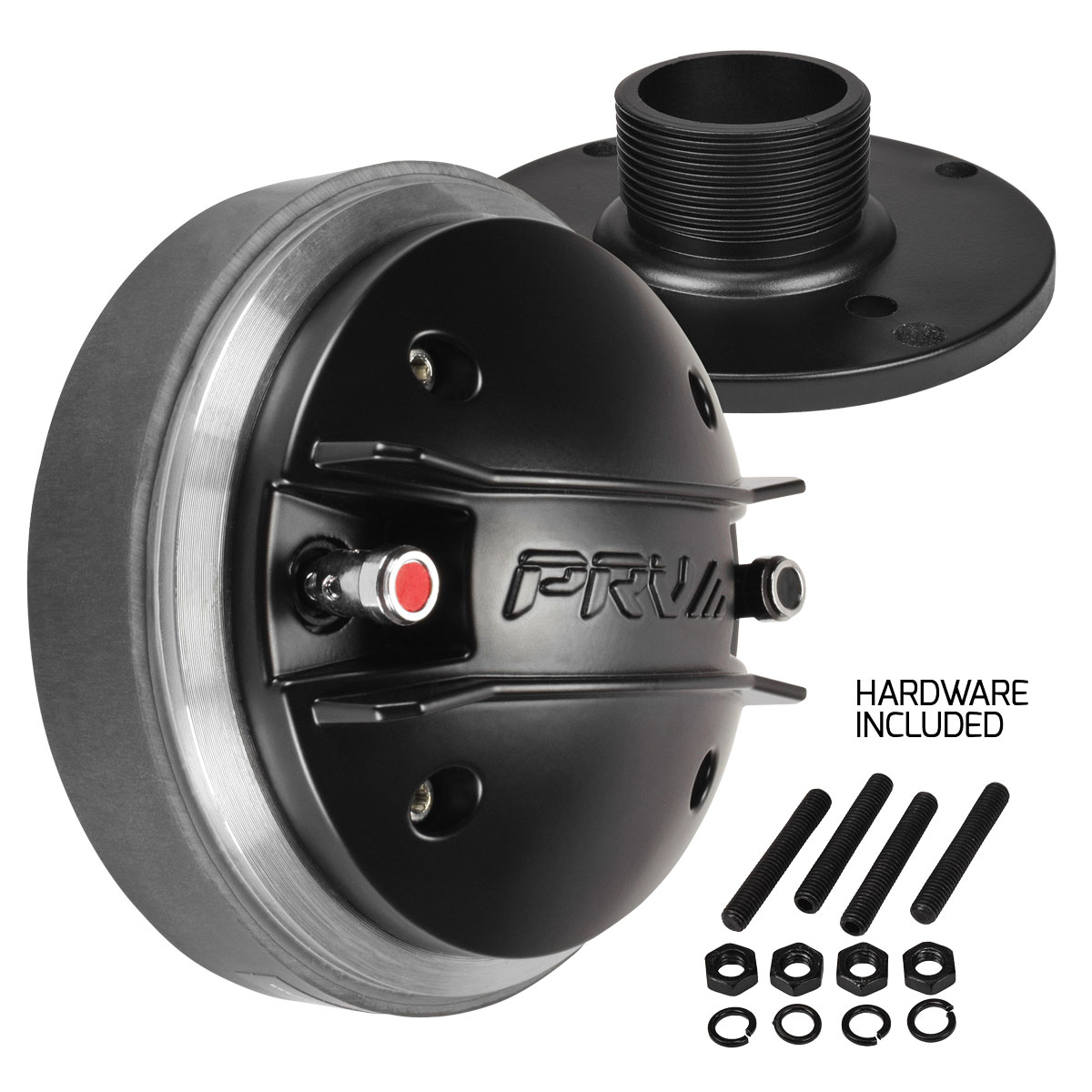

The D290Py-B is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required. The D290Py-B is assembled with a standard 2 and 3 bolt pattern for easy replacement with current 1” bolt-on horns.
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1” (25.4mm) |

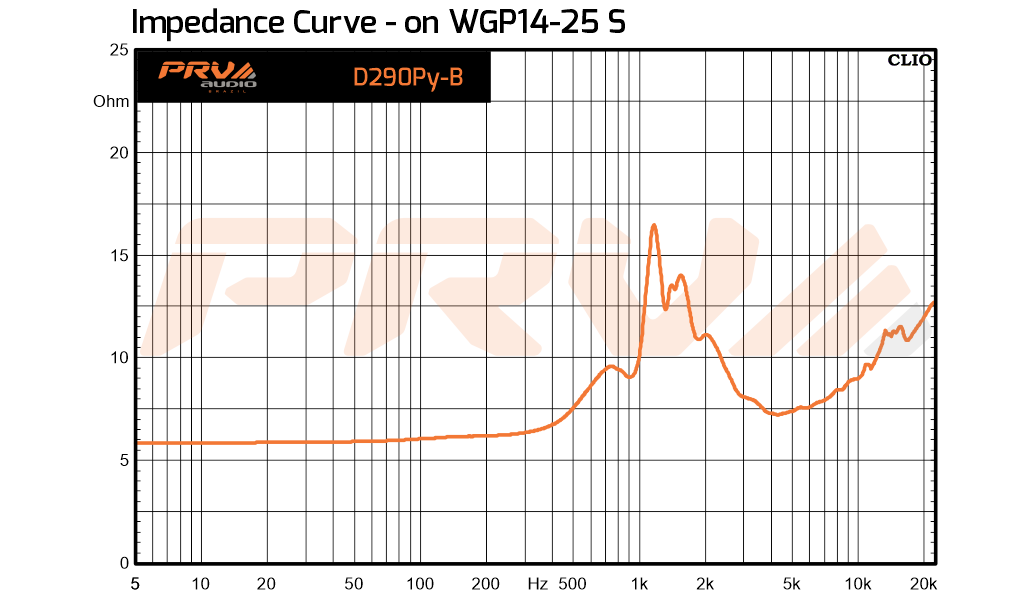

| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 90 Watts |
| Program Power | 180 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1000 Hz** **12db Per Octave Crossover |

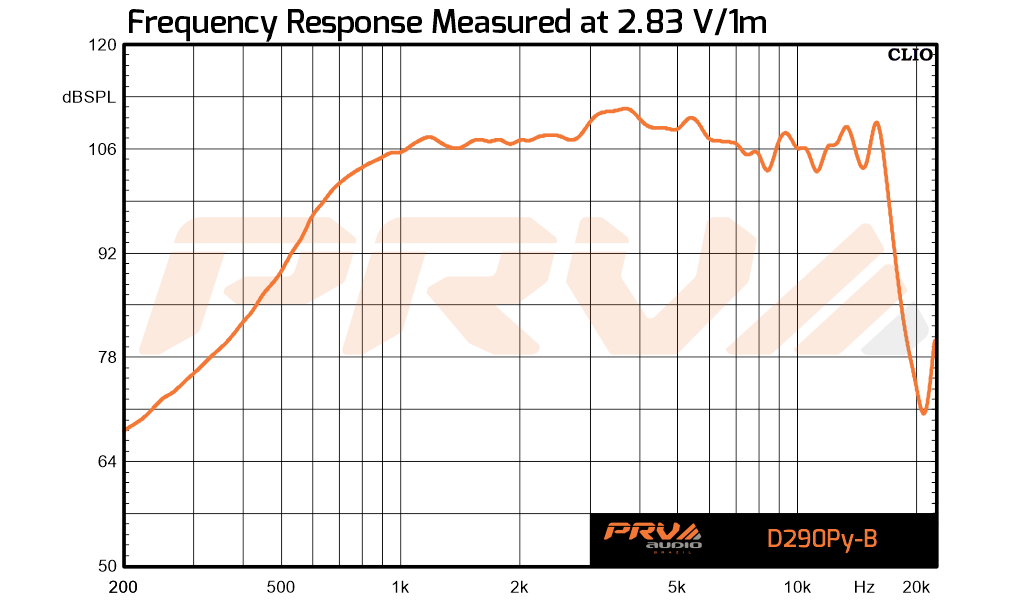

| Frequency Response at -10dB | 650 – 19,000 Hz |
| Voice Coil Diameter | 1.75”(44.4 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 1.85 T |
| Magnet Material | Ferrite |
EXTRA INFO

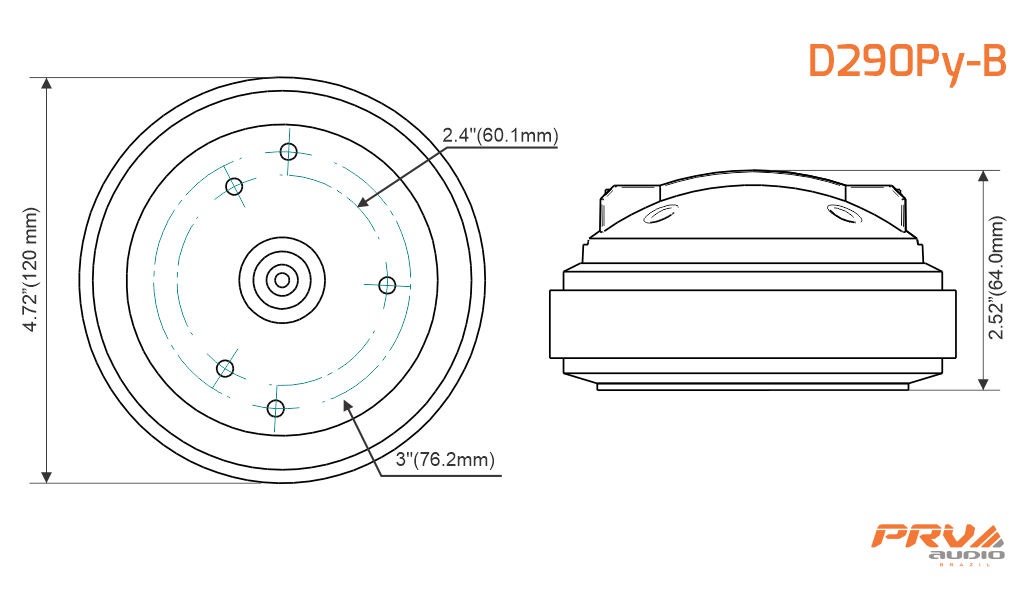

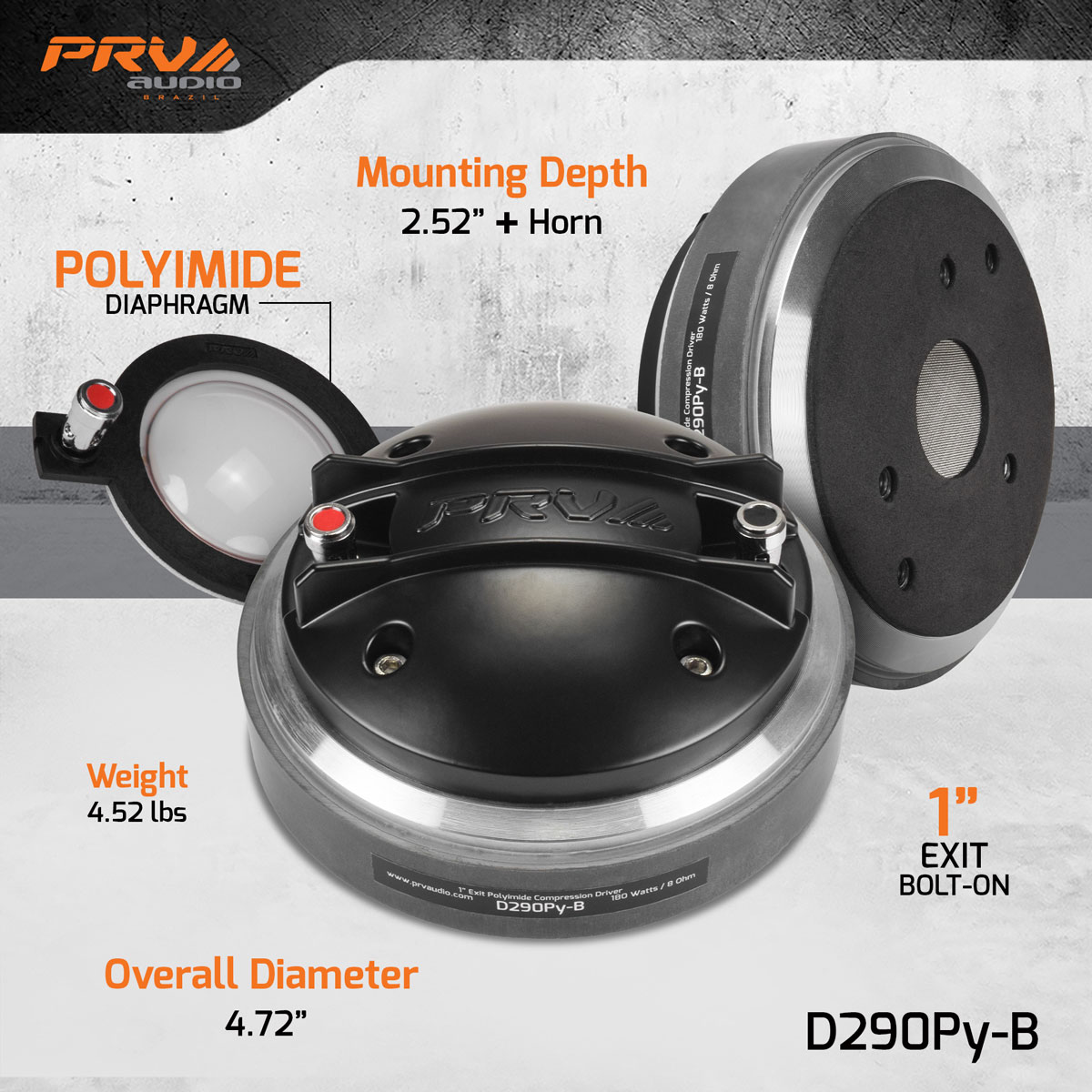

| Overall Diameter | 4.72” (120 mm) |
| Overall Depth | 2.40” (61 mm) |
| Mounting Bolt Circle | M6 x 2 3” (76.2 mm) M6 x 3 2.4” (61.1 mm) |
| Net Weight | 4.67 lbs (2.11 kg) |
| Shipping Weight | 5.04 lbs (2.29 kg) |
| Carton Dimensions W x L x H | 5.51” x 5.31” x 3.15” (140 x 135 x 80 mm) |
Repair Parts
Replacement Diaphragm for D290Py-B
Customer Reviews

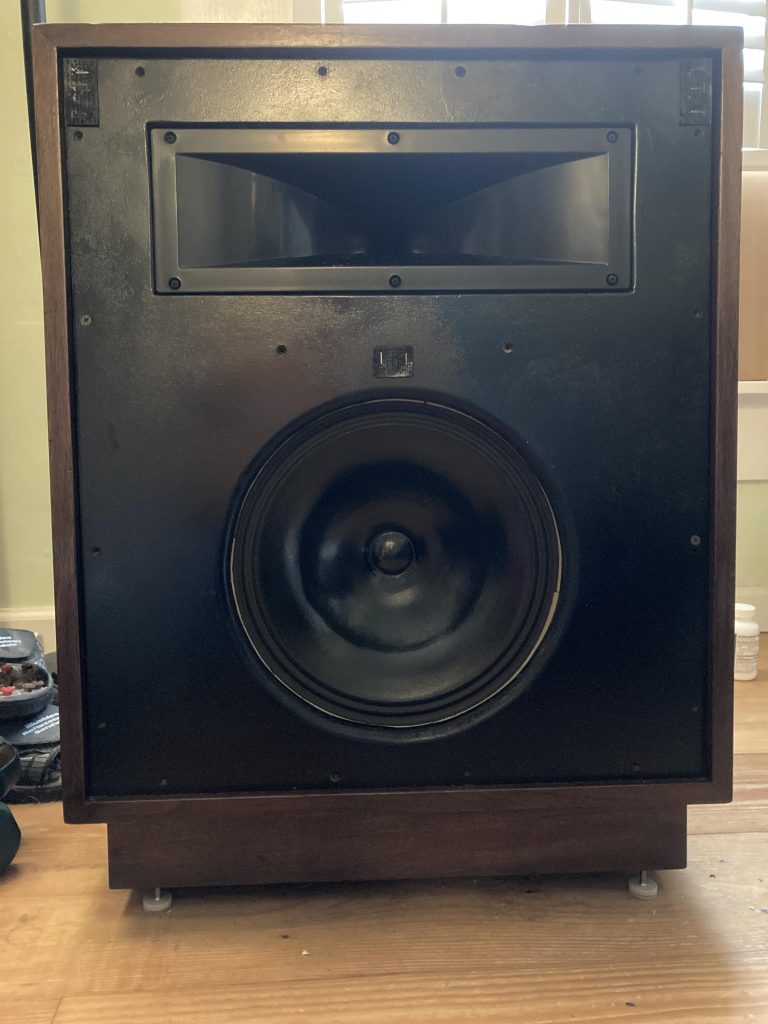

Just got them installed, and they sound detailed and clear, but not edgy. I prefer them to the DE120 drivers that I previously tried. I have them crossed over at around 1100Hz.
with a 12 dB Linkwitz-Riley.
D290Py-B
Great product
Great product
