NEW!
8" NEODYMIUM MIDRANGE LOUDSPEAKER

MT8MR600-NDY-4

In stock

-

  • 8″ Midrange – 4 Ohm
  • Neodymium Magnet
  • 98 dB – 600 Watts

$189.91

In stock

PRICE FOR SINGLE UNIT

SKU: MT8MR600-NDY-4 Categories: , Tags: ,

Features

Features

PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.

This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.

Due to the premium materials used in its construction, such as a true water resistant cone treatment, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.


  • Water Resistant Speaker with true PRO audio Midrange Performance
  • Special UV and Waterproofing Treatment with Coated Suspension to Handle Outdoor Applications
  • Full Range Sound, its Low inductance Technology extends its frequency response up to 12,000 Hz
  • Able to handle 600 Watts RMS, with a 98 dB Sensitivity this is the perfect mid for high output from a single speaker.
  • Premier Outdoor Speaker Designed for Sound Competition is perfect for applications with limited weight or space, such as slingshot pods, motorcycle fairings, and saddlebags.

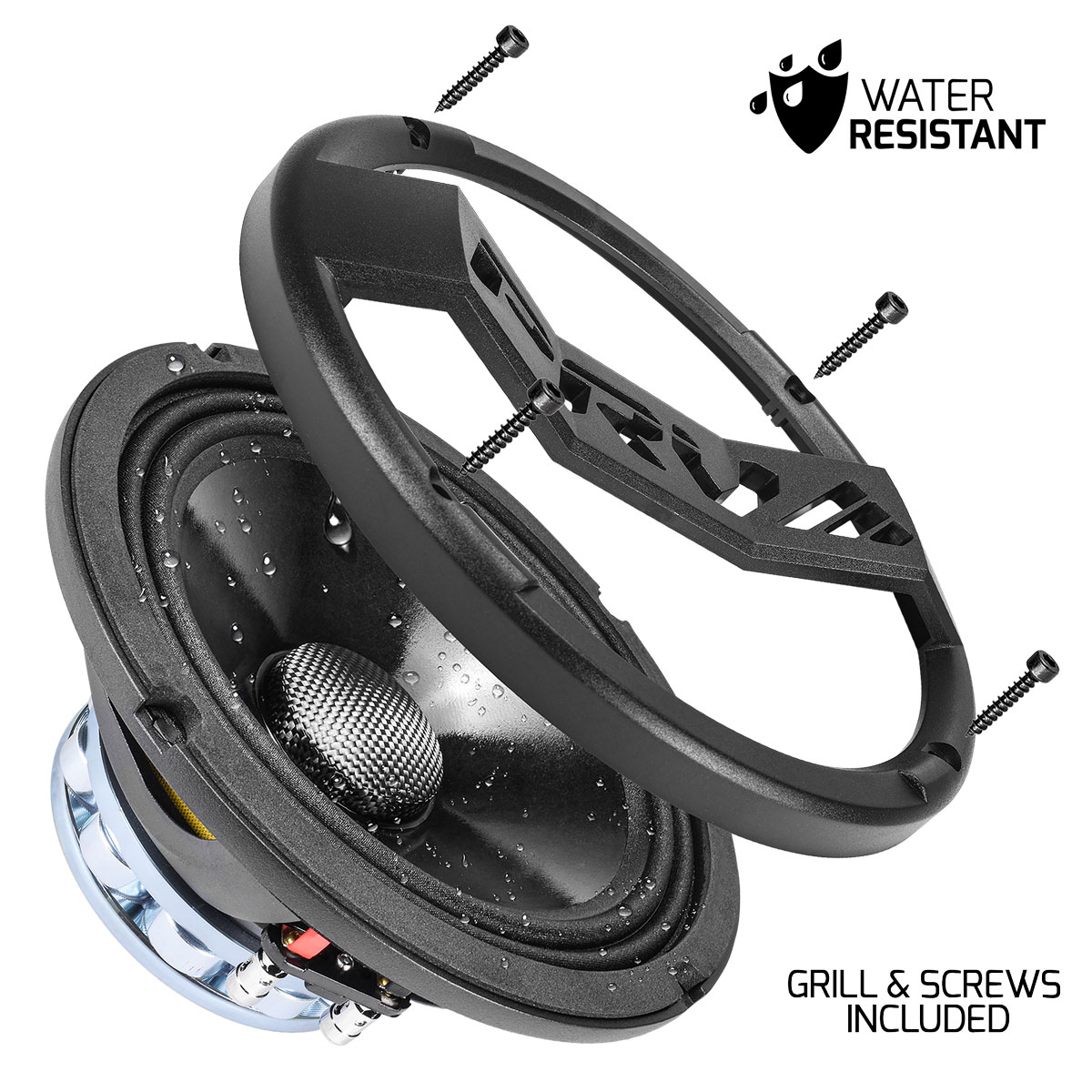

  • Grill and screws are included.

Aside from its unique appearance, this special treated paper cone is exceptionally light, with unsurpassed vocal definition at an extremely high sound level output.

Unlike another waterproof treatment that does not last outdoors, this treatment gives a heavy duty UV protection to reduce decaying effects from sun rays, giving an armor coat to your speaker against water, humidity and the sun. As a result, this speaker is a premier outdoor PRO audio speaker.

A special treated surround and flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.


MOTO Series is dedicated to delivering outstanding pro audio performance to your motorsports application.

This midrange features many premium components, one of which is stitched lead wires, which connect the voice coil to the terminals through a single layer spider suspension, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high energy, rare-earth neodymium motor, combined with other fine materials to deliver the finest details in audio, demanded by most audiophiles in the car audio and motorcycle custom builders.


Its low-mass yet stiff cone produces clean, detailed, high-impact sound reproduction and consistent high output levels in a wide frequency bandwidth between 90 and 10,000 Hz, making an easy transition to a super tweeter.

This mid is perfect for applications where weight and space is limited, such as custom slingshot pods, motorcycle fairings and saddlebags, that make this driver a popular speaker choice among high output car and motorsport audio enthusiasts.


PRV 8″ Motorcycle Speaker MT8MR600-NDY-4 Water Resistant 600 Watts / 4 Ohm Neodymium Midrange

Recommended Amplifier configurations and crossover points:

2 Speakers – 1x MDX1200.2 1 Ohm, Bridged both speakers in parallel
4 Speakers – 1x MDX2000.2 2 Ohm, 2 speakers per channel in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 600 Watts RMS musical power

  • 110 Hz at 12 dB per octave filter Crossover / BT12
  • 100 Hz at 18 dB per octave filter Crossover / BT18

Recommended LPF is 10,000 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 8″
Nominal Impedance 4 Ohm
Dc Resistance Re 3.3 Ohm
Nominal Power Handling* 300 Watts
Continuous Program Power (RMS)** 600 Watts
Max Peak Power*** 1200 Watts
Sensitivity 2.00V at 1m 98 dB
Recommended Hi Pass Crossover For Full Power Handling 110 Hz 12db Per Octave Crossover
Frequency Response 90 – 10,000 Hz
Voice Coil Diameter 2″
Voice Coil Wire CCAW
Voice Coil Winding Depth 11.0 mm
Former Material Kapton
Magnetic Gap Depth 7.0 mm
Excursion Xmax 3.75mm
Frame Material Die Cast Aluminum

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

6MB400 Frequency Response
6MB400 Impedance
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

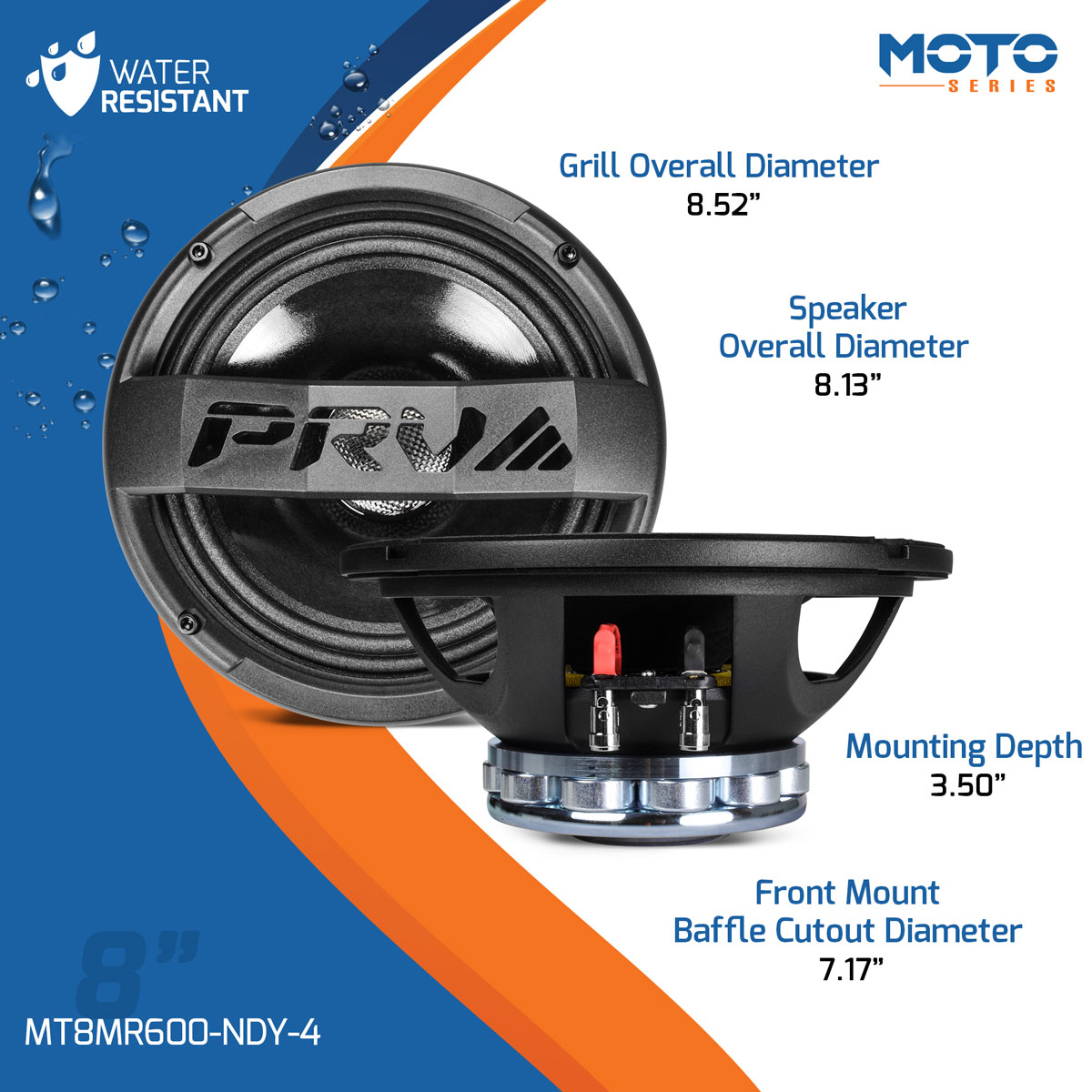

EXTRA INFO

Overall Diameter 8.13″
Front Mount Baffle Cutout 7.17″
Mounting Depth 3.50″
Overall Depth (with grill) 4.84″
Net Weight 4.4 Lbs
6MB400 Loudspeaker
6MB400 Loudspeaker
