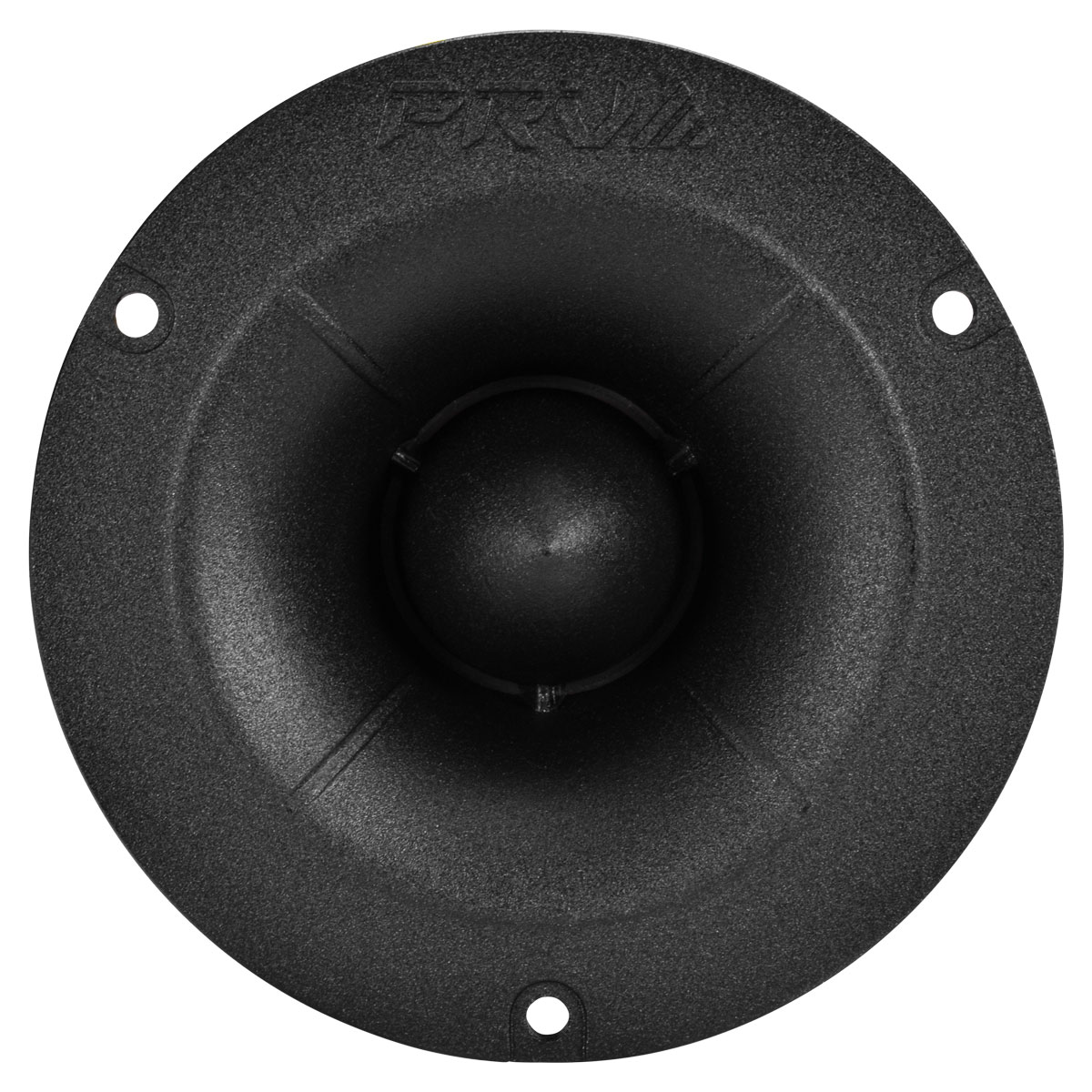

TW500My-Nd
- Mylar Tweeter
- Neodymium Magnet
- 108 dB – 150 Watts
$49.91
In stock
PRICE FOR SINGLE UNIT
Features
Features
- Designed to fit in tight spaces without any major modifications
- Mylar diaphragm for superior accurate and detailed response
- Designed to add high output, high frequency response to any large system
- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
- Able to take a ton of power! Up to 150 watts RMS of power handling
With an aluminum voice coil wound on a Kapton former and Mylar diaphragm, the moving parts have been kept as light as possible for improved efficiency.

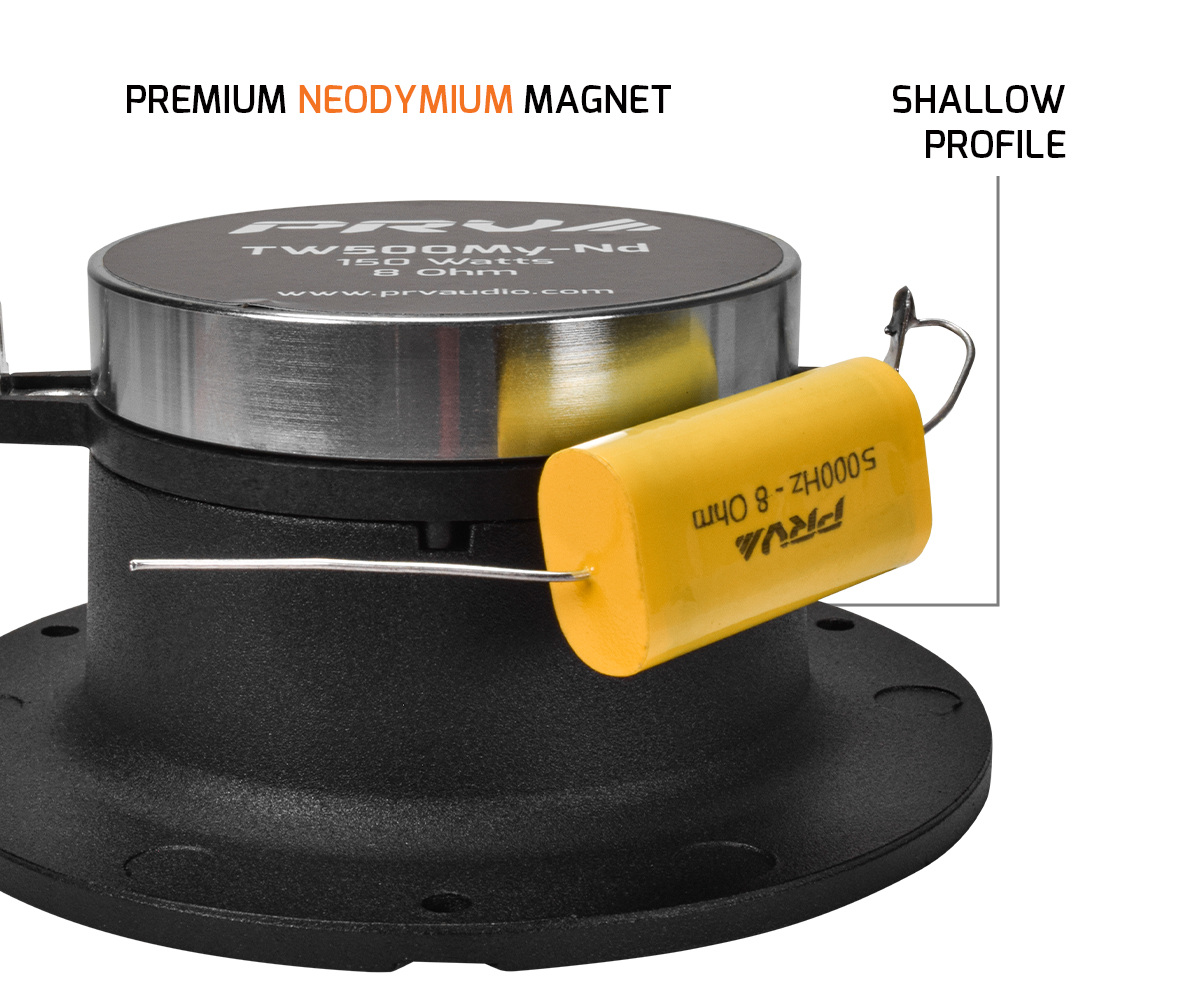

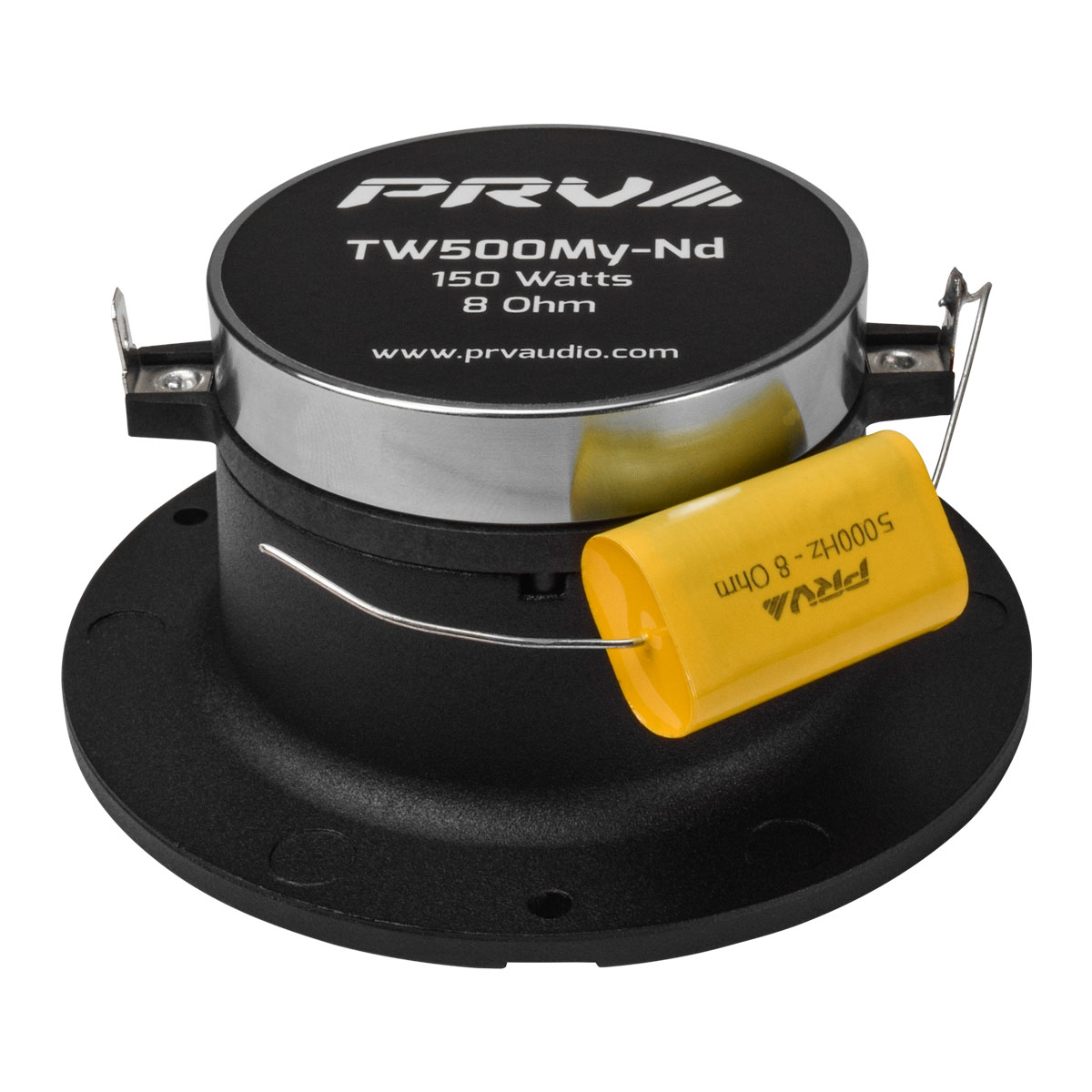

In addition, this tweeter uses a powerful neodymium magnet to further increase efficiency and ensure accurate control for low distortion.

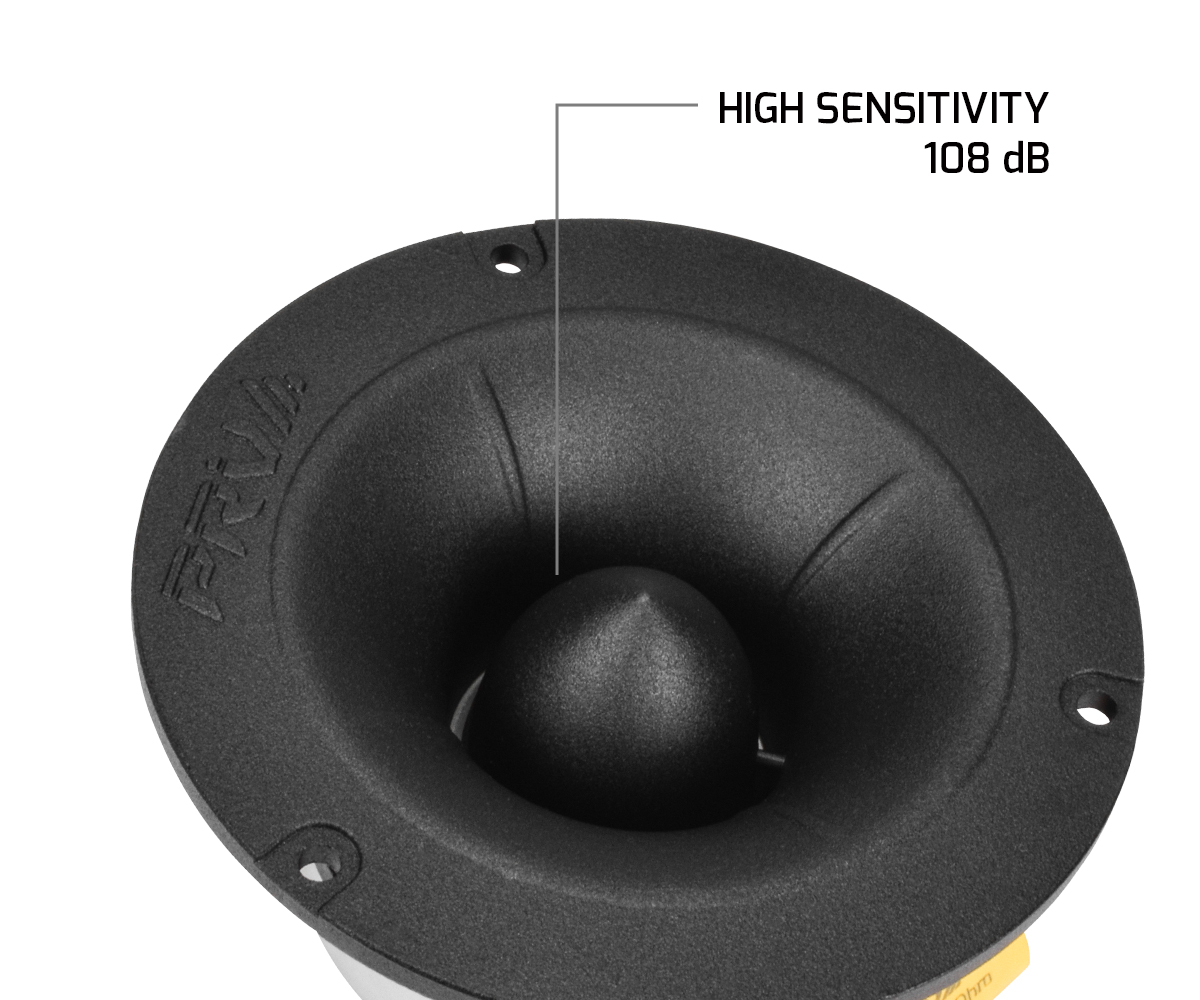

Producing a sensitivity of 109 dB 1W/1m this tweeter can keep up with even the most efficient sound systems. You will be amazed by the sheer output levels the TW500My-Nd can produce!

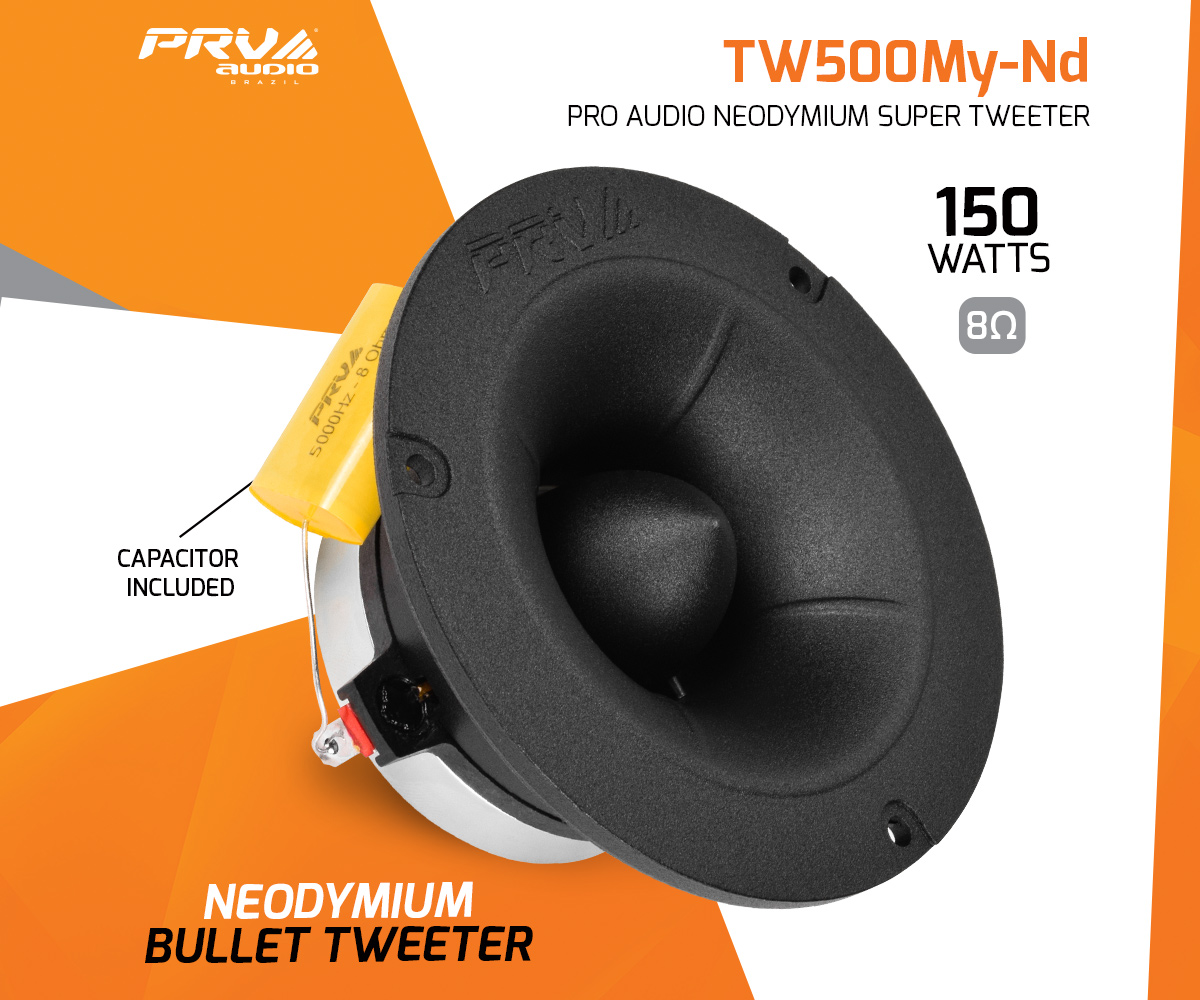

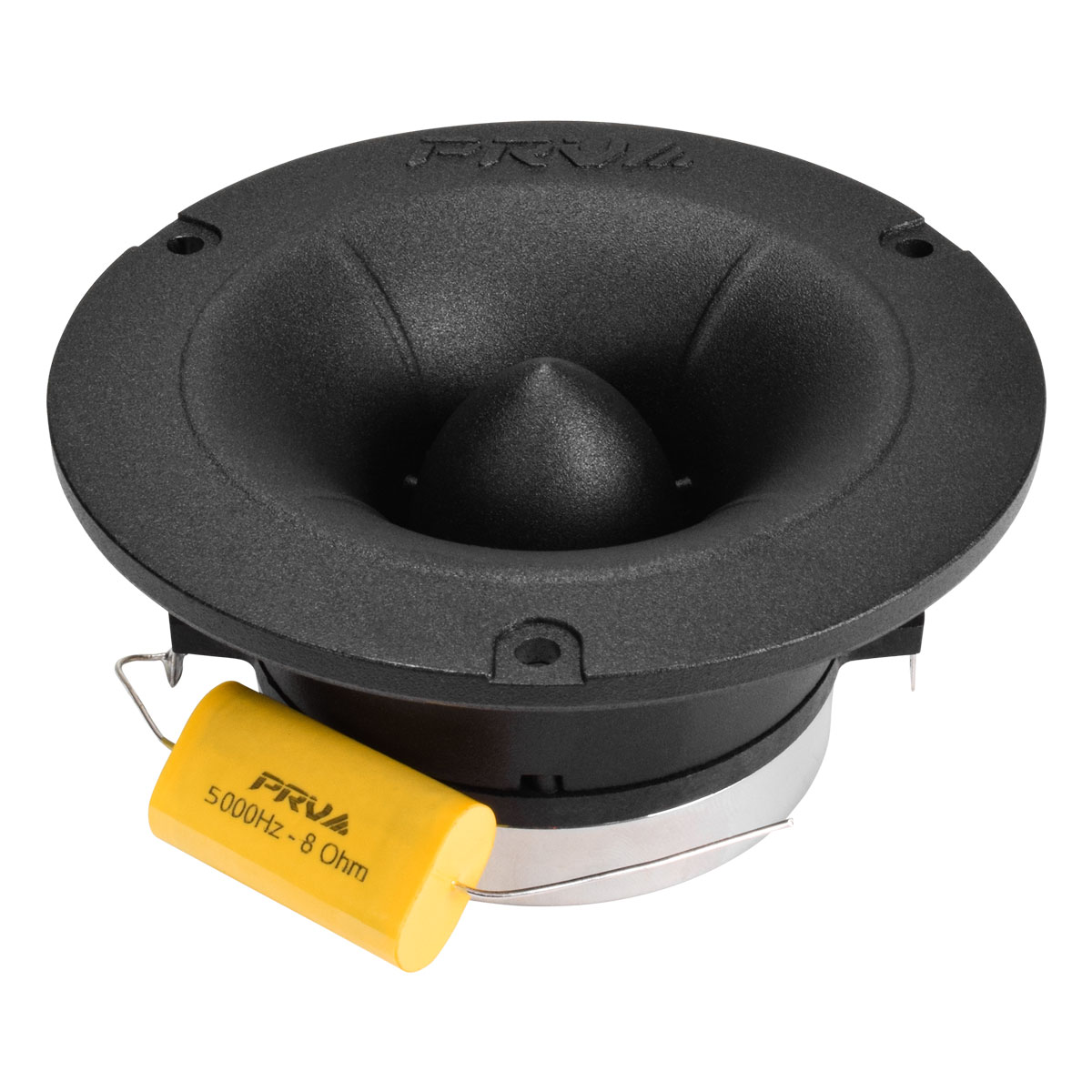

A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.
The Mylar diaphragm is attached to a 1.25″ diameter aluminum wire with Kapton® former for a high 150 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
- 4000 Hz at 12 dB per octave filter Crossover / BT12
- 3500 Hz at 18 dB per octave filter Crossover / BT18
Its incredible output capabilities and wide frequency response make this tweeter one of our best super tweeters on the market!

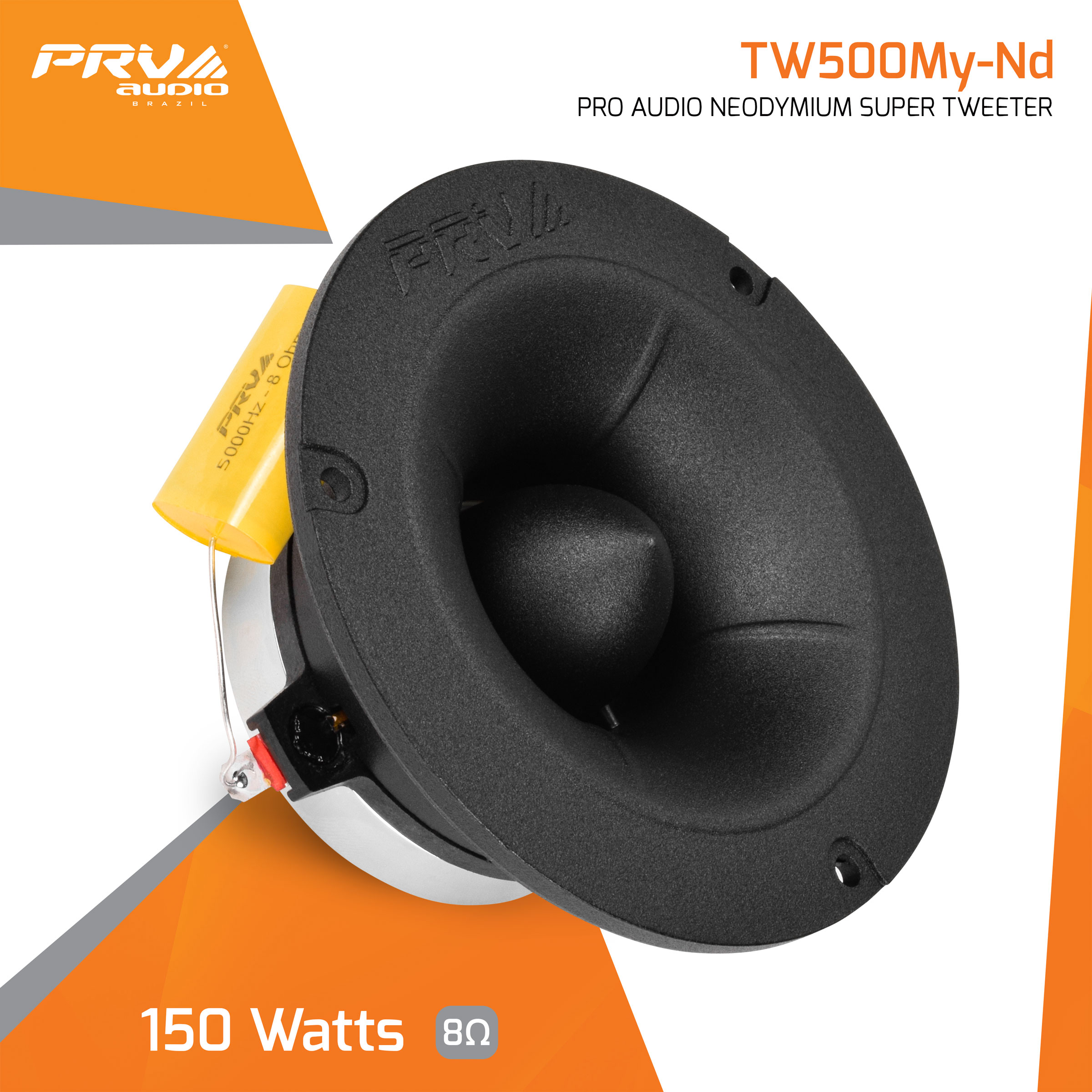

PRV Neodymium Super Tweeter TW500My-Nd 150 Watts 8 Ohm – Premium, High Efficient Tweeter – Mylar Diaphragm
Recommended Settings with DSP / Crossover
We strongly recommended ALWAYS to use a high pass filter ( HPF ) on or to the amplifier channel that will be running the tweeters.
If you have just a high output crossover such as: EX3.5 STEREO or EX4.6 PRO – Use the HIGH OUT channel to feed the amplifier input with a HPF set to:
At 5000Hz – if you are running just a speaker and tweeter setup
At 8000Hz – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )
If you are taking your system to the next level and tuning it with a digital signal processor: DSP 2.4X or DSP 2.8X – Set on the channel to feed the amplifier input with a HPF set to:
At 5000Hz at LR18 – if you are running just a speaker and tweeter setup
At 7000Hz at LR24 – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )
Technical Details
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 75 Watts |
| Program Power | 150 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling |
4000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 19,000 Hz |
| Voice Coil Diameter | 1.25”(32 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Mylar |
| Flux Density | 1.30 T |
| Magnet Material | Neodymium |
EXTRA INFO

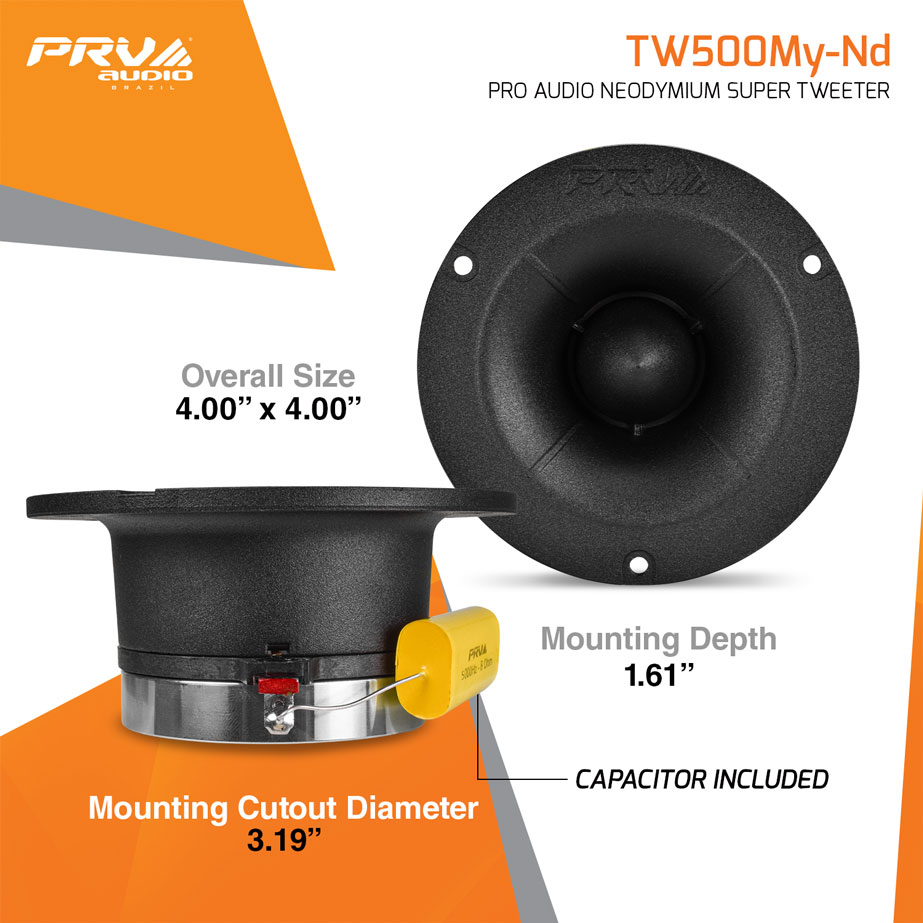

| Overall Depth | 1.77” (45 mm) |
| Mounting Depth | 1.61” (41 mm) |
| Overall Diameter | 4.0” (100 mm) |
| Cutout Diameter | 3.19” (81 mm) |
| Net Weight | 1.25 lbs (0.56 kg) |
| Shipping Weight | 1.33 lbs (0.60 kg) |
| Carton Dimensions W x L x H | 4.1” x 4.1” x 2.1” (105 x 105 x 55 mm) |
Repair Parts
Replacement Diaphragm for TW500My-Nd
30 reviews for TW500My-Nd
| 5 star | 90% | |
| 4 star | 10% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

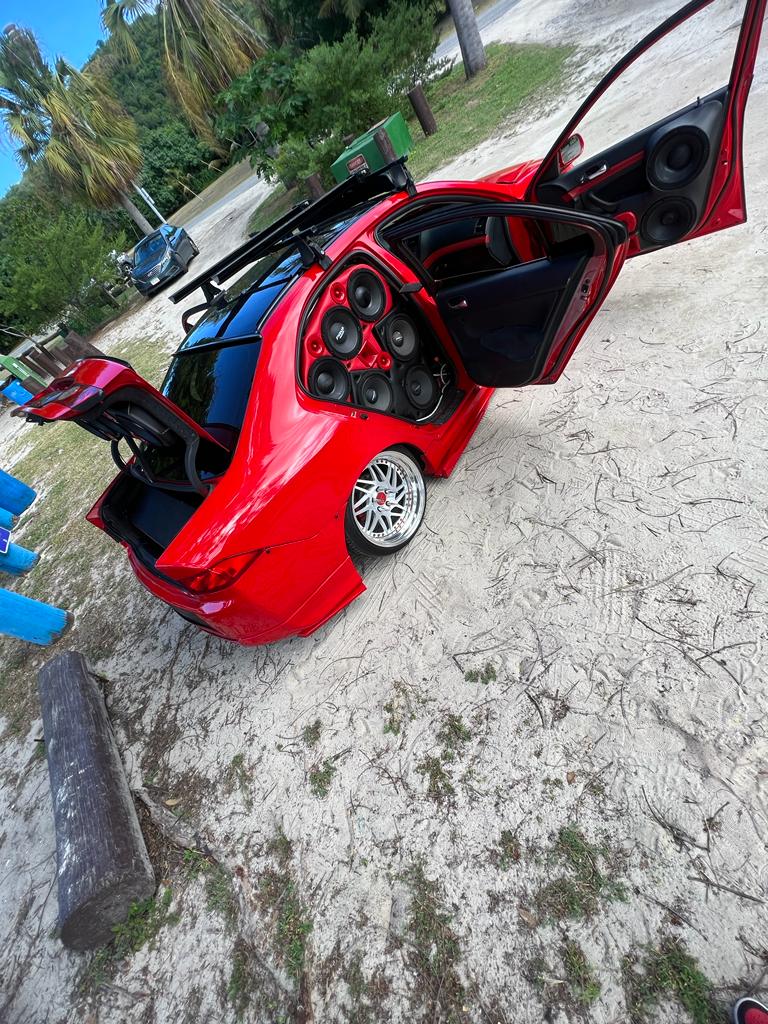

Customer Images
TW500My-Nd
Q & A
TW500My-Nd
Absolutely love they badass tweets
Satisfied
These tweeters are a game changer makes such a big difference..will definitely recommend buying this tw500.
Quick and fast shipping came packaged nicely no damage .
Loud and clear one of the best on the market
Very nice
These tweeters are loud and they sound smooth and crisp.
These are by far probably the loudest tweets on the market right now..they scream!
Great tweeters I really can hear the difference

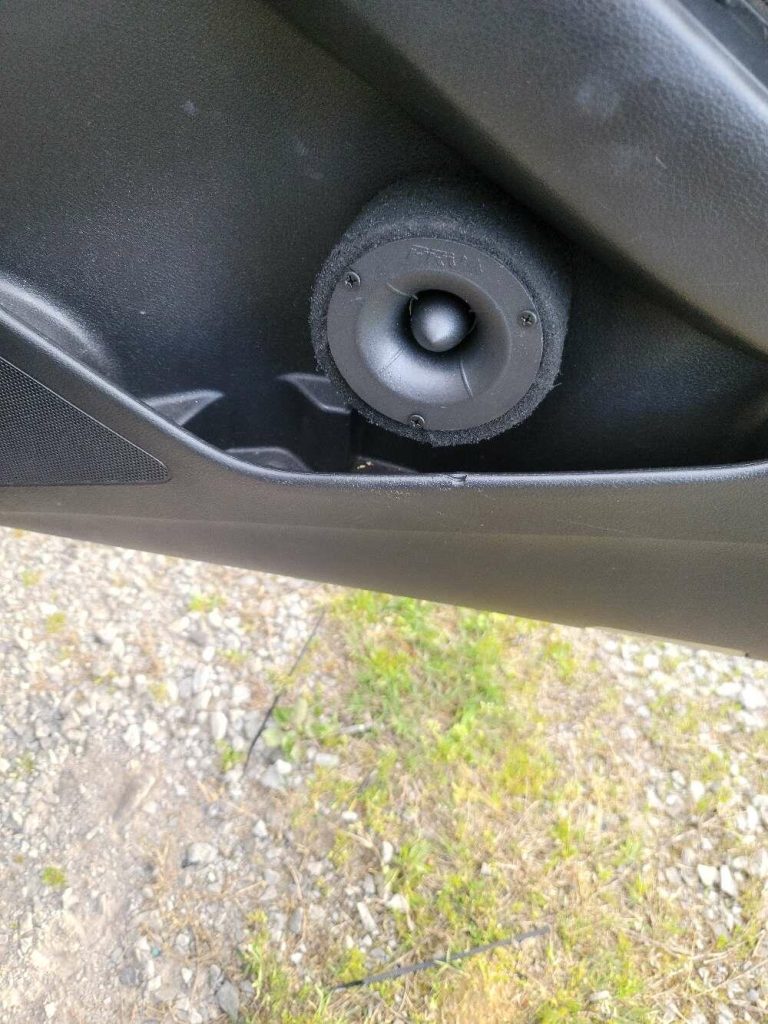

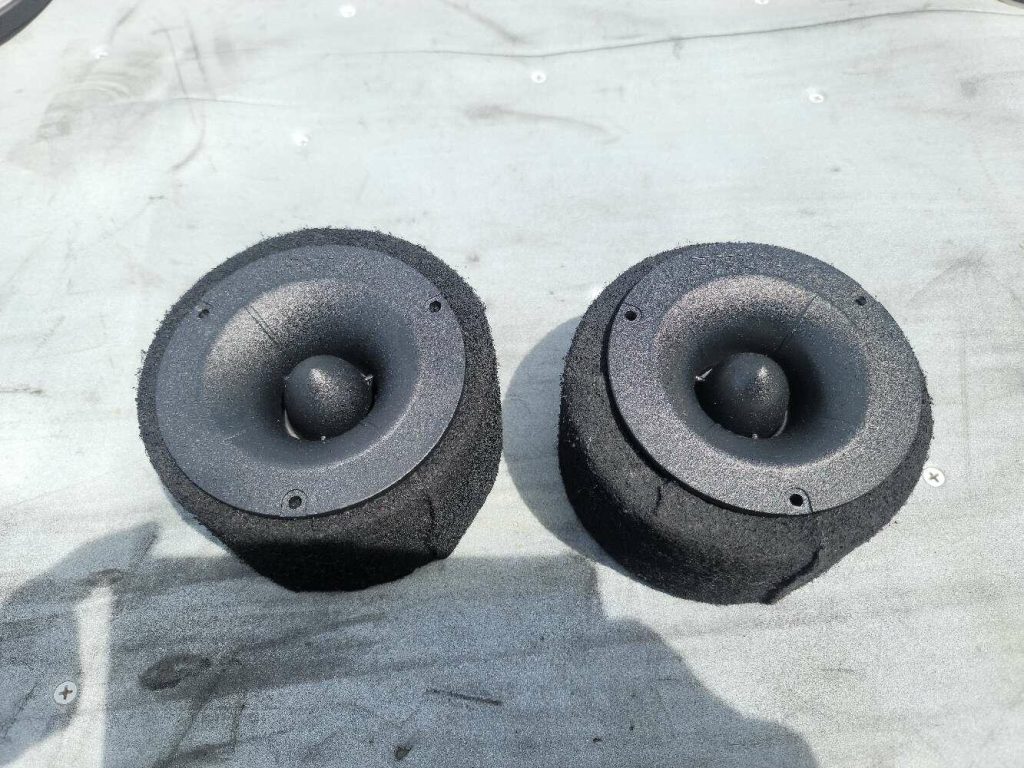

Just installed 8 of these in custom fiberglass speaker enclosures for all four doors of my SUV. Super loud and clear.
