TW700Ti-4 SLIM (PAIR)
- Titanium Tweeter
- Ferrite Magnet
- 104 dB – 200 Watts
- MSRP:
- Price:
- FLASH SALE: $45.00
In stock
PRICE PER PAIR
BUY MORE, SAVE MORE
Features
Features

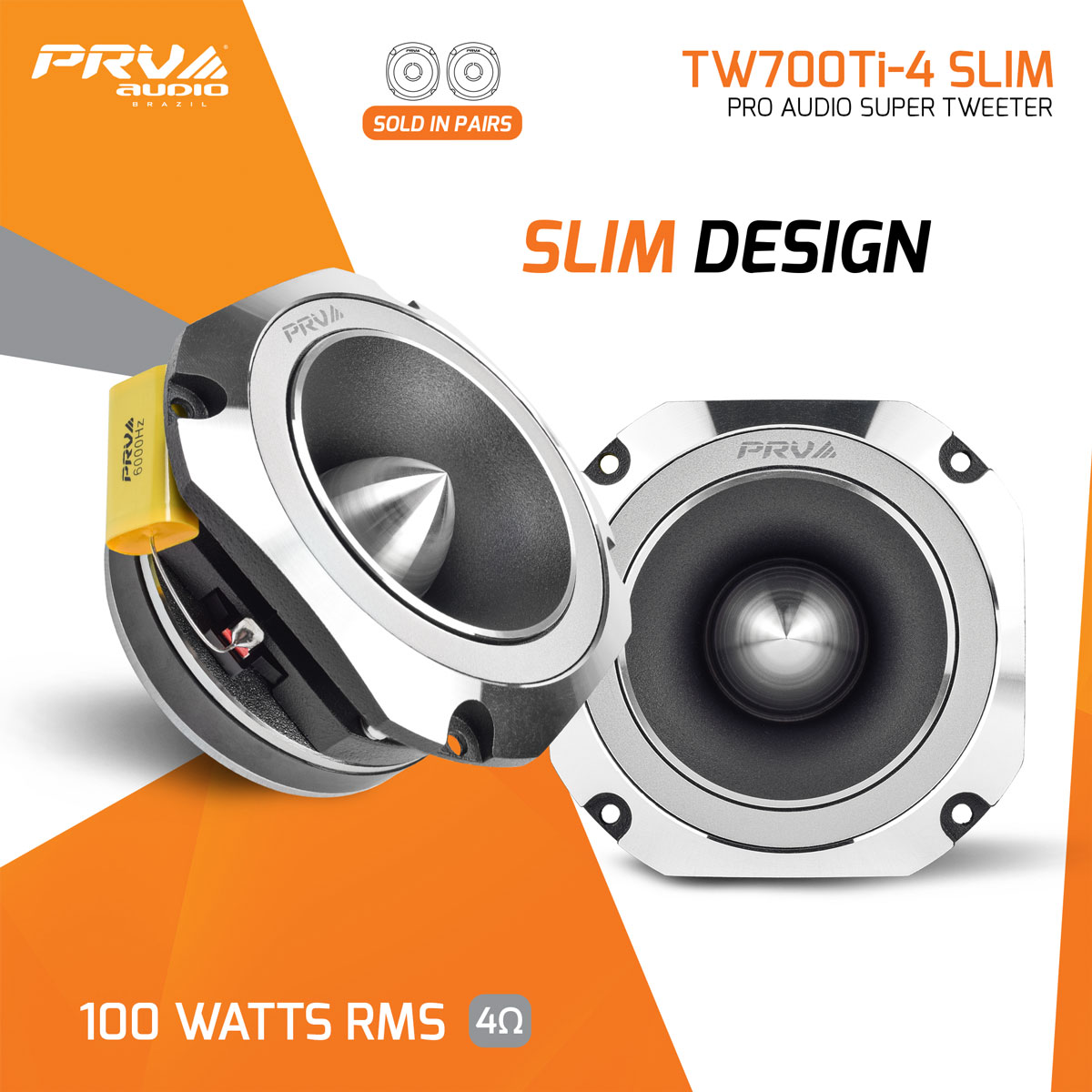

Add detail to any speaker with PRV Audio’s TW700Ti-4 SLIM titanium PRO Audio bullet super tweeter!
This tweeter is Slim version of our famous, powerful TW700ti. The new design features a Slim magnet and throat, making it the perfect Pro Audio On Wheels® tweeter for your car audio application.

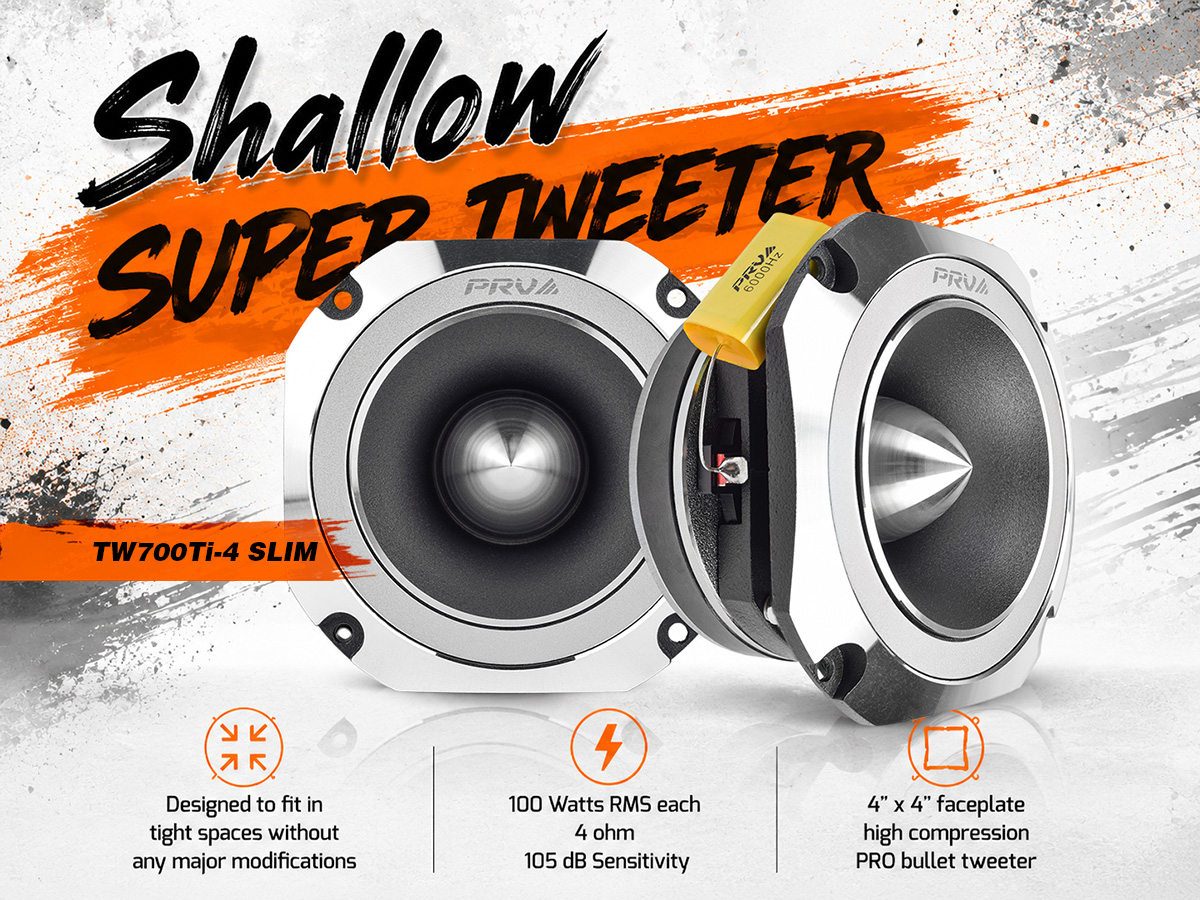

- Designed to fit in tight spaces without any major modifications
- 4” x 4″ faceplate make it easy to install giving it a wide dispersion rate
- Rated AES Power Handling (RMS): 100 Watts each, 4 Ohm Impedance
- Built-in capacitors act as a crossover and attenuate the low frequencies for smooth frequency response
- Voice Coil Diameter: 1.5″
High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system.
PRV Car Audio Bullet Tweeters TW700TI-4 – 200 Watts RMS 4 Ohm 4” x 4″ Faceplate – Shallow Design Tweeters (Pair)
Recommended Crossover Guide:
Recommended HPF using PRV Digital Signal Processor DSP when using up to 100 Watts
RMS musical power each ( without clipping ) with Capacitor
• 5000 Hz at 12 dB per octave filter Crossover / LR12 with capacitor
• 7000 Hz at 24 dB per octave filter Crossover / LR24 without capacitor
No LPF crossover for tweeters
Maximum power handling without any crossover points:
• The tweeter’s capacitor helps attenuate low frequencies, but it cannot cut all low tones, if used parallel to a speaker or straight from a head unit, each will only be able to handle 50 Watts RMS without distortion.

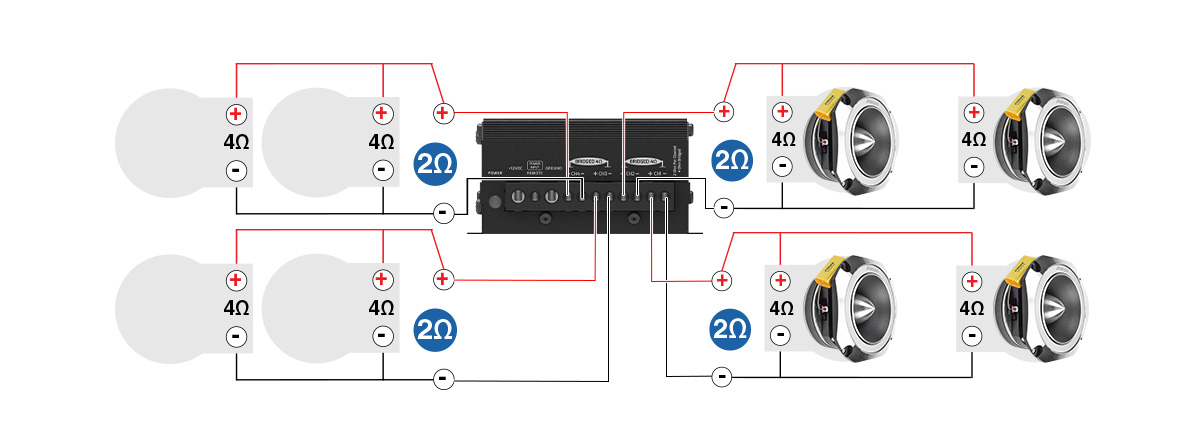

Installation Guide:
4 Channel Amplifier for 4 Super Tweeters – MDX800.4 2 Ohm
Wire 2x 4 Ohm tweeters in parallel per channel, giving up to 100 watts per tweeter on Channel 1 and 2. You maybe use another Channels for 4 more tweeters or Drivers or even speakers.
Technical Details
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 - 20,000 Hz |
| Voice Coil Diameter | 1.5” (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Aluminum |
| Flux Density | 1.50 T |
| Magnet Material | Ferrite |
EXTRA INFO

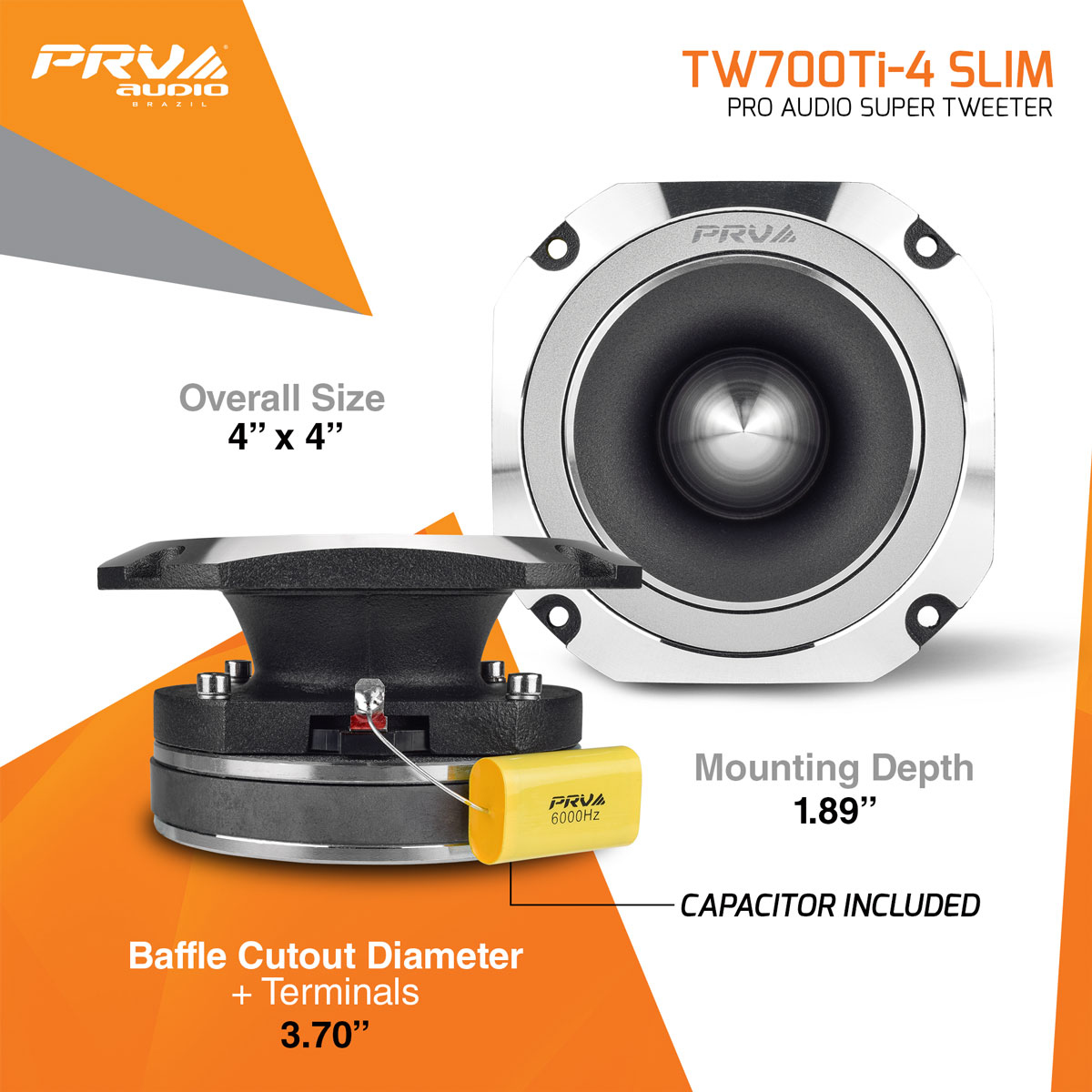

| Overall Depth | 2.28” (57.9 mm) |
| Mounting Depth | 1.89” (48.0 mm) |
| Overall Width | 4.0” (101.6 mm) |
| Overall Height | 4.0” (101.6 mm) |
| Cutout Diameter | 3.70” (94 mm) + Terminals |
| Net Weight | 2.19 lbs (0.99 kg) |
| Shipping Weight | 4.45 lbs (2.02 kg) |
| Carton Dimensions W x L x H | 9.64” x 4.72” x 2.56” (245 x 120 x 65 mm) |
Repair Parts
Replacement Diaphragm for TW700Ti-4 SLIM
16 reviews for TW700Ti-4 SLIM (PAIR)
| 5 star | 93% | |
| 4 star | 6% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

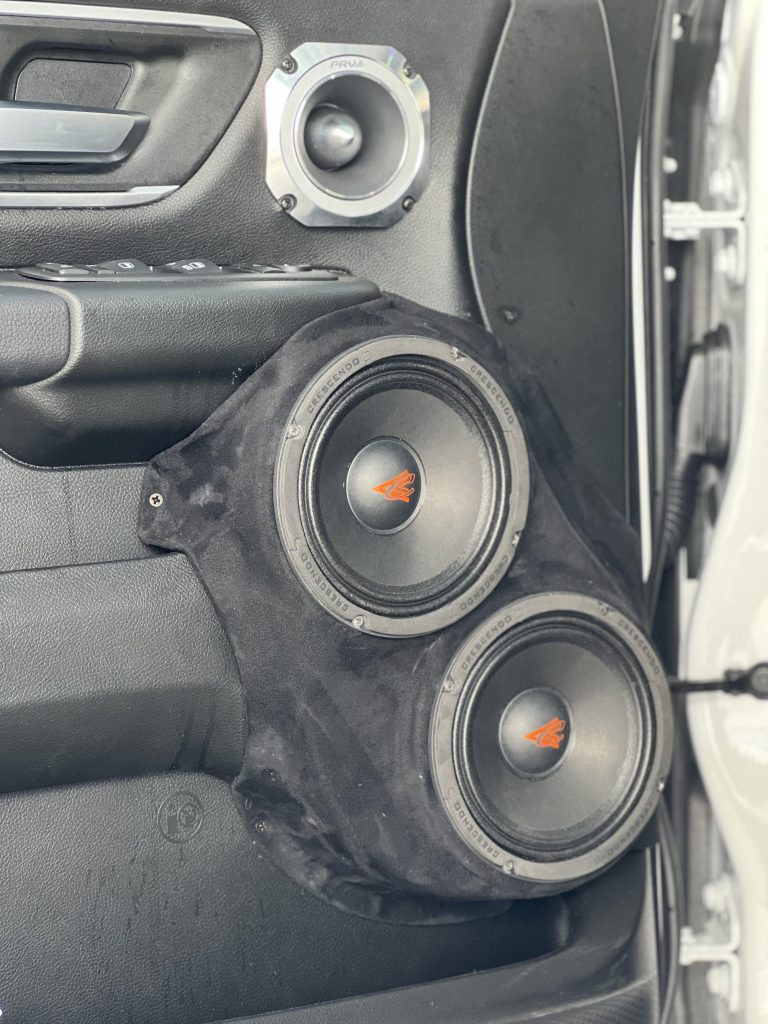

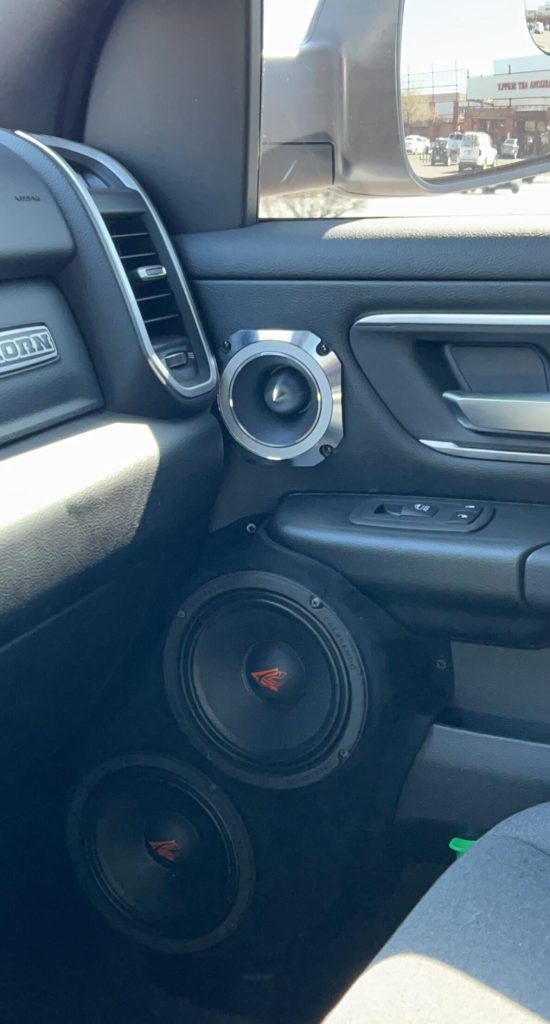

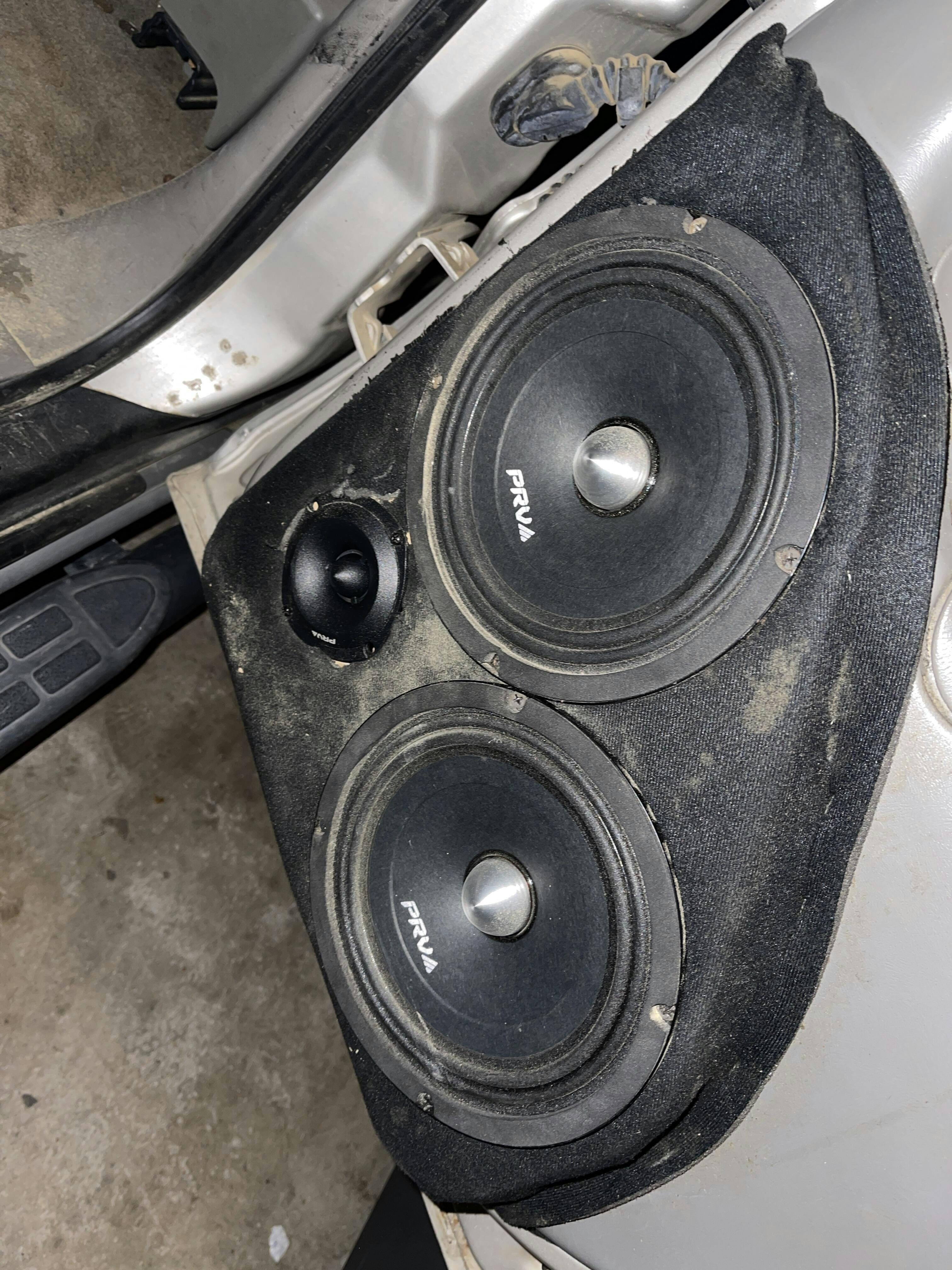

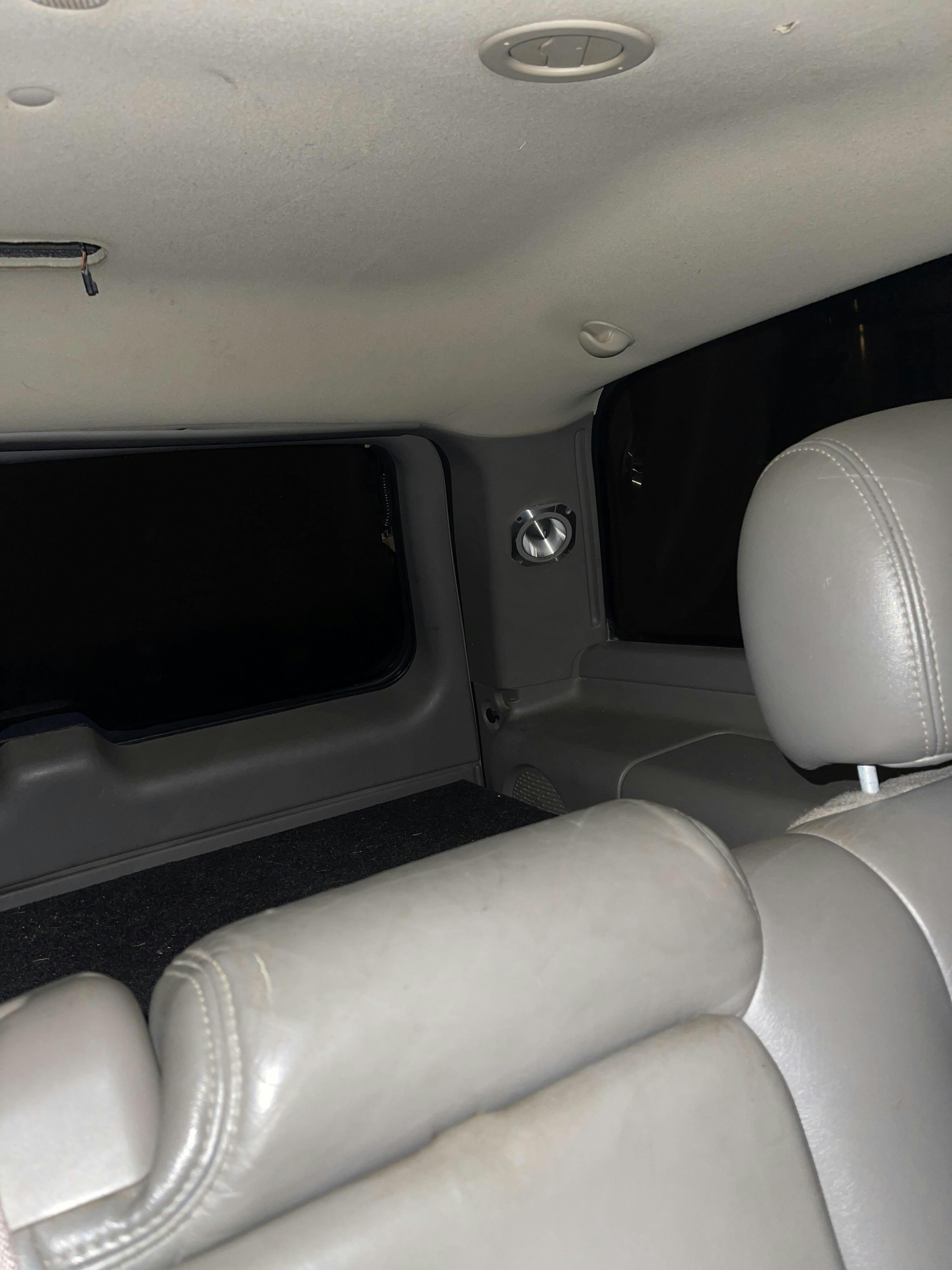

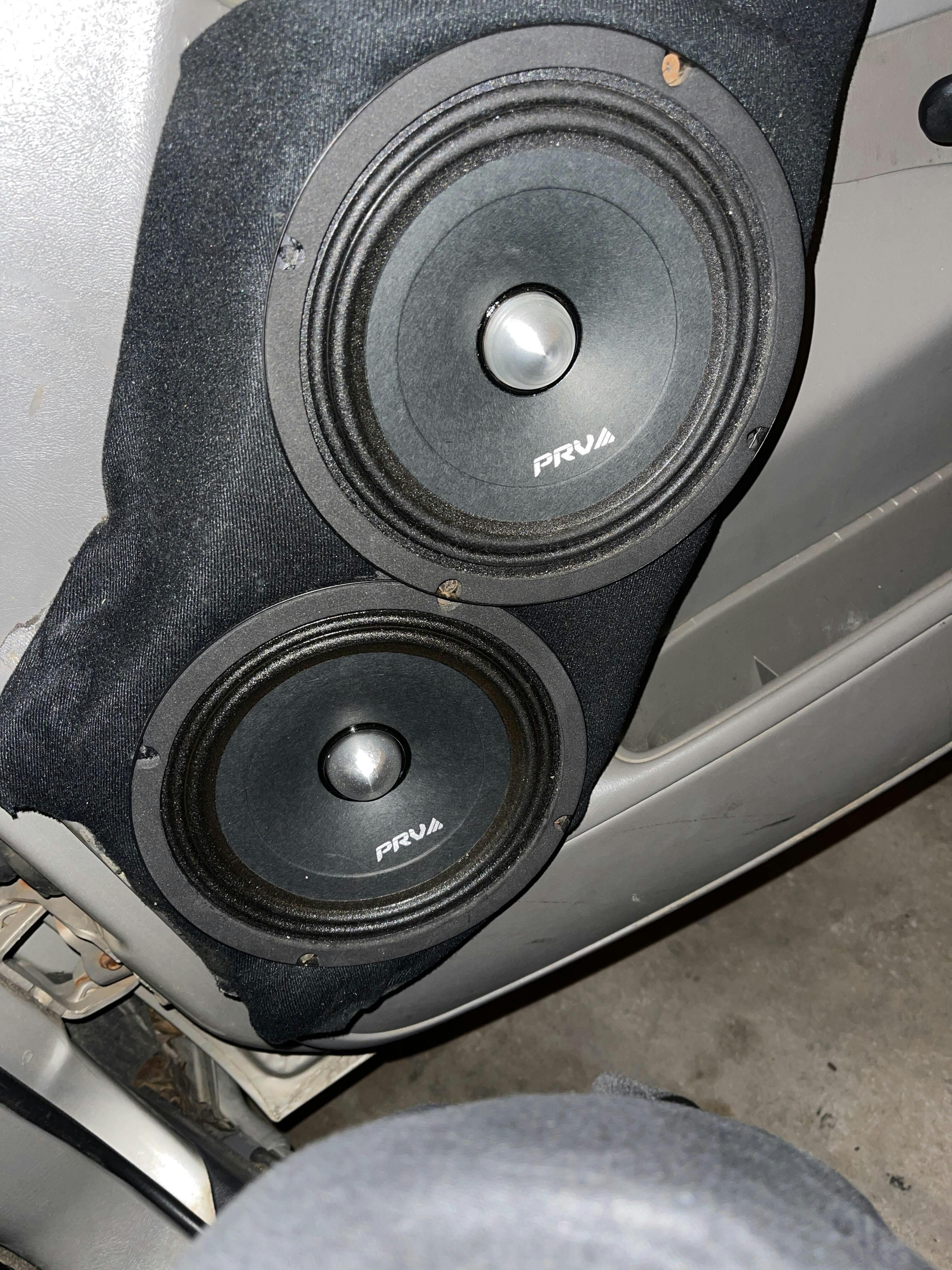

Customer Images
TW700Ti-4 SLIM (PAIR)
Q & A
TW700Ti-4 SLIM (PAIR)
Clean sound
Great quality and very clear with the PRV MDX2000.4 2ohms. I just wished i would of gotten the air freshener.
I have a 2008 Honda Goldwing everybody is asking where did you get that system from
Good sound
The product wouldn’t fit so I returned the product bback for a refund with no complications.
Very satisfied with the PRV’S Super Tweeters. I would recommend them. Thanks
IF YOU WANT SOME SERIOUS TWEETERS THESE ARE WHAT YOU ARE LOOKING FOR. PERFECT FOR DOOR PANELS WITH ITS SLIM FIT
Good sound can’t wait to get amp installed
This pair of tweeters are so powerfull and their sound so clearly
I love prv ..best quality speaker
