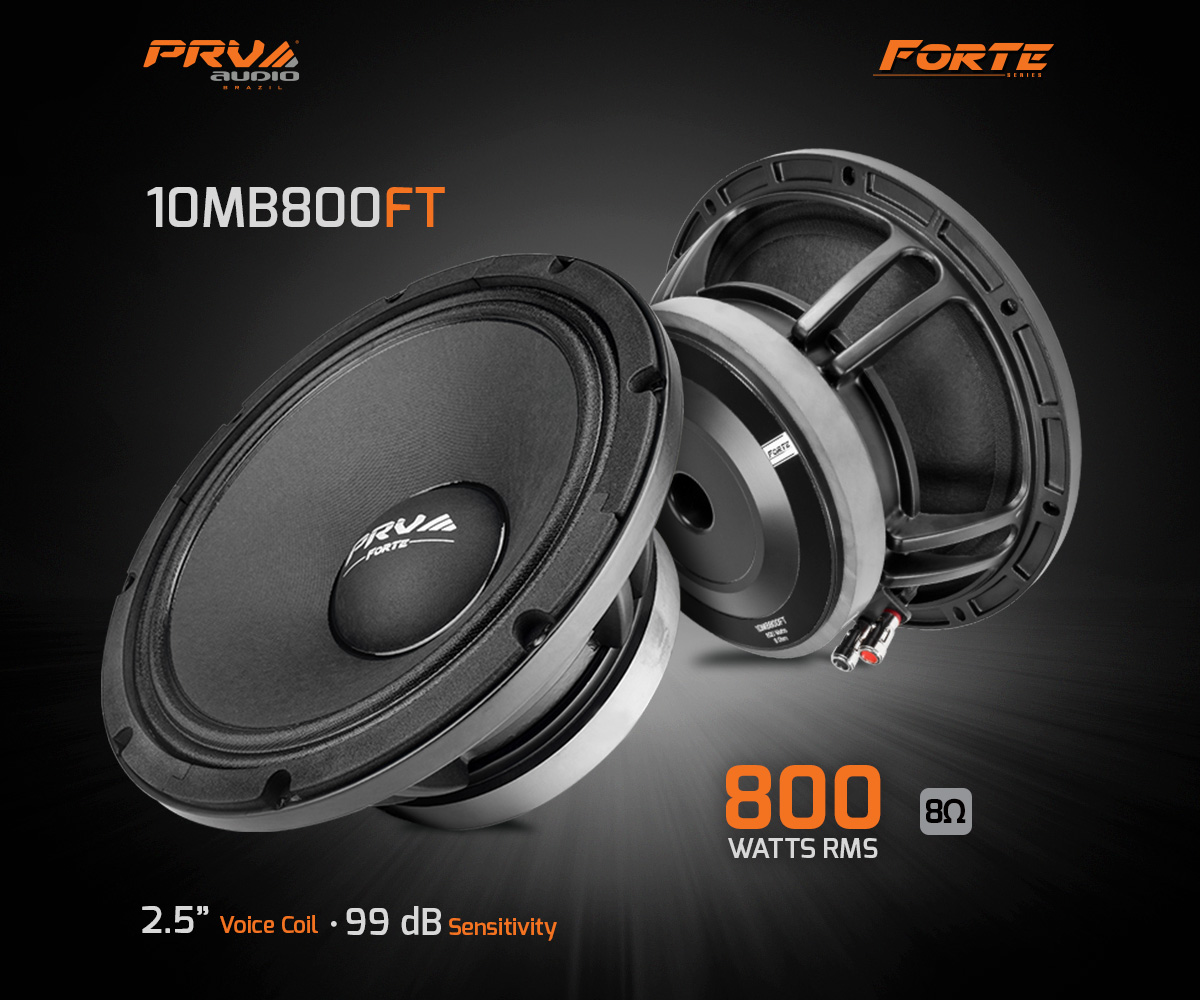

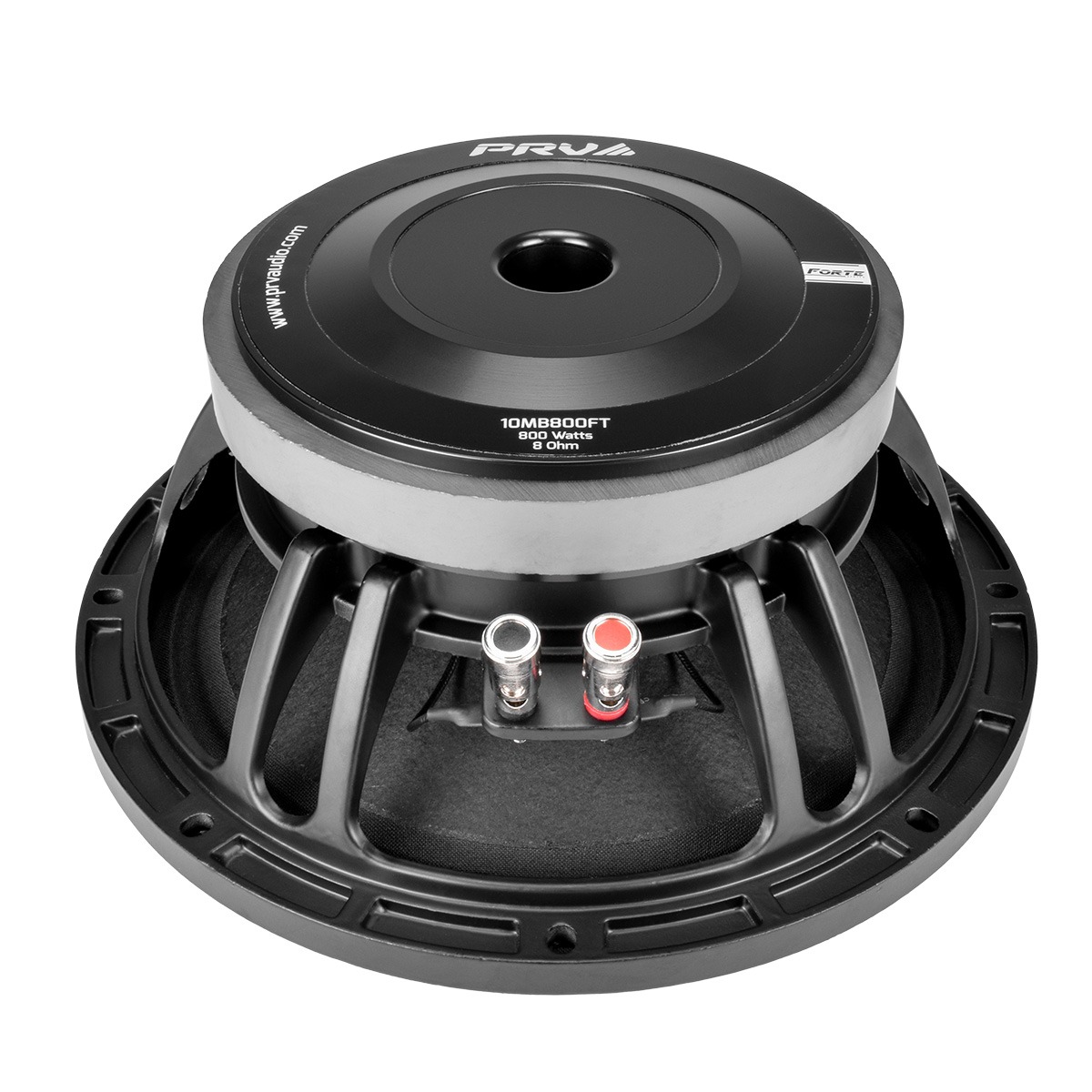

10" MIDBASS LOUDSPEAKER

10MB800FT

In stock
  • 10″ Mid Bass – 8 Ohms
  • Ferrite Magnet
  • 99 dB – 800 Watts

$109.99

In stock

SKU: 10MB800FT Category: Tag:

Features

The 10MB800FT is a rugged 10″ mid bass that combines mid bass punch and mid clarity at remarkable SPL output with low distortion and an extended bass response. Optimized for use in compact enclosures, this mid bass speaker provides smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

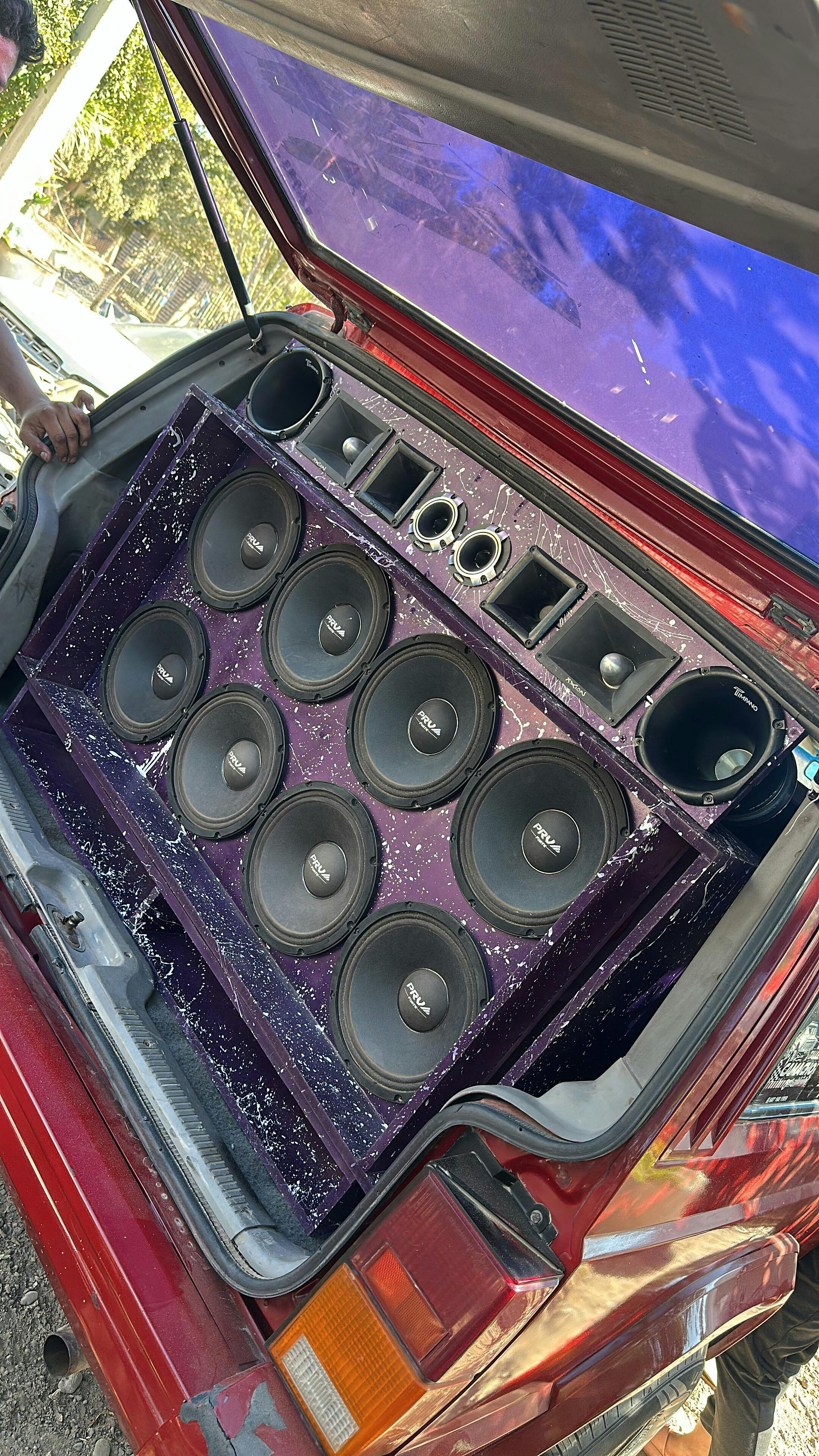

This 10″ is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.


Highlights

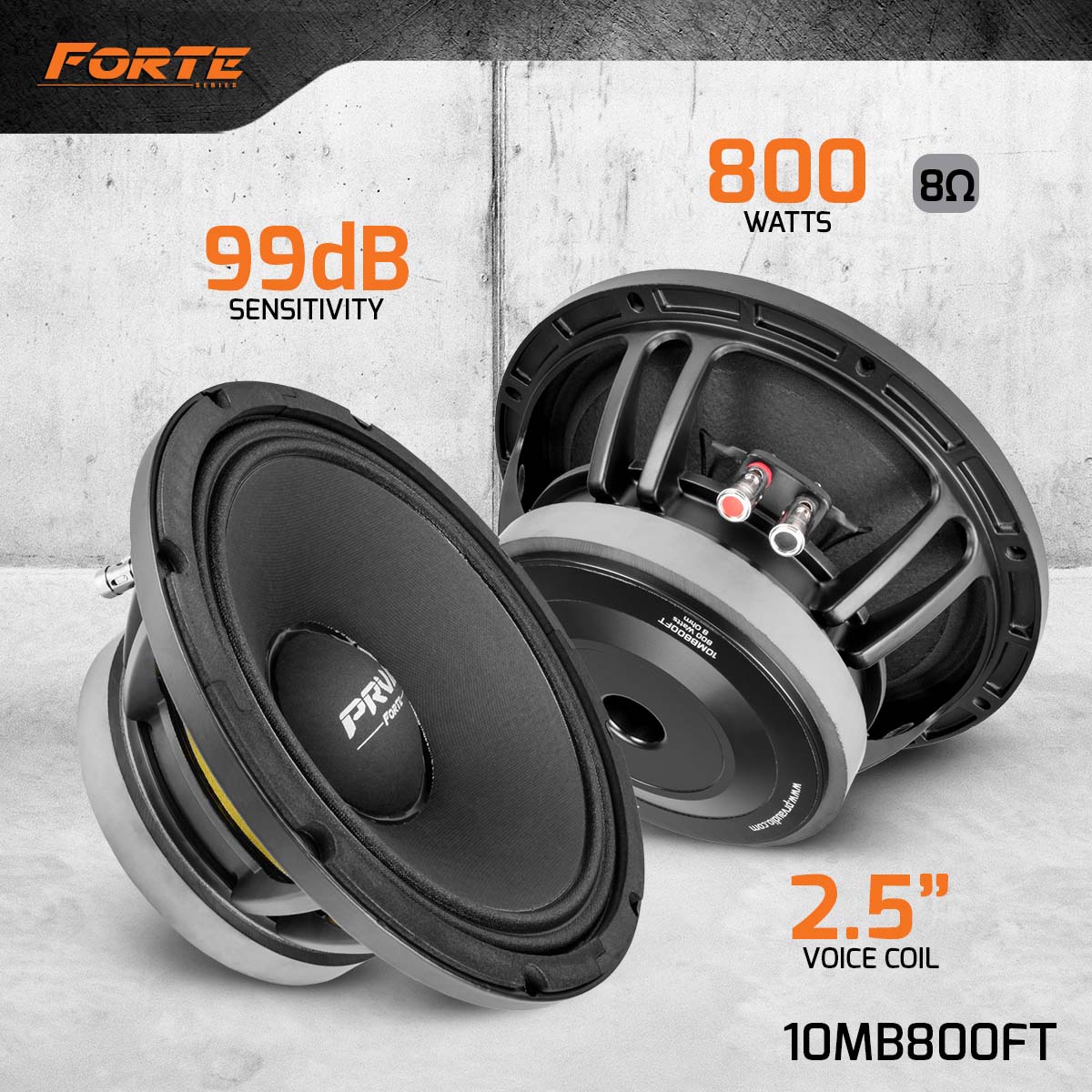

  • Nominal Impedance: 8 Ohms
  • Rated Power Handling: 400 Watts
  • Program Power: 800 Watts
  • Sensitivity (1W/1m): 99 dB
  • Voice Coil Diameter: 2.5″

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Rated Power Handling 400 Watts
Program Power 800 Watts
Sensitivity 2.83V at 1m 99 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
120 Hz**
**12db Per Octave Crossover

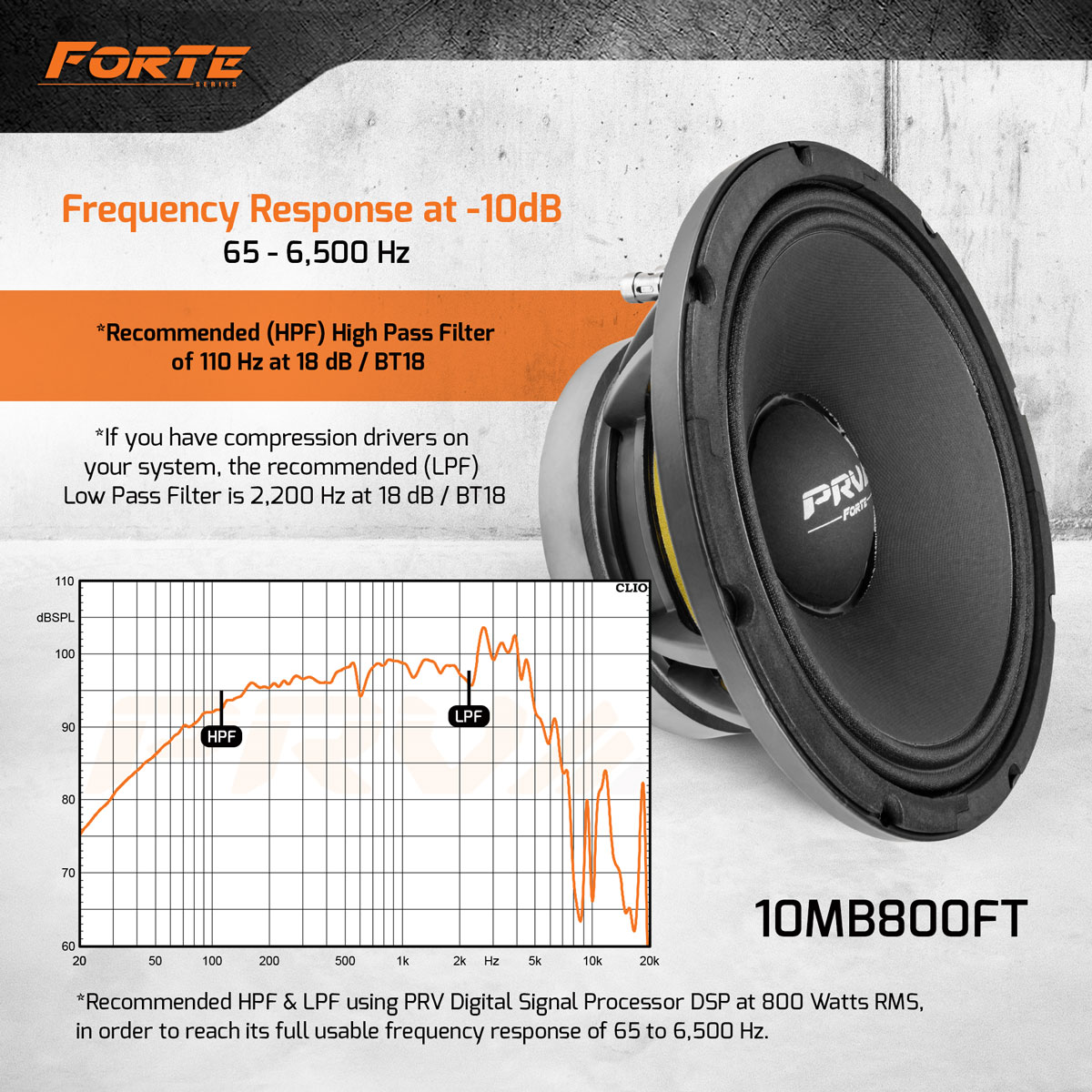

Frequency Response at -10dB 65 – 6,500 Hz
Voice Coil Diameter 2.5″ (65 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 11.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 8.0 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 36.73 l
Excursion (mathematical)*** Xmax 3.50 mm
Free Air Resonance Fs 64.72 Hz
Mechanical Factor Qms 15.39
Electrical Factor Qes 0.33
Total Factor Qts 0.32
Cone Area Sd 380 cm²
Mechanical Mass Mms 33.20 g
Bl Factor Bl 14.39 Tm
Dc Resistance Re 5.1 Ohms
Inductance Le 0.40 mH at 1 kHz
Mechanical Mass Without Air Mmd 29.01 g
Mechanical Compliance Cms 0.182 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

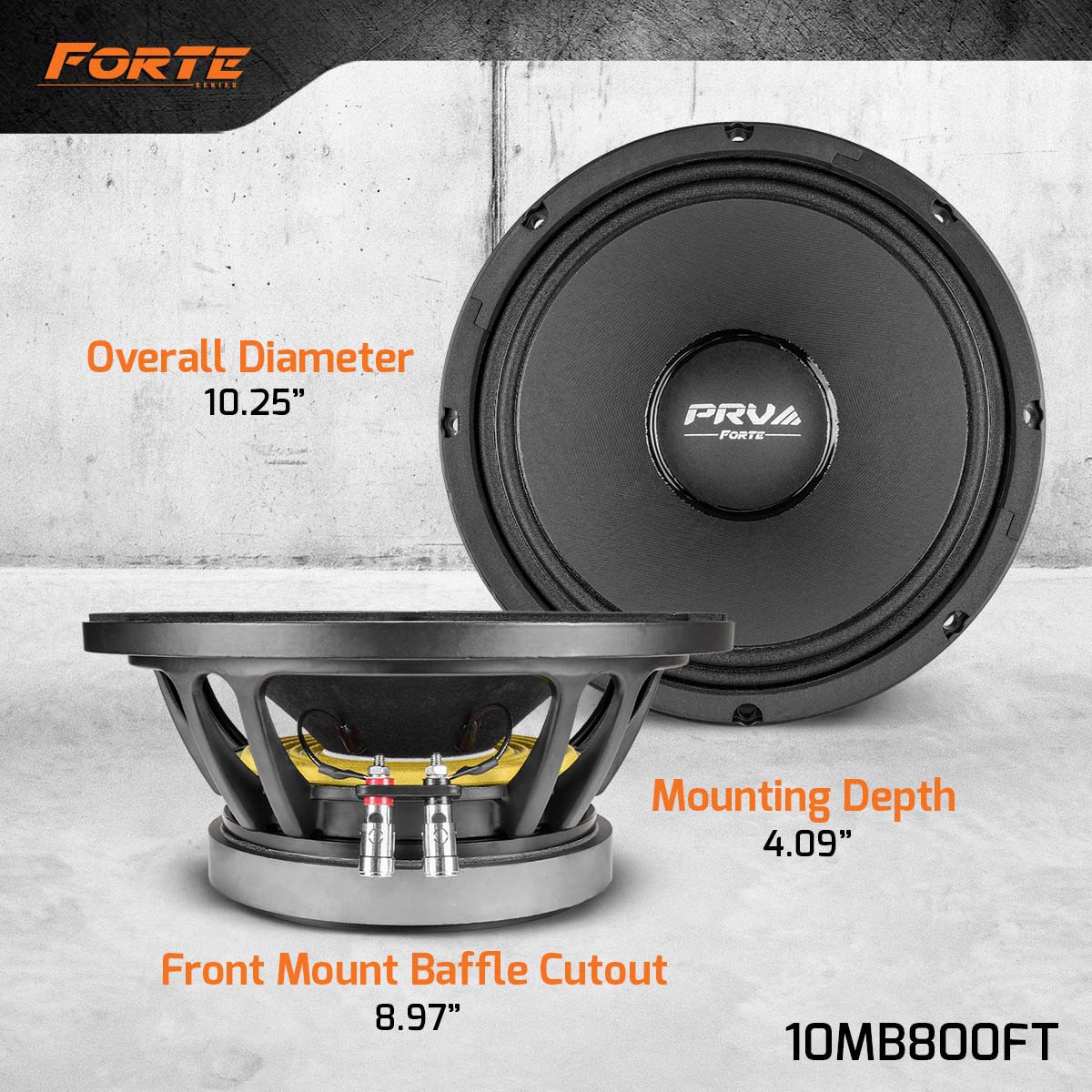

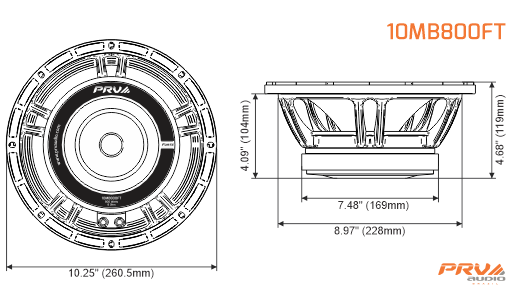

EXTRA INFO

Overall Diameter 10.23” (260 mm)
Front Mount Baffle Cutout 9.01” ( 229 mm)
Mounting Depth 4.09” (104 mm)
Overall Depth 4.68” (119 mm)
Net Weight 11.01 Lbs (5.0 kg)
Shipping Weight 11.90 Lbs (5.4 kg)

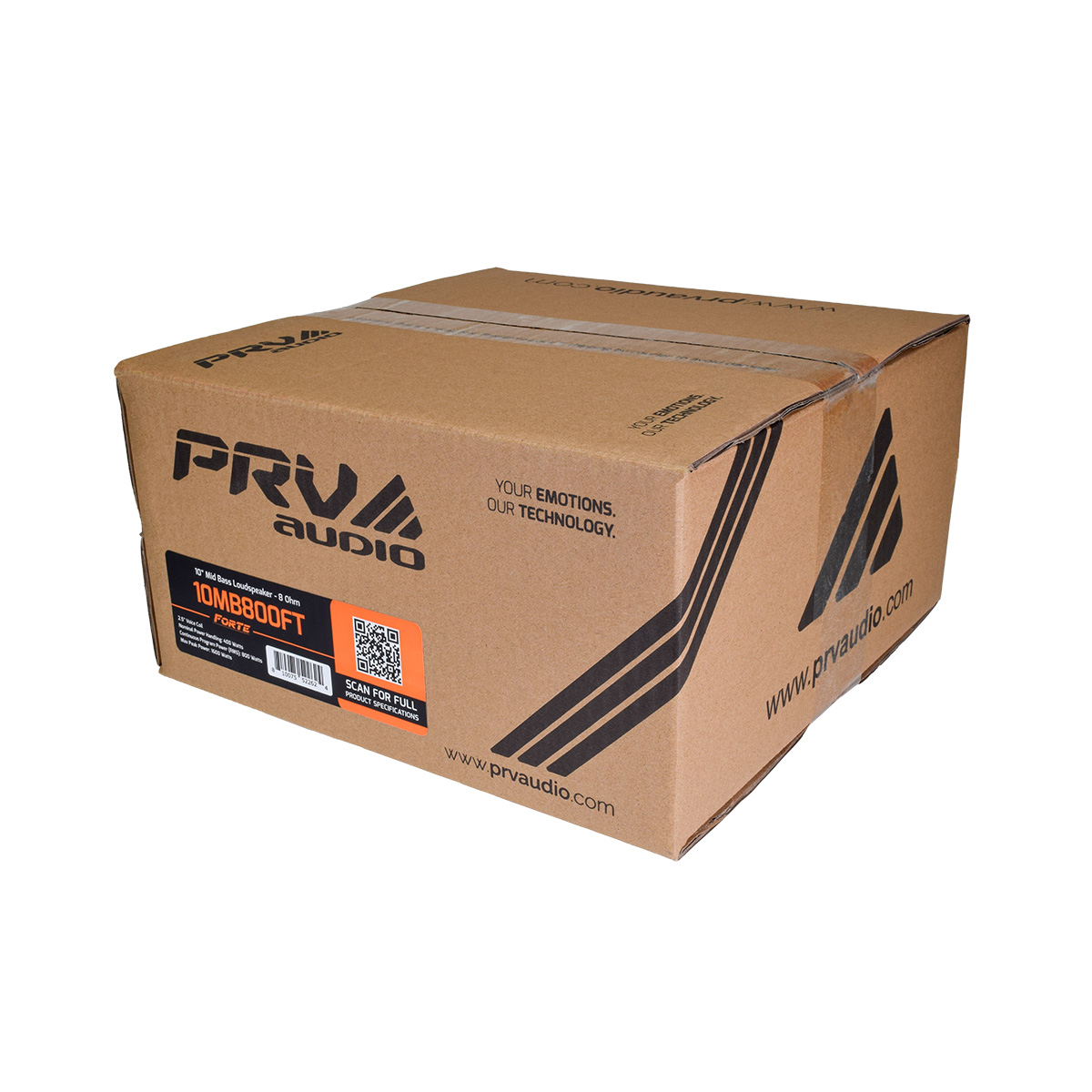

Carton Dimensions W x L x H 10.82 ” x 10.82 ” x 5.12”
(275 x 275 x 130 mm)



Customer questions & answers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

There are no reviews yet.

Be the first to review “10MB800FT”

Your email address will not be published. Required fields are marked *

Repair Parts

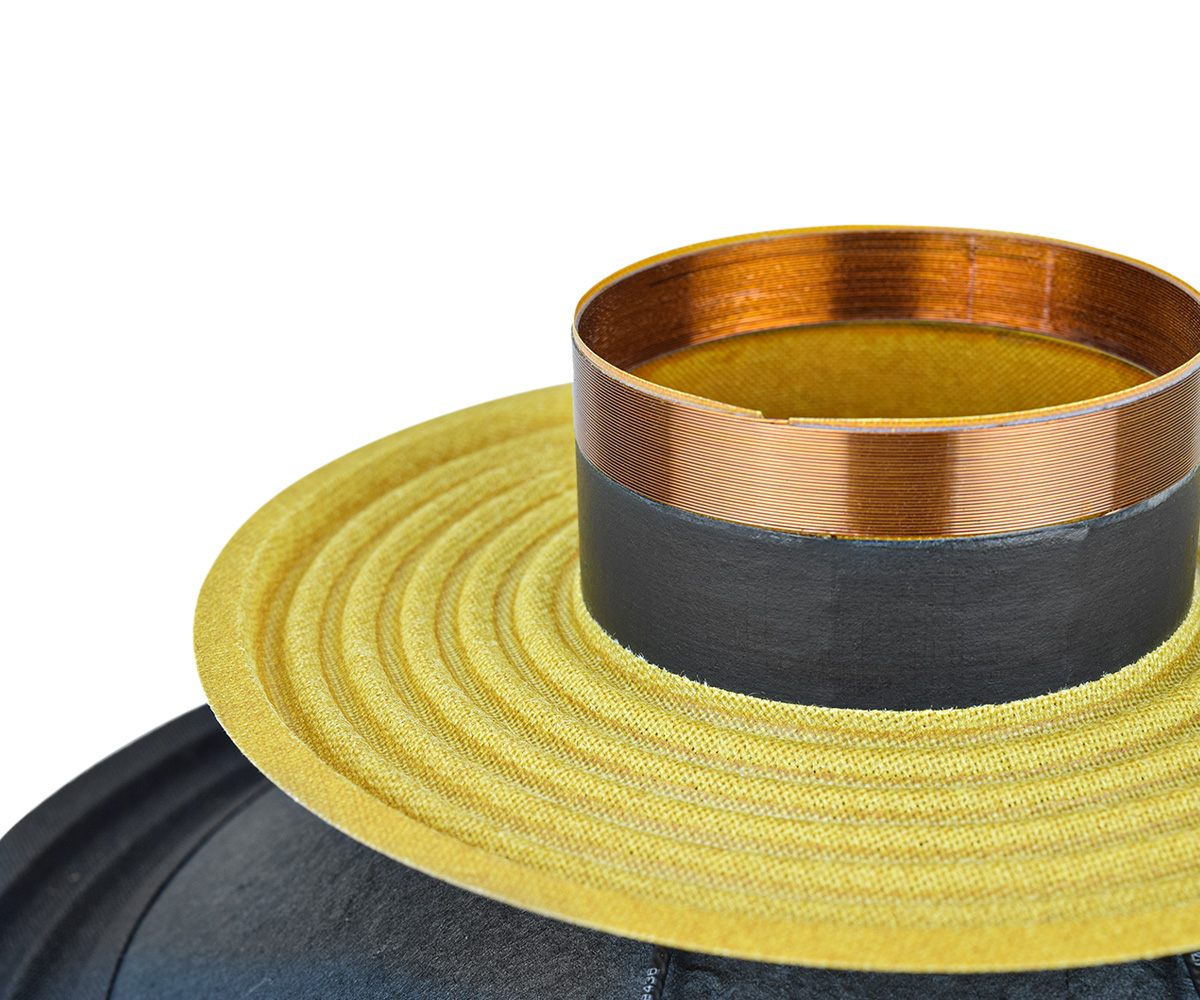

Recone Kit for 10MB800FT Loudspeaker
