6x9" Mid Range Bullet Loudspeaker

69MR500-4 BULLET

In stock

-

  • 6×9″ Mid Range – 4 Ohm
  • High-Performance Bullet
  • 96 dB – 500 Watts

$59.91

In stock

PRICE FOR SINGLE UNIT

SKU: 69MR500-4 BULLET Categories: , Tags: ,

Features

Features

The MR BULLET was conceived with one goal in mind: High-Performance!

Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door or rear deck.

8MR5000-NDY-V2---Highlight---4-and-8-Ohms
  • Built to Perform at Wide Frequency Range: 150 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 96 dB guarantees High Output Levels
  • Handles 500 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance
  • Also available in 6.5″- 6MR400-4 BULLET  and 8″- 8MR500-4 BULLET

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!


6MR250B-4 SLIM

The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.


Built to perform and able to handle 500 watts of continuous power, this mid range is the perfect option to replace that old 2-way or 3-way coaxial speakers. Engineered and designed to transform a stock system into a concert level, ideal for audiophiles seeking tremendous output without radical modifications.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 6×9″ (152 x 228 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 250 Watts
Continuous Program Power (RMS)** 500 Watts
Max Peak Power*** 1000 Watts
Sensitivity 2.00V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 145 Hz 12db Per Octave Crossover
Frequency Response 150 – 12,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 5.21 l
Excursion(mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 148.9  Hz
Mechanical Factor Qms 16.80
Electrical Factor Qes 1.20
Total Factor Qts 1.12
Cone Area Sd 216 cm²
Mechanical Mass Mms 13.11 g
Bl Factor Bl 5.86 Tm
Dc Resistance Re 3.3 Ohms
Inductance Le 0.130 mH at 1 kHz
Mechanical Mass Without Air Mmd 9.31 g
Mechanical Compliance Cms 0.080 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.43″ x 9.29′ (163.5 x 236 mm)
Front Mount Baffle Cutout 5.78″ x 8.60″ (150 x 218.5 mm)
Mounting Depth 3.48″ (88.5 mm)
Overall Depth 3.85″ (98 mm)
Net Weight 4.4 Lbs (2.00 kg) unit
Shipping Weight 4.62 Lbs (2.10 kg)
Carton Dimensions W x L x H 8.66″ x 7.48″ x 4.33″ (220 x 190 x 110 mm)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.govView our Return Policy.

Customer Reviews

Based on 66 reviews
98%
(65)
2%
(1)
0%
(0)
0%
(0)
0%
(0)
T
T.S.
It’s a well designed speaker.

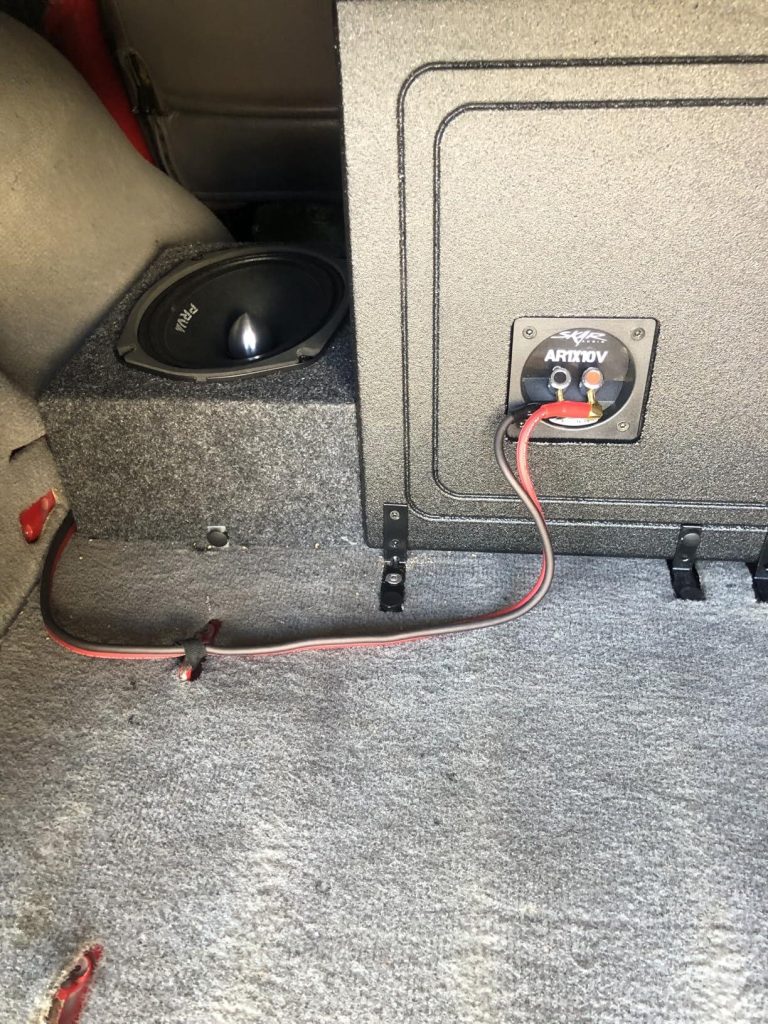

When these were finally installed and the HPF set on the crossover inside the head unit they blew me away. I’m only running a 10” sub with these and the transition between the speakers and sub is nice.A guitar through a Marshall sounds like a guitar through a Marshall. Never heard a car audio speaker do that. I’m a big fan of these!Would definitely buy again and highly recommend.
