MT6CX580-NDY-4
- 6.5″ Coaxial – 4 Ohm
- Neodymium Magnet
- 95/106 dB – 580 Watts
$239.91
In stock
PRICE FOR SINGLE UNIT
Features
Features

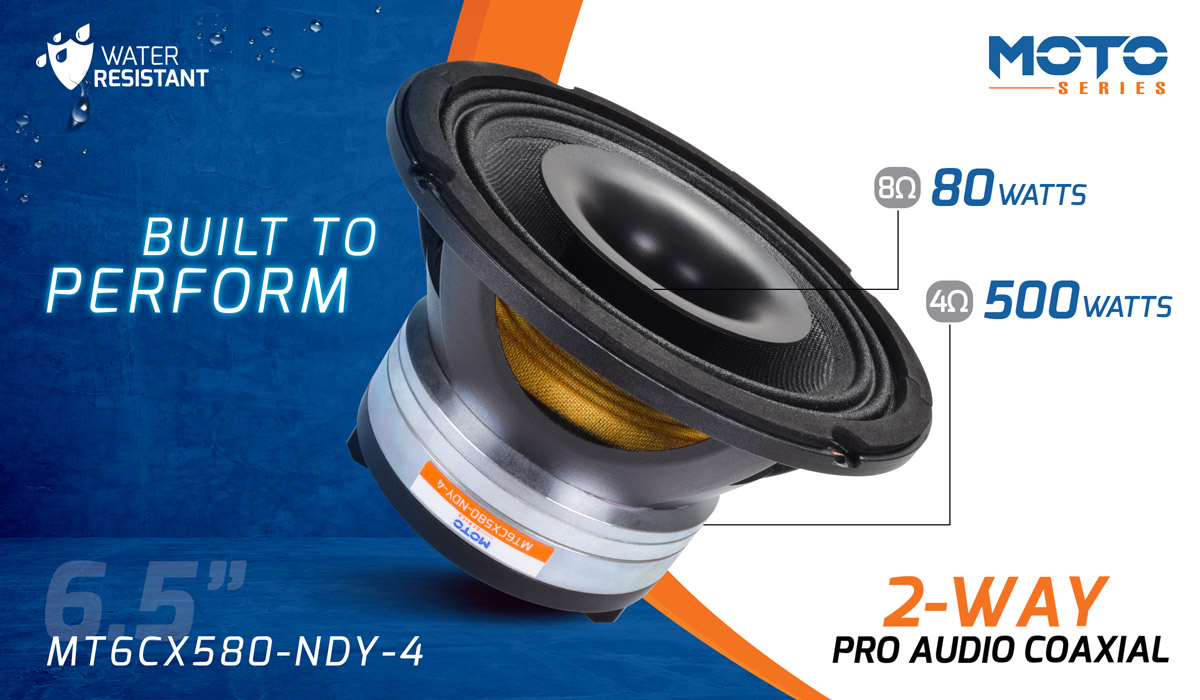

PRV Audio is proud to present our MT6CX580-NDY-4 Coaxial Speaker from the MOTO Series (MT), high performance PRO audio line dedicated to motorsports installations.
This coaxial speaker is an easy fit and does not require an additional tweeter. Made from the highest quality materials and components to resist weather conditions and provide an easy and simple bolt on installation that transforms your system into the best sound reproduction available by replacing your factory speaker.
This 2-way coaxial loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.
- Waterproof treated paper cone and surround stand up to the harshest conditions with true PRO audio performance
- Full Range Sound, 2-Way coaxial with low frequency speaker combined with 1″ exit Titanium driver, able to respond from 100 Hz all the way up to 20,000 Hz
- High Output Speaker for 4 Wheelers, Slingshots, and Motorcycles that mounts practically in almost every stock location

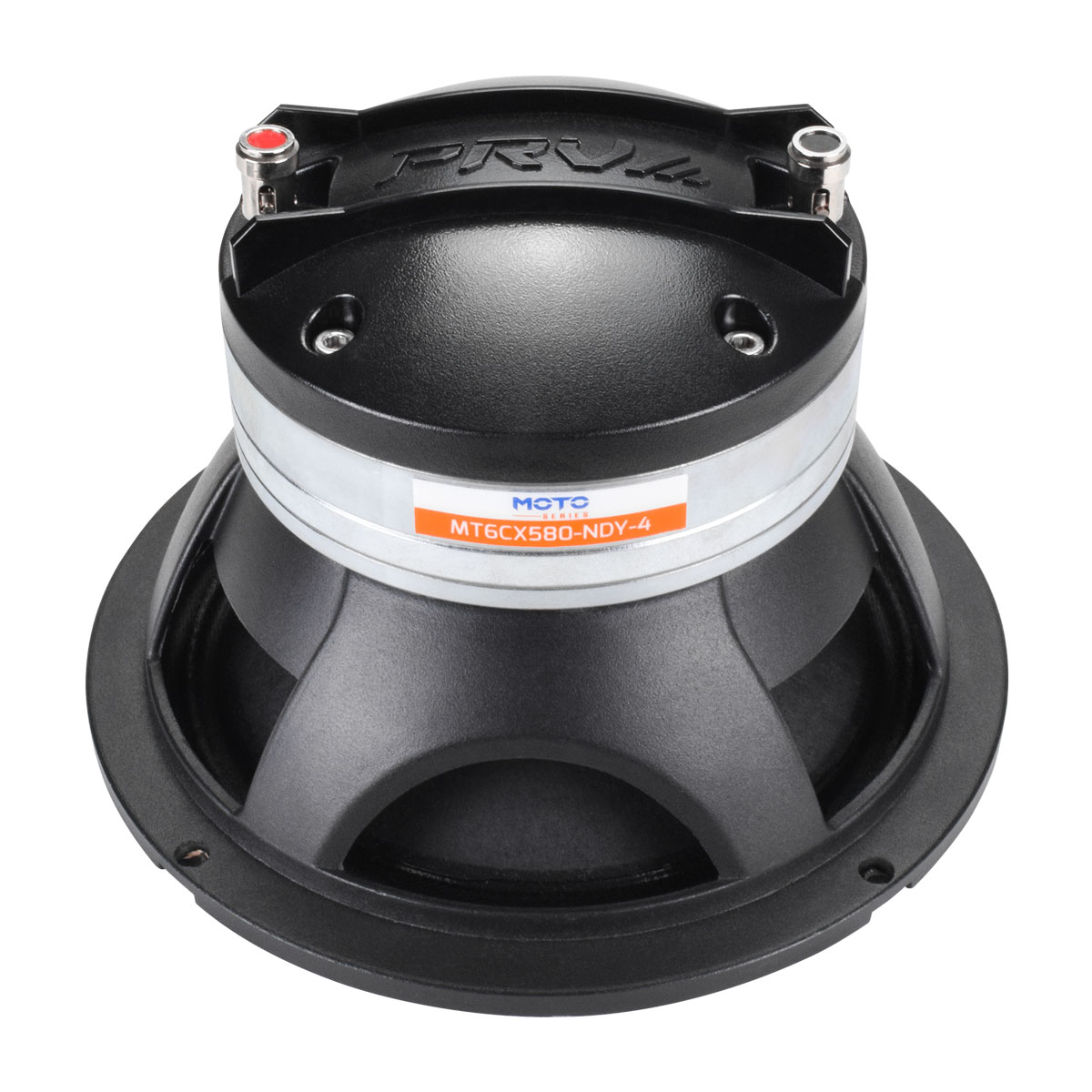

- Common Neodymium motor design for both low frequency and high frequency, reducing phase problems and providing the smallest profile without sacrificing performance
- 6.5″ High performance coaxial speaker Built to Perform! Capable of high output levels, with separated midbass speaker and horn driver for two amplifier installation.

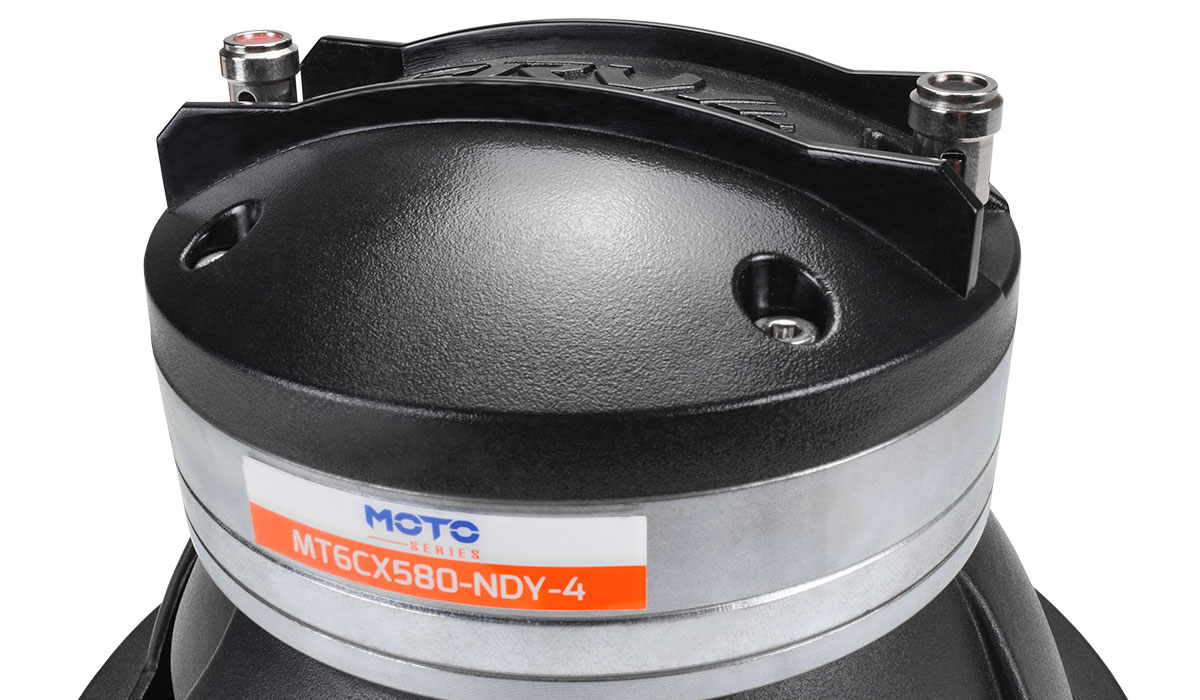

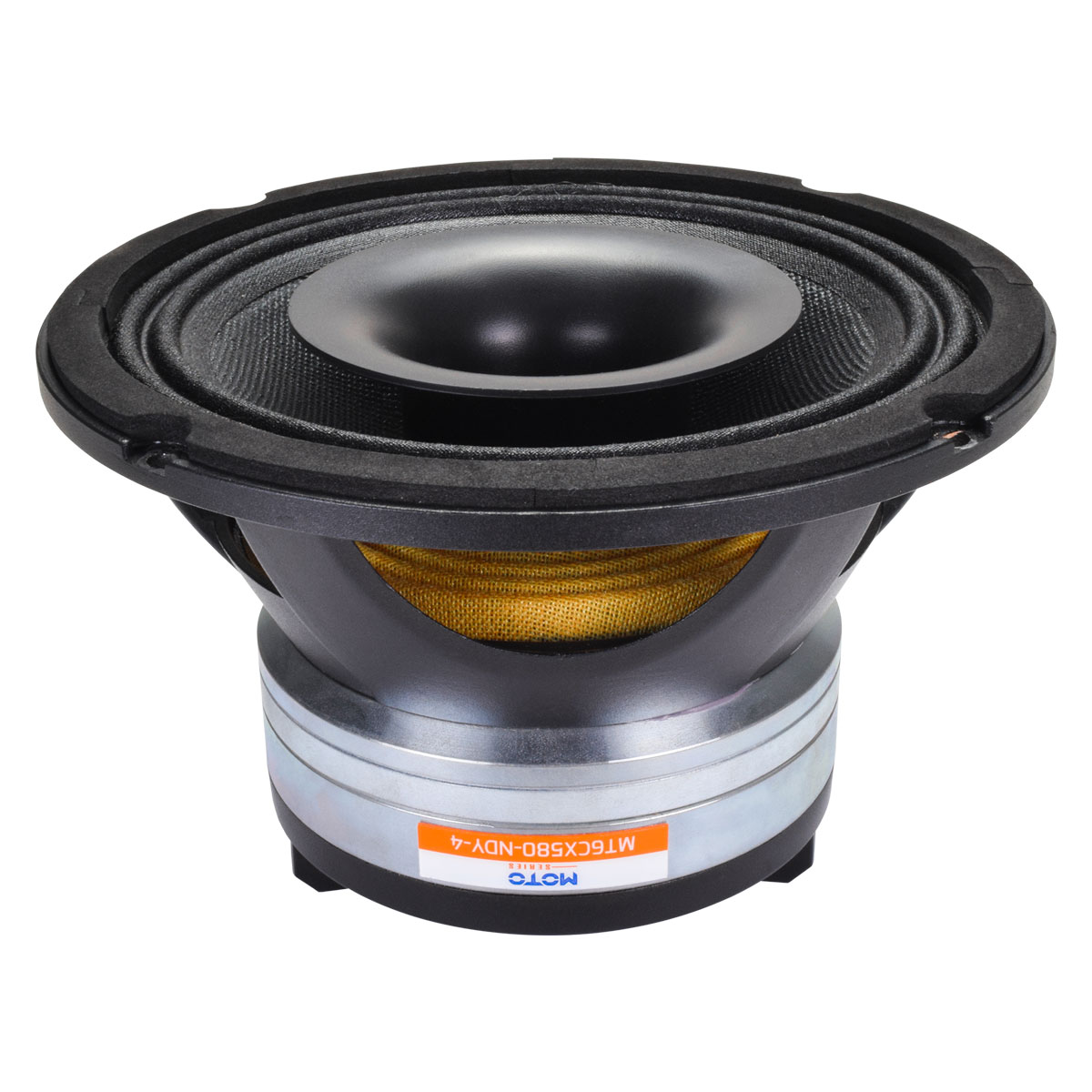

This coaxial features a built-in horn driver with D280Ti titanium diaphragm on a 70° conical wide coverage horn waveguide.

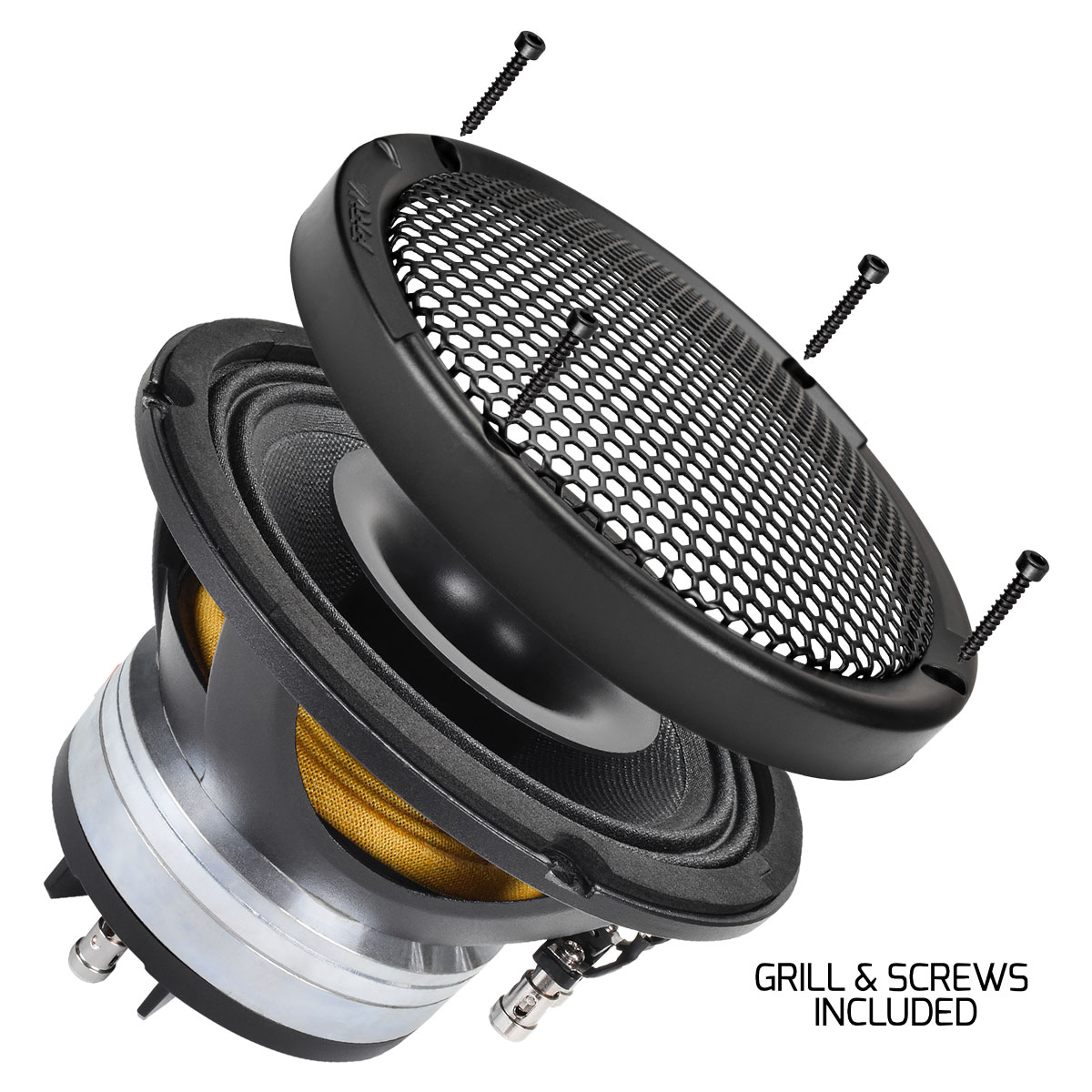

Its horn features a screw-on design to make it easy for the speaker to be serviced. Made from the toughest PM-4 Polycarbonate high wear-resistance material to ensure long life on its treads.
It is capable of reproducing the highest frequencies at easy covering a wide range, phasing up perfect with its low frequency speaker.
This low frequency speaker can keep up with its high frequency drivers thanks to its large voice coil and extreme sensitivity of 95dB, combined with large neodymium magnets for efficient heat dissipation.
It generates an average of 130 dB of output, making it easy to match up with its high efficiency horn tweeter.
Thanks to its special spider composition, no distortion occurs at high excursion, while its silver tinsel lead wire is capable of high current, providing exceptional reliability and dynamic sound.
This 6.5″ coaxial ( horn speaker ) is capable of high output levels and comes with a separate midbass speaker and horn driver for two amplifiers.
The separate midbass speaker is designed to handle lower frequencies, providing a rich and full bass sound, while the horn driver focuses on delivering clear and precise high frequencies. This division of labor allows each component to operate more efficiently, reducing distortion and ensuring a more balanced and dynamic overall sound quality.
Its incredible output capabilities make this coaxial one of the loudest speaker on the market!
PRV Audio 6.5″ Coaxial Speaker Neodymium MT6CX580-NDY-4 Full Range 2-Way Motorcycle Speaker
How to Install them:
This Coaxial speaker will need 500 Watts RMS per speaker for its low frequency and 80 Watts RMS per driver for its high frequency with recommended HPF using PRV Digital Signal Processor DSP
- 95 Hz at 18 dB per octave filter Crossover / BT18 for low frequency component
- 1400 Hz at 18 dB per octave filter Crossover / BT18 for high frequency component
Recommended LPF for speaker is 6,000 Hz at 18 dB per octave filter Crossover / BT18 or you may set it lower to 2000hz depending on the other components in your system.

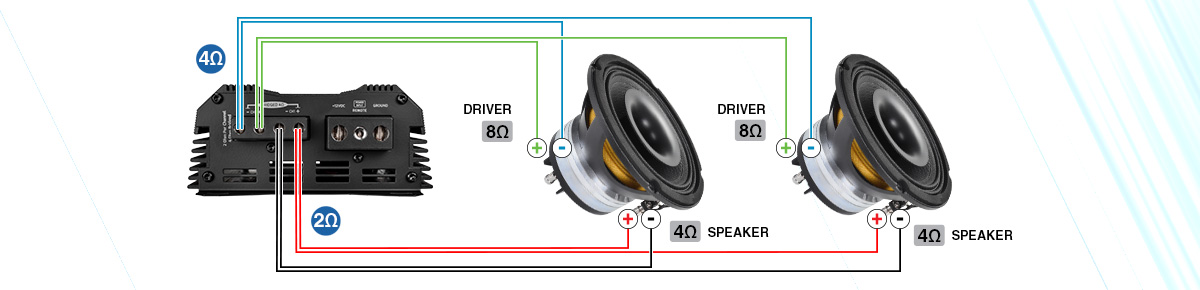

One Amplifier
2 Speakers Setup – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel into CH1 and 2 Drivers in parallel into CH2

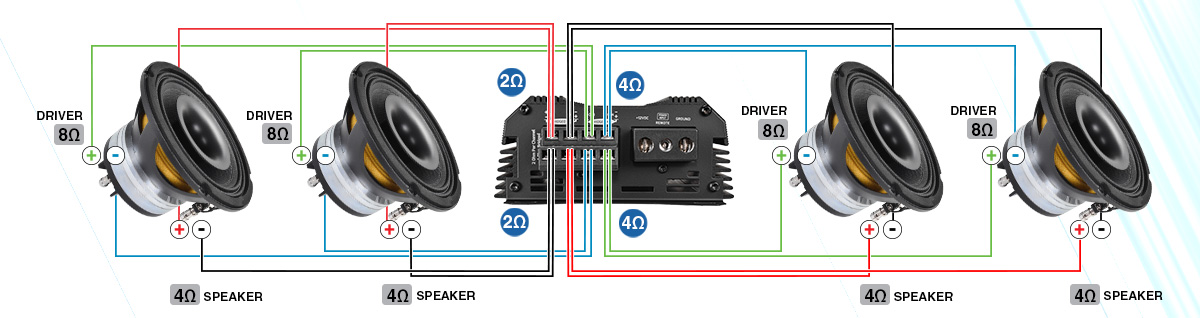

One Amplifier
4 Speakers Setup – 1x MDX2000.4 2 Ohm, 2 speakers in parallel per CH1 and CH2 / 2 Drivers in parallel per CH3 and CH4
Reach the highest output level by following these installation recommendations for your coaxial with two amplifiers application!
Two Amplifiers 4 Speakers Setup
Speaker Amp 1x MDX2000.2 2 Ohm 2 speakers in parallel on each channel, giving each speaker up to 500 Watts each
Driver Amp 1x QS400.4 2 Ohm 2 drivers in parallel per bridged channel, giving each driver up to 100 Watts each

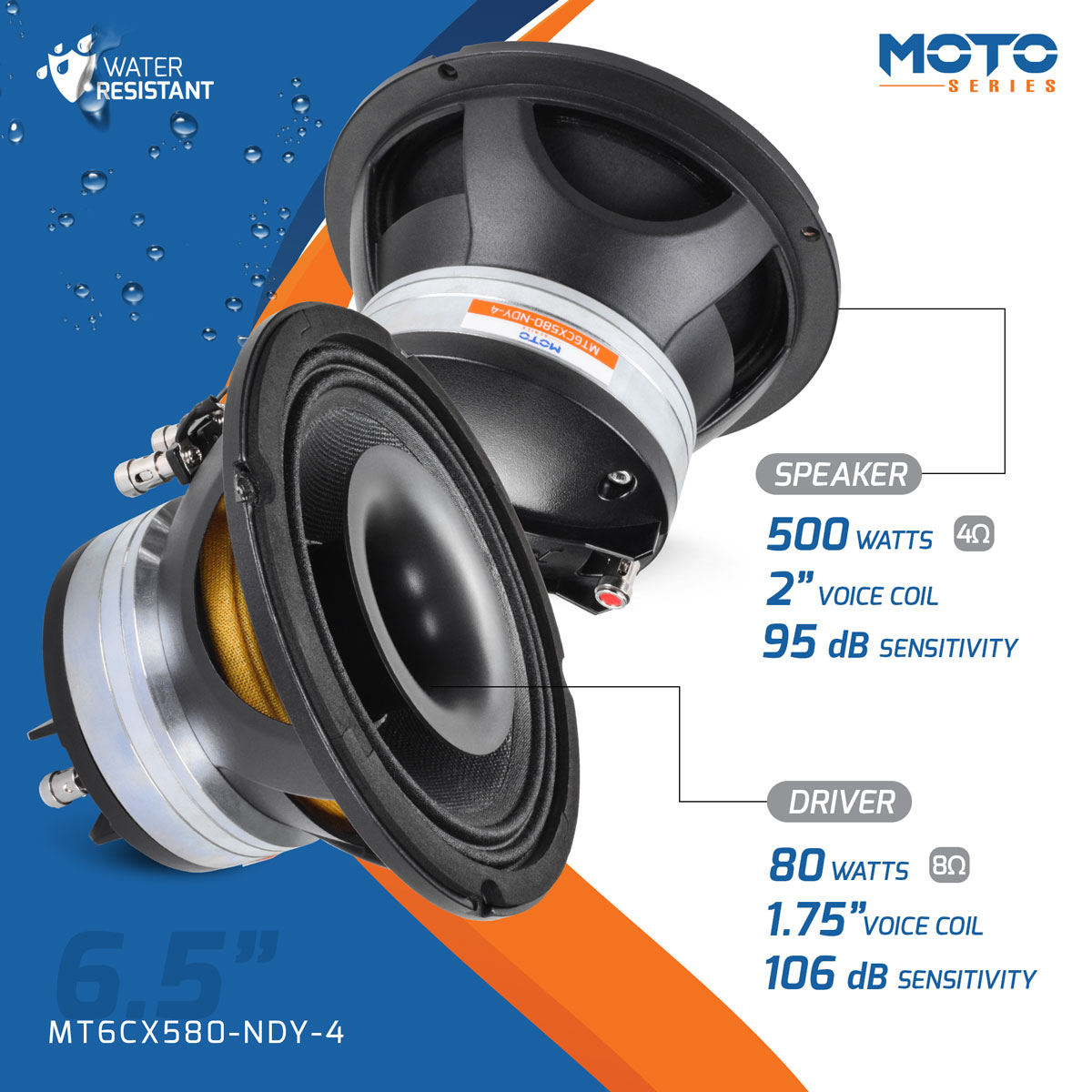

Technical Details
GENERAL SPECIFICATIONS
| Nominal and Throat Diameter | Low Freq. 6.5″ (152 mm) | High Freq. 1″ (25.4 mm) |
| Nominal impedance | 4 Ohm | 8 Ohm |
| Nominal Power Handling* | 300 Watt | 40 Watt |
| Continuous Program Power (RMS)** | 500 Watt | 80 Watt |
| Max Peak Power*** | 1200 Watt | 160 Watt |
| Sensitivity 2.00V at 1m | 95 dB | 106 dB |
| Recommended Hi Pass Crossover *For Full Power Handling | 105 Hz* *12db Per Octave Crossover | 1800 Hz* *12db Per Octave Crossover |
| Frequency Response | 100 – 10 kHz | 1.3 – 20 kHz |
| Voice Coil Diameter | 2″ (51 mm) | 1.75″ (44 mm) |
| Voice Coil Wire | CCAW | CCAW |
| Voice Coil Winding Depth | 11.0 mm | N/A |
| Former Material | Kapton | Kapton |
| Magnetic Gap Depth | 8.0 mm | N/A |
| Frame Material | Aluminum | Titanium |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.77 l |
| Excursion (mathematical) | Xmax*** | 3.50 mm |
| Free Air Resonance | Fs | 105.9 Hz |
| Mechanical Factor | Qms | 8.54 |
| Electrical Factor | Qes | 0.43 |
| Total Factor | Qts | 0.41 |
| Cone Area | Sd | 143 cm² |
| Mechanical Mass | Mms | 11.19 g |
| Bl Factor | Bl | 7.16 Tm |
| Dc Resistance | Re | 3.0 Ohm |
| Inductance | Le | 0.178 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 10.33 g |
| Mechanical Compliance | Cms | 0.202 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

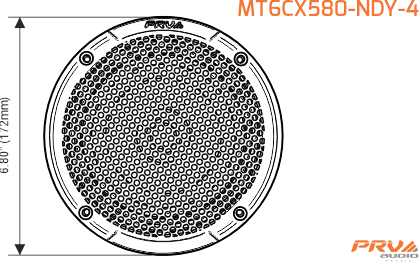

EXTRA INFO
| Overall Diameter | 6.48″ (164.5 mm) |
| Front Mount Baffle Cutout | 5.62″ (143 mm) |
| Mounting Depth | 3.93″ (100 mm) |
| Overall Depth | 4.37″ (111 mm) |
| Net Weight | 4.18 Lbs (1.9 kg) |
| Shipping Weight | 4.62 Lbs (2.1 kg) |
| Carton Dimensions W x L x H | 7.6″ x 7.0″ x 5.12″ (193 x 178 x 130 mm) |
Repair Parts
Recone Kit for MT6CX580-NDY-4
Videos
6 reviews for MT6CX580-NDY-4
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

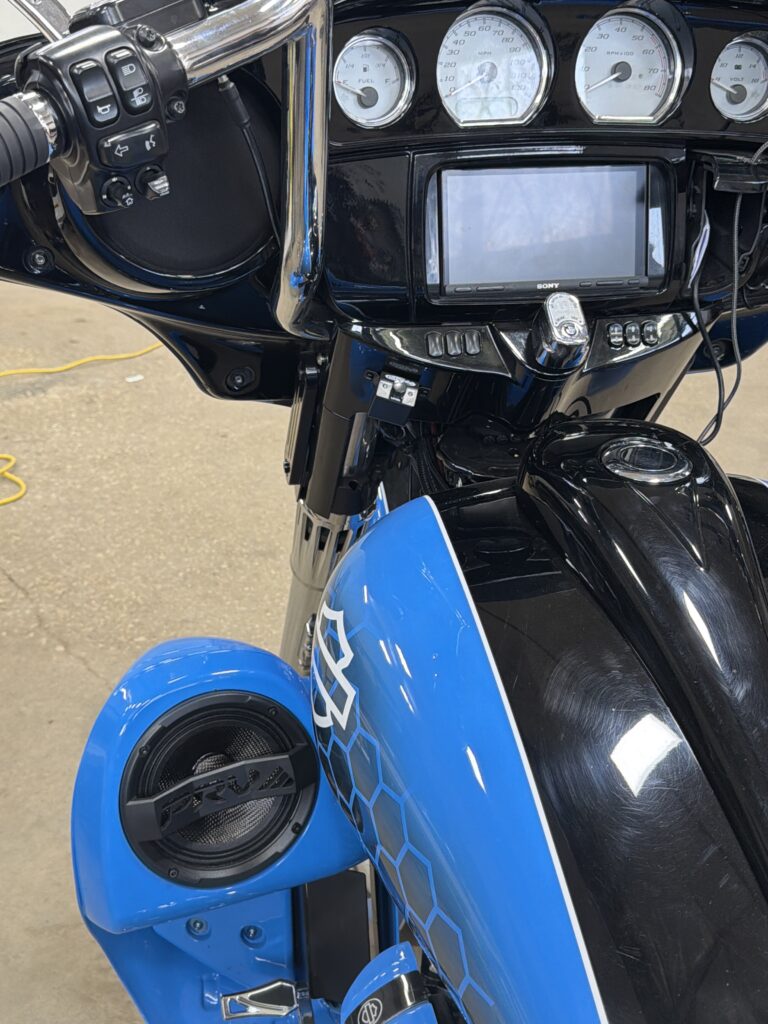

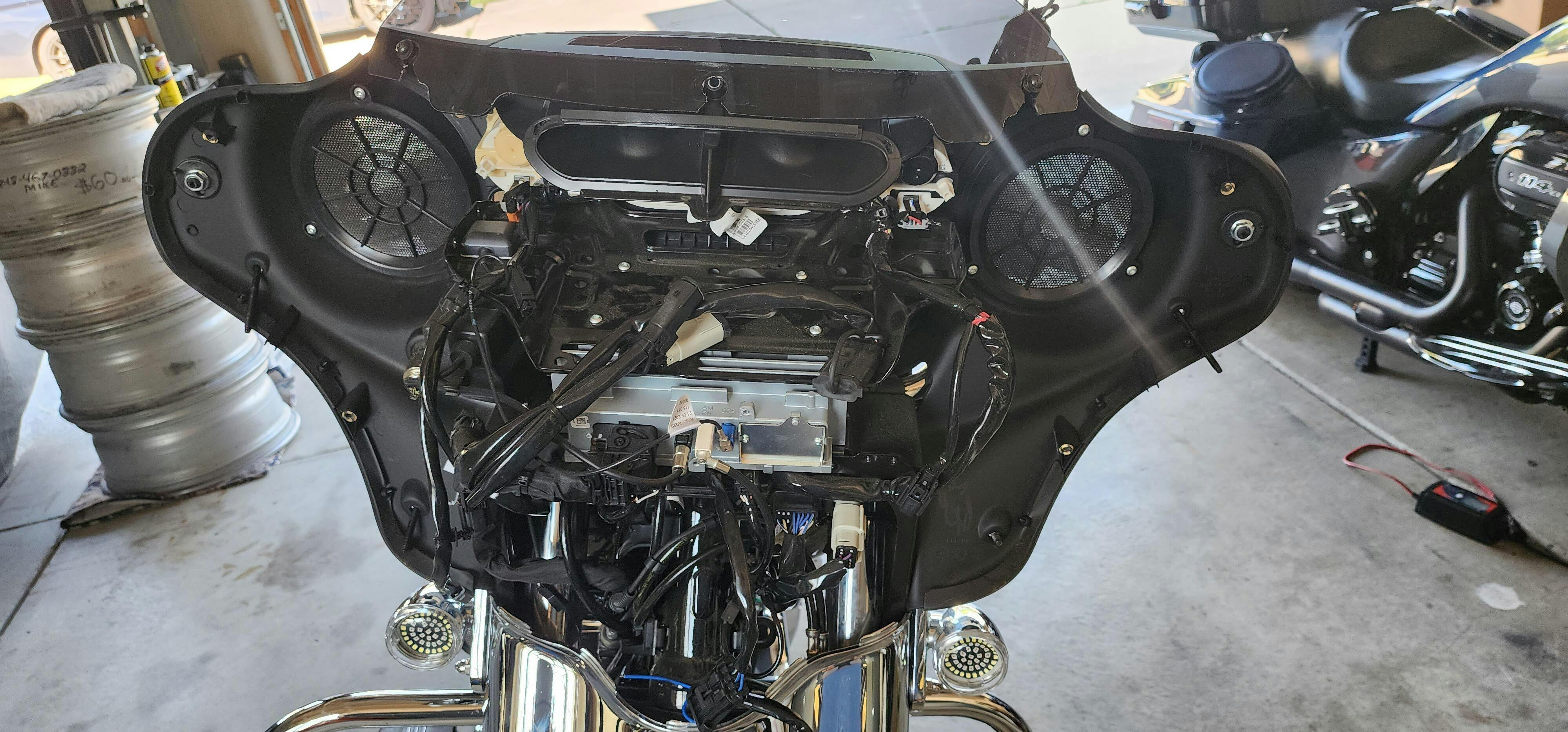

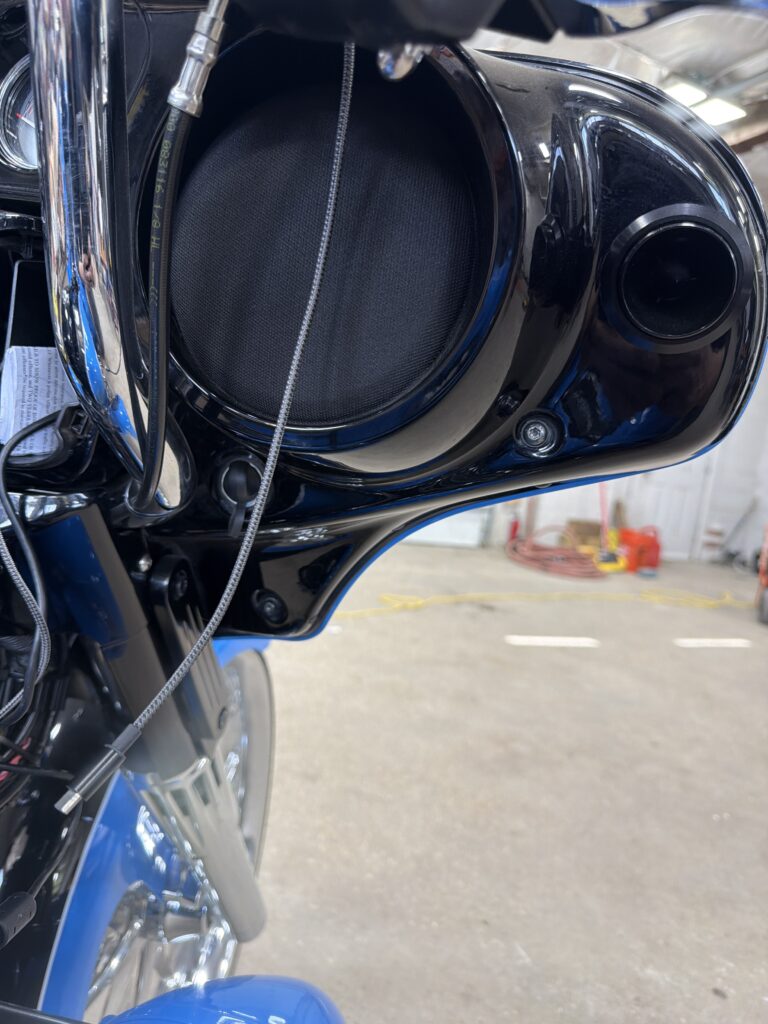

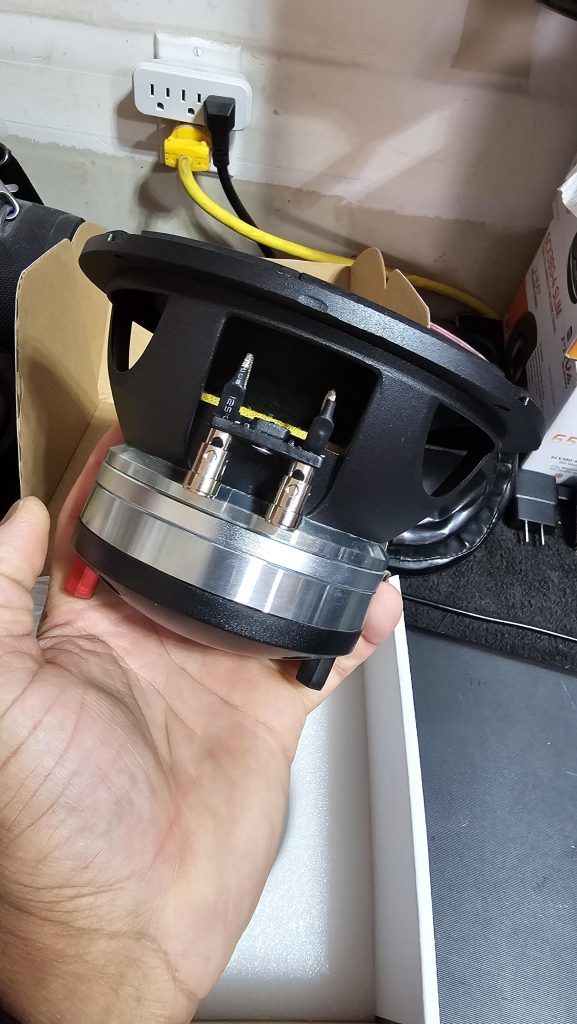

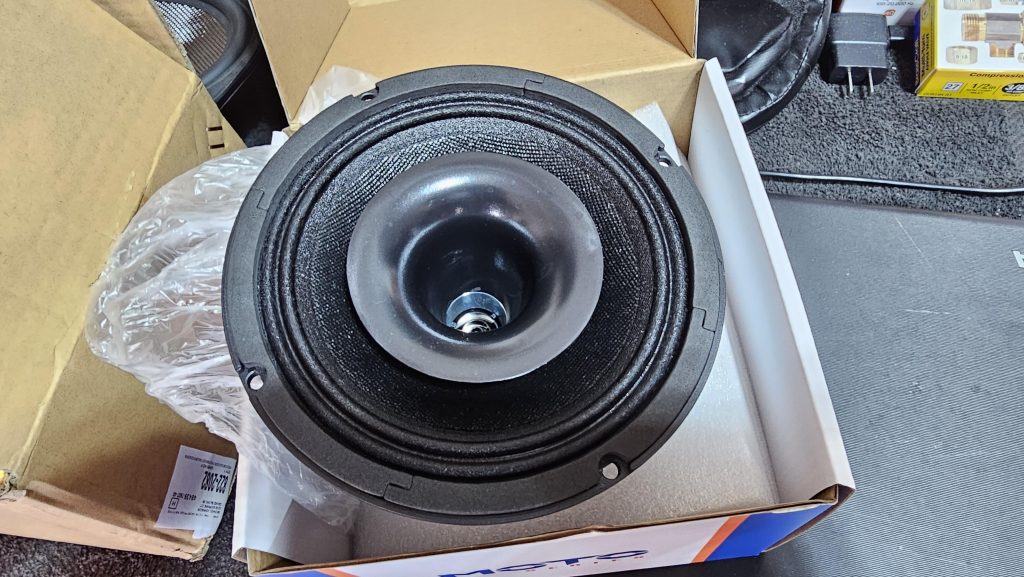

Customer Images
MT6CX580-NDY-4
Q & A
MT6CX580-NDY-4
I’ve used the MT6CX580-NDY-4 in a Road Glide and the results were insane.
Crystal-clear highs from the compression driver and strong mids even at highway speeds. Way louder and cleaner than a regular coaxial. If you want real performance in a compact setup, this is it. Check out my YouTube video showing exactly what this speaker is and how to use it!
Best sounding speakers I ever heard
I haven’t hook them up yet still ordering parts waiting on dsp now
I’ve tried different brands, groundzero and Hertz And This PRV Coaxials are the best I’ve tried!
Love these Speakers super clean and loud
They will fit with a little modification to the speaker pods, well worth it. Just dont expect too much bass out of them if you plan on putting the rated power to it. The woofers are connected to a soundigital 1200.2 and the horns to a soundigital 400.2
These speakers really impressed me hope they come out with a 8in. version. These were game changers for me. Used them on a 21 harely street glide. Not much work required to fit in the stock pods. Also easy to tune very strong vocals.
