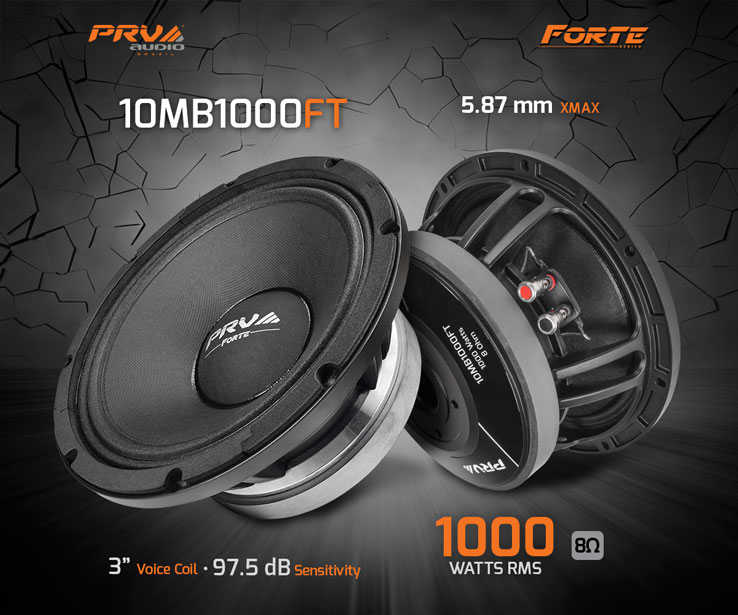

10" MIDBASS LOUDSPEAKER

10MB1000FT

In stock

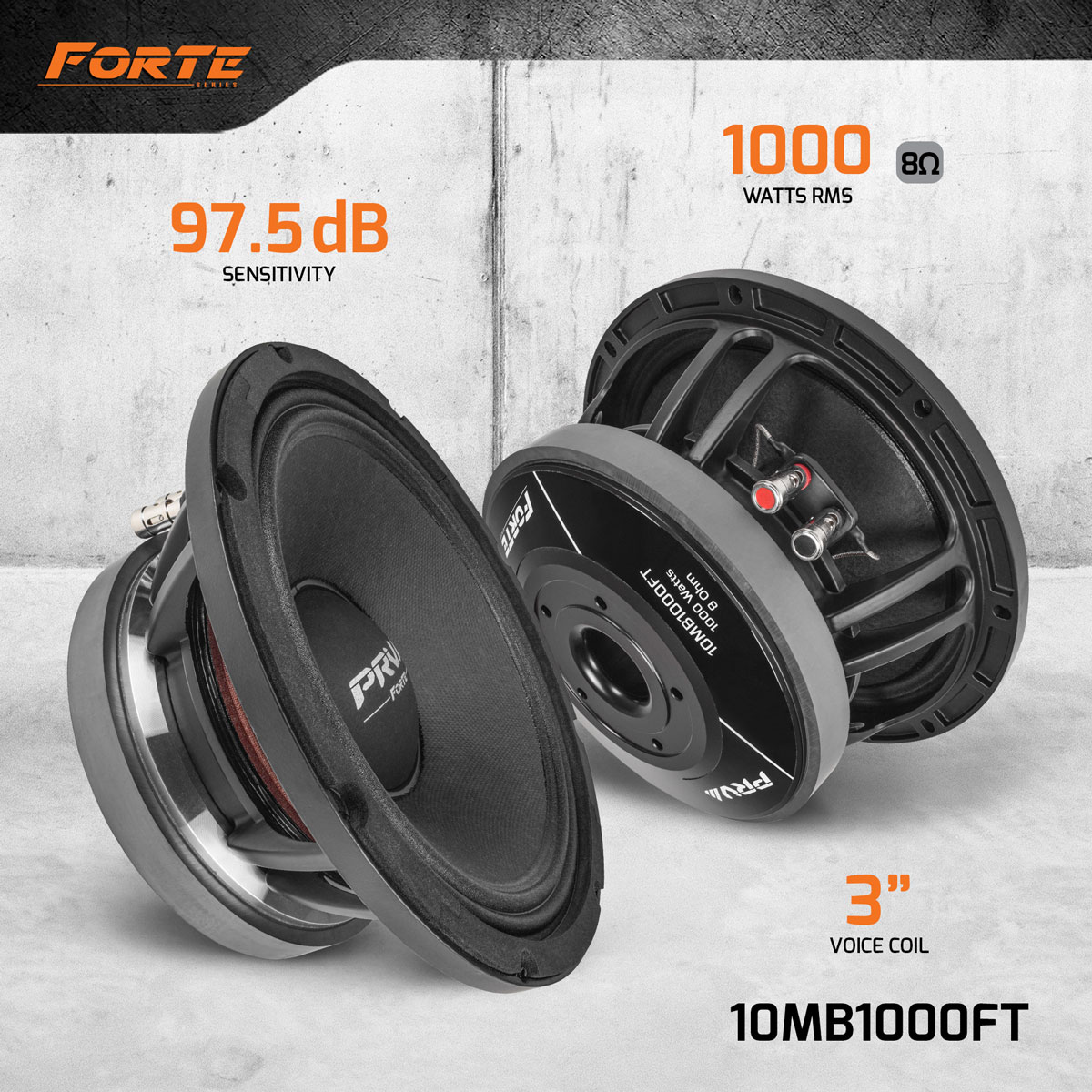

10″ Midbass – 8 Ohm
Ferrite Magnet
97.5 dB – 1000 Watts

$169.91

In stock

PRICE FOR SINGLE UNIT

SKU: 10MB1000FT Category: Low Frequency Speakers Tags: FORTE SERIES, MIDBASS

Features

Combining high output with low distortion midbass response, PRV Audio’s 10MB1000FT 10″ professional midbass loudspeaker is the perfect choice for high-powered sound reinforcement speakers, stage monitors, and even high SPL PROAudioOnWheels systems.

A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10″ midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response. Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.

3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohms
Ventilated voice coil gap reduces power compression
High Xmax for more midbass output
1000 watts continuous program power rating makes the high acoustical output
Built to Perform! It will stand up to considerable use and abuse.

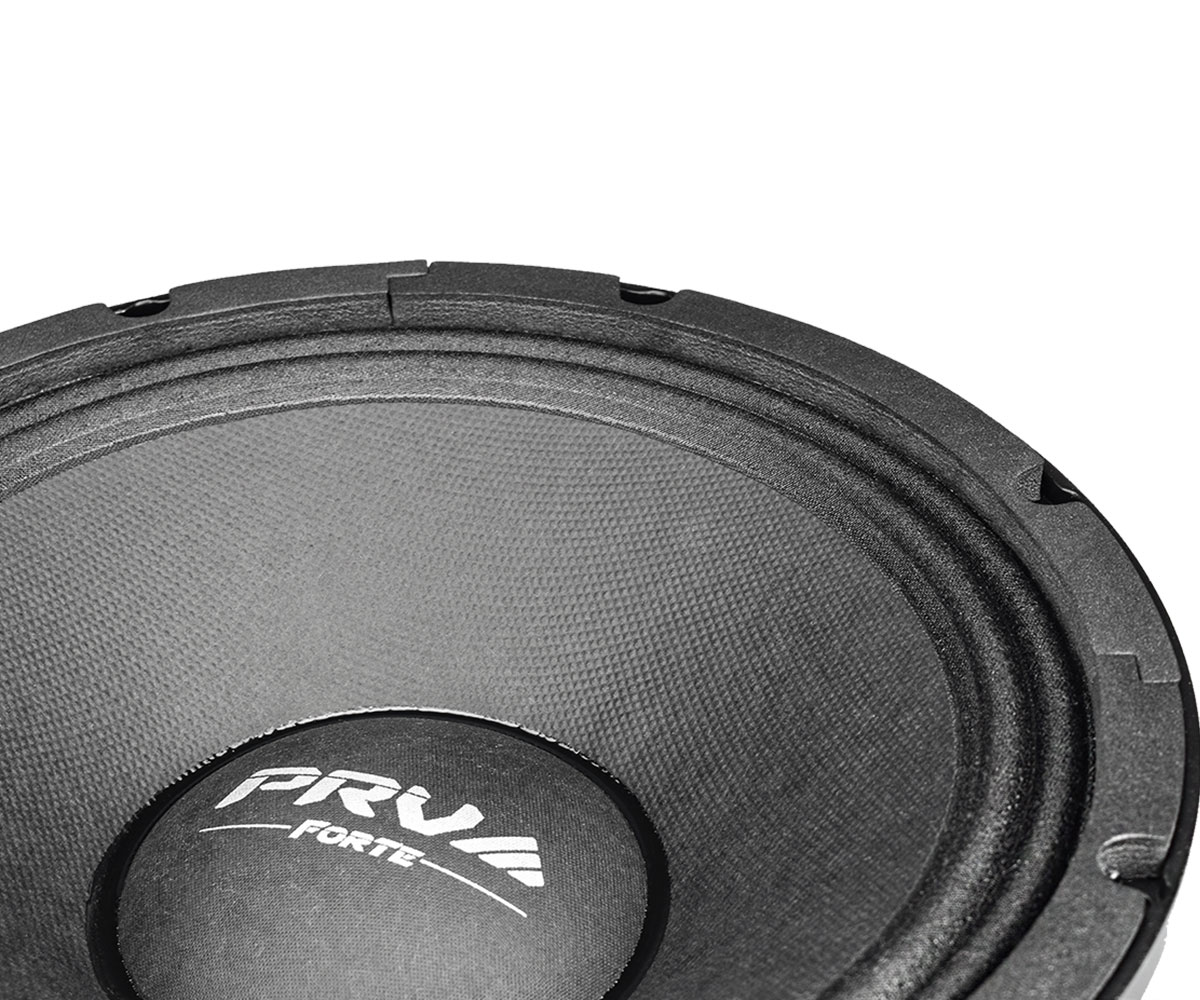

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The Perfect speaker for TUKUTEO® sound. The high sensitivity rating of 97.5 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

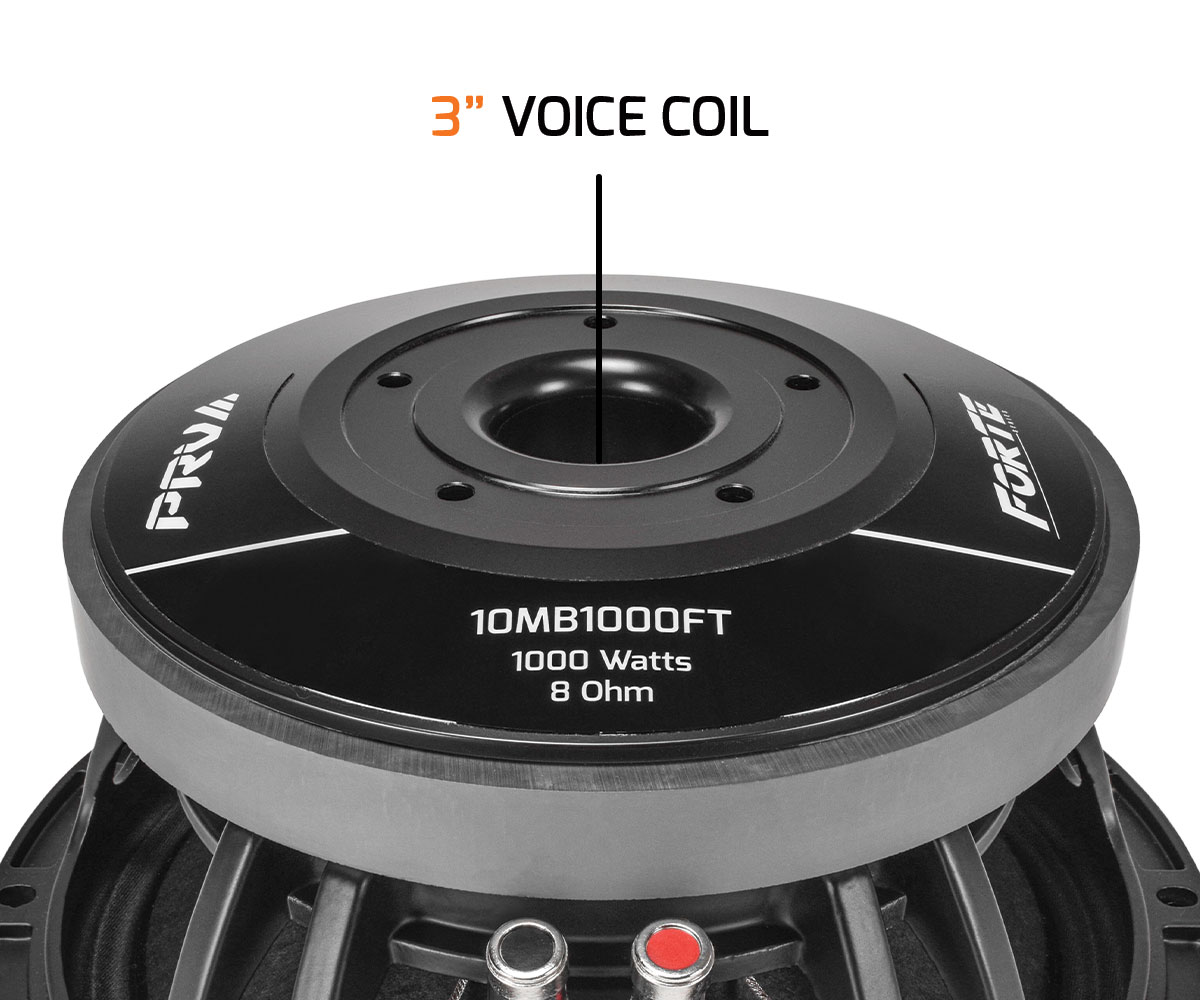

The voice coil is wound on a 3″ glass fiber with Copper Clad aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter	10″ (254 mm)
Nominal impedance	8 Ohms
Nominal Power Handling*	500 Watts
Continuous Program Power (RMS)**	1000 Watts
Max Peak Power***	2000 Watts
Sensitivity 2.83V at 1m	97.5 dB
Recommended Hi Pass Crossover For Full Power Handling	120 Hz 12db Per Octave Crossover

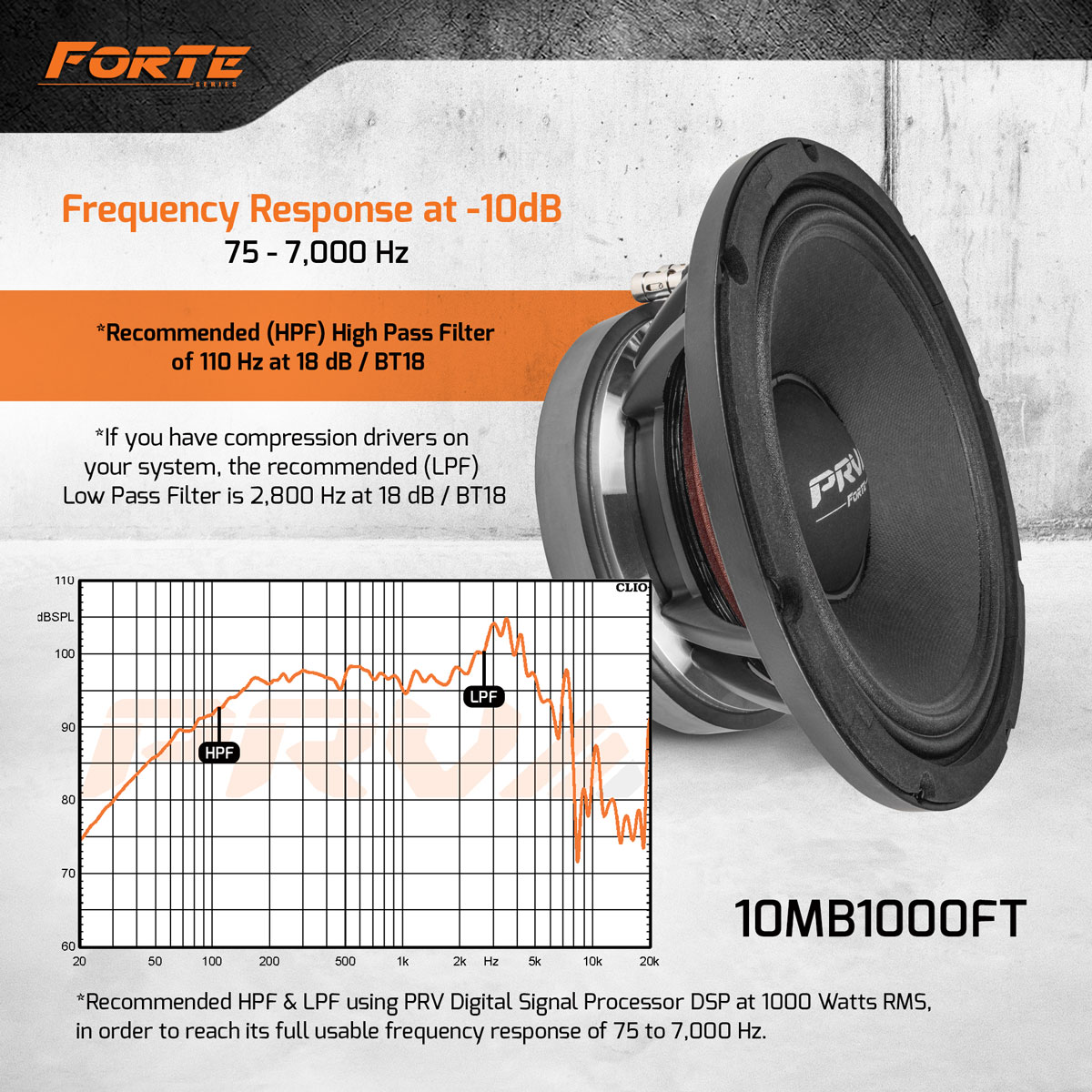

Frequency Response	75- 7,000 Hz
Voice Coil Diameter	3″ (75 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	16.5 mm
Former Material	Glass Fiber
Magnetic Gap Depth	9.5 mm
Frame Material	Die Cast Aluminum

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.}
^{**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.}
^{***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.}

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	32.3 l
Excursion (mathematical)***	Xmax	5.87 mm
Free Air Resonance	Fs	75.0 Hz
Mechanical Factor	Qms	12.41
Electrical Factor	Qes	0.33
Total Factor	Qts	0.32
Cone Area	Sd	380 cm²
Mechanical Mass	Mms	28.10 g
Bl Factor	Bl	14.49 Tm
Dc Resistance	Re	5.3 Ohm
Inductance	Le	0.26 mH at 1 kHz
Mechanical Mass Without Air	Mmd	23.30 g
Mechanical Compliance	Cms	0.160 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

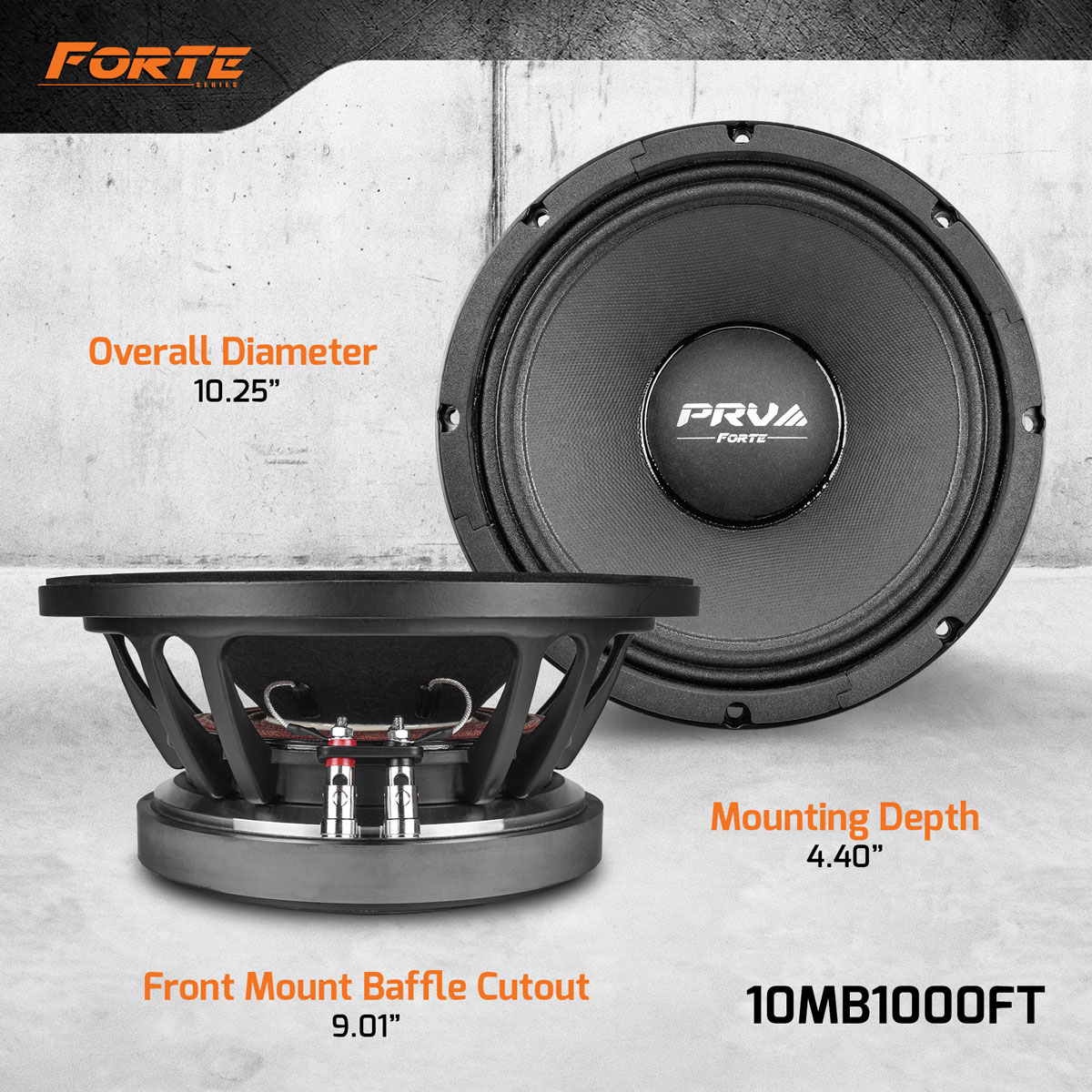

EXTRA INFO

Overall Diameter	10.25” (260.5 mm)
Front Mount Baffle Cutout	9.01” (229 mm)
Mounting Depth	4.40” (111.5 mm)
Overall Depth	4.96” (126 mm)
Net Weight	15.0 Lbs (6.8 kg)
Shipping Weight	16.6 Lbs (7.54 kg)
Carton Dimensions W x L x H	11.61”x 11.61” x 6.30” (295 x 295 x 160mm)
