Features

The new 12MR2000-NDY will sure change the game on vocal reproduction!

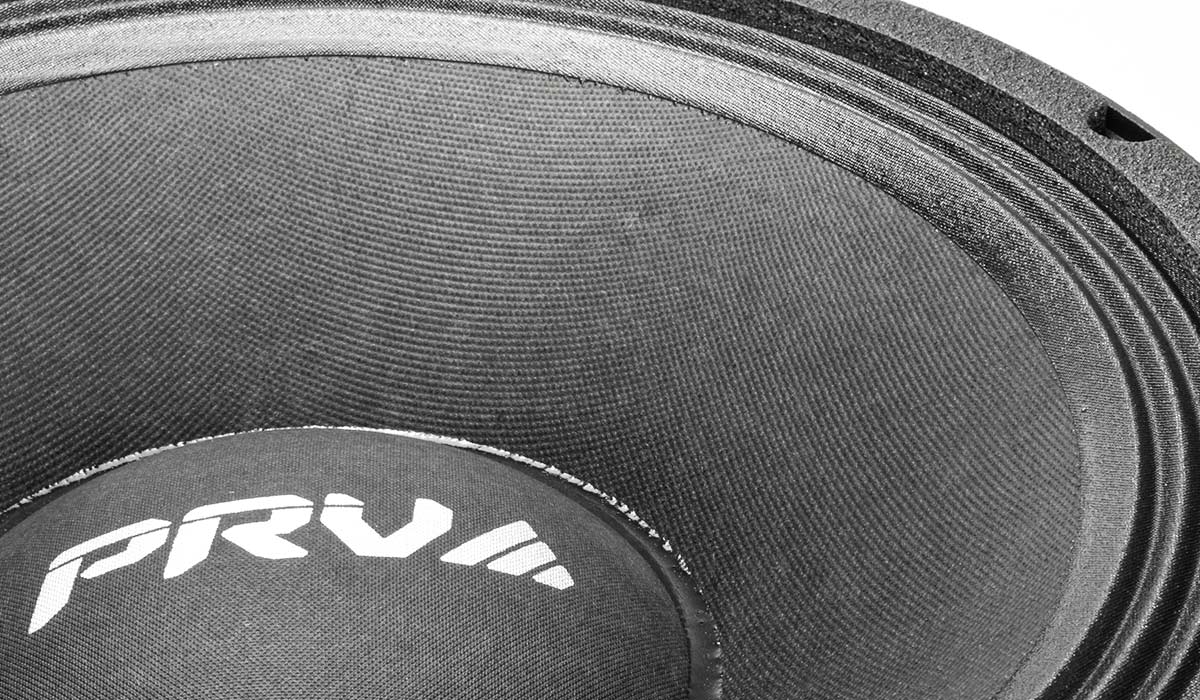

Features a large 4” CCAW inside/out voice coil that results in very high efficiency while providing smooth and accurate Mid Range response.

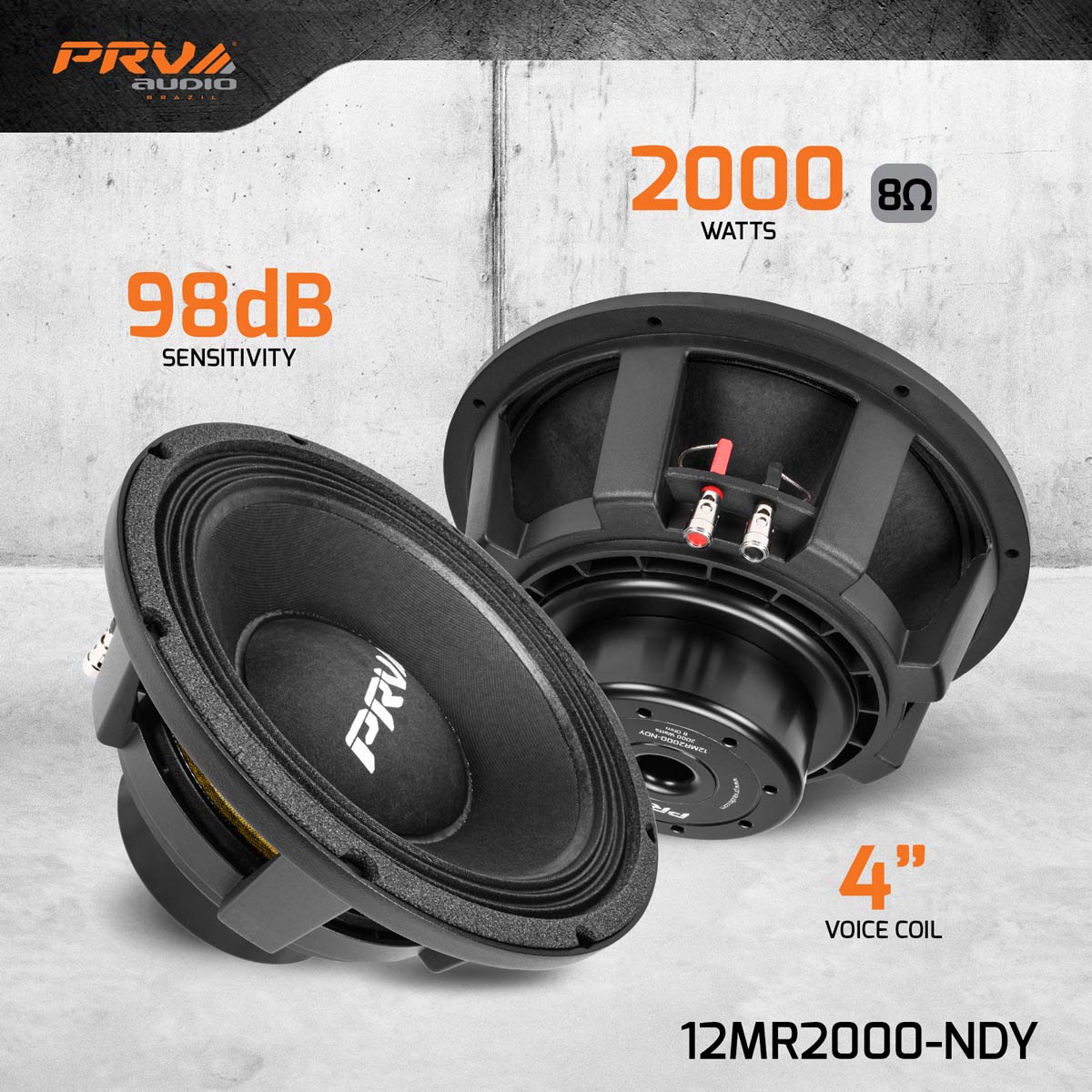

Highlights

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 1000 Watts
• Program Power: 2000 Watts
• Sensitivity (1W/1m): 98 dB
• Voice Coil Diameter: 4″

GENERAL SPECIFICATIONS

Nominal Diameter	12″ (305 mm)
Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	1000 Watts
Program Power	2000 Watts
Sensitivity 2.83V at 1m	98 dB
Recommended Hi Pass Crossover** **For Full Power Handling	180 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	55 – 5,500 Hz
Voice Coil Diameter	4″ (100 mm)
Voice Coil Wire	Copper
Voice Coil Winding Depth	16.8 mm
Former Material	Glass Fiber
Magnetic Gap Depth	9.0 mm
Frame Material	Die Cast Aluminum



THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	48.16 l
Excursion (mathematical)***	Xmax	6.15 mm
Free Air Resonance	Fs	54.48 Hz
Mechanical Factor	Qms	17.61
Electrical Factor	Qes	0.35
Total Factor	Qts	0.34
Cone Area	Sd	573 cm²
Mechanical Mass	Mms	81.11 g
Bl Factor	Bl	22.77 Tm
Dc Resistance	Re	6.6 Ohms
Inductance	Le	0.69 mH at 1 kHz
Mechanical Mass Without Air	Mmd	73.35 g
Mechanical Compliance	Cms	0.105 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	12.32” (313 mm)
Front Mount Baffle Cutout	11.12” (282.5 mm)
Mounting Depth	5.97” (151 mm)
Overall Depth	5.63” (143 mm)
Net Weight	13.93 Lbs (6.32kg)
Shipping Weight	18.27 Lbs (8.29 kg)
Carton Dimensions W x L x H	12.6” x 12.6” x 7.8” (363 x 363 x 205mm)
